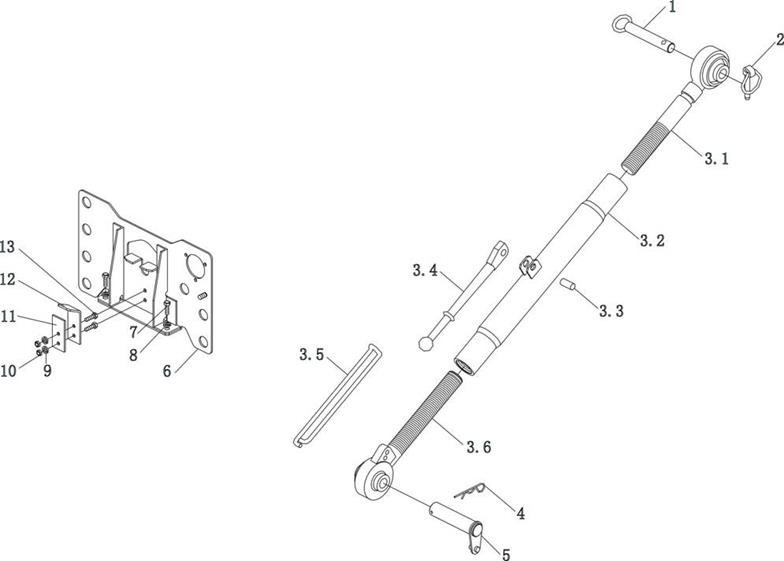

YTO X100 X125 Tractor Parts Catalogue 15
|
No. |
Part |
Drawing No. |
Qty. |
No. |
Part |
Drawing No. |
Qty. |
|
1 |
Pin, adapter sleeve |
822483/1.89.967 |
1 |
15 16 17 19
19.1
19.2 19.3 19.4
19.5 19.6 19.7 20 21
22
23 |
Washer 18 Support, limit link Pin (FR), limit link Limit rod assembly
Section assembly (FR), limit link Lock pin assembly, limit link Sleeve assembly, limit rod Section (RR), limit link
Pin6.3×40 Pin (RR), limit link Fork, limit rod Washer, pin (LWR), drawbar Link assembly (LWR, LH)
Link assembly (LWR, RH) Locking pin |
GB 93-87 SZ1204.56.608 5125861/1.89.955 SZ1004.56.055①
5103862/1.89.959A 5103857/1.89.952 1204.56.103② 1.89.951/5103856① SZ1204.56.510 562106/1.89.962 SZ1004.56.052① SZ1204.56.053② 567406/1.82.945 |
6 2 2 2 2 2
2 2 2 2 2 2 2 2 1 1 1 1 5 |
|
2 |
Lock pin assembly |
4967704/1.82.941A |
3 |
||||
|
3 |
Link assembly (UPR) |
5133109/1.89.611 |
1 |
||||
|
3.1 |
Screw assembly (RR), link |
5102185/1.89.662A |
1 |
||||
|
(UPR) |
|||||||
|
3.2 |
Adjustment screw tube |
5133112/1.89.663 |
1 |
||||
|
assembly, link (UPR) |
|||||||
|
3.3 |
Pin12×40 |
GB 8789-86 |
1 |
||||
|
3.4 |
Crank |
5133116/1.89.663A |
1 |
||||
|
3.5 |
Spring |
5140619/1.89.664 |
1 |
||||
|
3.6 |
Section assembly (FR), link |
5140619/1.89.661A |
1 |
||||
|
4 |
Locking pin, link (UPR) |
88578668/1.89.961 |
1 |
||||
|
5 |
Pin assembly, link (UPR) |
5131752/1.89.669A |
1 |
||||
|
6 |
Bracket assembly, quick coupler |
5133016/1.89.666 |
1 |
||||
|
7 |
Bolt M8×20 |
GB 5781-86 |
2 |
||||
|
8 |
Washer 8 |
GB 859-87 |
2 |
||||
|
9 |
Washer 6 |
GB 859-87 |
4 |
||||
|
10 |
Nut M6 |
GB 41-86 |
2 |
||||
|
11 |
Plate |
44018510/1.82.144 |
1 |
||||
|
12 |
Spring, bracket, valve |
44019067/1.82.143 |
1 |
||||
|
13 |
Bolt M6×20 |
GB 5781-86 |
2 |
||||
|
14 |
Bolt M18×1.5×45 |
15984121/10312 |
6 |
Notes: ① For 1004C. ② For 1254C.
|
No. |
Part |
Drawing No. |
Qty. |
No. |
Part |
Drawing No. |
Qty. |
|

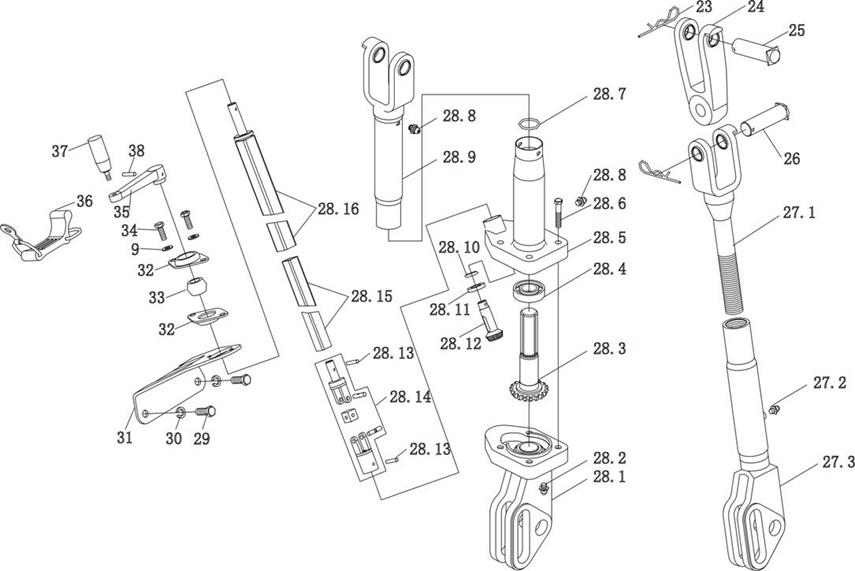

24 |
Clevis (UPR), lift link |
SZ1204.56.501 |
2 |
28.10 |
O-ring 15×2.65 |
GB 3452.1-82 |
1 |
|
25 |
Connecting pin (UPR), lift link |
5130456/1.89.657 |
2 |
28.11 |
Washer, driving gear, lift link |
4999029/1.89.659 |
1 |
|
(LH & RH) |
(RH) |
||||||
|
26 |
Connecting pin (UPR), lift link |
5111643/1.89.657 |
1 |
28.12 |
Driving gear, lift link (RH) |
885130441/1.89.650 |
1 |
|
(LH & RH) |
28.13 |
Pin5×26 |
13907470/12215 |
2 |
|||
|
27 |
Lift link assembly (LH) |
SZ804.56A.050 |
1 |
28.14 |
Hinge, link (RH) |
885130446/1.89.652A |
1 |
|
27.1 |
Clevis assembly (UPR), lift link (LH) |
SZ804.56A.051 |
1 |
28.15 |
Inner tube assembly, adjusting yoke |
5130443/1.89.652 |
1 |
|
27.2 |
Oil cup M10×1 |
GB 1152-89 |
1 |
28.16 |
Outer sleeve unit, lift link |
SZ804.56A.058 |
1 |
|
27.3 |
Clevis assembly (LWR), lift |
SZ804.56A.052 |
1 |
(RH) |
|||
|
link |
29 |
Bolt M10×1.25×25 |
GB 5786-86 |
2 |
|||
|
28 |
Lift link assembly (RH) |
SZ804.56A.054 |
1 |
30 |
Washer 10 |
GB 859-87 |
2 |
|
28.1 |
Clevis assembly (LWR), lift link (RH) |
SZ804.56A.057 |
1 |
31 |
Bracket, adjusting handle, lift link (RH) |
5132741/1.89.695 |
1 |
|
28.2 |
Oil cup |
13410911/14649 |
1 |
32 |
Ball seat of ball bushing |
5110722/1.21.178 |
2 |
|
28.3 |
Adjusting screw, lift link (RH) |
SZ804.56A.504 |
1 |
33 |
Ball, lift rod (RH) |
5130480/1.89.696 |
1 |
|
28.4 |
Bearing 8106 |
GB 301-84 |
1 |
34 |
Bolt M6×16 |
GB 5781-86 |
1 |
|
28.5 |
Gear chamber assembly |
SZ804.56A.056 |
1 |
35 |
Adjusting handle, lift link |
5130458/1.89.665 |
1 |
|
28.6 |
Bolt M10×1.25×55 |
GB 5785-86 |
4 |
(RH) |
|||
|
28.7 |
O-ring 30×2.65 |
GB 3452.1-82 |
1 |
36 |
Hook assembly, lift link |
5136887/1.89.694 |
1 |
|
28.8 |
Oil cup M10×1 |
GB 1152-89 |
2 |
(RH) |
|||
|
28.9 |
Clevis assembly (UPR), lift |
SZ804.56A.055 |
1 |
37 |
Head, handle, lift link (RH) |
5130460/1.89.665A |
1 |
|
link (RH) |
38 |
Pin5×12 |
13907270/12215 |
1 |
|
No. |

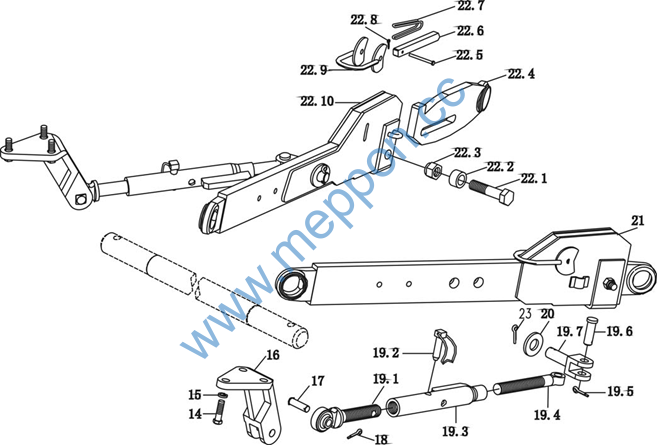

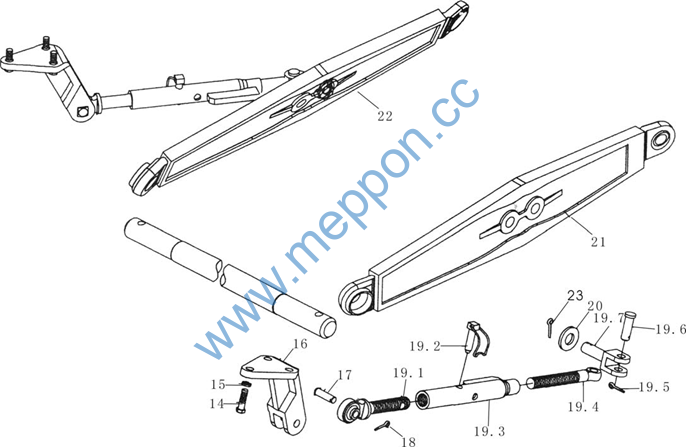

Part |
Drawing No. |
Qty. |
No. |
Part |
Drawing No. |
Qty. |
|
1 |
Pin, adapter sleeve |
822483/1.89.967 |
1 |
17 |
Pin (FR), limit link |
5125861/1.89.955 |
2 |
|
2 |
Lock pin assembly |
4967704/1.82.941A |
3 |
18 |
Pin 6.3×40 |
GB 91-86 |
4 |
|
3 |
Link assembly (UPR) |
5133109/1.89.611 |
1 |
19 |
Limit rod assembly |
1204.56.011② |
2 |
|
3.1 |
Screw assembly (RR), link |
5102185/1.89.662A |
1 |
5113070/1.89.913① |
|||
|
(UPR) |
19.1 |
Section assembly (FR), limit |
5103858/1.89.951A |
2 |
|||
|
3.2 |
Adjustment screw tube |
5133112/1.89.663 |
1 |
link |
|||
|
assembly, link (UPR) |
19.2 |
Lock pin assembly, limit link |
5103862/1.89.959A |
2 |
|||
|
3.3 |
Pin12×40 |
GB 8789-86 |
1 |
19.3 |
Sleeve assembly, limit rod |
5103857/1.89.952 |
2 |
|
3.4 |
Crank |
5133116/1.89.663A |
1 |
19.4 |
Section (RR), limit link |
1204.56.103② |
2 |
|
3.5 |
Spring |
5140619/1.89.664 |
1 |
5103856/1.89.951① |
|||
|
3.6 |
Section assembly (FR), link |
5140618/1.89.661A |
1 |
19.5 |
Pin 6.3×40 |
GB 91-86 |
2 |
|
4 |
Locking pin, link (UPR) |
88578668/1.89.961 |
1 |
19.6 |
Pin (RR), limit link |
5103861/1.89.956 |
2 |
|
5 |
Pin assembly, link (UPR) |
5131752/1.89.669A |
1 |
19.7 |
Fork, limit rod |
5113071/1.89.958 |
2 |
|
6 |
Bracket assembly, quick coupler |
5133016/1.89.666 |
1 |
20 |
Washer, pin (LWR), drawbar |
562106/1.89.962 |
2 |
|
7 |
Bolt M8×20 |
GB 5781-86 |
2 |
21 |
Link assembly (LWR, LH) |
1004.56.010① |
1 |
|
8 |
Washer 8 |
GB 859-87 |
2 |
1204.56.010② |
1 |
||
|
9 |
Washer 6 |
GB 859-87 |
4 |
21.1 |
Bolt M18×2.5×80 |
11122521/10312 |
1 |
|
10 |
Nut M6 |
GB 41-86 |
2 |
21.2 |
Bushing |
5132853/1.89.689 |
1 |
|
11 |
Plate |
44018510/1.82.144 |
1 |
21.3 |
Self-locking nut M18×2.5 |
12577611/10125 |
1 |
|
12 |
Spring, bracket, valve |
44019067/1.82.143 |
1 |
21.4 |
End assembly, link (LWR, |
5132869/1.89.640A |
1 |
|
13 |
Bolt M6×20 |
GB 5781-86 |
2 |
LH), Class 2 |
|||
|
14 |
Bolt M18×1.5×45 |
15984121/10312 |
6 |
21.5 |
Pin, push rod |
5140541/1.89.681 |
1 |
|
15 |
Washer 18 |
GB 93-87 |
6 |
||||
|
16 |
Support, limit link |
SZ1204.56.608 |
2 |
Notes: ① For 1004C. ② For 1254C.
|
No. |
Part |
Drawing No. |
Qty. |
No. |
Part |
Drawing No. |
Qty. |
|
21.6 |
Push rod |
5138997/1.89.645 |
1 |
27 27.1
27.2 27.3
28 28.1
28.2 28.3
28.4 28.5 28.6 28.7 28.8
28.9 28.10
28.11 28.12 28.13 28.14 28.15 28.16 |
Lift link assembly (LH) Clevis assembly (UPR), lift link (LH) Oil cup M10×1 Clevis assembly (LWR), lift link Lift link assembly (RH) Clevis assembly (LWR), lift link (RH) Oil cup Adjusting screw, lift link (RH) bearing8106 Gear chamber assembly Bolt M10×1.25×55 O-ring 30×2.65 Oil cup M10×1 Clevis assembly (UPR), lift link (RH) O-ring 15×2.65 Washer, driving gear, lift link (RH) Driving gear, lift link (RH) Pin 5×26 Hinge, link (RH) Inner tube assembly, adjusting yoke Sleeve with pin |
5123277/1.89.609A 5132084/1.89.656A
GB 1152-89 5123278/1.89.647B
5131043/1.89.608 5130453/1.89.654A
13410911/14649 885130442/1.89.651
GB 301-84 5139391/1.89.648A GB 5785-86 GB 3452.1-82 GB 1152-89
5139390/1.89.656A GB 3452.1-82
4999029/1.89.659 885130441/1.89.650 13907470/12215 885130446/1.89.652A 5130443/1.89.652 5141442/1.89.653 |
1 1
1 1
1 1
1 1
1 1 4 1 2
1 1
1 1 2 1 1 1 |
|
21.7 |
Spring |
5132860/1.89.644 |
1 |
||||
|
21.8 |
Pin 3.2×18 |
GB 91-86 |
1 |
||||
|
21.9 |
Bracket, handle |
5140542/1.89.643 |
1 |
||||
|
21.10 |
Welded link unit (LWR, LH) |
1004.56.015① |
1 |
||||
|
1204.56.015② |
1 |
||||||
|
22 |
Link assembly (LWR, RH) |
1004.56.012① |
1 |
||||
|
1204.56.012② |
1 |
||||||
|
22.1 |
Bolt M18×2.5×80 |
11122521/10312 |
1 |
||||
|
22.2 |
Bushing |
5132853/1.89.689 |
1 |
||||
|
22.3 |
Self-locking nut M18×2.5 |
12577611/10125 |
1 |
||||
|
22.4 |
End assembly, link (LWR, |
5132870/1.89.639A |
1 |
||||
|
RH), Class 2 |
|||||||
|
22.5 |
Pin, push rod |
5140541/1.89.681 |
1 |
||||
|
22.6 |
Push rod |
5138997/1.89.645 |
1 |
||||
|
22.7 |
Spring |
5132860/1.89.644 |
1 |
||||
|
22.8 |
Pin 3.2×18 |
GB 91-86 |
1 |
||||
|
22.9 |
Bracket, handle |
5140542/1.89.643 |
1 |
||||
|
22.10 |
Welded link unit (LWR, RH) |
1004.56.016① |
1 |
||||
|
1204.56.016② |
1 |
||||||
|
23 |
Locking pin |
567406/1.82.945 |
5 |
||||
|
24 |
Clevis (UPR), lift link |
5130438/1.89.610 |
2 |
||||
|
25 |
Connecting pin (UPR), lift |
5130456/1.89.657 |
2 |
||||
|
link (LH & RH) |
|||||||
|
26 |
Connecting pin (UPR), lift |
5111643/1.89.657 |
1 |
||||
|
link (LH & RH) |
Notes: ① For 1004C. ② For 1254C
|
No. |
Part |
Drawing No. |
Qty. |
No. |
Part |
Drawing No. |
Qty. |
|
29 |
Bolt M10×1.25×25 |
GB 5786-86 |
2 |
34 |
Bolt M6×16 |
GB 5781-86 |
1 |
|
30 |
Washer 10 |
GB 859-87 |
2 |
35 |
Adjusting handle, lift link (RH) |
5130458/1.89.665 |
1 |
|
31 |
Bracket, adjusting handle, lift |
5132741/1.89.695 |
1 |
36 |
Hook assembly, lift link (RH) |
5136887/1.89.694 |
1 |
|
link (RH) |
37 |
Head, handle, lift link (RH) |
5130460/1.89.665A |
1 |
|||
|
32 |
Ball seat of ball bushing |
5110722/1.21.178 |
2 |
38 |
Pin 5×12 |
13907270/12215 |
1 |
|
33 |
Ball, lift rod (RH) |
5130480/1.89.696 |
1 |
