HELI CPYD15C-KU1H single fuel hydraulic forklift parts catalog 14
|
HX2Y7-40031 01 Valve control linkage |
|||||||
|
HX2Y7-40031 01 阀操纵总成(三片阀) |
|||||||
|
序号 No. |
零部件代号 Part No. |
版本 Edition |
名称 Part name |
数量 Q’ty |
备注 Remark |
||
|
1 |
H1M57-40211C |
00 |
Lift lever |
升降操纵杆总成 |
1 |
HRH1M574 02C, Include 16 |
HRH1M574 02C,包含 16 |
|
2 |
B0330-06012 |
00 |
Bolt |
螺栓 M6x12 |
1 |
GB5783-86 |
GB5783-86 |
|
3 |
B5050-00006 |
00 |
Washer,lock |
垫圈 6 |
1 |
GB93-87 |
GB93-87 |
|
4 |
B5310-00006 |
00 |
Washer,lock |
垫圈 6 |
7 |
GB97.1-85 |
GB97.1-85 |
|
5 |
H2MD7-52231 |
02 |
Rubber |
操纵杆橡胶垫 |
3 |
||
|
6 |
H2MD7-52211 |
02 |
Bracket,valve lever |
阀杆支架(左) |
1 |
||
|
7 |
22717-40061 |
02 |
Screw |
销钉 |
6 |
||
|
8 |
B3010-02016 |
00 |
Pin 2 x16 |
销 2×16 |
6 |
GB91-86 |
GB91-86 |
|
9 |
H2MD7-52191 |
04 |
Joint |
连接杆 |
3 |
Non- enhanced OPS |
非增强 OPS |
|
9 |
H2FP7-52191 |
01 |
Joint |
连接杆 |
3 |
Enhance Ops |
增强 OPS |
|
10 |
B0330-10020 |
00 |
Bolt |
螺栓 M10x20 |
4 |
GB5783-86 |
GB5783-86 |
|
11 |
B5050-00010 |
00 |
Washer |
垫圈 10 |
4 |
GB93-87 |
GB93-87 |
|
12 |
B5310-00010 |
00 |
Washer |
垫圈 10 |
4 |
GB97.1-85 |
GB97.1-85 |
|
13 |
H2MD7-52111 |
02 |
Linkage |
三片阀连接轴 |
1 |
HRH2MD75 08 |
HRH2MD75 08 |
|
14 |
214A7-42001 |
01 |
Knob,lever (lift) |
手柄(升降) |
1 |
HRA22A740 6 |
HRA22A740 6 |
|
15 |
H2MD7-52221 |
01 |
Stem stents R.H. |
阀杆支架(右) |
1 |
||
|
16 |
23457-42101 |
01 |
Dushing |
衬套 |
3 |
||
|
17 |
H1M57-40221C |
00 |
Lever,tilt |
倾斜操纵杆总成 |
1 |
HRH1M574 02C, Include 16 |
HRH1M574 02C,包含 16 |
|
18 |
214A7-42011 |
01 |
Knob,lever (tilt) |
手柄(倾斜) |
1 |
HRA22A740 6 |
HRA22A740 6 |
|
19 |
H1M57-40231C |
00 |
Lever,third |
第三片操纵杆总成 |
1 |
HRH1M574 02C, Include 16 |
HRH1M574 02C,包含 16 |
|
20 |
514A2-72401 |
01 |
Knob,lever |
手柄 |
1 |
HRA22A740 6 |
HRA22A740 6 |
|

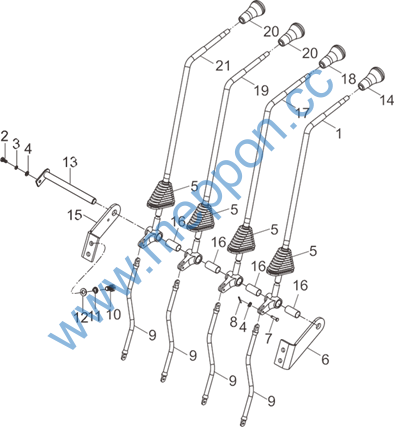

HX2Y7-40041 01 Valve control linkage |
|
HX2Y7-40041 01 阀操纵总成(四片阀) |
|
|
|
HX2Y7-40041 01 Valve control linkage |
|||||||
|
HX2Y7-40041 01 阀操纵总成(四片阀) |
|||||||
|
序号 No. |
零部件代号 Part No. |
版本 Edition |
名称 Part name |
数量 Q’ty |
备注 Remark |
||
|
1 |
H1M57-40211C |
00 |
Lift lever |
升降操纵杆总成 |
1 |
HRH1M574 02C, Include 16 |
HRH1M574 02C,包含 16 |
|
2 |
B0330-06012 |
00 |
Bolt |
螺栓 M6x12 |
1 |
GB5783-86 |
GB5783-86 |
|
3 |
B5050-00006 |
00 |
Washer,lock |
垫圈 6 |
1 |
GB93-87 |
GB93-87 |
|
4 |
B5310-00006 |
00 |
Washer,lock |
垫圈 6 |
9 |
GB97.1-85 |
GB97.1-85 |
|
5 |
H2MD7-52231 |
02 |
Rubber |
操纵杆橡胶垫 |
4 |
||
|
6 |
H2MD7-52211 |
02 |
Bracket,valve lever |
阀杆支架(左) |
1 |
||
|
7 |
22717-40061 |
02 |
Screw |
销钉 |
8 |
||
|
8 |
B3010-02016 |
00 |
Pin 2 x16 |
销 2×16 |
8 |
GB91-86 |
GB91-86 |
|
9 |
H2MD7-52191 |
04 |
Joint |
连接杆 |
4 |
Non- enhanced OPS |
非增强 OPS |
|
9 |
H2FP7-52191 |
01 |
Joint |
连接杆 |
4 |
Enhance Ops |
增强 OPS |
|
10 |
B0330-10020 |
00 |
Bolt |
螺栓 M10x20 |
4 |
GB5783-86 |
GB5783-86 |
|
11 |
B5050-00010 |
00 |
Washer |
垫圈 10 |
4 |
GB93-87 |
GB93-87 |
|
12 |
B5310-00010 |
00 |
Washer |
垫圈 10 |
4 |
GB97.1-85 |
GB97.1-85 |
|
13 |
H2MD7-52121 |
02 |
Linkage |
四片阀连接轴 |
1 |
HRH2MD75 08 |
HRH2MD75 08 |
|
14 |
214A7-42001 |
01 |
Knob,lever (lift) |
手柄(升降) |
1 |
HRA22A740 6 |
HRA22A740 6 |
|
15 |
H2MD7-52221 |
01 |
Stem stents R.H. |
阀杆支架(右) |
1 |
||
|
16 |
23457-42101 |
01 |
Dushing |
衬套 |
4 |
||
|
17 |
H1M57-40221C |
00 |
Lever,tilt |
倾斜操纵杆总成 |
1 |
HRH1M574 02C, Include 16 |
HRH1M574 02C,包含 16 |
|
18 |
214A7-42011 |
01 |
Knob,lever (tilt) |
手柄(倾斜) |
1 |
HRA22A740 6 |
HRA22A740 6 |
|
19 |
H1M57-40231C |
00 |
Lever,third |
第三片操纵杆总成 |
1 |
HRH1M574 02C, Include 16 |
HRH1M574 02C,包含 16 |
|
20 |
514A2-72401 |
01 |
Knob,lever |
手柄 |
2 |
HRA22A740 6 |
HRA22A740 6 |
|
21 |
H1M57-40241C |
00 |
Lever,fourth |
第四片操纵杆总成 |
1 |
HRH1M574 02C, Include 16 |
HRH1M574 02C,包含 16 |
|

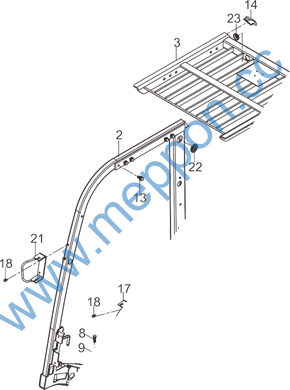

H1H25-10001 01 Roof guard assembly |
|
H1H25-10001 01 护顶架总成 |
|
|
|
H1H25-10001 01 Roof guard assembly |
|||||||
|
H1H25-10001 01 护顶架总成 |
|||||||
|
序号 No. |
零部件代号 Part No. |
版本 Edition |
名称 Part name |
数量 Q’ty |
备注 Remark |
||
|
1 |
H1H25-10101 |
01 |
Frame L.H. |
左边框总成 |
1 |
||
|
2 |
H1H25-10201 |
00 |
Frame R.H. |
右边框总成 |
1 |
||
|
3 |
H1H25-10301 |
00 |
Overhead guard |
顶框架 |
1 |
||
|
4 |
B5310-00008 |
00 |
Washer |
垫圈 8 |
2 |
GB97.1-85 |
GB97.1-85 |
|
5 |
H1H25-10401 |
00 |
Tie rod assembly |
横拉杆总成 |
1 |
||
|
6 |
B0330-12025-X |
00 |
Combined bolt M12x25 |
组合螺栓 M12x25 |
2 |
GB/T 9074.17-88 |
GB/T 9074.17-88 |
|
7 |
H1H25-12711 |
00 |
Stop rubber |
缓冲橡胶垫 |
4 |
||
|
8 |
B0330-12040-X1 |
00 |
Combined bolt |
组合螺栓 M12x40 |
4 |
GB/T 9074.15-88 |
GB/T 9074.15-88 |
|
9 |
B5310-00012 |
00 |
Washer |
垫圈 12 |
4 |
GB97.1-85 |
GB97.1-85 |
|
10 |
G2MA5-10251 |
02 |
Handle,grip |
把手总成 |
1 |
||
|
11 |
HY255-12011 |
02 |
Intake hood |
进气罩 |
1 |
For ordinary air filter |
用于普通空 滤 |
|
12 |
H2MD6-42491 |
01 |
Plug |
密封塞 |
2 |
||
|
13 |
B0330-14030-X |
00 |
Combined bolt M14x30 |
组合螺栓 M14x30 |
10 |
GB5786,GB 93,GB97.1 |
GB5786,GB 93,GB97.1 |
|
14 |
H24C5-12913 |
02 |
Cover |
边管罩(右) |
1 |
||
|
15 |
H24C5-12953 |
02 |
Cover |
边管罩(左) |
1 |
||
|
16 |
B8030-08030 |
00 |
Screw |
螺钉 M8x30 |
2 |
GB70-85 |
GB70-85 |
|
17 |
H1H25-10501 |
00 |
Bracket L.H. |
前大灯支架总成(左) |
1 |
||
|
18 |
B0330-08018-X |
00 |
Combined bolt M8x18 |
组合螺栓 M8x18 |
14 |
GB/T 9074.17-88 |
GB/T 9074.17-88 |
|
19 |
H1H25-10521 |
00 |
Assembled support assembly |
组合支架总成 |
1 |
||
|
20 |
KM915-12171 |
00 |
Plug |
堵头 |
3 |
||
|
21 |
H1H25-10511 |
00 |
Bracket R.H. |
前大灯支架总成(右) |
1 |
||
|
22 |
G2KE2-43801 |
00 |
Dusty ring |
防尘胶圈 |
1 |
||
|
23 |
H24C2-40701 |
01 |
Dusty ring |
防尘胶圈 |
3 |
||
|

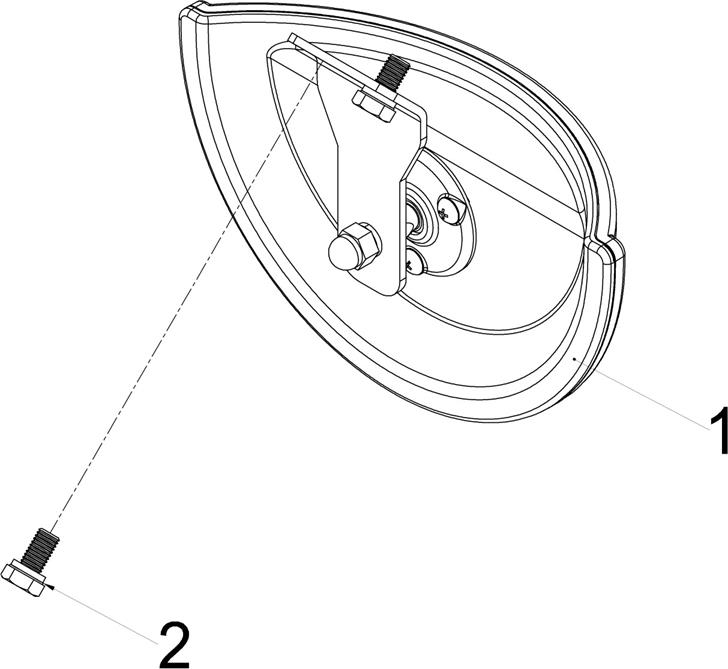

H2MD5-11001 03 Backup,mirror |
|
H2MD5-11001 03 后视镜安装总成 |
|
|
|
H2MD5-11001 03 Backup,mirror |
|||||||
|
H2MD5-11001 03 后视镜安装总成 |
|||||||
|
序号 No. |
零部件代号 Part No. |
版本 Edition |
名称 Part name |
数量 Q’ty |
备注 Remark |
||
|
1 |
H1M56-41511 |
01 |
Backup,mirror ass’y |
广角后视镜总成 |
1 |
||
|
2 |
B0330-08016-X1 |
00 |
Combined bolt |
组合螺栓 M8x16 |
2 |
GB/T9074.1 5-88 |
GB/T9074.1 5-88 |
|

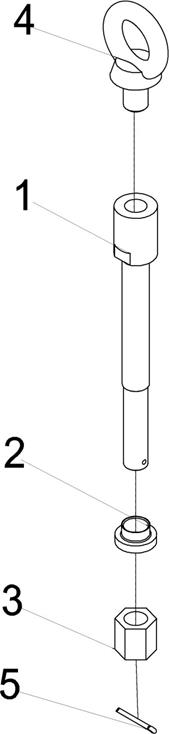

E29T6-10011 01 Cargo sling |
|
E29T6-10011 01 配重吊具 |
|
|
|
E29T6-10011 01 Cargo sling |
|||||||
|
E29T6-10011 01 配重吊具 |
|||||||
|
序号 No. |
零部件代号 Part No. |
版本 Edition |
名称 Part name |
数量 Q’ty |
备注 Remark |
||
|
1 |
E29T6-12001 |
00 |
Rod |
杆体 |
2 |
||
|
2 |
E39B6-12021 |
01 |
Flange |
法兰 |
2 |
||
|
3 |
E29T6-12021 |
01 |
Nut |
球面六角螺母 M42 |
2 |
GB804-88 |
GB804-88 |
|
4 |
E29T6-12011 |
01 |
Screw |
吊环螺钉 |
2 |
||
|
5 |
B3010-08075 |
00 |
Pin 8×75 |
销 8×75 |
2 |
GB91-86 |
GB91-86 |
|

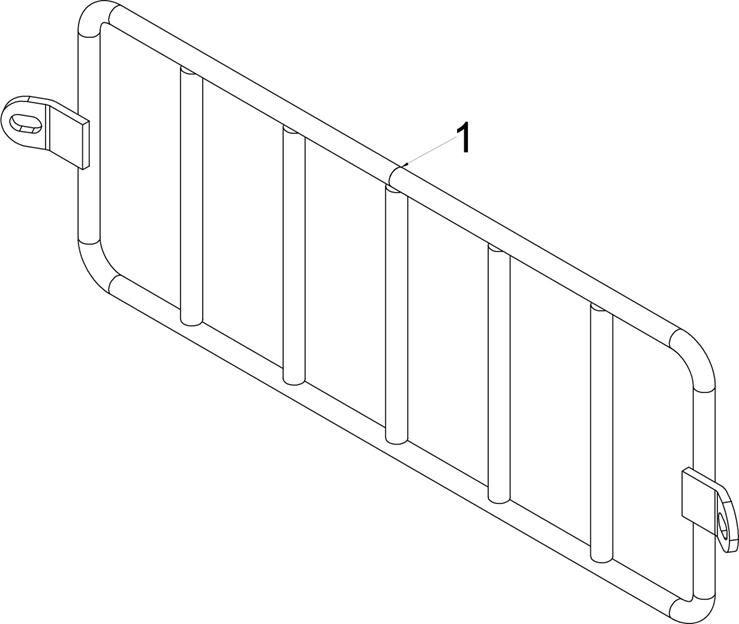

H2LD6-10201 02 Counter weight shield assembly |
|
H2LD6-10201 02 平衡重防护网总成 |
|
|
|
H2LD6-10201 02 Counter weight shield assembly |
|||||||
|
H2LD6-10201 02 平衡重防护网总成 |
|||||||
|
序号 No. |
零部件代号 Part No. |
版本 Edition |
名称 Part name |
数量 Q’ty |
备注 Remark |
||
|

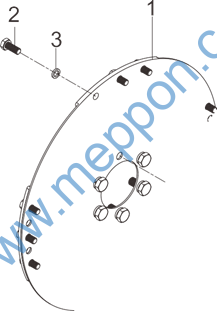

HD3Y3-80721 00 Elastic plate assembly |
|
HD3Y3-80721 00 弹性板总成 |
|
|
