HD3Y3-80721 00 Elastic plate assembly

HD3Y3-80721 00 弹性板总成

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

1

HD3Y3-80711

00

Input board components

输入板组件

1

2

B0330-08020

00

Bolt

螺栓 M8x20

12

GB5783-86

GB5783-86

3

B5050-00008

00

Washer

垫圈 8

12

GB93-87

GB93-87

4

12163-82801

00

Bolt M10x1.25×16

螺栓 M10x1.25×16

6

GB5786-86

GB5786-86

5

B5050-00010

00

Washer

垫圈 10

6

GB93-87

GB93-87

A22A0-00021 00 Backup mirror

A22A0-00021 00 倒车镜

A22A0-00021 00 Backup mirror

A22A0-00021 00 倒车镜

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

1

A22A0-02021

00

Back-mirror assembly

倒车镜总成

1

2

A22A0-02011

04

Bracket

倒车镜支架

1

3

B0330-08025

00

Bolt

螺栓 M8x25

1

GB5783-86

GB5783-86

4

B5050-00008

00

Washer

垫圈 8

1

GB93-87

GB93-87

5

B5410-00008

00

Washer

垫圈 8

1

GB97.2-85

GB97.2-85

6

B4123-00008

00

Nut

螺母 M8

1

GB6170-86

GB6170-86

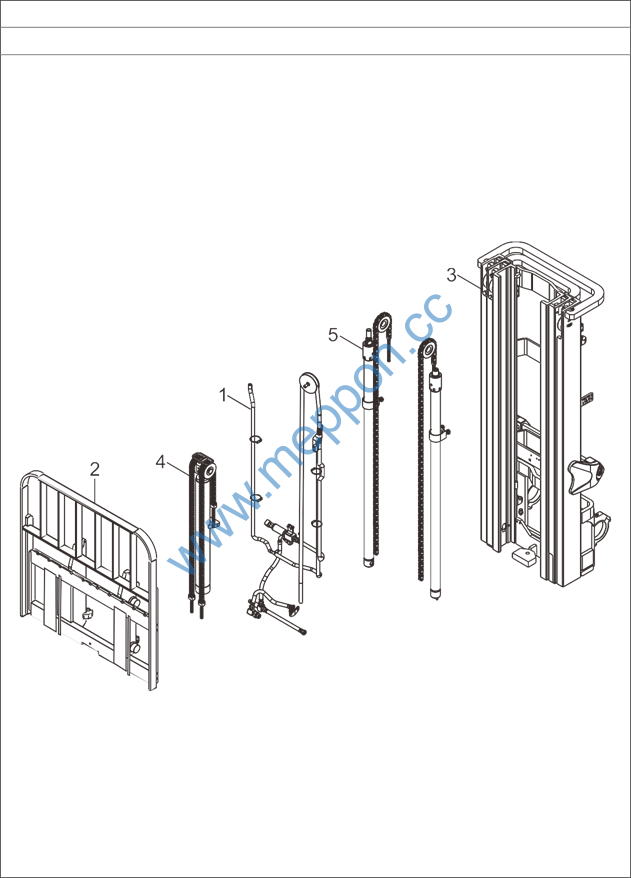

HRDH2Y8001 00 Lifting system ZSM

HRDH2Y8001 00 起重系统 ZSM

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

1

HRDH2Y8602

01

Mast hydraulic system(metric)

门架管路系统（公制）

1

Metric

公制

1

HRDH2Y8601

01

Mast hydraulic system(SAE)

门架管路系统（美制）

1

SAE

美制

2

HRDH2Y8001-1

00

Lift bracket & backrest

货叉架及挡货架

1

3

HRDH2Y8001-2

00

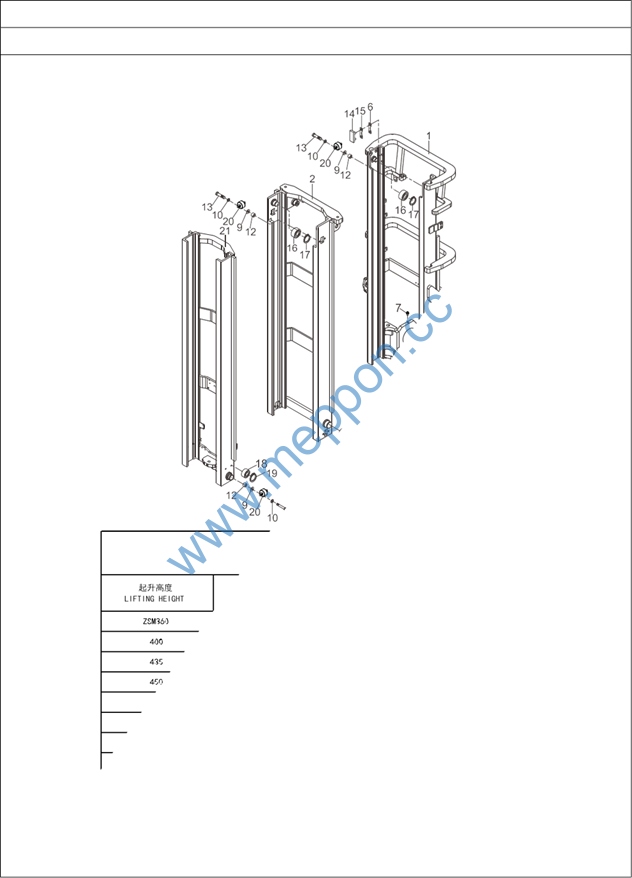

Mast

门架

1

4

HRDG1N8405

06

Front lift cylinder mounting

前起升油缸安装图

1

5

HRDH2Y8401

01

Rear lift cylinder mounting

后起升油缸安装图

1

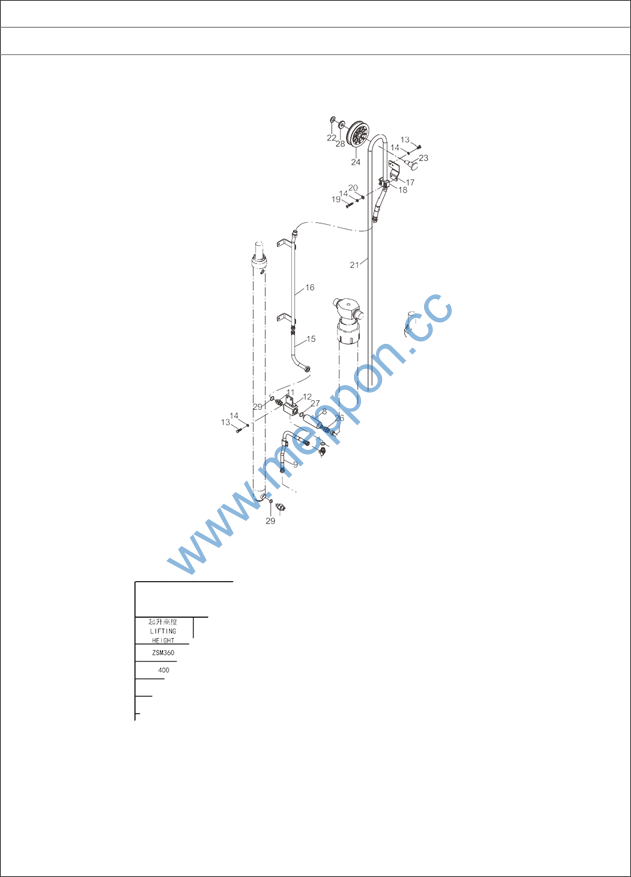

HRDH2Y8602 01 Mast hydraulic system(metric)

HRDH2Y8602 01 门架管路系统（公制）

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

1

DH2Y8-60111

00

Elbow

直角组合接头

2

2

JT6021-20181D

00

Through body

直通接头体

1

Include 28

包含 28

3

Z9702-1005319

00

Hose H.P.

高压胶管

1

4

D1H48-60101

00

Right angle joint

直角接头

1

5

DH1T8-60011

00

Steel nipple

钢管接头

1

6

DG1N8-61261

00

Check valve

切断阀

1

Include 29

包含 29

7

Z9702- 1307222M10

00

Hose H.P.

高压胶管

1

8

D1A98-60231

00

Flow regulator

限速阀

1

HRD1A9860 2

HRD1A9860 2

9

Z9702-1005019

00

Hose H.P.

高压胶管

1

10

DH2Y8-60101

00

Three-way

三通接头总成

1

Include 29

包含 29

11

D9FL8-62031

01

Straight joint

直通接头

1

Include 29

包含 29

12

DH2Y8-60151

00

Three-way

三通接头总成

1

13

B0330-08016

00

Bolt

螺栓 M8x16

6

GB5783-86

GB5783-86

14

B5050-00008

00

Washer

垫圈 8

8

GB93-87

GB93-87

15

Z9702-1303522

00

Hose H.P.

盖茨高压胶管

1

16

HRDH2Y8605

01

Steel pipe

钢管总成

1

17

DH2Y8-65031

00

Hose plate

胶管支板

1

18

DG1N8-63071

01

Clip

主油管管卡

1

19

B8030-08040

00

Screw M8x40

螺钉 M8x40

2

GB70-85

GB70-85

20

B5310-00008

00

Washer

垫圈 8

2

GB97.1-85

GB97.1-85

21

Z9702-13000GT

00

Hose H.P.

高压胶管

1

22

DG1N8-63101

00

Shim

调整垫圈

1

23

H22N0-92521

01

Pulley

滑轮轴

1

24

D15Y8-62071

02

Pulley

滑轮

1

25

Z9702-1304522

00

Hose H.P.

高压胶管

1

26

Z6700-02227

00

Washer 22×2.7

组合垫圈 22×2.7

1

JB982-77

JB982-77

27

62050-12021

00

ring

环

1

28

Z6053-01702

00

O-ring 17*2.65

O 型密封圈 17*2.65

1

GB3452.1- 92

GB3452.1- 92

29

Z6006-01782

00

O-ring

O 型密封圈 17.8×2.4

3

JIS B2401

JIS B2401

HRDH2Y8601 01 Mast hydraulic system(SAE)

HRDH2Y8601 01 门架管路系统（美制）

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

1

D6S58-91261

00

Right angle joint

直角接头

2

2

JT8021-96181

02

Straight joint

直通接头

1

Include 29

包含 29

3

Z7802-10054

00

Hose H.P.

高压胶管

1

4

JT8022-34021

02

Right angle joint

直角接头

1

5

DG1N8-61241

00

Steel nipple

钢管接头(美制)

1

6

E12C8-60211

04

Check valve

切断阀

1

Include 29

包含 29

7

Z7802- 1307222M10

00

Hose H.P.

高压胶管

1

8

HRD2BP8603

00

Flow regulator

限速阀

1

HRD1A9860 2

HRD1A9860 2

9

Z7802-10051

00

Hose H.P.

高压胶管

1

10

DG1N8-61231

01

Three-way

三通接头总成(美制)

1

Include 29

包含 29

11

JT8021-34051

02

Straight joint

直通接头

1

Include 29

包含 29

12

DH2Y8-60151

00

Three-way

三通接头总成

1

13

B0330-08016

00

Bolt

螺栓 M8x16

6

GB5783-86

GB5783-86

14

B5050-00008

00

Washer

垫圈 8

8

GB93-87

GB93-87

15

Z7802-1303522

00

Hose H.P.

高压胶管

1

16

HRDH2Y8603

01

Steel pipe

钢管总成

1

17

DH2Y8-65031

00

Hose plate

胶管支板

1

18

DG1N8-63071

01

Clip

主油管管卡

1

19

B8030-08040

00

Screw M8x40

螺钉 M8x40

2

GB70-85

GB70-85

20

B5310-00008

00

Washer

垫圈 8

2

GB97.1-85

GB97.1-85

21

Z7802-13000GT

00

Hose H.P.

高压胶管（美制）

1

22

DG1N8-63101

00

Shim

调整垫圈

1

23

H22N0-92521

01

Pulley

滑轮轴

1

24

D15Y8-62071

02

Pulley

滑轮

1

25

Z7802-1304522

00

Hose H.P.

高压胶管 13IIx450

1

26

E20B8-60201

01

Transition joint

过渡接头

1

27

Z6700-02227

00

Washer 22×2.7

组合垫圈 22×2.7

1

JB982-77

JB982-77

28

62050-12021

00

ring

环

1

29

Z6006-01782

00

O-ring

O 型密封圈 17.8×2.4

3

JIS B2401

JIS B2401

HRDH2Y8001-1 00 Lift bracket & backrest

HRDH2Y8001-1 00 货叉架及挡货架

HRDH2Y8001-1 00 Lift bracket & backrest

HRDH2Y8001-1 00 货叉架及挡货架

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

1

B8440-12020

00

Screw

内六角平端紧定螺钉

1

GB77-85

GB77-85

2

B5050-00012

00

Washer

垫圈 12

1

GB93-87

GB93-87

3

DH2Y8-20011

00

Backrest

挡货架

1

4

DH2Y8-20001

00

Lift bracket assembly

货叉架总成

1

5

B5050-00016

00

Washer

垫圈 16

4

GB93-87

GB93-87

6

B0530-16030

00

Bolt M16X30

螺栓 M16X30

4

GB5783-86

GB5783-86

7

Y30208-N

01

End roller

主滚轮

4

8

B6150-00040

00

Snap ring

挡圈 40

4

GB894.1-86

GB894.1-86

9

D10P8-03001

01

Washer

垫片

20

HRD10P800 5

HRD10P800 5

9

D10P8-03011

01

Washer

垫片

20

HRD10P800 5

HRD10P800 5

9

D10P8-03021

01

Washer

垫片

20

HRD10P800 5

HRD10P800 5

10

D10P8-00501

00

Side roller

侧滚轮

4

11

B0330-08045

00

Bolt

螺栓 M8x45

8

GB5783-86

GB5783-86

12

B5050-00008

00

Washer

垫圈 8

8

GB93-87

GB93-87

13

D10P8-02051

01

Spacer

垫块 1

16

HRD10P800 3

HRD10P800 3

13

D10P8-02061

01

Spacer

垫块 2

16

HRD10P800 3

HRD10P800 3
