HRD10B8101 06 Fork

HRD10B8101 06 货叉总成

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

1

D10B8-10161A

06

Fork

货叉总成

2

LF140- 10F/1400

LF140- 10F(H)/1400

1

D10B8-10151A

06

Fork

货叉总成

2

LF130- 10F/1300

LF130- 10F(H)/1300

1

D10B8-10141A

06

Fork

货叉总成

2

LF120- 10F/1200

LF120- 10F(H)/1200

1

D10B8-10131A

06

Fork

货叉总成

2

LF110- 10F/1100

LF110- 10F(H)/1100

1

D10B8-10121A

06

Fork

货叉总成

2

LF100- 10F/1000

LF100- 10F(H)/1000

1

D10B8-10111

06

Fork

货叉总成

2

LF167- 10F/1670

LF167- 10F(H)/1670

1

D10B8-10091

06

Fork

货叉总成

2

LF152- 10F/1520

LF152- 10F(H)/1520

1

D10B8-10081

06

Fork

货叉总成

2

LF137- 10F/1370

LF137- 10F(H)/1370

1

D10B8-10071

06

Fork

货叉总成

2

LF122- 10F/1220

LF122- 10F(H)/1220

1

D10B8-10061

06

Fork

货叉总成

2

LF1107- 10F/1070

LF1107- 10F(H)/1070

1

D10B8-10051

06

Fork

货叉总成

2

LF92- 10F/920/1.5-

1.8t STD

LF92- 10F(H)/920/

1.5-1.8t 标配

1

D10B8-10041

06

Fork

货叉总成

2

LF85- 10F/850

LF85- 10F(H)/850

1

D10B8-10191A

06

Fork

货叉总成

2

LF120- 10B/1200

LF120- 10B/1200

1

D10B8-10181A

06

Fork

货叉总成

2

LF110- 10B/1100

LF110- 10B/1100

1

D10B8-10171A

06

Fork

货叉总成

2

LF100- 10B/1000

LF100- 10B/1000

1

D10B8-10031

06

Fork

货叉总成

2

LF92- 10B/920

LF92- 10B/920

1

D10B8-10021

06

Fork

货叉总成

2

LF85- 10B/850

LF85- 10B/850

1

D10B8-10011

06

Fork

货叉总成

2

LF77-

10B/770/1t STD

LF77- 10B/770/1t

标配

HRDH2Y8501 00 Tilt cylinder

HRDH2Y8501 00 倾斜油缸

HRDH2Y8501 00 Tilt cylinder

HRDH2Y8501 00 倾斜油缸

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

1

HRD2MA8502-04

00

Ear ring

耳环

2

2

B0223-14055

00

Bolt

六角头螺栓 M14x55/35

2

GB5782-86

GB5782-86

3

B4123-00014

00

Nut M14

螺母 M14

2

GB6170-86

GB6170-86

4

B5050-00014

00

Washer

垫圈 14

2

GB93-87

GB93-87

5

23468-52081

00

Dust ring

防尘圈φ52Xφ

32X11X8

2

6

AG0075A

00

O-ring

O 型密封圈 75×3.1

2

7

D7G58521-02

00

Guide sleeve

导向套

2

8

Z2113-03225

00

Bushing

钢背轴承

2

9

D20B8-52055

00

Catch 70×65.2×1.25

挡片 70×65.2×1.25

4

10

Z6003-07003

00

O-ring

O 型圈 70*3.1

4

GB1235-76

GB1235-76

11

23678-54001

00

Catch 48x32x3

挡片 48x32x3

2

12

22228-50151A

00

Seal ring

轴用密封圈 32x48x10

8

13

23678-54021S

00

Snap ring 52x43x2

挡圈 52x43x2

2

14

DH2Y8501.1-00

00

Cylinder body

缸体

2

15

B6052-00052

00

Snap ring

挡圈 52

4

16

23678-55001

00

U-ring

U 型圈

2

17

23678-52051

00

Wearing 70x65x2.5

支承环 70x65x2.5

2

18

DH2Y8501.2-00

00

Piston body assembly

活塞体

2

19

D2MD8-00171

01

Pin axle

倾斜油缸销轴总成

2

20

B0530-10020

00

Bolt

螺栓 M10x1.25×20

2

21

B5050-00010

00

Washer

垫圈 10

2

22

Q700B01

00

Fitting

直通式滑脂嘴

2

ZBT33001.1

-88

ZBT33001.1

-88

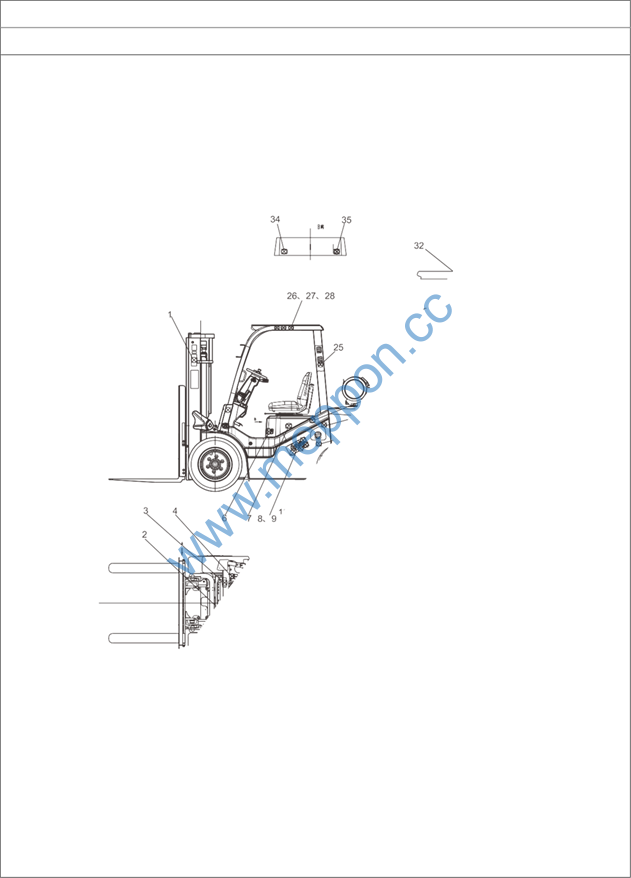

H1H29-10001 00 Signs, paint layout (USA)

H1H29-10001 00 标牌、油漆布置图（美国）

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

1

6TY40-01-09

00

Plate,safety

安全标志标牌

2

2

6TY40-33-01

00

Plate

液化石油气车标志标牌

1

3

6TY40-02-30

00

Plate,lubrication chart

润滑系统图标牌

1

4

6TY40-02-30

00

Plate,lubrication chart

润滑系统图标牌

1

6

6TY40-108-02

00

Plate,shock absorber safety lock

气弹簧安全锁标牌

1

Full English

全英文

7

6TY40-20-09

00

Maintain battery notice plate

蓄电池使用保养注意事

项标牌

1

8

6TY40-00-941

00

Plate,model

新 H 系列 2t 型号标牌

(左)

1

2t

2t

8

6TY40-00-939

00

Plate,model

新 H 系列 1.8t 型号标

牌(左)

1

1.8t

1.8t

8

6TY40-00-937

00

Plate,model

新 H 系列 1.5t 型号标

牌(左)

1

1.5t

1.5t

9

6TY40-00-942

00

Plate,model

新 H 系列 2t 型号标牌

(右)

1

2t

2t

9

6TY40-00-940

00

Plate,mode

新 H 系列 1.8t 型号标

牌(右)

1

1.8t

1.8t

9

6TY40-00-938

00

Plate,mode

新 H 系列 1.5t 型号标牌(右)

1

1.5t

1.5t

10

6TY10-00-106

00

Name plate (only for USA)

铭牌(美国专用)

1

Full English

全英文

11

B2391-04008

00

Rivet

开口型铆钉 4×8

8

12

6TY20-00-896

00

Plate,capacity chart 2t

负荷曲线图 2t

1

2t

2t

12

6TY20-00-895

00

Plate,capacity chart 1.8t

负荷曲线图 1.8t

1

1.8t

1.8t

12

6TY20-00-894

00

Plate,capacity chart 1.5t

负荷曲线图 1.5t

1

1.5t

1.5t

13

6TY40-03-17

00

Decal

使用须知标牌

1

14

6TY40-09-08

00

Plate,antifreeze liquid

加防冻液标牌

1

15

6TY40-26-07

00

Plate,warning

铝制水箱警告标牌

1

16

6TY40-31-02

00

Plate(English)

油箱油量说明标牌(英

文)

1

For double fuel truck

双燃料车用

17

6TY40-04-09

00

Plate,fuel

加燃油标牌

1

For double fuel truck

双燃料车用

17

6TY40-162-02

00

Plate(English)

不加燃油标牌(英文)

1

Single fuel vehicles

单燃料车用

18

6TY40-07-26

00

Fan safety(English)

风扇安全（英文）

1

19

6TY40-13-10

00

Plate,parking brake adjust

停车制动调整标牌(全英

文)

1

20

6TY40-172-02

00

Brake liquid adding plate

加注制动液标牌（英

文）

1

21

6TY40-12-11

00

Plate,checkup before start-up

启动前检查标牌(英文)

1

22

6TY40-115-01

00

Safety belt sign

安全带标牌

1

Choose to stick

选贴

23

6TY40-00-226

00

Plate(English)

更换钢瓶说明标牌(英

文)

1

24

6TY40-00-224

00

Plate(English)

LPG 系统安全维护说明标牌(英文)

1

H1H29-10001 00 Signs, paint layout (USA)

H1H29-10001 00 标牌、油漆布置图（美国）

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

25

6TY40-34-06

00

Forbiding filling water model

严禁冲水标牌

1

26

6TY40-26-55

00

Warning signs

警示标牌(文字)

1

27

6TY40-01-10

00

Warning signs

警示标牌(文字)

1

28

6TY40-31-11

00

Hydraulic oil capacity label

G 系列 18t 叉车液压油

容量标牌（英文）

1

29

6TY40-00-398

00

Plate

HELI 标牌(1-3T)

2

30

6TY40-17-01

00

Plate,”CE” safety identifier

CE 安全认证标牌

2

31

6TY40-10-09

00

Plate,sling

起吊标牌

2

32

6TY40-14-07

00

Plate,padlok mast space

禁止进入门架后空间

1

33

6TY40-15-09

00

Decal,notice thumb hand

注意伤手标牌

1

34

6TY40-05-08

00

Add the hydraulic label

加注液压油标牌

1

35

6TY40-06-158

00

Capacity plate

容量标牌

1

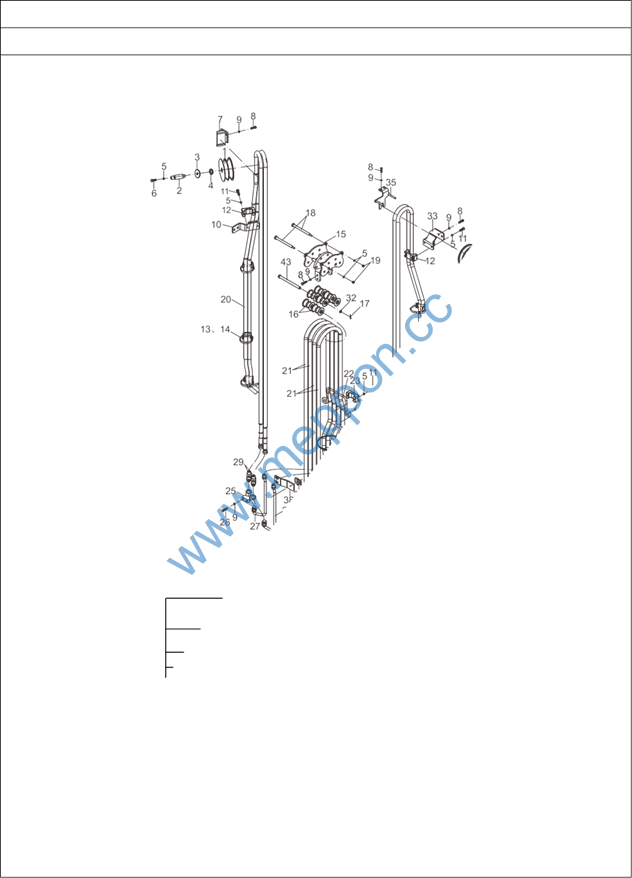

HRDH1T8701 00 Hose pulley block

HRDH1T8701 00 胶管滑轮组（ZSM 公制 24°品>

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

1

D16JH-05131

03

Pulley

滑轮

2

Four piece valve

四片阀

1

D16JH-05131

03

Pulley

滑轮

1

Three piece valve

三片阀

2

F23JH-22201

01

Roller pin

滑轮销轴

1

3

F23JH-22221

00

Washer

垫圈

1

4

F23JH-22211

00

ring

环

1

5

B5050-00006

00

Washer,lock

垫圈 6

12

Four piece valve

/GB93-87

四片阀

/GB93-87

5

B5050-00006

00

Washer,lock

垫圈 6

8

Three piece valve

/GB93-87

三片阀

/GB93-87

6

B0330-06020

00

Bolt

螺栓 M6x20

5

Four piece valve

/GB5873-86

四片阀

/GB5873-86

6

B0330-06020

00

Bolt

螺栓 M6x20

4

Three piece valve

/GB5873-86

三片阀

/GB5873-86

7

F23JH-22231

00

Guide bracket

导向支架

1

8

B0330-08016-X1

00

Combined bolt

组合螺栓 M8x16

18

Four piece valve

/GB5873-86

四片阀

/GB5873-86

8

B0330-08016-X1

00

Combined bolt

组合螺栓 M8x16

8

Three piece valve

/GB5873-86

三片阀

/GB5873-86

9

B5050-00008

00

Washer

垫圈 8

2

Three piece valve

/GB93-87

三片阀

/GB93-87

9

B5050-00008

00

Washer

垫圈 8

4

Four piece valve

/GB93-87

四片阀

/GB93-87

10

F23JH-22091

00

The pipe clamp plate

管夹支板

1

11

B0230-06030

00

Bolt

螺栓 M6x30

8

Four piece valve

/GB5872-86

四片阀

/GB5872-86

11

B0230-06030

00

Bolt

螺栓 M6x30

4

Three piece valve

/GB5872-86

三片阀

/GB5872-86

12

D16JH-05221

05

Double row pipe clamp

双列管夹

2

Four piece valve

四片阀

12

D16JH-05221

05

Double row pipe clamp

双列管夹

1

Three piece valve

三片阀

13

Z9260-80350

00

8 x350 strapping tape

捆扎带 8×350

3

Three piece valve

三片阀

13

Z9260-80350

00

8 x350 strapping tape

捆扎带 8×350

6

Four piece valve

四片阀

14

F23JH-22041

00

Pipe clamp

管夹

6

Four piece valve

四片阀

14

F23JH-22041

00

Pipe clamp

管夹

3

Three piece valve

三片阀

15

F23JH-22501

02

Pulley bracket assembly

滑轮支架总成

1

16

F23JH-06231

01

The pulley assembly

滑轮总成

8

Four piece valve

四片阀

16

F23JH-06231

01

The pulley assembly

滑轮总成

4

Three piece valve

三片阀

17

B3010-02016

00

Pin 2 x16

销 2×16

4

GB91-86

GB91-86

HRDH1T8701 00 Hose pulley block

HRDH1T8701 00 胶管滑轮组（ZSM 公制 24°品>

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

18

F23JH-22561

00

Bolt

螺栓

2

19

B4123-00006

00

Nut

螺母 M6

2

GB6170-86

GB6170-86

20

Z9702-0800015

00

Hose H.P.

高压胶管

2

See table

见附表

21

Z9702-0800015

00

Hose H.P.

高压胶管

4

See table

见附表

22

F22JH-18141

01

Rubber hose guide buckle

胶管导向卡扣

1

Three piece valve

三片阀

23

D16JH-05221

05

Double row pipe clamp

双列管夹

2

Four piece valve

四片阀

23

D16JH-05221

05

Double row pipe clamp

双列管夹

1

Three piece valve

三片阀

24

Z9260-40200

01

Strapping band 4 x200

捆扎带 4×200

2

25

F23JH-22121

00

Three-piece valve hose bracket

三片阀胶管支架

1

26

B0330-08030

00

Bolt

螺栓 M8x30

2

GB5783-86

GB5783-86

27

DH1T8-71001

00

Three-piece valve steel pipe joint I

三片阀钢管接头 I

2

28

DH1T8-71011

00

Three-piece valve steel pipe joint II

三片阀钢管接头 II

1

29

DH1T8-71021

00

Right Angle baffle joint

直角隔板接头

4

Four piece valve

四片阀

29

DH1T8-71021

00

Right Angle baffle joint

直角隔板接头

2

Three piece valve

三片阀

30

F23JH-22101

00

Four pieces of valve hose support

四片阀胶管支架

1

Four piece valve

四片阀

31

Z9702-0800015

00

Hose H.P.

高压胶管

2

Four-piece valve/see attached

table

四片阀/见附表

32

B5310-00010

00

Washer

垫圈 10

4

GB97.1-85

GB97.1-85

33

F23JH-22031

01

The pipe clamp plate

管夹支板

1

Four piece valve

四片阀

34

F23JH-03331

00

Roller pin

滑轮销轴

1

Four piece valve

四片阀

35

F23JH-22011

00

Hose pin limit plate assembly

胶管销轴限位板总成

1

Four piece valve

四片阀

36

F1H4H-08191

00

Four-way ass’y

四通接头总成

1

37

B0330-08025-X1

00

Combined bolt

组合螺栓 M8x25

2

Three piece valve

三片阀

37

B0330-08025-X1

00

Combined bolt

组合螺栓 M8x25

4

Four piece valve

四片阀

38

F23JH-22341

00

The plate

支板

1

Three piece valve

三片阀

38

F23JH-22341

00

The plate

支板

2

Four piece valve

四片阀

39

F23JH-22351

00

Steel pipe clamp

钢管管夹

2

Four piece valve

四片阀

39

F23JH-22351

00

Steel pipe clamp

钢管管夹

1

Three piece valve

三片阀

40

DH1T8-71031

00

Four-piece valve steel pipe joint I

四片阀钢管接头 III

1

Four piece valve

四片阀

41

DH1T8-71041

00

Four-piece valve steel pipe joint II

四片阀钢管接头 IV

1

Four piece valve

四片阀

42

F1H4H-08201

00

Four-Way Union Assy (Left)

四通接头总成（左>

1

Four piece valve

四片阀
