HELI CPYD15C-KU1H single fuel hydraulic forklift parts catalog 18
| HRDH1T8701 00 Hose pulley block | |||||||
| HRDH1T8701 00 胶管滑轮组（ZSM 公制 24°品> | |||||||
| 序号 No. |
零部件代号 Part No. |
版本 Edition |
名称 Part name |
数量 Q’ty |
备注 Remark |
||
| 43 |
F23JH-22551 |
00 |
pin |
销轴 |
4 |
||

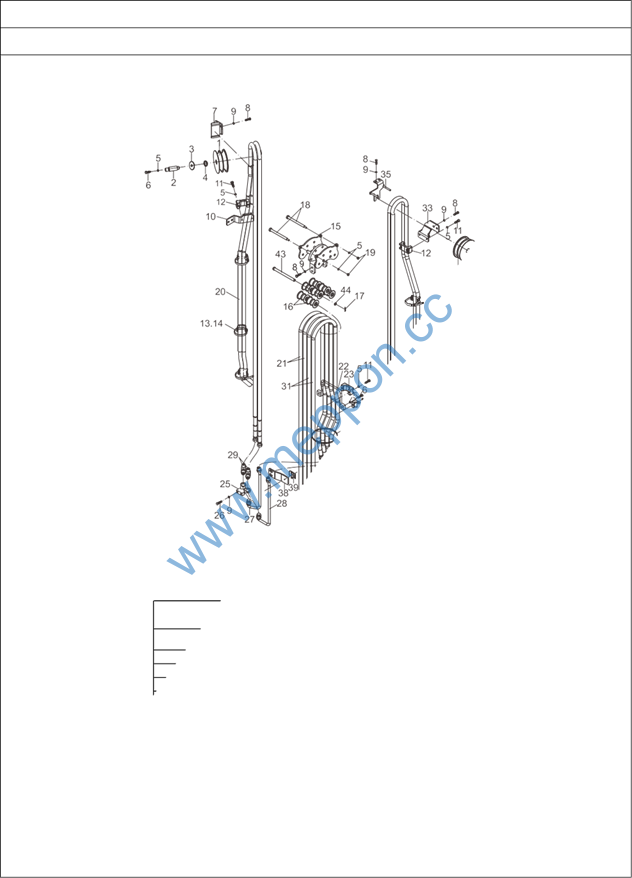

HRF23JH351 07 Rubber tube pulley block (ZSM USA)
HRF23JH351 07 胶管滑轮组（ZSM 美制>
起升高度 LIFTING H
Z
| HRF23JH351 07 Rubber tube pulley block (ZSM USA) | |||||||
| HRF23JH351 07 胶管滑轮组（ZSM 美制> | |||||||
| 序号 No. |
零部件代号 Part No. |
版本 Edition |
名称 Part name |
数量 Q’ty |
备注 Remark |
||
| 1 |
D16JH-05131 |
03 |
Pulley |
滑轮 |
1 |
Three piece valve |
三片阀 |
| 1 |
D16JH-05131 |
03 |
Pulley |
滑轮 |
2 |
Four piece valve |
四片阀 |
| 2 |
F23JH-22201 |
01 |
Roller pin |
滑轮销轴 |
1 |
||
| 3 |
F23JH-22221 |
00 |
Washer |
垫圈 |
1 |
||
| 4 |
F23JH-22211 |
00 |
ring |
环 |
1 |
||
|
5 |
B5050-00006 |
00 |
Washer,lock |
垫圈 6 |
8 |
Three piece valve /GB93-87 |
三片阀 /GB93-87 |
|
5 |
B5050-00006 |
00 |
Washer,lock |
垫圈 6 |
12 |
Four piece valve /GB93-87 |
四片阀 /GB93-87 |
|
6 |
B0330-06020 |
00 |
Bolt |
螺栓 M6x20 |
4 |
Three piece valve /GB5873-86 |
三片阀 /GB5873-86 |
|
6 |
B0330-06020 |
00 |
Bolt |
螺栓 M6x20 |
5 |
Four piece valve /GB5873-86 |
四片阀 /GB5873-86 |
| 7 |
F23JH-22231 |
00 |
Guide bracket |
导向支架 |
1 |
||
|
8 |
B0330-08016 |
00 |
Bolt |
螺栓 M8x16 |
8 |
Three piece valve /GB5873-86 |
三片阀 /GB5873-86 |
|
8 |
B0330-08016 |
00 |
Bolt |
螺栓 M8x16 |
18 |
Four piece valve /GB5873-86 |
四片阀 /GB5873-86 |
|
9 |
B5050-00008 |
00 |
Washer |
垫圈 8 |
10 |
Three piece valve /GB93-87 |
三片阀 /GB93-87 |
|
9 |
B5050-00008 |
00 |
Washer |
垫圈 8 |
18 |
Four piece valve /GB93-87 |
四片阀 /GB93-87 |
| 10 |
F23JH-22091 |
00 |
The pipe clamp plate |
管夹支板 |
1 |
||
|
11 |
B0230-06030 |
00 |
Bolt |
螺栓 M6x30 |
4 |
Three piece valve /GB5872-86 |
三片阀 /GB5872-86 |
|
11 |
B0230-06030 |
00 |
Bolt |
螺栓 M6x30 |
8 |
Four piece valve /GB5872-86 |
四片阀 /GB5872-86 |
| 12 |
D16JH-05222 |
00 |
Dual-row clamp for resin pipe |
树脂管专用双列管夹 |
1 |
Three piece valve |
三片阀 |
| 12 |
D16JH-05222 |
00 |
Dual-row clamp for resin pipe |
树脂管专用双列管夹 |
2 |
Four piece valve |
四片阀 |
| 13 |
Z9260-80350 |
00 |
8 x350 strapping tape |
捆扎带 8×350 |
3 |
Three piece valve |
三片阀 |
| 13 |
Z9260-80350 |
00 |
8 x350 strapping tape |
捆扎带 8×350 |
6 |
Four piece valve |
四片阀 |
| 14 |
F23JH-22041 |
00 |
Pipe clamp |
管夹 |
3 |
Three piece valve |
三片阀 |
| 14 |
F23JH-22041 |
00 |
Pipe clamp |
管夹 |
6 |
Four piece valve |
四片阀 |
| 15 |
F23JH-22501 |
02 |
Pulley bracket assembly |
滑轮支架总成 |
1 |
||
| 16 |
F23JH-06231 |
01 |
The pulley assembly |
滑轮总成 |
4 |
Three piece valve |
三片阀 |
| 16 |
F23JH-06231 |
01 |
The pulley assembly |
滑轮总成 |
8 |
Four piece valve |
四片阀 |
| 17 |
B3010-02016 |
00 |
Pin 2 x16 |
销 2×16 |
4 |
GB91-86 |
GB91-86 |
HRF23JH351 07 Rubber tube pulley block (ZSM USA)
HRF23JH351 07 胶管滑轮组（ZSM 美制>
起升高度 LIFTING H
Z
| HRF23JH351 07 Rubber tube pulley block (ZSM USA) | |||||||
| HRF23JH351 07 胶管滑轮组（ZSM 美制> | |||||||
| 序号 No. |
零部件代号 Part No. |
版本 Edition |
名称 Part name |
数量 Q’ty |
备注 Remark |
||
| 18 |
F23JH-22561 |
00 |
Bolt |
螺栓 |
2 |
||
| 19 |
B4123-00006 |
00 |
Nut |
螺母 M6 |
2 |
GB6170-86 |
GB6170-86 |
| 20 |
Z7802-0800015 |
00 |
Hose H.P. |
高压胶管 |
2 |
See table |
见附表 |
| 21 |
Z7801-0800015 |
00 |
Hose H.P. |
高压胶管 |
2 |
See table |
见附表 |
| 22 |
F22JH-18141 |
01 |
Rubber hose guide buckle |
胶管导向卡扣 |
1 |
||
| 23 |
D16JH-05222 |
00 |
Dual-row clamp for resin pipe |
树脂管专用双列管夹 |
1 |
Three piece valve |
三片阀 |
| 23 |
D16JH-05222 |
00 |
Dual-row clamp for resin pipe |
树脂管专用双列管夹 |
2 |
Four piece valve |
四片阀 |
| 24 |
Z9260-40200 |
01 |
Strapping band 4 x200 |
捆扎带 4×200 |
2 |
||
| 25 |
F23JH-22121 |
00 |
Three-piece valve hose bracket |
三片阀胶管支架 |
1 |
||
| 26 |
B0330-08030 |
00 |
Bolt |
螺栓 M8x30 |
2 |
GB5783-86 |
GB5783-86 |
| 27 |
F23JH-22161 |
00 |
Joint assembly |
接头总成 |
2 |
Four piece valve |
四片阀 |
| 27 |
F23JH-23261 |
00 |
Three-piece valve steel tube connector Ⅰ |
三片阀钢管接头Ⅰ |
1 |
Three piece valve |
三片阀 |
| 28 |
F23JH-23281 |
00 |
Three-piece valve steel tube connector Ⅱ |
三片阀钢管接头Ⅱ |
1 |
Three piece valve |
三片阀 |
| 29 |
F22JH-19111 |
00 |
Right Angle baffle joint |
直角隔板接头 |
2 |
Three piece valve |
三片阀 |
| 29 |
F22JH-19111 |
00 |
Right Angle baffle joint |
直角隔板接头 |
4 |
Four piece valve |
四片阀 |
| 30 |
F23JH-22101 |
00 |
Four pieces of valve hose support |
四片阀胶管支架 |
1 |
Four piece valve |
四片阀 |
|
31 |
Z7801-0800015 |
00 |
Hose H.P. |
高压胶管 |
2 |
Four-piece valve/see attached table |
四片阀/见附表 |
|
32 |
Z7802-0800015 |
00 |
Hose H.P. |
高压胶管 |
2 |
Four-piece valve/see attached table |
四片阀/见附表 |
| 33 |
F23JH-22031 |
01 |
The pipe clamp plate |
管夹支板 |
1 |
Four piece valve |
四片阀 |
| 34 |
F23JH-03331 |
00 |
Roller pin |
滑轮销轴 |
1 |
Four piece valve |
四片阀 |
| 35 |
F23JH-22011 |
00 |
Hose pin limit plate assembly |
胶管销轴限位板总成 |
1 |
Four piece valve |
四片阀 |
| 36 |
F23JH-09031 |
00 |
Four-Way Union Assembly (Right) |
四通接头总成(右) |
1 |
||
|
37 |
B0330-08025-X1 |
00 |
Combined bolt |
组合螺栓 M8x25 |
2 |
Three piece valve /GB5873-86 |
三片阀 /GB5873-86 |
|
37 |
B0330-08025-X1 |
00 |
Combined bolt |
组合螺栓 M8x25 |
4 |
Four piece valve /GB5873-86 |
四片阀 /GB5873-86 |
| 38 |
F23JH-22341 |
00 |
The plate |
支板 |
1 |
Three piece valve |
三片阀 |
| 38 |
F23JH-22341 |
00 |
The plate |
支板 |
2 |
Four piece valve |
四片阀 |
| 39 |
F23JH-22351 |
00 |
Steel pipe clamp |
钢管管夹 |
1 |
Three piece valve |
三片阀 |
| 39 |
F23JH-22351 |
00 |
Steel pipe clamp |
钢管管夹 |
2 |
Four piece valve |
四片阀 |
HRF23JH351 07 Rubber tube pulley block (ZSM USA)
HRF23JH351 07 胶管滑轮组（ZSM 美制>
起升高度 LIFTING H
Z
| HRF23JH351 07 Rubber tube pulley block (ZSM USA) | |||||||
| HRF23JH351 07 胶管滑轮组（ZSM 美制> | |||||||
| 序号 No. |
零部件代号 Part No. |
版本 Edition |
名称 Part name |
数量 Q’ty |
备注 Remark |
||
| 40 |
F23JH-23301 |
00 |
Four piece valve steel tube connector Ⅲ |
四片阀钢管接头Ⅲ |
1 |
Four piece valve |
四片阀 |
| 41 |
F23JH-23321 |
00 |
Four piece valve steel tube connector Ⅳ |
四片阀钢管接头Ⅳ |
1 |
Four piece valve |
四片阀 |
| 42 |
F23JH-09021 |
02 |
Four-Way Union Assy (Left) |
四通接头总成（左> |
1 |
Four piece valve |
四片阀 |
| 43 |
F23JH-22551 |
00 |
pin |
销轴 |
4 |
||
| 44 |
B5310-00010 |
00 |
Washer |
垫圈 10 |
4 |
GB97.1-85 |
GB97.1-85 |
2021/3/20 01 版
20/03/2021 01 Edition
