HRDH2Y8001-2 00 Mast

HRDH2Y8001-2 00 门架

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

1

HRDH2Y8301

01

Outer mast

外门架总成

1

See table

见附表

2

HRDH2Y8302

01

Middle mast

中门架总成

1

See table

见附表

3

24236-12632

01

Cap

支座盖

2

4

D20B8-02001

03

Bushing

轴衬

2

5

B0430-14065-X1

00

Combined bolt M14X1.5X65

组合螺栓 M14X1.5X65

4

GB5785-86

GB5785-86

6

20029-43231-2

00

Shim 1.0

调整垫片 1.0

12

7

Q700B01

00

Fitting

直通式滑脂嘴

4

ZBT33001.1

-88

ZBT33001.1

-88

8

B0530-10020

00

Bolt

螺栓 M10x1.25×20

2

GB5786-86

GB5786-86

9

23308-22051

02

Shim

调整垫圈

32

AR

按需

10

B5050-00010

00

Washer

垫圈 10

18

GB93-87

GB93-87

11

D7G58-30061

06

Pin axle

倾斜油缸销轴总成

2

12

20019-32841

00

Spacer

垫块

16

13

B0530-10045

00

Bolt

螺栓 M10x1.25×45

16

GB5786-86

GB5786-86

14

D15X8-60511

01

Limit slider

限位滑块

2

15

20029-43231-1

00

Shim 0.5

调整垫片 0.5

12

16

22198-22341

01

Roller

滚轮

4

17

B6150-00030

00

Snap ring

挡圈 30

4

GB894.1-86

GB894.1-86

18

Y30208-N

01

End roller

主滚轮

4

19

B6150-00040

00

Snap ring

挡圈 40

4

GB894.1-86

GB894.1-86

20

22018-30303G

01

Side roller

侧滚轮

8

21

HRDH2Y8303

00

Inner mast

内门架总成

1

See table

见附表

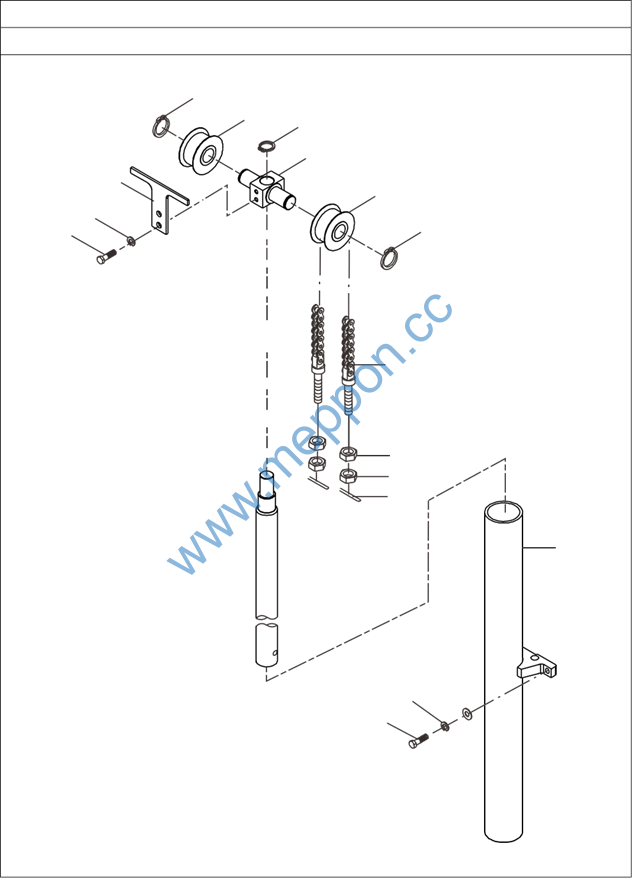

HRDG1N8405 06 Front lift cylinder mounting

HRDG1N8405 06 前起升油缸安装图

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

1

D15Y8-52001

06

Sheave seat

前缸链轮座

1

2

HRLH1223011- 101

02

Chain assembly

链条总成

1

ZSM560/

Include 7-9

ZSM560/包

含 7-9

2

HRLH1223011-89

02

Chain assembly

链条总成

1

ZSM480/

Include 7-9

ZSM480/包

含 7-9

2

HRLH1223011-87

02

Chain assembly

链条总成

1

ZSM470/

Include 7-9

ZSM470/包

含 7-9

2

HRLH1223011-83

02

Chain assembly

链条总成

1

ZSM450/

Include 7-9

ZSM450/包

含 7-9

2

HRLH1223011-81

02

Chain assembly

链条总成

1

std/ZSM435/ Include7-9

标准

/ZSM435/包

含 7-9

2

HRLH1223011-77

02

Chain assembly

链条总成

1

ZSM400/

Include 7-9

ZSM400/包含 7-9

2

HRLH1223011-71

02

Chain assembly

链条总成

1

ZSM360/

Include 7-9

ZSM360/包含 7-9

2

HRLH1223011-95

02

Chain assembly

链条总成

1

ZSM500/

Include 7-9

ZSM500/包

含 7-9

2

HRLH1223011-97

02

Chain assembly

链条总成

1

ZSM540/

Include 7-9

ZSM540/包

含 7-9

2

HRLH1223011- 109

02

Chain assembly

链条总成

1

ZSM600/

Include 7-9

ZSM600/包

含 7-9

2

HRLH1223011- 127

02

Chain assembly

链条总成

1

ZSM700/

Include 7-9

ZSM700/包

含 7-9

2

HRLH1223011- 117

02

Chain assembly

链条总成

1

ZSM650/

Include 7-9

ZSM650/包

含 7-9

3

D15Y8-52031

00

Sheave

链轮

1

4

B6150-00035

00

Snap ring

挡圈 35

1

GB894.1-86

GB894.1-86

5

B0330-08016

00

Bolt

螺栓 M8x16

1

GB5783-86

GB5783-86

6

B5050-00008

00

Washer

垫圈 8

1

GB93-87

GB93-87

7

22118-40181

00

Ball faced nut

球面螺母

1

8

B3010-3P230

00

Pin

开口销 3.2×30，GB91- 86

1

GB91-86

GB91-86

9

B4230-00014

00

Nut

螺母 M14x1.5

1

GB6171-86

GB6171-86

10

D15Y8-52011

01

Stopper,chain

护链板

1

11

B0530-12040

00

Bolt M12x1.25×40

螺栓 M12x1.25×40

1

GB5786-86

GB5786-86

12

B5050-00012

00

Washer

垫圈 12

1

GB93-87

GB93-87

13

B6150-00025

00

Snap ring

挡圈 25

1

GB894.1-86

GB894.1-86

14

HRDG1N8406

03

Front lift cylinder

前起升油缸

1

15

HRDG1N8406XLB

00

Front lift cylinder repair kits

前起升缸修理包

1

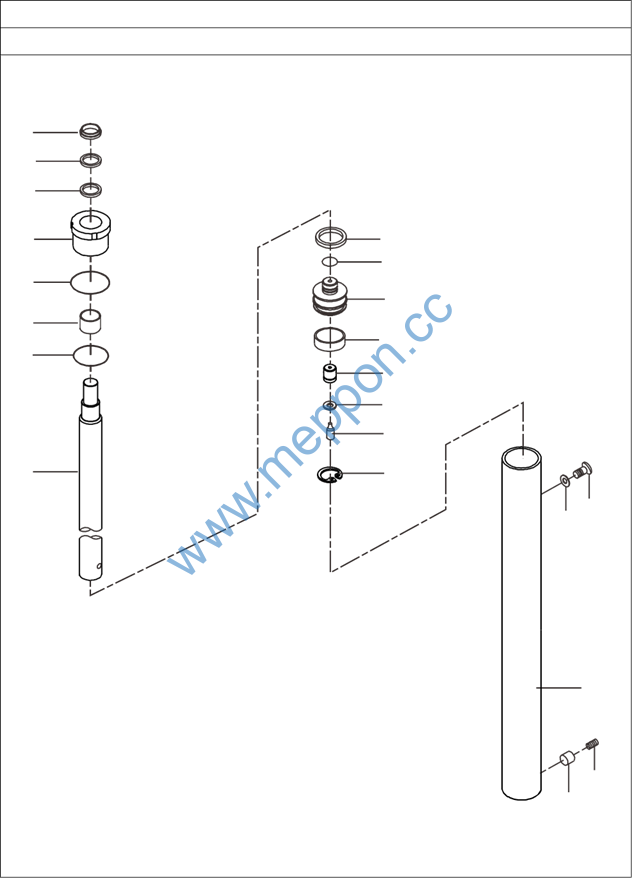

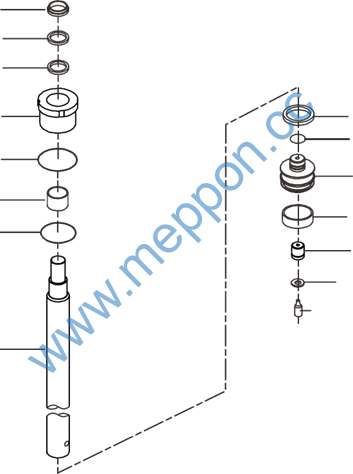

HRDG1N8406 03 Front lift cylinder

HRDG1N8406 03 前起升油缸

2

3

4

6    16

13

5    12

7

8    17

15

1

HRDG1N8406 03 Front lift cylinder

HRDG1N8406 03 前起升油缸

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

0

DG1G8-40711

03

Front lift cylinder

前起升油缸

1

HRDG1N84 06/ZM200/Z

SM360

HRDG1N84 06/ZM200/Z

SM360

0

DG1G8-40701

03

Front lift cylinder

前起升油缸

1

HRDG1N84 06/ZM250/Z M270/ZSM4

00

HRDG1N84 06/ZM250/Z M270/ZSM4

00

0

DG1G8-40721

03

Front lift cylinder

前起升油缸

1

HRDG1N84 06/ZM300/Z

SM435

HRDG1N84 06/ZM300/Z

SM435

0

DG1G8-40731

03

Front lift cylinder

前起升油缸

1

HRDG1N84

06/ZM330/Z SM450

HRDG1N84

06/ZM330/Z SM450

0

DG1G8-40741

03

Front lift cylinder

前起升油缸

1

HRDG1N84

06/ZM350/Z SM470

HRDG1N84

06/ZM350/Z SM470

0

DG1G8-40781

03

Front lift cylinder

前起升油缸

1

HRDG1N84 06/ZM370/Z M450/ZSM5

40

HRDG1N84 06/ZM370/Z M450/ZSM5

40

0

DG1G8-40751

03

Front lift cylinder

前起升油缸

1

HRDG1N84

06/ZM400/Z SM480

HRDG1N84

06/ZM400/Z SM480

0

DG1G8-40771

03

Front lift cylinder

前起升油缸

1

HRDG1N84

06/ZM425/Z SM500

HRDG1N84

06/ZM425/Z SM500

0

DG1G8-40811

03

Front lift cylinder

前起升油缸

1

HRDG1N84 06/ZM475/Z

M600/ZSM7 00

HRDG1N84 06/ZM475/Z

M600/ZSM7 00

0

DG1G8-40791

03

Front lift cylinder

前起升油缸

1

HRDG1N84

06/ZM500/Z SM600

HRDG1N84

06/ZM500/Z SM600

0

DG1G8-40801

03

Front lift cylinder

前起升油缸

1

HRDG1N84 06/ZM550/Z SM650

HRDG1N84 06/ZM550/Z SM650

1

DG1N8-50101

00

Piston rod

活塞杆

1

2

FQ0041C0

00

Dust ring

防尘圈 50x58x5/6.5

2

3

22658-52301

00

Catch

挡片 60x50x3

4

4

24329-45591

00

Seal ring

轴用密封圈 50x60x5

4

5

AG0075A

00

O-ring

O 型密封圈 75×3.1

2

6

D16N8-82411

00

Guide cap

导向套

3

7

Z2114-05035

00

Bushing

刚背轴承 5035

2

8

Z6003-07003

00

O-ring

O 型圈 70*3.1

2

GB1235-76

GB1235-76

9

Q70B0-82141

01

Washer

垫片

2

10

B8032-05006

00

Screw M5X6

螺钉 M5X6

2

GB70-85

GB70-85

11

DG1N8-40101

07

Rear lift cylinder mounting

后起升油缸安装图

1

12

DG1N8-60102

00

Piston assembly

活塞总成

1

13

GCQ055DL4-04

00

Snap ring

钢丝挡圈

1

14

GCQ055DL4.2-00

00

Valve assembly

阀总成

1

HRDG1N8406 03 Front lift cylinder

HRDG1N8406 03 前起升油缸

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

15

DA2G8-02

00

Sleeve

套

1

16

PT03A0700-T46N

00

Glyd ring

格莱圈 70x56x6.3

1

17

D01D8-42041

00

Wearing

支承环

1

18

DA2N8-01

00

Washer

垫片 2

1

19

GCQ080MKS-04

00

Snap ring

孔用钢丝挡圈 35×2.5

1

GB895.1-86

GB895.1-86

20

D01D8-42081

00

Spring

弹簧

1

21

23650-48341

00

Spool

阀芯

1

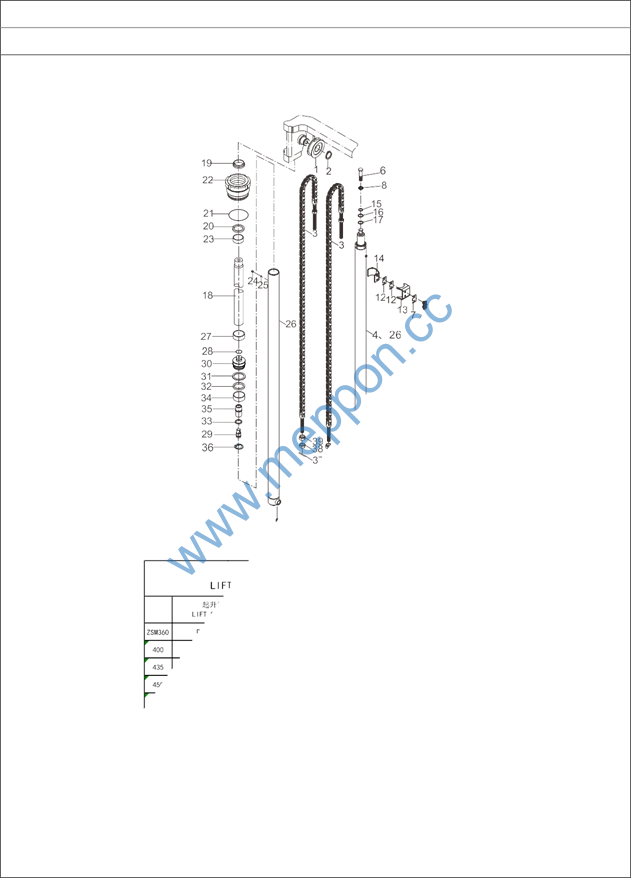

HRDH2Y8401 01 Rear lift cylinder mounting

HRDH2Y8401 01 后起升油缸安装图

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

1

D2KD8-74011

01

Sheave

链轮

2

2

B6150-00040

00

Snap ring

挡圈 40

2

GB894.1-86

GB894.1-86

3

HRLH1234021-N

02

Chain assembly

链条总成

2

See attached table, including 37-

39

见附表,包含

37-39

4

HRDH2Y8402

00

Rear lift cylinder

后起升油缸

2

See attached table, including18-

36

见附表,包含

18-36

5

B8330-12020

00

Screw M12x20

螺钉 M12x20

2

GB79-85

GB79-85

6

B0530-14035

00

Bolt

螺栓 M14x1.5×35

2

7

DE778-42051

00

Shim

调整垫片

2

8

B5050-00014

00

Washer

垫圈 14

2

GB79-85

GB79-85

9

B5050-00010

00

Washer

垫圈 10

4

GB93-87

GB93-87

10

B0430-10040

00

Bolt M10x1.25×40

螺栓 M10x1.25×40

4

GB5782-86

GB5782-86

11

DE778-42031

00

Cushion

减震块

2

12

DE778-42061

00

Shim

调整垫片

8

13

D7B38-42011

05

Cylinder clamp

油缸固定卡 1

2

14

D7B38-40201

02

Support

油缸固定卡

2

15

D12C8-42071

02

Washer

垫片

4

16

23917-42191-3

00

Washer

垫圈

2

17

23917-42191-1

00

Washer

垫圈

2

18

HRDH2Y8402-01

00

Piston rod

活塞杆

2

19

29568-42051

00

Dust ring

防尘圈

2

20

D10B8-42311A

00

Seal ring

轴用密封圈 36x46x6

2

21

Z6053-04472

00

O-ring D44.7×2.4

O 型密封圈 D44.7×2.4

2

GB/T1235- 76

GB/T1235- 76

22

HRD61Q8402

00

Guide sleeve

导向套

2

23

Z2112-03630

00

Bushing 3630

钢背轴承 3630

2

24

B8032-05005

00

Screw

螺钉 M5x5

2

GB/T70- 1985

GB/T70- 1985

25

Q70B0-82141

01

Washer

垫片

2

26

HRDH2Y8402.1- 00

00

Cylinder body

缸体

2

27

TZT-36

00

Spacer

调整套

2

28

D20B8-42381

00

Snap ring

钢丝挡圈

2

HRDH2Y8401 01 Rear lift cylinder mounting

HRDH2Y8401 01 后起升油缸安装图

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

29

GCQ055DL4.2-00

00

Valve assembly

阀总成

2

30

HRD6S50805-04

00

Piston

活塞

2

31

GCQ045DL4-04

00

Washer

垫片

2

32

23650-52861

00

Catch

挡片φ45xφ35×3

2

33

22580-53311

00

Seal ring 45x35x6

孔用密封圈 45x35x6

2

34

C51B8-42251

00

Wearing

支承环

2

35

HRD6S50805-05

00

Sleeve

套

2

36

GCQ045DL4-12

00

Sleeve

套

2

37

B3010-03030

00

Pin 3*30

销 3*30

4

GB91-86

GB91-86

38

B4216-00018

00

Nut M18x1.5

螺母 M18x1.5

4

GB6171-86

GB6171-86

39

22198-40192G

00

Ball faced nut M18x1.5

球面螺母 M18x1.5

4

40

HRDH2Y8402XLB

00

Lift cylinder repair kits

起升油缸修理包

1

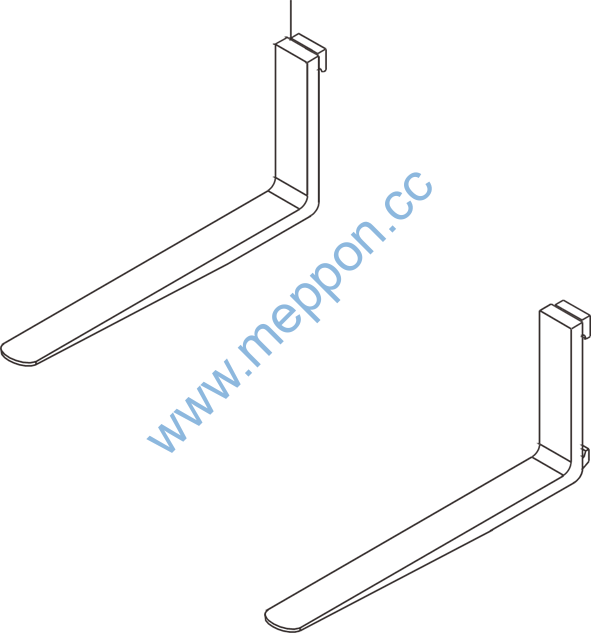

HRD10B8101 06 Fork

HRD10B8101 06 货叉总成
