YTO 800/804/900/904 Tractor Parts Catalogue 13

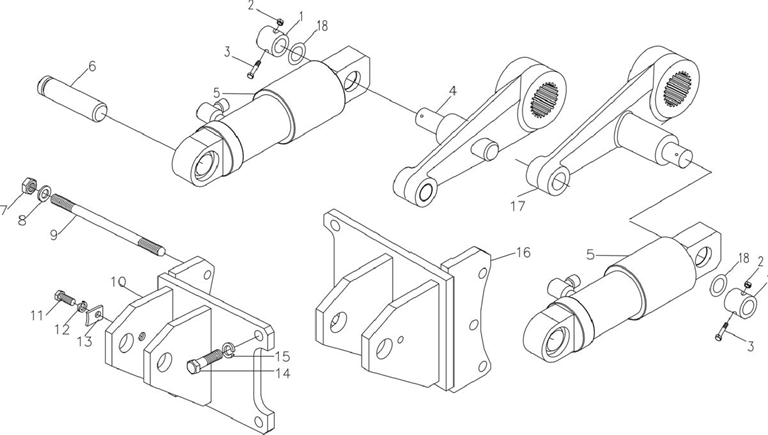

55 Lifter cylinder piston
No. |
Parts name |
Drawing No. |
Qty. |
No. |
Parts name |
Drawing No. |
Qty. |
No. |
Parts name |
Drawing No. |
Qty. |
No. |
Parts name |
Drawing No. |
Qty. |
1 2 3 4 5 |
Bolt M14×1.5×65 O-seal ring 17.12×2.62 Hydraulic cylinder,lifter Bolt M16×1.5×75 O-seal ring98.02×3.53 |
11227034/10312 14457381/14618 5131998/1.82.608 GB 5785-86 14465980/14618 |
1 1 1 2 2 |
6 7 7.1 7.2 |
O-seal ring,piston Piston assy,lifter Piston,lifter Seat,piston rod |
885125941/1.82.611 5132001/1.82.612A 885132000/1.82.612 573148/1.82.615 |
2 1 1 1 |

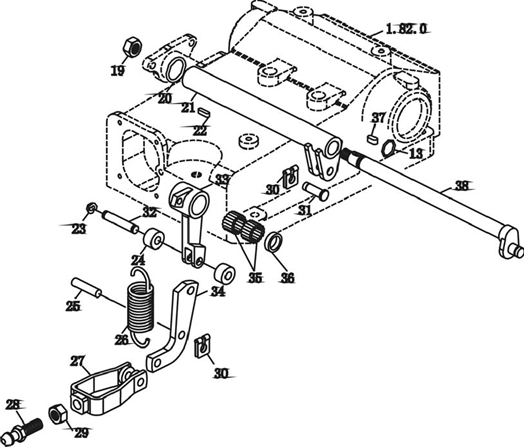

55 Lifter shaft and power transferring mechanism
55 Lifter shaft and power transferring mechanism
No. |
Parts name |
Drawing No. |
Qty. |
No. |
Parts name |
Drawing No. |
Qty. |
1 |
Bush,auxiliary cylinder |
1204.55.116 |
2 |
11 |
Bolt M10×1.25×16 |
GB 5786-86 |
2 |
2 |
Nut M8 |
GB6185.1-2000 |
2 |
12 |
Fastening gasket |
4402815/1.32.032 |
2 |
3 |
Bolt M8×50 |
GB5782-2000 |
2 |
13 |
Locking plate D=10 |
14198810/10182 |
2 |
4 |
Left lifting arm assy |
1.82/8B08082053 |
1 |
14 |
Bolt M16×1.5×45 |
GB/T5786-2000 |
4 |
5 |
Auxiliary cylinder |
SZ804.58A.010 |
2 |
15 |
Washer 16 |
GB/T93-1987 |
4 |
6 |
Auxiliary cylinder pin |
SZ804.55A.702 |
2 |
16 |
Right support assy, auxiliary |
SZ904.55.020-1 |
1 |
7 |
Nut M14×1.5 |
GB 6176-86 |
6 |
cylinder hinge |
|||
8 |
Washer |
587259/1.27.750 |
6 |
17 |
Right lifting arm assy |
SZ804.55A.010-1 |
1 |
9 |
Stud AM14X1.5X180-180 |
GB/T900-1988 |
6 |
18 |
Lifting arm gasket |
44018747/1.82.195 |
2 |
10 |
Left support assy, auxiliary |
SZ904.55.010-1 |
1 |
||||
cylinder hinge |

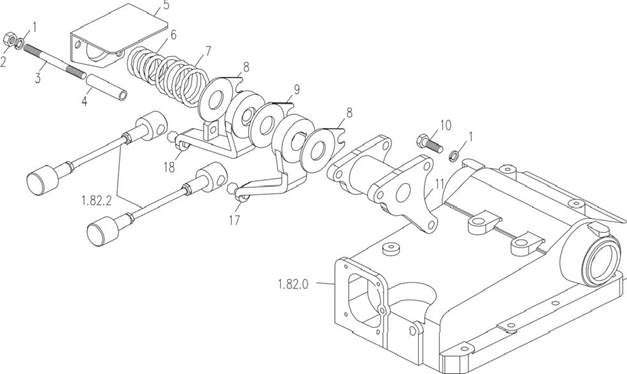

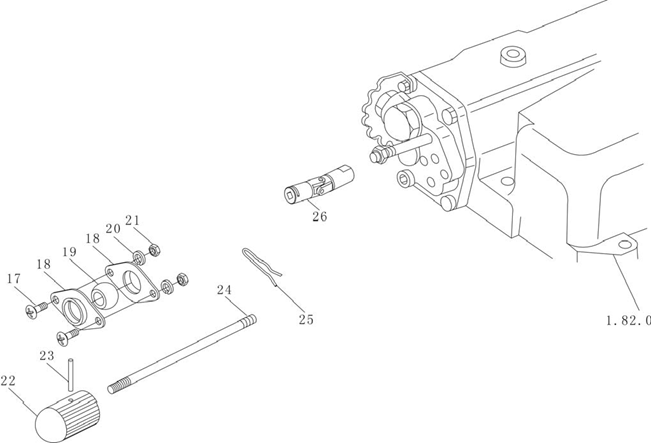

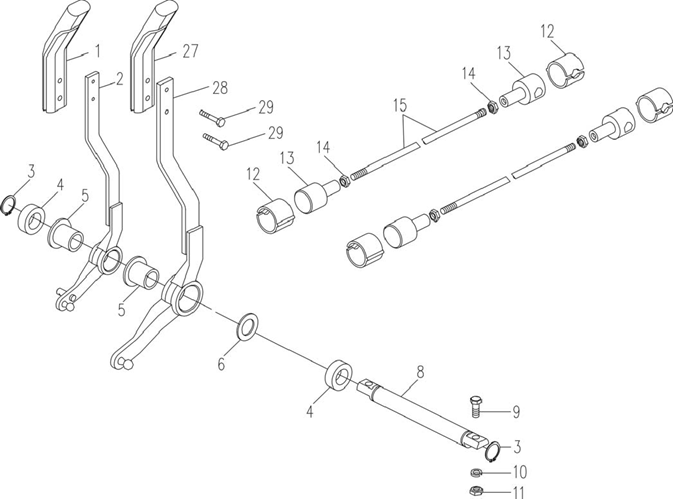

55 Lifter control mechanism
55 Lifter control mechanism
55 Lifter control mechanism
No. |
Parts name |
Drawing No. |
Qty. |
No. |
Parts name |
Drawing No. |
Qty. |
1 |
Knob,automatic position |
SZ900.55.102 |
1 |
15 |
Control pull rod,lifter |
804C.55.105 |
2 |
control lever |
|||||||
2 |
Lever weldment ,automatic |
804C.55.011-2 |
1 |
17 |
Bolt M6×1×16 |
GB/T5783-2000 |
2 |
position control |
18 |
Seat,ball bush |
4998311/1.80.255 |
2 |
|||
3 |
Retaining ring 21 |
11066976/12245 |
4 |
19 |
Ball bush |
5109058/1.80.254 |
1 |
4 |
Spacer,pin shaft |
5127167/1.82.255B |
2 |
20 |
Washer 6 |
GB/T7244-1987 |
3 |
5 |
Bush,lever |
5126032/1.82.262 |
2 |
21 |
Nut M6 |
GB/T6170-2000 |
4 |
6 |
Gasket,lever shaft |
5126195/1.82.255A |
2 |
22 |
Knob,adjusting valve |
5144119/1.82.276 |
1 |
8 |
Lever pin |
5126024/1.82.254 |
1 |
23 |
Pin 4×32 |
14164470/12213 |
1 |
9 |
Bolt M8×22 |
GB/T5783-2000 |
4 |
24 |
Adjusting pull rod,lowering valve |
804C.55.110-1 |
1 |
10 |
Washer 8 |
GB/T7244-1987 |
4 |
25 |
Spring pin |
889960079/1.82.283 |
1 |
11 |
Nut M8 |
GB/T6170-2000 |
4 |
26 |
Universal coupling assy |
885134039/1.82.283 |
1 |
12 |
Clip 13 |
10125574/13130/03 |
4 |
27 |
Knob,automatic force control |
SZ900.55.101 |
1 |
13 |
Spherical connecting cover |
10124514/13130/01 |
4 |
lever |
|||
14 |
Nut M8 |
GB 6172-86 |
4 |
28 |
Lever weldment ,automatic |
804C.55.012-2 |
1 |
force control |
|||||||
29 |
Screw M4X10 |
5113531/1.82.797C |
4 |

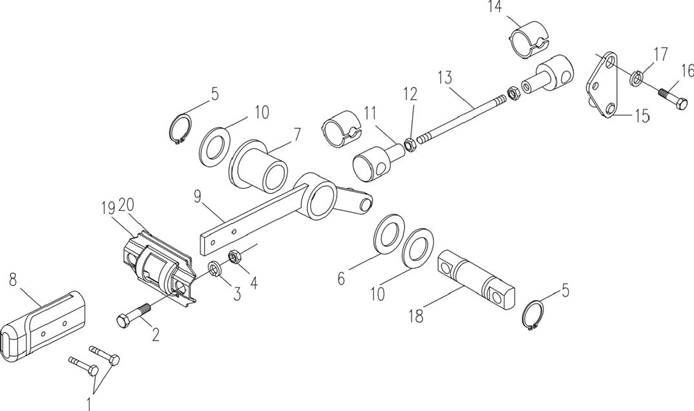

55 Lifter control mechanism
55 Lifter control mechanism
No. |
Parts name |
Drawing No. |
Qty. |
No. |
Parts name |
Drawing No. |
Qty. |
1 |
Bolt M4×10 |
5113531/1.82.797C |
2 |
||||
2 |
Bolt M8×30 |
GB/T5783-2000 |
2 |
||||
3 |
Washer 8 |
GB/T93-1987 |
2 |
||||
4 |
Nut M8 |
GB6170-20000 |
2 |
||||
5 |
Retaining ring 21 |
11066976/12245 |
2 |
||||
6 |
Gasket,lever shaft |
5126195/1.82.255A |
1 |
||||
7 |
Bush,lever |
5126032/1.82.262 |
1 |
||||
8 |
Knob, sensitivity |
5126312/1.82.278A |
1 |
||||
9 |
Control lever assy |
804C.55.013 |
1 |
||||
10 |
Washer 21×35×2,lever pin |
5126031/1.82.255 |
2 |
||||
11 |
Cover,ball joint |
10124411/13130/01 |
2 |
||||
12 |
Nut M6 |
GB6170-86 |
2 |
||||
13 |
Adjusting pull rod |
804C.55.106 |
1 |
||||
14 |
Clip 10 |
10124874/13130/03 |
2 |
||||
15 |
Adjusting lever pin |
15126193/1.82.279 |
1 |
||||
16 |
Bolt M6×12 |
GB/T5783-2000 |
1 |
||||
17 |
Washer 6 |
GB/T7244-87 |
1 |
||||
18 |
Pin shaft,adjusting lever |
804C.55.107 |
1 |
||||
19 |
Gasket,short pin shaft cover |
5134732/1.82.280D |
1 |
||||
20 |
Cover,short pin shaft |
5134731/1.82.280C |
1 |

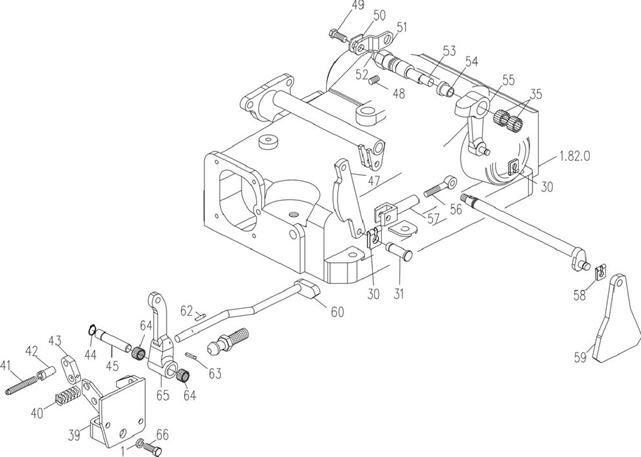

55 Distributor control mechanism
55 Distributor control mechanism
55 Distributor control mechanism
55 Distributor control mechanism
