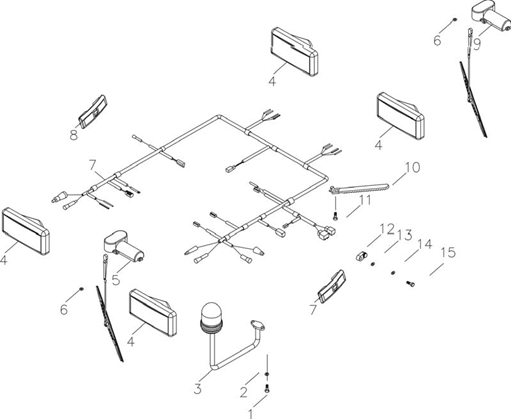

YTO 800/804/900/904 Tractor Parts Catalogue 12
No. |
Parts name |
Drawing No. |
Qty. |
No. |
Parts name |
Drawing No. |
Qty. |
1 |
Left front wire harness |
804C.48.019 |
1 |
||||
2 |
Horn |
50F |
1 |
||||
3 |
Nut M8-Zn.D |
GB/T6170-2000 |
1 |
||||
4 |
Washer 6-Zn.D |
GB/T93-1987 |
1 |
||||
5 |
Bolt M8×25-Zn.D |
GB/T5783-2000 |
1 |
||||
6 |
Right front combined lamp |
700.48.031-1 |
1 |
||||
700.48.031R① |
|||||||
7 |
Left front combined lamp |
700.48.030-1 |
1 |
||||
700.48.030R① |
|||||||
8 |
Nut M6-Zn.D |
GB/T6177.1-2000 |
6 |
Note:① for mount lamp with E.
No. |
Parts name |
Drawing No. |
Qty. |
No. |
Parts name |
Drawing No. |
Qty. |
1 |
Screw M6×14-Zn.D |
GB/T818-2000 |
2 |
||||
2 |
Washer 6-Zn.D |
GB/T93-1987 |
2 |
||||
3 |
Rotating warning light |
LTD153A/12 |
1 |
||||
4 |
Rectangular lamp |
WFD2020 |
6 |
||||
5 |
Front window screen sweeper |
ZD1500A |
1 |
||||
6 |
Sleeve,motor |
1204-1.48.031 |
3 |
||||
7 |
Cab‘s harness |
804C.48.018-1 |
1 |
||||
8 |
Ceiling lamp |
D160×70A/12 |
2 |
||||
9 |
Rear window screen sweeper |
ZD1800 |
1 |
||||
10 |
binding belt |
ZD159×8.3 |
9 |
||||
11 |
Screw M5×16-Zn.D |
GB/T822-2000 |
9 |
||||
12 |
Switch,door lamp |
JK208 |
2 |
||||
13 |
Washer 6-Zn.D |
GB/T96-2000 |
4 |
||||
14 |
Washer 5-Zn.D |
GB/T93-1987 |
2 |
||||
15 |
Screw M5×20-Zn.D |
GB/T822-2000 |
2 |
No. |
Parts name |
Drawing No. |
Qty. |
No. |
Parts name |
Drawing No. |
Qty. |
1 |
Washer 5-Zn.D |
GB/T93-1987 |
3 |
20 |
Nut M4-Zn.D |
GB/T6170-2000 |
4 |
2 |
Screw M5×16-Zn.D |
GB/T822-2000 |
3 |
21 |

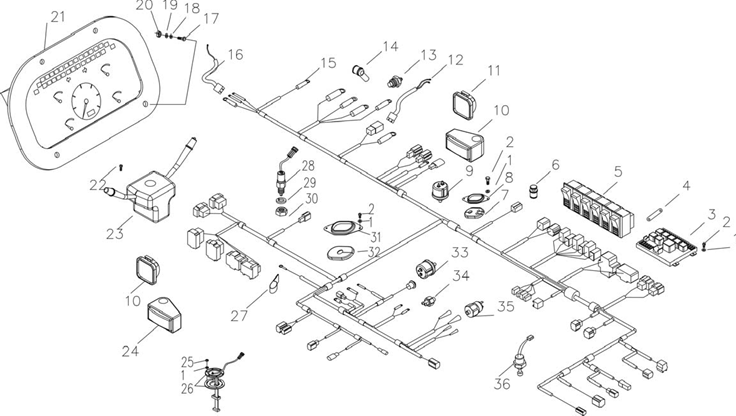

Combination instrument |
ZB115 |
1 |
3 |
Central control box |
PD24-804C |
1 |
22 |
Screw M6×30-Zn.D |
GB/T823-2000 |
3 |
4 |
Clip,harness |
10021202.48A.035 |
1 |
23 |
Combination switch |
JK365C |
1 |
5 |
Six in one toggle switch |
JK932-804C |
1 |
24 |
Front left signal lamp |
Z-QX110×70(L)-E/12 |
1 |
6 |
Cigarette lighter |
DYQ-1 |
1 |
25 |
Nut M5-Zn.D |
GB/T6170-2000 |
5 |
7 |
Transmission sleeve |
804C.48.204 |
1 |
Washer 5-Zn.D |
GB/T93-1987 |
5 |
|
8 |
Insulating shield |
4998891/1.75.480 |
1 |
26 |
Sensor,fuel level |
LTYW-370N |
1 |
Screw M5×16-Zn.D |
GB/T822-2000 |
2 |
27 |
Closed clip |
75D.48.601 |
1 |
|
Washer 5-Zn.D |
GB/T93-1987 |
2 |
28 |
Starting switch,safety |
JK238A-804C |
1 |
|
9 |
Air pressure sensor |
LT-YG203E |
1 |
29 |
Washer 14-Zn.D |
GB/T93-1987 |
1 |
10 |
Front right signal light |
Z-QX110×70(R)-E/12 |
1 |
30 |
Nut M14×1.5-Zn.D |
GB/T6173-2000 |
1 |
11 |
Woring lamp,mud guard |
WD100×90/12 |
2 |
31 |
Insulated washer |
1204-1.48.103 |
1 |
12 |
Fusiblewire,emergencywarning |
804C.48.024 |
1 |
32 |
Transmission sleeve |
804C.48.203 |
1 |
13 |
Sensor,water temperature |
WG1371K |
1 |
Screw M5×16-Zn.D |
GB/T822-2000 |
2 |
|
14 |
Connection rubber sleeve |
SZ804.48.107 |
3 |
Washer 5-Zn.D |
GB/T93-1987 |
2 |
|
15 |
Main harness |
804C.48.015-1 |
1 |
33 |
Sensor,fuel pressure |
3846N-010-B2 |
1 |
16 |
Fusible wire |
1204-1.48.023 |
1 |
34 |
Switch,hydraulic braking lamp |
JK613B/1.75.072 |
1 |
17 |
Screw M4×25-Zn.D |
GB/T68-2000 |
4 |
35 |
Pressureannunciator,steering(optional) |
YLKG021 |
1 |
18 |
Washer 4-Zn.D |
GB/T93-1987 |
4 |
36 |
Parking brake indicator |
JK232A-804C |
1 |
19 |
Washer 4-Zn.D |
GB/T97.1-2000 |
4 |
switch |
No. |
Parts name |
Drawing No. |
Qty. |
No. |
Parts name |
Drawing No. |
Qty. |
1 |

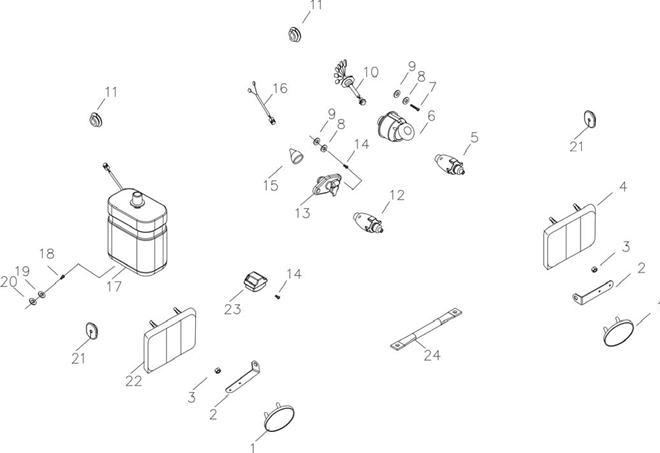

Reflector |
LHF-SQ-011 |
2 |
19 |
Washer 6-Zn.D |
GB/T93-1987 |
2 |
2 |
Bracket,lower reflector |
804C.48.102 |
2 |
20 |
Washer 6-Zn.D |
GB/T97.1-2000 |
2 |
3 |
Nut M6-Zn.D |
GB/T6177.1-2000 |
4 |
21 |
Sleeve |
804C.48.202 |
1 |
4 |
Rear combination lamp |
804C.48.051 |
1 |
22 |
Rear left combinated lamp |
804C.48.050 |
1 |
5 |
Multiple plug pin |
25.032.200.01 |
1 |
23 |
Licence lamp |
T41-3210/12 |
1 |
6 |
Multiple socket |
25.044.100.01 |
1 |
Screw M5×16-Zn.D |
GB/T822-2000 |
2 |
|
7 |
Screw M5×35-Zn.D |
GB/T65-2000 |
3 |
24 |
Cabel assy,from cab to |
804C.48.022 |
1 |
8 |
Washer 5-Zn.D |
GB/T93-1987 |
3 |
frame ground |
|||
9 |
Washer 5-Zn.D |
GB/T97.1-2000 |
3 |
connection |
|||
10 |
Harness,multiple socket |
804C.48.021 |
1 |
||||
11 |
Sleeve |
LG1504.80A.110 |
2 |
||||
12 |
Three hole power plug |
25. 033.200.01 |
1 |
||||
13 |
Three hole power socket |
25. 034.100.01 |
1 |
||||
14 |
Screw M5×16-Zn.D |
GB/T822-2000 |
2 |
||||
Washer 5-Zn.D |
GB/T93-1987 |
2 |
|||||
Washer 5-Zn.D |
GB/T97.1-2000 |
2 |
|||||
15 |
Accessory,three hole powerplug |
30.20.0466201 |
1 |
||||
16 |
Harness,power socket |
804C.48.023 |
1 |
||||
17 |
Scrubber assy |
XD105 |
1 |
||||
18 |
Screw M6×16-Zn.D |
GB/T818-2000 |
2 |
No. |
Parts name |
Drawing No. |
Qty. |
No. |
Parts name |
Drawing No. |
Qty. |
1 |
Fasten belt pad |
1204-1.50.116-1 |
2 |
20 |
Washer 10-Zn.D |
GB/T97.1-2000 |
2 |
2 |
Fasten belt assy |
804C.50.011 |
2 |
21 |
Pin shaft B10×90-Zn.D |
GB/T882-1986 |
2 |
3 |

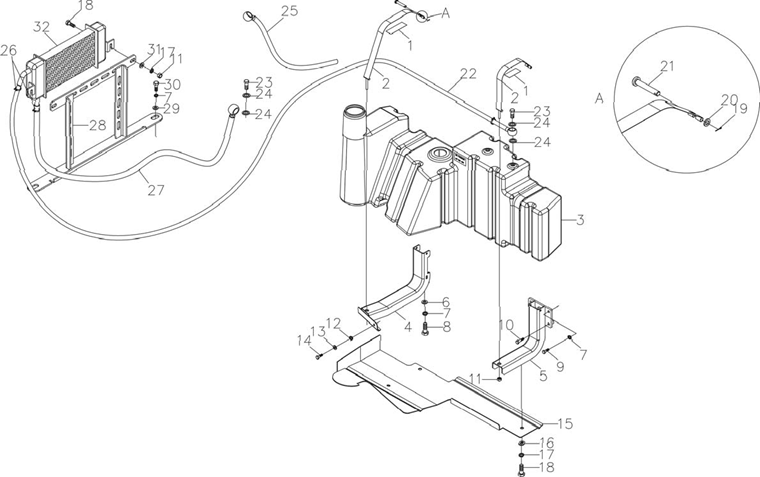

Fuel tank assy |
804C.50.010 |
1 |
22 |
Fuel return pipe |
804C-2.50.011-1 |
1 |
4 |
Front bracket assy |
804C.50.012 |
1 |
23 |
Hinge Bolt M18×1.5-Zn.D |
JB/T6013-2000 |
1 |
5 |
Rear bracket weldment |
804C.50.015 |
1 |
24 |
Washer 18 |
JB/T6013-2000 |
2 |
6 |
Washer 12-Zn.D |
GB/T96-2000 |
1 |
25 |
Fuel pipe,fuel tank to |
LTYG-870 |
1 |
7 |
Washer 12-Zn.D |
GB/T93-1987 |
4 |
fuel/water sepatator |
|||
8 |
Bolt M12×45-Zn.D |
GB/T5783-2000 |
1 |
26 |
Hoop d16~25(stainless steel) |
JB/T8870-1999 |
2 |
9 |
Bolt M12×1.25×35-Zn.D |
GB/T5786-2000 |
2 |
27 |
Short fuel return pipe |
SZ804C-2.50A.011 |
1 |
10 |
Bolt M12×1.25×50-Zn.D |
GB/T5786-2000 |
1 |
Hinge bolt M18×1.5-Zn.D |
JB/T6013-2000 |
1 |
|
11 |
Nut M8-Zn.D |
GB/T6170-2000 |
2 |
Washer 18 |
JB/T6013-2000 |
2 |
|
12 |
Washer 10-Zn.D |
GB/T93-1987 |
1 |
28 |
Bracketweldment,waterradiator |
804C-2.50.012 |
1 |
13 |
Washer 10-Zn.D |
GB/T5287-1985 |
2 |
29 |
Washer 12-Zn.D |
GB/T 97.1-2002 |
2 |
14 |
Bolt M10×30-Zn.D |
GB/T5783-2000 |
1 |
30 |
Bolt |
GB/T 5786-2000 |
2 |
15 |
Guard plate assy |
804C.50.013 |
1 |
M12×1.25×25-Zn.D |
|||
16 |
Washer 8-Zn.D |
10172/12646204 |
5 |
31 |
Washer 8-Zn.D |
GB/T 97.1-2002 |
4 |
17 |
Washer 8-Zn.D |
GB/T93-1987 |
5 |
32 |
Water radiator assy |
804C-1.50.011-1 |
1 |
18 |
Bolt M8×30-Zn.D |
GB/T5783-2000 |
3 |
||||
19 |
Pin 2×18 |
GB/T91-2000 |
2 |
Note:①For YTO Euro Ⅲ engine

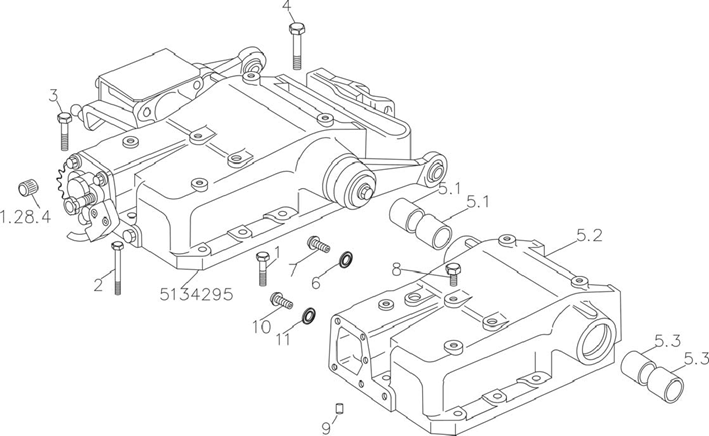

55 Hydraulic lifter housing and assy
No. |
Parts name |
Drawing No. |
Qty. |
No. |
Parts name |
Drawing No. |
Qty. |
Hydraulic lifter assy |
LX804C.55.002 |
1 |
5 |
Lifter housing assembly Right bushing,lift shaft Housing,lifter Left bushing,lift shaft Combined sealing ring 22 Screw plug M22X1.5 Bevel screw plug M12x1.5 Dowel pin B15X22,transmission case and lifter Screw rod Washer 22 |
5131999/1.82.010A |
1 |
|
1 |
Bolt M12×1.25×35-Zn.D |
GB 5786-86 |
1 |
5.1 |
5108108/1.82.016 |
2 |
|
2 |
Bolt M12×1.25×90-Zn.D |
GB 5785-86 |
3 |
5.2 |
5131997/1.82.010 |
1 |
|
3 |
Bolt M12×1.25×45-Zn.D |
GB 5785-86 |
6 |
5.3 |
5117165/1.82.017 |
2 |
|
4 |
Bolt M12×1.25×50-Zn.D |
GB 5785-86 |
1 |
6 |
JB/T982-1977 |
1 |
|
7 |
14530/10305171 |
1 |
|||||
8 |
14551/14324111 |
1 |
|||||
9 |
5119529/1.21.071 |
2 |
|||||
10 |
SZ804.55.502 |
1 |
|||||
11 |
JB/T982-1977 |
1 |

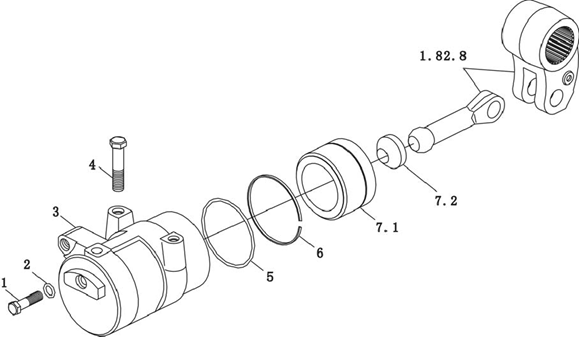

55 Lifter cylinder piston
