LOVOL TS6A904-011K Tractor Parts Catalogue 12

Meppon Parts Posted on by

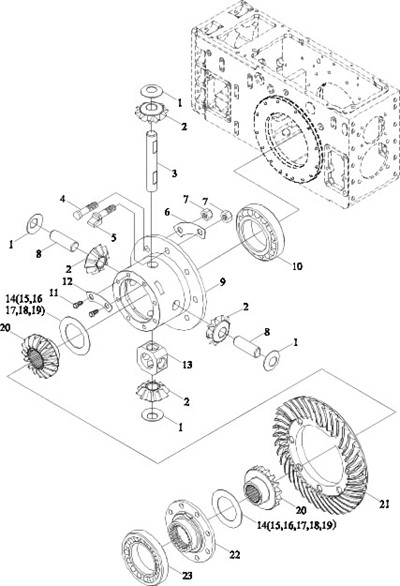

TC05382010000 REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-2














TC05382010000 REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-2



No.

Part No.

Description

Version

QTY.

Remark


FT800.38.012

DIFFERENTIAL ASSEMBLY



1




TC05382010000

REAR AXLE CENTRAL TRANSMISSION ASSEMBLY

1

1

FT800.38.216

PLANET GEAR WASHER

4

2

FT800.38.217a

PLANET GEAR

4

3

FT800.38.215

PLANET GEAR SHAFT

1

4

FT800.38.211

LOCKING BOLT

4

5

FT800.38.212

PLANET GEAR SHAFT THRUST SCREW

4

6

FT800.38.213

LOCK WASHER

4

7

GBT6171-M14X1.5-8-A3L

HEXAGON NUT, TYPE-1

8

8

FT800.38.131

SHORT PLANETARY GEAR SHAFT

2

9

FT800.38.128

DIFFERENTIAL HOUSING

1

10

GBT297-32216

TAPERED ROLLER BEARING

1

11

GBT5783-M12X25-8.8-A3L

HEXAGON BOLT

8

12

FT800.38.218

LOCKING WASHER

4

13

FT800.38.132

CENTRAL RING

1

14

FT800.38.210

HALF SHAFT GEAR WASHER

1

15

FT800.38.200

HALF SHAFT GEAR WASHER

1

16

FT800.38.220

HALF SHAFT GEAR WASHER

1

17

FT800.38.230

HALF SHAFT GEAR WASHER

1

18

FT800.38.240

HALF SHAFT GEAR WASHER

1

19

FT800.38.250

HALF SHAFT GEAR WASHER

1

20

FT800.38.130a

HALF SHAFT GEAR

2

21

FT800.38.129

BIG TAPER GEAR

1







TC05382010000 REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-2 (cont’d.)



No.

Part No.

Description

Version

QTY.

Remark

22

23

FT800.38.133

GBT297-30216

DIFFERENTIAL COVER

TAPERED ROLLER BEARING



1

1









TS06383010000 DIFFERENTIAL LOCK CONTROL MECHANISM ASSEMBLY






















TS06383010000 DIFFERENTIAL LOCK CONTROL MECHANISM ASSEMBLY



No.

Part No.

Description

Version

QTY.

Remark


TS06383010000

DIFFERENTIAL LOCK CONTROL MECHANISM ASSEMBLY



1



1

GBT5783-M10X25-8.8-A3L

HEXAGON BOLT

4

2

GBT93-10-A0P

STANDARD SPRING WASHER

4

3

GBT879.1-5X40

SPRING COLUMN PIN

1

4

TS06383010001

PEDAL WELD

1

5

GBT882-B8X24-A0P

PIN SHAFT

1

6

GBT95-8-A0P

FLAT WASHER

3

7

GBT91-3.2X30-A0P

SPLIT PIN

3

8

FT800A.38.258

PULL ROD

1

9

GBT894.1-20

CIRCLIP FOR SHAFT

2

10

TS06383010004

ROCKER WELDMENT

1

11

FT800A.38.252

ROTARY SHAFT

1

12

FT800A.38.250

DIAL BLOCK

1

13

FT800A.38.251

INSTALLATION SEAT

1

14

GBT879.1-8X40

SPRING COLUMN PIN

1

15

FT800.38.109

DIAL BLOCK

1

16

FT800.38.111

DIFFERENTIAL LOCK FORK SHAFT

1

17

GBT3452.1-20.0X2.65G

RUBBER O-SEAL RING

1

18

FT800A.38.259

SLEEVE

1

19

GBT3452.1-30.0X2.65G

RUBBER O-SEAL RING

1

20

TF1004.374-02

LOW CARBON STEEL WIRE

1

21

FT800.37.194

LOCKING SCREW

1

22

Q72220

PLUG PIECE

1







TS06383010000 DIFFERENTIAL LOCK CONTROL MECHANISM ASSEMBLY (cont’d.)



No.

Part No.

Description

Version

QTY.

Remark

23

FT800.38.114

DIFFERENTIAL LOCK FORK



1



24

FT800.38.206

SPACER BUSH

1

25

FT800.38.112

DIFFERENTIAL LOCK SPRING

1







TS06384040000 REAR AXLE HOUSING ASSEMBLY-1











TS06384040000 REAR AXLE HOUSING ASSEMBLY-1



No.

Part No.

Description

Version

QTY.

Remark


TS06384040000

REAR AXLE HOUSING ASSEMBLY



1



1

GBT5783-M10X25-8.8-A3L

HEXAGON BOLT

8

2

GBT93-10-A3L

STANDARD SPRING WASHER

8

3

TS06384040001

REAR AXLE HOUSING COVER

1

4

GBT93-8-A3L

STANDARD SPRING WASHER

3

5

GBT70.1-M8X25-8.8-A2L

INNER HEXAGON SCREW

2

6

GBT3452.1-15.0X2.65G

RUBBER O-SEAL RING

1

7

FT800A.38.019a

OIL DIPSTICK PIPE WELDMENT

1

8

FT800A.38.018

DIPSTICK ASSEMBLY

1

8.1

FT800A.38.217

DIPSTICK

1

8.2

FT800A.38.218

RUBBER SEAT

1

9

GBT119.1-12m6X30-A3L

COLUMN PIN

2

10

TC05384020001

REAR AXLE HOUSING

1

11

GBT5783-M8X16-8.8-A2L

HEXAGON BOLT

1

12

TC05384090008

SUPPORT BRACKET

1

12.1

TC05384090009

BRACKET WELDMENT

1

12.2

TG1204.402-01

SINGLE HOLE PIPE CLAMP

2

12.3

GBT5783-M8X35-8.8-A2L

HEXAGON BOLT

1

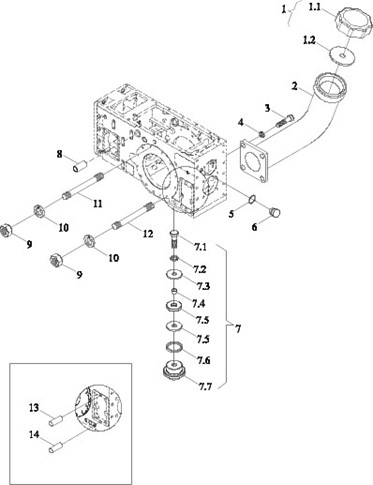

TS06384040000 REAR AXLE HOUSING ASSEMBLY-2






















TS06384040000 REAR AXLE HOUSING ASSEMBLY-2



No.

Part No.

Description

Version

QTY.

Remark


TS06384040000

REAR AXLE HOUSING ASSEMBLY



1



1

FT800.38.017

REAR AXLE FILLING CAP COVER ASSEMBLY

1

1.1

FT800.38.150

FILLING CAP COVER HOUSING

1

1.2

FT800.38.148

RUBBER GASKET OF OIL FILLING CAP

1

2

FT800.38.103a

REAR AXLE FILLING CAP PIPE

1

3

GBT5783-M10X25-8.8-A3L

HEXAGON BOLT

8

4

GBT93-10-A3L

STANDARD SPRING WASHER

8

5

GBT3452.1-17.0X2.65G

RUBBER O-SEAL RING

1

6

FT800.38.115

PLUG

1

7

FT800.38.014

OIL DISCHARGING SCREW PLUG ASSEMBLY

1

7.1

GBT5781-M10X25-4.8-A3L

HEXAGON BOLT

1

7.2

GBT93-10

STANDARD SPRING WASHER

1

7.3

FT800.38.144

MAGNET PRESSURE WASHER

2

7.4

FT800.38.145

SPACING MAGNETISM ALUMINUM SLEEVE

1

7.5

FT800.38.143

MAGNET

1

7.6

JBT982-36

COMBINED SEAL GASKET

1

7.7

FT800.38.141

OIL DISCHARGING SCREW PLUG

1

8

FT800.38.134

SLEEVE

1

9

GBT6171-M14X1.5-10-A3L

HEXAGON NUT, TYPE-1

28

10

GBT93-14-A3L

STANDARD SPRING WASHER

28

11

GBT899-AM14-M14X1.5X200-10.9-A 3L

DOUBLE END STUDS

2

12

GBT899-AM14-M14X1.5X190-10.9-A 3L

DOUBLE END STUDS

26







TS06384040000 REAR AXLE HOUSING ASSEMBLY-2 (cont’d.)



No.

Part No.

Description

Version

QTY.

Remark

13

14

GBT119.1-20m6X55-A3L

GBT119.1-20m6X65-A3L

COLUMN PIN

COLUMN PIN



2

2

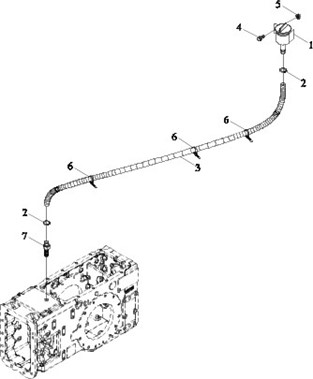

TC05385030000 BREATH ASSEMBLY


























TC05385030000 BREATH ASSEMBLY



No.

Part No.

Description

Version

QTY.

Remark


TC05385030000

BREATH ASSEMBLY



1



1

TS17385010002

BREATHER

1

2

Q67516

A-TYPE WORM TRANSMISSION HOSE CLAMP

2

3

TC05385010001

BREATH HOSE

1

4

GBT5783-M8X20-8.8-A2L

HEXAGON BOLT

1

5

GBT6177.1-M8-8-A2L

HEXAGON FLANGE NUT

1

6

Q67405100

PLASTIC FASTENING STRIP

2

7

TC03375010001

BREATH JOINT

1

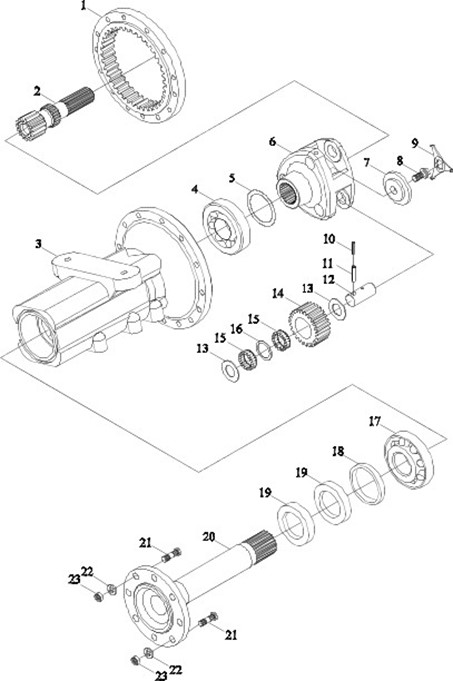

FT800.39.001 LEFT FINAL TRANSMISSION ASSEMBLY
