TD904.311K FRONT AXLE ASSEMBLY-5



No.

Part No.

Description

Version

QTY.

Remark


TD904.311K

FRONT AXLE ASSEMBLY



1




TD904.311K.1

FRONT DRIVING AXLE SUB-ASSEMBLY

1


TD904.311K.1.5

WHEEL-END REDUCTION ASSEMBLY

1

1

GBT5782-M10X35-10.9-A3L

HEXAGON BOLT

12

2

TD904.311K.1.5-02

PLANETCARRIER

1

3

TD904.311K.1.5-04

SHAFT

3

4

TD904.311K.1.5.2

PLUG

1

5

GBT3452.1-21.2X2.65G

RUBBER O-SEAL RING

1

6

GBT119.1-12m6X32-A0P

COLUMN PIN

2

7

TD904.311K.1.5-05

GASKET

6

8

GBT309-P5X29.8-G3X-3X-5

NEEDLE

57

9

TD904.311K.1.5.1

GEAR RING

1

9.1

TD904.311K.1.5.1-01

INNER GEAR RING

1

9.2

TD904.311K.1.5.1-02

RING HUB

1

9.3

TD904.311K.1.5.1-03

SNAP RING

1

10

TD904.311K.1.5-03

WHEEL PLANET GEAR

3

11

GBT894.1-32

CIRCLIP FOR SHAFT

2

12

TD904.311K.1.5-06

SUN GEAR

1

13

TD904.311K.1.5-12

NUT

1

14

TD904.311K.1.5-13

HUB BEARING

2

15

TD904.311K.1.5-01

HUB

1

16

TD904.311K.1.5-09

HUB OIL SEAL

1







TD904.311K FRONT AXLE ASSEMBLY-5 (cont’d.)



No.

Part No.

Description

Version

QTY.

Remark

17

18

TD904.311K.1.5-08

TD904.311K.1.5-11

SLEEVE

OIL SEAL 42X62X21.5



1

1









TD904.311K FRONT AXLE ASSEMBLY-6














TD904.311K FRONT AXLE ASSEMBLY-6



No.

Part No.

Description

Version

QTY.

Remark


TD904.311K

FRONT AXLE ASSEMBLY



1




TD904.311K.1

FRONT DRIVING AXLE SUB-ASSEMBLY

1

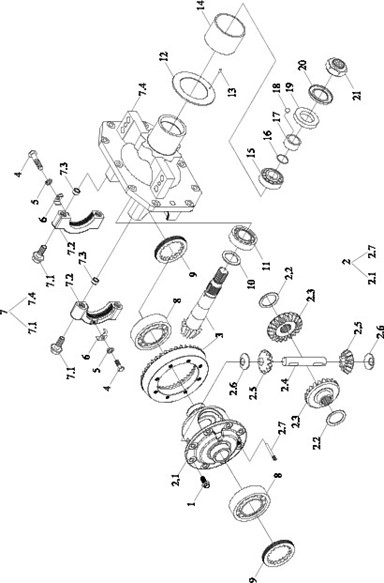

TD904.311K.1.1

MAIN REDUCER ASSEMBLY

1

1

TD904.311K.1.1-09

BOLT

8

2

TD904.311K.1.1.3

DIFFERENTIAL ASSEMBLY

1

2.1

TD904.311K.1.1.3-01

DIFFERENTIAL HOUSING

1

2.2

TD904.311K.1.1.3-02

MAT

2

2.3

TD904.311K.1.1.3-04

HALF SHAFT GEAR

2

2.4

TD904.311K.1.1.3-05

SHAFT

1

2.5

TD904.311K.1.1.3-03

PLANETARTY BEVEL GEARING

2

2.6

TD904.311K.1.1.3-06

GASKET

2

2.7

TD904.311K.1.1.3-07

PIN

1

3

TD904.311K.1.1.2

BEVEL GEAR

1

4

GBT5786-M10X1.25X20-10.9

HEXAGON BOLT

2

5

GBT93-10-A0P

STANDARD SPRING WASHER

2

6

TD904.311K.1.1-07

LOCK SHIM

2

7

TD904.311K.1.1.1

HOUSING

1

8

GBT297-32012

TAPERED ROLLER BEARING

2

9

TD904.311K.1.1-06

NUT

2

10

TD904.311K.1.1-05

ADJUSTING GASKET

1

11

TD904.311K.1.1-11

BEARING

1

12

TD904.311K.1.1-01

GASKET

1

13

GBT119.1-5m6X12-A0P

COLUMN PIN

1







TD904.311K FRONT AXLE ASSEMBLY-6 (cont’d.)



No.

Part No.

Description

Version

QTY.

Remark

14

TD904.311K.1.1-02

SHAFT SLEEVE



1



15

GBT297-33207

TAPERED ROLLER BEARING

1

16

GBT3452.1-31.5X1.80G

RUBBER O-SEAL RING

1

17

TD904.311K.1.1-03

OIL SEAL SEAT

1

18

GBT308-6-G100-b

STEEL BALL

1

19

TD904.311K.1.1-10

OIL SEAL

1

20

TD904.311K.1.1-08

DISH

1

21

TD904.311K.1.1-04

LOCKING NUT

1







TS06312020000 BRACKET ASSEMBLY




























TS06312020000 BRACKET ASSEMBLY



No.

Part No.

Description

Version

QTY.

Remark


TS06312020000

BRACKET ASSEMBLY



1



1

TS06312020001

BRACKET

1

2

TB604.312-04

WASHER

8

3

GBT5782-M16X80-10.9-A3L

HEXAGON BOLT

6

4

FT800.31.120

BRACKET CONNECTING SLEEVE

2

5

GBT5782-M16X90-10.9-A2L

HEXAGON BOLT

2

6

GBT119.1-12m6X24-A0P

COLUMN PIN

4

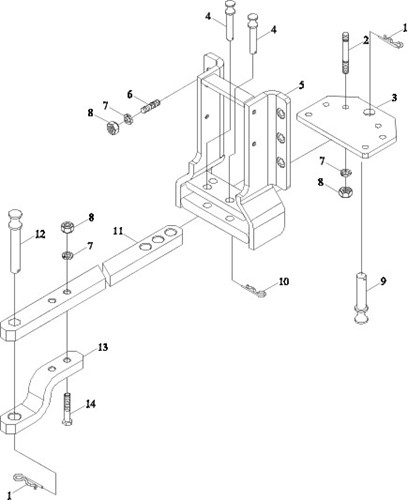

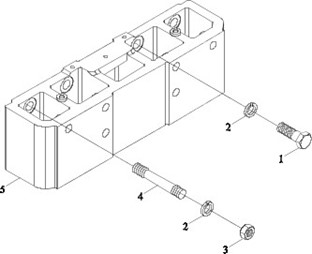

TS06313010000 BRACKET FRONT BODY ASSEMBLY
































TS06313010000 BRACKET FRONT BODY ASSEMBLY



No.

Part No.

Description

Version

QTY.

Remark


TS06313010000

BRACKET FRONT BODY ASSEMBLY



1



1

GBT5786-M18X1.5X55-8.8-A3L

HEXAGON BOLT

4

2

GBT93-18

STANDARD SPRING WASHER

6

3

GBT6170-M18-8-A2L

HEXAGON NUT, TYPE-1

2

4

GBT899-AM18X1.5-M18X45-8.8-A3L

DOUBLE END STUDS

2

5

TS06313010001

BRACKET FRONT BODY

1

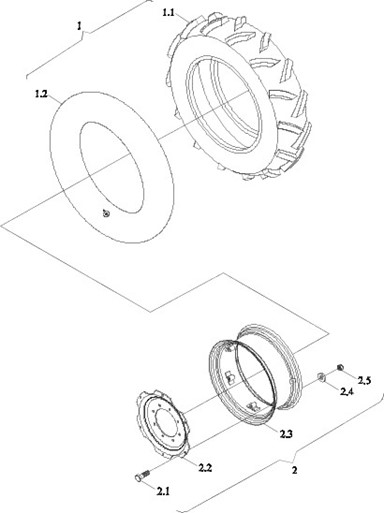

TC05320020000K FRONT DRIVING WHEEL ASSEMBLY


















TC05320020000K FRONT DRIVING WHEEL ASSEMBLY



No.

Part No.

Description

Version

QTY.

Remark


TC05320020000K

FRONT DRIVING WHEEL ASSEMBLY



1



1

TC05320020001K

TIRES ASSEMBLY

1

1.1

TC05320020006K

OUTER TIRE 12.4-24-10PR-R

1

1.2

GBT2979-12.4-24-R

DRIVING WHEEL INNER TUBE

1

2

TC05320020002K

RIM SPOKE ASSEMBLY

1

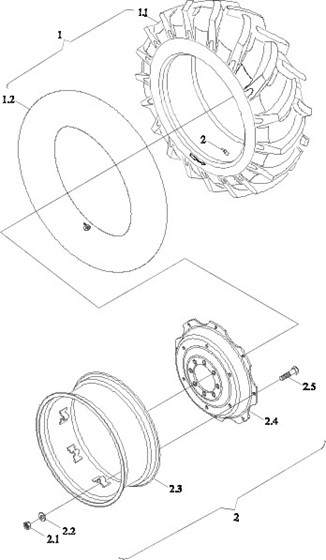

TC05340020000K REAR DRIVING WHEEL ASSEMBLY
















TC05340020000K REAR DRIVING WHEEL ASSEMBLY



No.

Part No.

Description

Version

QTY.

Remark


TC05340020000K

REAR DRIVING WHEEL ASSEMBLY



1



1

TC05340020001K

TIRES ASSEMBLY

1

1.1

TC05340020002K

OUTER TIRE 18.4-30-10PR

1

1.2

GBT2979-18.4-30-R

DRIVING WHEEL INNER TUBE

1

2

FT820.34F.011

RIM SPOKE ASSEMBLY

1







FT800.35A.001 TRACTION DEVICE ASSEMBLY
