LOVOL TS4A404-003K Tractor Parts Catalogue 18
Foton TS4A404–003K Wheeled Tractor
TB550.50F Fuel Tank Fitting Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB550.50F |
Fuel tank fitting assembly |
1 |
||
1 |
TB550.50E.1 |
Fuel tank assembly |
1 |
|
1.1 |
TD800.501A.1.1 |
Fuel tank cap |
1 |
|
1.2 |
FT300.50.015 |
Filter screen assembly |
1 |
|
1.3 |
TB550.50E.1.1 |
Fuel tank weldment |
1 |
|
1.4 |
JB/T 982–16 |
Combined seal gasket |
1 |
|
1.5 |
FT65.50.226 |
Drain plug |
1 |
|
2 |
FT300.50.112 |
Rubber pad |
2 |
|
3 |
TB400.50X.2 |
Strap weldment, fuel tank |
2 |
|
4 |
FT404.50.114 |
Strap rubber pad, main fuel tank |
2 |
|
5 |
FT65.50.106 |
Hollow bolt |
1 |
|
6 |
JB/T 982–14 |
Combined seal gasket |
2 |
|
7 |
FT65.50.033 |
Sediment cup assembly |
1 |
|
8 |
TB550.50F–02 |
Rear rubber pad |
2 |
|
9 |
TB550.50F–01 |
Front rubber pad |
2 |
|
10 |
TB550.50F.1 |
Reservoir bracket weldment |
2 |
|
11 |
GB/T 5783–M8x20–8.8–A2L |
Hex kead bolt |
4 |
|
12 |
GB/T 93–8–A0P |
Standard spring wasker |
4 |
|
13 |
GB/T 6170–M8–8–A2L |
Hexagon nut , Style 1 |
4 |
|
14 |
GB/T 6170–M10–8–A3L |
Hexagon nut , Style 1 |
4 |
165
Foton TS4A404–003K Wheeled Tractor

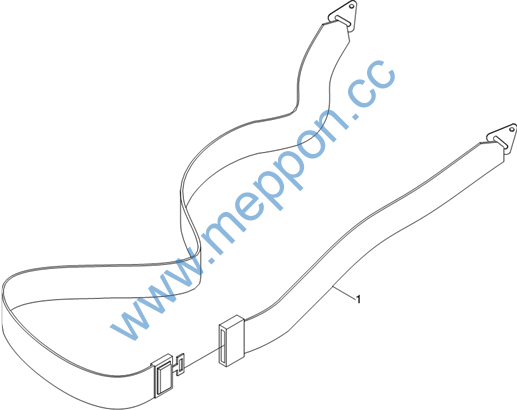

TA600.62 Safety Belt Assembly
166
Foton TS4A404–003K Wheeled Tractor
TA600.62 Safety Belt Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 |
TA600.62 TA600.62 |
Safety Belt Assembly Safety Belt |
1 2 |
167
Foton TS4A404–003K Wheeled Tractor
TB400.74B Front Ballast Frame Assembly
168
Foton TS4A404–003K Wheeled Tractor
TB400.74B Front Ballast Frame Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
TB400.74B GB/T 899–AM16–M16x90–8.8–A3L GB/T 93–16–AOP GB/T 6170–M16–AOP GB/T 899–AM16–M16x110–8.8–A3L
TB400.74B–01 |
Front ballast frame assembly Double–keaded stud Uasker Nut Double–keaded stud Ballast frame |
1 4 6 6 2
1 |
169
Foton TS4A404–003K Wheeled Tractor

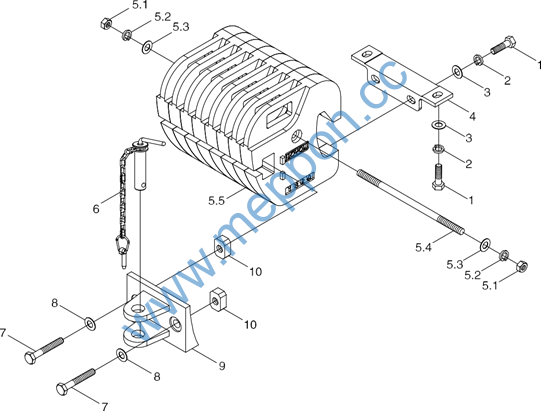

TB404.74A Front Counterweight Assembly
170
Foton TS4A404–003K Wheeled Tractor
TB404.74A Front Counterweight Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB404.74A |
Front counterweigkt assembly |
1 |
||
1 |
GB/T 5783–M16x35–8.8–A3L |
Hex kead bolt |
4 |
|
2 |
GB/T 93–16–A0P |
Standard spring wasker |
4 |
|
3 |
GB/T 97.1–16–A0P |
Flat wasker |
4 |
|
4 |
TB400.74A–03 |
Fixing bracket |
1 |
|
5 |
TB404.74A.1 |
Front counterweigkt subassembly |
1 |
|
5.1 |
GB/T 6170–M16–8–A3L |
Hexagon nut , Style 1 |
2 |
|
5.2 |
GB/T 93–16–A0P |
Standard spring wasker |
2 |
|
5.3 |
GB/T 97.1–16–A0P |
Flat wasker |
2 |
|
5.4 |
FT304.74A.108 |
Connecting bolt |
1 |
|
5.5 |
TB400.74A–01 |
Counterweigkt block |
8 |
|
6 |
TB400.74A.2 |
Traction pin and lockpin assembly |
1 |
|
7 |
GB/T 5785–M20x1.5x80–8.8–A3L |
Hex kead bolt |
2 |
|
8 |
GB/T 97.1–20–A0P |
Flat wasker |
2 |
|
9 |
TB400.74A–04 |
Traction lug |
1 |
|
10 |
FT650.74.108 |
Traction nut |
2 |
171
Foton TS4A404–003K Wheeled Tractor
TB400.91 Rear Ballast Assembly
172
Foton TS4A404–003K Wheeled Tractor
TB400.91 Rear Ballast Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 6 7 |
TB400.91 GB/T 6171–M16x1.5–A3L GB/T 93–16–A0P TB400.91–02 TB400.91–01
TB400.91–04 TB400.91–03 TB400.91–05 |
Rear ballast assembly Nut Uasker Rear ballast screw I Rear ballast
Uasker Rear ballast screw 亞 Bolt |
1 3 6 3 6
18 15 3 |
173
Foton TS4A404–003K Wheeled Tractor

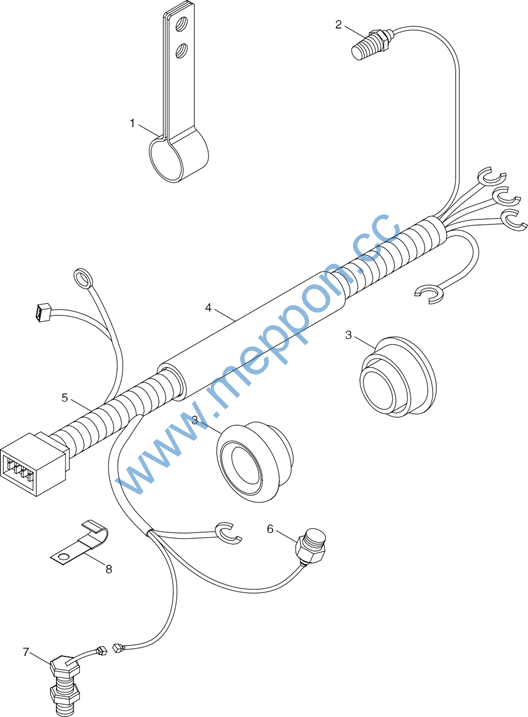

TB450.481H Harness Installation Assembly, Engine
