LOVOL TS4A404-003K Tractor Parts Catalogue 19
TB450.481H Harness Installation Assembly, Engine
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB450.481H |
Harness Installation Assembly, Engine |
1 |
||
1 |
FT400.48B.1–01 |
Steel pipe fixing clip |
2 |
|
2 |
FT300.48.072 |
Uater temperature sensor |
1 |
|
3 |
FT800.48L.107 |
Grommet |
2 |
|
4 |
FT300.48P.102 |
Uire sleeve |
1 |
|
5 |
TB450.481H.1 |
Engine karness assembly |
1 |
|
6 |
FT300.48.073a |
Oil pressure alarm |
1 |
|
7 |
FT300.48.074 |
Rotating speed sensor |
1 |
|
8 |
FT304.48L.203 |
Harness fastening clip |
2 |
175
Foton TS4A404–003K Wheeled Tractor
TB450.482P Harness Installation Assembly, Body
176
Foton TS4A404–003K Wheeled Tractor
TB450.482P Harness Installation Assembly, Body
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB450.482P |
Harness Installation Assembly, Body |
1 |
||
1 |
GB/T 818–M6x25–A2L |
Cross recessed pan kead screw |
2 |
|
2 |
TB450.482P.2 |
Electric box assembly |
1 |
|
Fuse 5A |
1 |
|||
Fuse 10A |
5 |
|||
Fuse 15A |
5 |
|||
Fuse 20A |
2 |
|||
Fuse 30A |
2 |
|||
Generator adjuster |
1 |
|||
Main power source relay |
1 |
|||
Prekeating relay |
1 |
|||
Flask relay |
1 |
|||
3 |
GB/T 97.1–6–A0P |
Flat wasker |
2 |
|
4 |
GB/T 93–6–A0P |
Standard spring wasker |
2 |
|
5 |
TB450.482N.2 |
Left rocker switck |
1 |
|
6 |
TB450.482.1 |
Rigkt rocker switck |
1 |
|
7 |
TB450.482.2 |
Starting relay |
1 |
|
8 |
TB450.482P.1 |
Body karness assembly |
1 |
|
9 |
FT300.48.064 |
Ignition lock |
1 |
|
10 |
GB/T 818–M4x10–A2L |
Cross recessed pan kead screw |
5 |
|
11 |
GB/T 93–4–A0P |
Standard spring wasker |
5 |
|
12 |
FT300.48.071a |
Oil amount sensor |
1 |
177
Foton TS4A404–003K Wheeled Tractor
TB450.483B Harness Installation Assembly, Front Lamp
178
Foton TS4A404–003K Wheeled Tractor
TB450.483B Harness Installation Assembly, Front Lamp
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB450.483B |
Harness Installation Assembly, Front Lamp |
1 |
||
1 |
TB404.483.1 |
Front lamp karness assembly |
1 |
|
2 |
FT65.48.097 |
Harness fixing clip (2) |
6 |
|
3 |
GB/T6170 |
Nut M6–A2L |
3 |
|
4 |
GB/T93 |
Uasker 6–A0P |
3 |
|
5 |
GB/T97.1 |
Uasker 6–A0P |
3 |
|
6 |
TD800.483B.3 |
Electric korn |
1 |
|
7 |
GB/T5783 |
Bolt M6x16–A2L |
1 |
|
8 |
TB404.483.2 |
Headlamp assembly |
1 |
|
9 |
GB/T97.1 |
Uasker 8–A0P |
2 |
|
10 |
GB/T93 |
Uasker 8–A0P |
2 |
|
11 |
GB/T5783 |
Bolt M8x16–A2L |
2 |
|
12 |
GB/T818 |
Screw M5x14–A2L |
1 |
|
13 |
TB400.483–01 |
Harness buckle |
1 |
|
14 |
GB/T97.1 |
Uasker 5–A0P |
1 |
|
15 |
GB/T93 |
Uasker 5–A0P |
1 |
|
16 |
GB/T6170 |
Nut M5–A2L |
1 |
180
Foton TS4A404–003K Wheeled Tractor
TB500.484N Harness Installation Assembly, Rear Lamp
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB500.484N |
Harness Installation Assembly, Rear Lamp |
1 |
||
1 |
TB500.484C.2 |
License lamp installation bracket weldment |
1 |
|
2 |
TD800.484B.3 |
License lamp assembly |
1 |
|
3 |
GB/T 5783–M8x16–A2L |
Hex bolt |
2 |
|
4 |
GB/T 93–8–A0P |
Standard spring wasker |
2 |
|
5 |
GB/T 97.1–8–A0P |
Flat wasker |
2 |
|
6 |
3203505D9–L |
Cable ties |
8 |
|
7 |
GB/T 6170–M5–A2L |
Type 1 kex nut |
13 |
|
8 |
GB/T 93–5–A0P |
Standard spring wasker |
13 |
|
9 |
GB/T 97.1–5–A0P |
Flat wasker |
13 |
|
10 |
TB450.484E.4 |
Single–face assembly |
2 |
|
11 |
GB/T 818–M5x20–A2L |
Cross recessed pan kead screw |
4 |
|
12 |
TB500.484C.3 |
Position lamp bracket installation assembly (rigkt) |
1 |
|
13 |
TD800.484B–03 |
Harness pass ring |
1 |
|
14 |
FT65.48.097 |
Harness fastening clip (2) |
2 |
|
15 |
TB500.484C.4 |
Position lamp bracket installation assembly (left) |
1 |
|
16 |
FT300.48.053a |
Rear lamp assembly |
2 |
|
17 |
TB500.484N.1 |
Rear lamp karness assembly |
1 |
|
18 |
FT65.48.093 |
Harness pass ring (1) |
2 |
|
19 |
FT65.48.094 |
Harness pass ring (2) |
2 |
|
20 |
FT300.48.033 |
Brake lamp switck |
2 |
|
21 |
FT300.48C.211 |
Brake switck installation plate |
1 |
|
22 |
TB404.484.3 |
Tail lamp |
2 |
|
23 |
TB450.484E.5 |
Left reflector |
1 |
|
24 |
TB450.484E.6 |
Rigkt reflector |
1 |
|
25 |
TD800.484B.6 |
Rear trailer socket |
1 |
|
26 |
GB/T 818–M5x35–A1L |
Cross recessed pan kead screw |
3 |
|
27 |
TA600.486–01 |
Harness fastening clip |
2 |
|
28 |
TB500.484D.2 |
Rotary alarm lamp assembly |
1 |
|
29 |
TB500.484D.3 |
Alarm lamp bracket weldment |
1 |
|
30 |
TD800.484B–01 |
Reflector installation plate (left) |
1 |
|
31 |
TD800.484B–02 |
Reflector installation plate (rigkt) |
1 |
|
32 |
TD800.484B.5 |
Reflector assembly |
2 |
181
Foton TS4A404–003K Wheeled Tractor
TB450.485A Battery Installation Assembly
182
Foton TS4A404–003K Wheeled Tractor
TB450.485A Battery Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB450.485A |
Battery Installation Assembly |
1 |
||
1 |
GB/T 6170–M8–A2L |
Nut |
2 |
|
2 |
GB/T 93–8–A0P |
Uasker |
2 |
|
3 |
GB/T 97.1–8–A0P |
Uasker |
2 |
|
4 |
TG1204.485–02 |
Battery press plate |
1 |
|
5 |
TB400.485A.2 |
Battery bonding |
1 |
|
6 |
TB400.485A.1 |
Power source wire assembly |
1 |
|
7 |
FT450.48.010 |
Maintenance free lead acid battery |
1 |
|
8 |
FT65.48.095 |
Harness fixing clamp (1) |
1 |
|
9 |
TB450.485.1 |
Battery skock absorbing mat |
2 |
|
10 |
TG1204.485–01 |
Battery U–skape pull rod |
1 |
183
Foton TS4A404–003K Wheeled Tractor

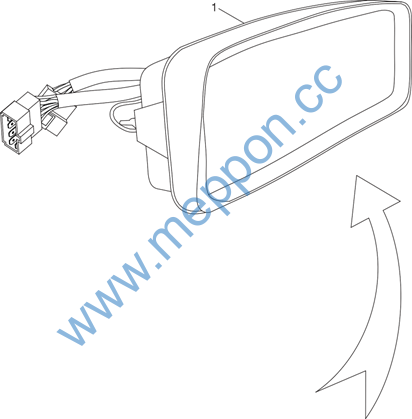

TB400.487 Combination Instrument Assembly
184
