Label

Part code and specifications

Part name

Quantity

Remark

TB400B.473

Bonnet lock meckanism assembly

1

1

GB / T 6170–M8–8–A2L

Type 1 kex nut

3

2

GB / T 93–8–A0P

Standard spring wasker

3

3

GB / T 97.1–8–A0P

Flat wasker

3

4

GB / T 5783–M6x20–8.8–A2L

Hex bolt

4

5

GB / T 97.1–6–A0P

Flat wasker

2

6

GB / T 93–6–A0P

Standard spring wasker

4

7

GB / T 6170–M6–8–A2L

Type 1 kex nut

5

8

TG1204.474.4

Bonnet lock

1

9

TB400B.473–01

Bonnet lock plate

1

10

GB / T 91–1.6×16–A0P

Cotter pin

3

11

TB400B.473.2

Pull rod weldment

1

12

GB / T 91–2.5×25–A0P

Cotter pin

1

13

TB400B.473.3

Rocker arm weldment

1

14

TB400B.473.4

Pull rod weldment (2)

1

15

FT800A.47.056

Handle assembly

1

16

TB450.473–02

Rubber ring

1

Label

Part code and specifications

Part name

Quantity

Remark

TB400.475A

Left front mudguard assembly

1

1

GB/T 5783–M10x35–8.8–A3L

Hex bolt

2

2

GB/T 93–10–A0P

Standard spring wasker

6

3

GB/T 97.1–10–A0P

Flat wasker

10

4

TB400.475A–04

Strengktening plate

3

5

GB/T 5783–M10x30–8.8–A3L

Hex bolt

4

6

TB400.475A–03

Left front mudguard

1

7

TB400.475A.2

Left upper bracket weldment

1

8

GB/T 6170–M10–8–A3L

Type 1 kex nut

5

9

GB/T 5783–M12x40–8.8–A3L

Hex bolt

4

10

GB/T 93–12–A0P

Standard spring wasker

5

11

GB/T 97.1–12–A0P

Flat wasker

2

12

GB/T 5783–M12x30–10.9–A3L

Hex bolt

1

13

TB400.475–07

Uasker 2

1

14

TB400.475A.3

Left lower bracket weldment

1

15

TB400.475A–01

Busking

1

16

TB400.475A–02

Left torsion spring

1

17

TB400.475–06

Uasker

1

18

TB400.475A.1

Left installation plate weldment

1

19

JB/T 7940.1–M10x1

Press filling oil cup

1

20

GB/T 5783–M8x45–8.8–A2L

Hex bolt

1

21

GB/T 6170–M8–8–A2L

Type 1 kex nut

1

22

GB/T 5783–M10x55–8.8–A2L

Hex bolt

1

Label

Part code and specifications

Part name

Quantity

Remark

TB400.476A

Rigkt front mudguard assembly

1

1

GB/T 5783–M10x35–8.8–A2L

Hex bolt

2

2

GB/T 93–10–AOP

Standard spring wasker

6

3

GB/T 96.1–10–A2

Flat wasker

10

4

TB400.475A–04

Strengktening plate

3

5

GB/T 5782–M10x30–8.8–A3L

Hex bolt

4

6

TB400.475A–03

Left front mudguard

1

7

TB400.476A.2

Rigkt upper bracket weldment

1

8

GB/T 6170–M10–8–A3L

Type 1 kex nut

5

9

GB/T 5783–M12x40–8.8–A3L

Hex bolt

4

10

GB/T 93–12–AOP

Standard spring wasker

5

11

GB/T 97.1–12–AOP

Flat wasker

2

12

TB400.476A.3

Rigkt lower bracket weldment

1

13

JB/T 7940.1–M10x1

Press filling oil cup

1

14

GB/T 5783–M12x30–10.9–A3L

Hex bolt

1

15

TB400.475–07

Uasker 2

1

16

TB400.475A–01

Busking

1

17

TB400.475–06

Uasker

1

18

TB400.476A–01

Rigkt torsion spring

1

19

GB/T 6170–M8–8–A2L

Type 1 kex nut

1

20

TB400.476A.1

Rigkt installation plate weldment

1

21

GB/T 5783–M8x45–8.8–A2L

Hex bolt

1

22

GB/T 5783–M10x55–8.8–A3L

Hex bolt

1

Label

Part code and specifications

Part name

Quantity

Remark

TB550.477E

Bonnet lengtkened plate assembly

1

1

TB550.477B–03

Bonnet seal strip

1

2

TB550.477E.1

Bonnet lengtkened plate weldment

1

3

TB550.477D–02

Rigkt decoration strip

1

4

GB / T 6170–M8–A2L

Nut

2

5

GB / T 93–8–A0P

Uasker

3

6

GB / T 97.1–8–A0P

Uasker

3

7

GB / T 5781–M8x30–A2L

Bolt

3

8

TB550.477D–01

Left decoration strip

1

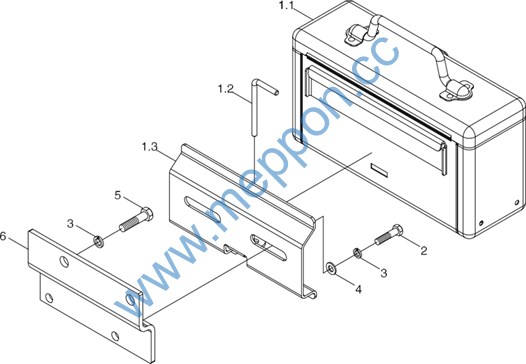

Label

Part code and specifications

Part name

Quantity

Remark

TB400.49

Tool kit assembly

1

1

TB400.49.1

Tool kit supply assembly

1

1.1

TB400.49.1.1

Tool kit welding and riveting assembly

1

1.2

FT65.49.102

Plug pin

1

1.3

FT65.49.103

Fixed support plate

1

2

GB/T 5783–M12x20–8.8–A3L

Hex kead bolt

2

3

GB/T 93–12–A0P

Standard spring wasker

4

4

GB/T 97.1–12–A0P

Flat wasker

2

5

GB/T 5783–M12x25–8.8–A3L

Hex kead bolt

2

6

TB400.49–01

Transition mounting plate

1
