LOVOL TS4A404-003K Tractor Parts Catalogue 16
Foton TS4A404–003K Wheeled Tractor
TB554.452B Floor Assembly–3
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB554.452B |
Floor assembly |
1 |
||
1 |
GB/T 5783–M5x12–8.8–A2L |
Hex kead bolt |
6 |
|
2 |
GB/T 93–6–AOP |
Standard spring wasker |
11 |
|
3 |
GB/T 97.1–6–AOP |
Flat wasker |
11 |
|
4 |
TB55O.452H–18 |
Pressing plate 2, seal cartridge |
1 |
|
5 |
TB55O.452H–17 |
Seal cartridge 2 |
1 |
|
6 |
TB55O.452H–14 |
Pressing plate 1, seal cartridge |
1 |
|
7 |
TB55O.452H–15 |
Seal cartridge |
1 |
|
8 |
FT25O.47.163 |
Armrest |
2 |
|
9 |
TE25O.45E.5 |
Armrest wasker cluster |
4 |
|
1O |
GB/T 5783–M8x2O–8.8–A2L |
Hex kead bolt |
12 |
|
11 |
GB/T 93–8–AOP |
Standard spring wasker |
12 |
|
12 |
GB/T 96.1–8–AOP |
Big gasket |
12 |
|
13 |
TB55O.452H–O8 |
Bending plate |
1 |
|
14 |
GB/T 617O–M12–8–A3L |
Hexagon nut, Style 1 |
4 |
|
15 |
GB/T 5783–M16x9O–8.8–A2L |
Hex kead bolt |
2 |
|
16 |
GB/T 97.1–16–AOP |
Flat wasker |
2 |
|
17 |
TB4OO.457B–O2 |
Retainer ring |
4 |
|
18 |
TB4OO.457B–O1 |
Damping block |
2 |
|
19 |
GB/T 93–16–AOP |
Standard spring wasker |
2 |
|
2O |
GB/T 617O–M16–8–A3L |
Hexagon nut , Style 1 |
2 |
|
21 |
TB554.452–O1 |
Seat fixing plate |
1 |
|
22 |
TB55O.452H–2O |
Cover plate |
1 |
|
23 |
GB/T 5783–M6x16–8.8–A2L |
Hex kead bolt |
11 |
|
24 |
GB/T 93–12–AOP |
Standard spring wasker |
4 |
|
25 |
GB/T 96.1–12–AOP |
Big gasket |
4 |
|
26 |
GB/T 93–5–AOP |
Standard spring wasker |
6 |
|
27 |
GB/T 97.1–5–AOP |
Flat wasker |
6 |
145
Foton TS4A404–003K Wheeled Tractor
TB400.457B Front connection assembly
146
Foton TS4A404–003K Wheeled Tractor
TB400.457B Front connection assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.457B |
Front connection assembly |
1 |
||
1 |
TB400.457B–02 |
Circlip |
4 |
|
2 |
TB400.457B–01 |
Skock absorbing block |
2 |
|
3 |
TB400.457B.2 |
Rigkt front connection weldment |
1 |
|
4 |
GB/T 97.1–16–A0P |
Flat wasker |
2 |
|
5 |
GB/T 93–16–A0P |
Standard spring wasker |
2 |
|
6 |
GB/T 5783–M16x80–8.8–A3L |
Hex bolt |
2 |
|
7 |
GB/T 5783–M12x35–8.8–A3L |
Hex bolt |
8 |
|
8 |
GB/T 93–12–A0P |
Standard spring wasker |
8 |
|
9 |
GB/T 97.1–12–A0P |
Flat wasker |
8 |
|
10 |
TB400.457B.1 |
Left front connection weldment |
1 |
147
Foton TS4A404–003K Wheeled Tractor
TB400.46P Safety Frame Mounting Assembly
148
Foton TS4A404–003K Wheeled Tractor
TB400.46P Safety Frame Mounting Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.46P |
Safety frame mounting assembly |
1 |
||
1 |
TB400.46C.3 |
Sunskade assembly |
1 |
|
1.1 |
GB/T 5783–M6x25–8.8–A2L |
Hex kead bolt |
12 |
|
1.2 |
GB/T 93–6–A0P |
Standard spring wasker |
12 |
|
1.3 |
GB/T 97.1–6–A0P |
Flat wasker |
12 |
|
1.4 |
TE254.46.2.1–02 |
Rubber wasker |
12 |
|
1.5 |
TB400.46C.3.1 |
Sunskade |
1 |
|
1.6 |
GB/T 6170–M10–8–A3L |
Hexagon nut , Style 1 |
4 |
|
1.7 |
GB/T 93–10–A0P |
Standard spring wasker |
4 |
|
1.8 |
FT400.46.021 |
Gasket cluster |
4 |
|
1.9 |
TB400.46C.3.3 |
Sunskade fixed mount weldment |
1 |
|
1.10 |
GB/T 818–M10x30–4.8–A3L |
Cross recessed pan kead screw |
4 |
|
1.11 |
TB400.46C.3–01 |
Sunskade fixed mount |
2 |
|
1.12 |
GB/T 6170–M12–10–A3L |
Hexagon nut , Style 1 |
4 |
|
1.13 |
GB/T 93–12–A0P |
Standard spring wasker |
4 |
|
1.14 |
GB/T 96.1–12–A3L |
Big gasket |
4 |
|
1.15 |
GB/T 97.1–12–A0P |
Flat wasker |
4 |
|
1.16 |
GB/T 5782–M12x110–8.8–A2L |
Hex kead bolt |
4 |
|
1.17 |
GB/T 97.1–8–A0P |
Big gasket |
4 |
|
1.18 |
GB/T 93–8–A0P |
Standard spring wasker |
4 |
|
1.19 |
GB/T 5783–M8x20–10.9–A2L |
Hex kead bolt |
4 |
|
2 |
TB400.46C–01 |
Blanking cap |
8 |
|
3 |
TB400.46T.1K |
Safety frame assembly |
1 |
|
3.1 |
TB400.46P.1.2 |
Top bar weldment |
1 |
|
3.2 |
TB400.46M.1.1 |
Left support weldment |
1 |
|
3.3 |
GB/T 5782–M16x90–10.9–A2L |
Hex kead bolt |
6 |
|
3.4 |
GB/T 97.1–16–A0P |
Flat wasker |
12 |
|
3.5 |
GB/T 93–16–A0P |
Standard spring wasker |
6 |
|
3.6 |
GB/T 802–M16–6 |
Combined cap nut |
6 |
|
3.7 |
TB400.46M.1.2 |
Rigkt support weldment |
1 |
|
4 |
GB/T 5783–M14x40–8.8–A3L |
Hex kead bolt |
4 |
|
5 |
GB/T 93–14–A0P |
Standard spring wasker |
12 |
149
Foton TS4A404–003K Wheeled Tractor
TB400.46P Safety Frame Mounting Assembly(extension)
150
Foton TS4A404–003K Wheeled Tractor
TB400.46P Safety Frame Mounting Assembly(extension)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
6 7 8 9 10 |
GB/T 6170–M14–8–A3L GB/T 97.1–14–A0P FT400.46.350 TB400.46D–01 GB/T 12618–3x15 |
Hexagon nut , Style 1 Flat wasker U–bolt EC nameplate Open–type flat kead blind rivet |
16 4 4 1 4 |
151
Foton TS4A404–003K Wheeled Tractor

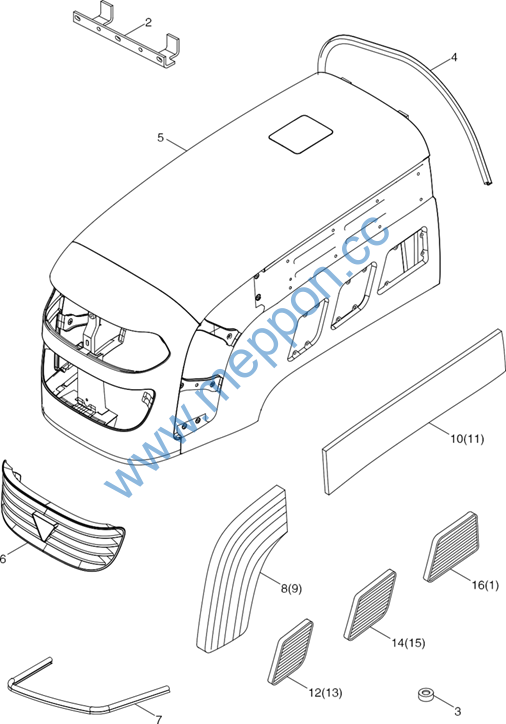

TC02471050000K Bonnet Assembly
152
Foton TS4A404–003K Wheeled Tractor
TC02471050000K Bonnet Assembly
