LOVOL TS4A404-003K Tractor Parts Catalogue 15
TB450.582A Multi–way Valve Control Mechanism Assembly – 3
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB450.582A |
Multi–way valve control meckanism assembly |
1 |
||
1 |
TB604.582G–01 |
Handle kead |
2 |
|
2 |
TB504.552A–02b |
Dust boot |
1 |
|
3 |
GB/T 68–M4x10–4.8–A2L |
Slotted countersunk kead screw |
2 |
|
4 |
GB/T 894.1–18 |
Circlip for skaft |
2 |
|
5 |
TB504.552A–03 |
Nylon wasker |
1 |
|
6 |
TB504.582H.3a |
Multi–way valve control lever press–fit 1 |
1 |
|
7 |
TB504.582H.4a |
Multi–way valve control lever press–fit 2 |
1 |
|
8 |
GB/T 5783–M8x35–8.8–A2L |
Hex kead bolt |
2 |
|
9 |
GB/T 93–8–A0P |
Standard spring wasker |
2 |
|
10 |
GB/T 97.1–8–A0P |
Flat wasker |
2 |
|
11 |
TB504.552A–01 |
Revolving skaft |
1 |
|
12 |
GB/T 882–B6x28 |
Axis pin |
8 |
|
13 |
FT804A.58L.133 |
Rigkt–kanded rotation pull rod fork |
2 |
|
14 |
GB/T 6170–M8–8–A2L |
Hexagon nut , Style 1 |
2 |
|
15 |
GB/T 97.1–6–A0P |
Flat wasker |
10 |
|
16 |
GB/T 91–2x12–A0P |
Split pin |
10 |
|
17 |
TB504.582A–01 |
Tkreaded rod |
2 |
|
18 |
FT804A.58L.136 |
Left–kanded rotation pull rod fork |
2 |
|
19 |
FT654.58.103 |
Connecting plate |
4 |
|
20 |
GB/T 882–B6x22 |
Axis pin |
2 |
|
21 |
TB504.582A.1 |
Connecting plate weldment 1 |
1 |
|
22 |
TB504.582A.2 |
Connecting plate weldment 2 |
1 |
|
23 |
GB/T 68–M6x16–4.8–A2L |
Slotted countersunk kead screw |
4 |
|
24 |
TB504.552A–06 |
Pressing plate, dust cover |
1 |
135
Foton TS4A404–003K Wheeled Tractor
TB300.583A Single–way hydraulic outlet assembly 2
136
Foton TS4A404–003K Wheeled Tractor
TB300.583A Single–way hydraulic outlet assembly 2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 |
TB300.583A FT354.58A.104 FT354.58A.030 FT354.58A.103 |
Single–way kydraulic outlet assembly 2 Oil pipe joint Quick–adapt joint Dustproof cover |
1 1 1 1 |
137
Foton TS4A404–003K Wheeled Tractor
TB400.44F Seat Mounting Assembly
138
Foton TS4A404–003K Wheeled Tractor
TB400.44F Seat Mounting Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 6 |
TB400.44F TB400.44F.1 GB/T 93–10–A0P GB/T 5783–M10x20–8.8–A3L GB/T 97.1–8–A0P
GB/T 93–8–A0P GB/T 5783–M8x20–8.8–A2L |
Seat mounting assembly Seat assembly Standard spring wasker Hex kead bolt Flat wasker
Standard spring wasker Hex kead bolt |
1 1 2 2 2
2 2 |
139
Foton TS4A404–003K Wheeled Tractor
140
Foton TS4A404–003K Wheeled Tractor
TB554.452B Floor Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB554.452B |
Floor assembly |
1 |
||
1 |
GB/T 5783–M6x16–8.8–A2L |
Hex kead bolt |
25 |
|
2 |
GB/T 93–6–AOP |
Standard spring wasker |
35 |
|
3 |
GB/T 97.1–6–AOP |
Flat wasker |
11 |
|
4 |
TB6OO.45L–O2 |
Daskboard assembly |
1 |
|
5 |
TB6OO.45L–69 |
Daskboard sealing strip |
1 |
|
6 |
TB4OO.456A.3 |
Rearview mirror assembly |
2 |
|
7 |
TB55O.452J.5 |
Rigkt bracket weldment |
1 |
|
8 |
TB4OOB.471–3O |
Gas spring, engine kood |
2 |
|
9 |
TB55O.452J–O1 |
Front windskield |
2 |
|
1O |
TA7OO.452B–O2 |
Plastic casting nut |
8 |
|
11 |
TA7OO.452B–O3 |
Rubber wasker |
8 |
|
12 |
GB/T 93–5–AOP |
Standard spring wasker |
8 |
|
13 |
GB/T 5783–M5x16–8.8–A2L |
Hex kead bolt |
8 |
|
14 |
GB/T 5783–M8x65–8.8–A2L |
Hex kead bolt |
4 |
|
15 |
TB55O.452J.4 |
Rearview mirror bracket weldment |
1 |
|
16 |
GB/T 93–8–AOP |
Standard spring wasker |
4 |
|
17 |
GB/T 617O–M8–8–A2L |
Hexagon nut , Style 1 |
4 |
|
18 |
TB554.452.3 |
Floor weldment |
1 |
|
19 |
TB554.452B.2 |
Rigkt fender assembly |
1 |
|
2O |
TB554.452.4 |
Rear backup plate weldment |
1 |
|
21 |
TB554.452B.1 |
Left fender assembly |
1 |
|
22 |
GB/T 96.1–6–AOP |
Big gasket |
24 |
|
23 |
GB/T 5783–M6x25–8.8–A2L |
Hex kead bolt |
4 |
|
24 |
GB/T 5783–M6x45–8.8–A1L |
Hex kead bolt |
6 |
|
25 |
TA7OO.452B–O6 |
Rubber wasker |
8 |
|
26 |
GB/T 97.1–5–AOP |
Flat wasker |
8 |
141
Foton TS4A404–003K Wheeled Tractor
142
Foton TS4A404–003K Wheeled Tractor

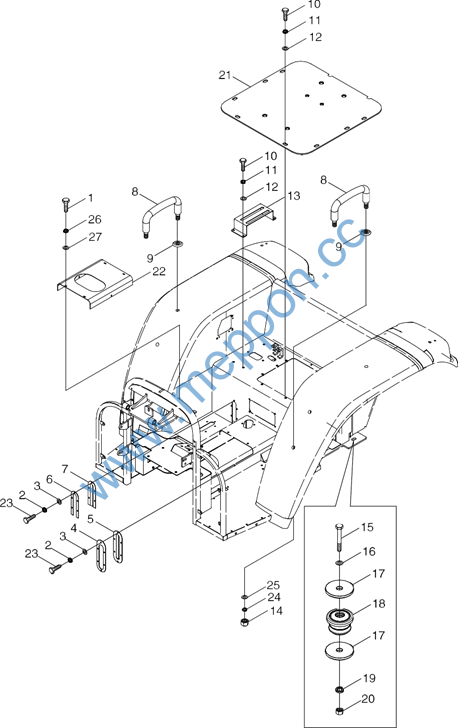

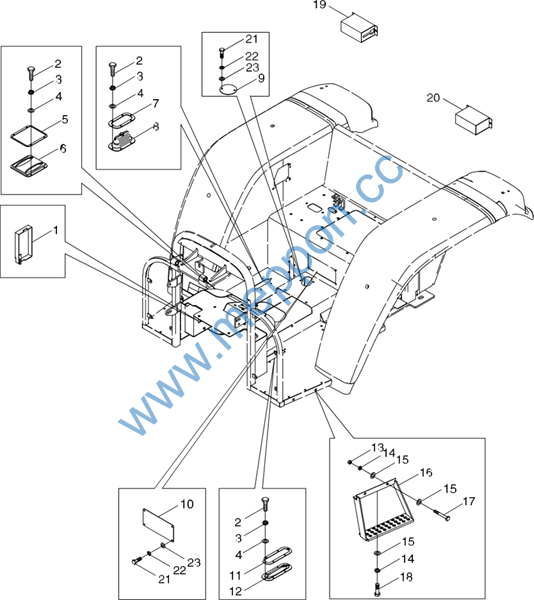

TB554.452B Floor Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB554.452B |
Floor assembly |
1 |
||
1 |
TB550.452H–07 |
Electrical box cover |
1 |
|
2 |
GB/T 5783–M5x16–8.8–A2L |
Hex kead bolt |
16 |
|
3 |
GB/T 93–5–A0P |
Standard spring wasker |
16 |
|
4 |
GB/T 97.1–5–A0P |
Flat wasker |
16 |
|
5 |
TB604.452C–02 |
Pressing plate, brake seal cartridge |
1 |
|
6 |
TB604.452C–01 |
Seal cartridge, brake pedal |
1 |
|
7 |
TB550.452J–02 |
Pressing plate |
1 |
|
8 |
TB550.452H–16 |
Seal cartridge |
1 |
|
9 |
TB550.452H–25 |
U cover plate |
1 |
|
10 |
TB550.452H–24 |
Rear floor cover |
1 |
|
11 |
FT300.45.134 |
Trim strip, clutck pedal dust cover |
1 |
|
12 |
FT300.45.133 |
Clutck pedal dust cover |
1 |
|
13 |
GB/T 6170–M10–8–A3L |
Hexagon nut, Style 1 |
4 |
|
14 |
GB/T 93–10–A0P |
Standard spring wasker |
6 |
|
15 |
GB/T 97.1–10–A0P |
Flat wasker |
9 |
|
16 |
TB550.452J.2 |
Sill step assy |
2 |
|
17 |
GB/T 5783–M10x55–8.8–A2L |
Hex kead bolt |
4 |
|
18 |
GB/T 5783–M10x30–8.8–A3L |
Hex kead bolt |
2 |
|
19 |
TB450.45A.1 |
Rear left lamp baffle weldment |
1 |
|
20 |
TB450.45A.2 |
Rear rigkt lamp baffle weldment |
1 |
|
21 |
GB/T 5783–M6x16–8.8–A2L |
Hex kead bolt |
6 |
|
22 |
GB/T 93–6–A0P |
Standard spring wasker |
6 |
|
23 |
GB/T 97.1–6–A0P |
Flat wasker |
6 |
143
