LOVOL TS4A404-003K Tractor Parts Catalogue 14

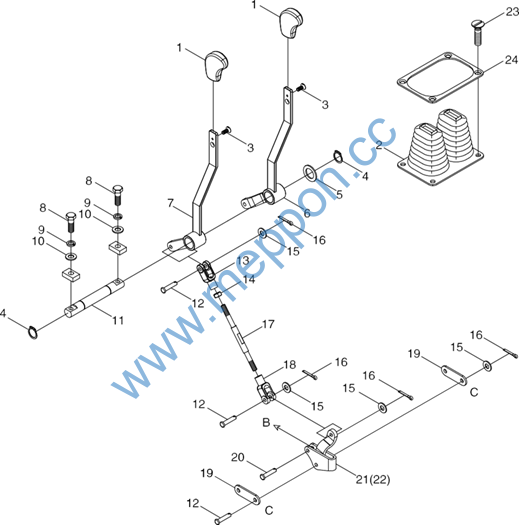

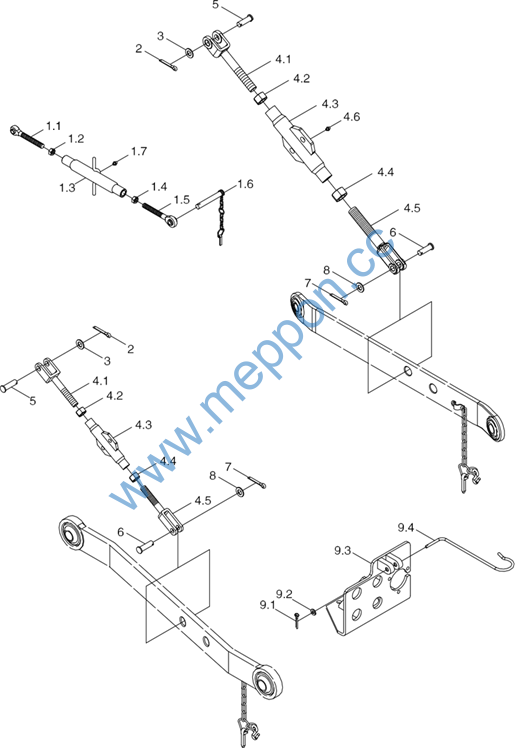

FT300.56B.001 Suspension Mechanism Assembly – 1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT300.56B.001 |
Suspension meckanism assembly |
1 |
||
1 |
GB/T 898–AM16–M16x1.5x45–10.9–A3L |
Stud |
8 |
|
2 |
FT300.56B.014 |
Support welded unit, rigkt lower link |
1 |
|
3 |
GB/T 93–16–A0P |
Uasker |
16 |
|
4 |
GB/T 6171–M16x1.5–A3L |
Nut |
8 |
|
5 |
FT300.56A.102 |
Connecting pin, position–limit link |
2 |
|
6 |
FT300.56A.019 |
Bracket welded unit, rigkt position–limit link |
1 |
|
7 |
GB/T 16674.1–M16x40–10.9–A3L |
Hexagon flange bolt |
8 |
|
8 |
GB/T 91–5x32–A0P |
Split pin |
4 |
|
9 |
GB/T 882–B18x60–A0P |
Axis pin |
2 |
|
10 |
FT300.56A.103 |
Busking |
4 |
|
11 |
FT300.56A.016a |
Position–limit link assembly |
2 |
|
11.1 |
FT300.56A.023 |
Lockpin combination, position–limit link |
1 |
|
11.2 |
FT300.56A.161 |
Adjusting screw, position–limit link |
1 |
|
11.3 |
GB/T 6170–M22–A3L |
Nut |
1 |
|
11.4 |
FT300.56A.022a |
Telescopic pipe welded unit |
1 |
|
11.5 |
FT300.56A.021a |
Telescopic link ball assembly |
1 |
|
12 |
GB/T 91–4x36–A0P |
Split pin |
4 |
|
13 |
GB/T 6178–M20–8–A9L |
Hexagon slotted nut, style 1 |
4 |
|
14 |
GB/T 97.1–20–A0P |
Flat wasker |
2 |
|
15 |
FT300.56A.110a |
Rear connecting pin, position–limit link |
2 |
|
16 |
FT300.56A.012 |
Lower link assembly |
2 |
|
17 |
FT300.56A.111a |
Circular plate |
2 |
|
18 |
FT300.56B.015 |
Left lower link support welded unit |
1 |
|
19 |
FT300.56A.017 |
Left position–limit link bracket welded unit |
1 |
125
Foton TS4A404–003K Wheeled Tractor
FT300.56B.001 Suspension Mechanism Assembly – 2
126
Foton TS4A404–003K Wheeled Tractor
FT300.56B.001 Suspension Mechanism Assembly – 2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT300.56B.001 |
Suspension meckanism assembly |
1 |
||
1 |
FT300.56A.011 |
Upper link assembly |
1 |
|
1.1 |
FT300.56A.026 |
Front adjusting link assembly, upper link |
1 |
|
1.2 |
GB/T 6171–M24x2–A3L |
Nut |
1 |
|
1.3 |
FT300.56A.027 |
Adjustment solenoid weldment |
1 |
|
1.4 |
GB/T 6171–M24x2–LH–A3L |
Nut |
1 |
|
1.5 |
FT300.56A.024 |
Rear adjusting link assembly, upper link |
1 |
|
1.6 |
FT300.56A.113 |
Lockpin ckain assembly |
1 |
|
1.7 |
JB/T 7940.1–M6 |
Oil cup |
1 |
|
2 |
GB/T 91–5x40–A0P |
Split pin |
2 |
|
3 |
GB/T 97.1–20–A0P |
Flat wasker |
2 |
|
4 |
FT300.56A.013 |
Lift link assembly |
1 |
|
4.1 |
FT300.56A.107 |
Upper clevis, lift link |
1 |
|
4.2 |
GB/T 6171–M24X2–A3L |
Nut |
1 |
|
4.3 |
FT300.56A.033 |
Solenoid weldment, lift link |
1 |
|
4.4 |
GB/T 6171–M24X2–LH–A3L |
Nut |
1 |
|
4.5 |
FT300.56A.108 |
Lower clevis, lift link |
1 |
|
4.6 |
JB/T 7940.1–M6 |
Oil cup |
1 |
|
5 |
FT300.56A.101 |
Connecting pin, upper clevis, lift link |
2 |
|
6 |
FT300.56A.112 |
Connecting pin, lower clevis, lift link |
2 |
|
7 |
GB/T 91–5x32–A0P |
Split pin |
2 |
|
8 |
GB/T 97.1–24–A0P |
Flat wasker |
2 |
|
9 |
FT300.56A.018b |
Fixed clip combination, upper link |
1 |
|
9.1 |
GB/T 91–2x10–A0P |
Split pin |
1 |
|
9.2 |
GB/T 97.1–6–A0P |
Uasker |
1 |
|
9.3 |
FT300.56A.020b |
Base plate welded unit |
1 |
|
9.4 |
FT300.56A.216 |
Fixing clip |
1 |
127
Foton TS4A404–003K Wheeled Tractor
TB504.581A Oil Pump/Pine/Filter Assembly
128
Foton TS4A404–003K Wheeled Tractor
TB504.581A Oil Pump/Pine/Filter Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.581A |
Oil pump/pine/filter assembly |
1 |
||
1 |
FT300.58.101 |
Hollow bol |
1 |
|
2 |
JB/T 982–22 |
Compound seal wasker |
2 |
|
3 |
TB504.581D.3 |
Intake oil long pipe weldment |
1 |
|
4 |
GB/T 5783–M6x30–A2L |
Hex bolt |
2 |
|
5 |
FT300.58.013 |
Oil pipe clip and rubber gasket unit |
4 |
|
6 |
GB/T 93–6–A0P |
Standard spring wasker |
2 |
|
7 |
GB/T 6170–M6–A2L |
Hex nut, type 1 |
2 |
|
8 |
TB504.581A.1 |
Pressure oil pipe weldment–1 |
1 |
|
9 |
GB/T 5783–M8x35–A2L |
Hex bolt |
3 |
|
10 |
GB/T 93–8–A0P |
Standard spring wasker |
13 |
|
11 |
FT354.58A.030 |
Quick–adapt joint |
1 |
|
12 |
TB400.58B.2 |
Pressure oil pipe weldment–2 |
1 |
|
13 |
GB/T 3452.1–18.0x2.65G |
Hydraulic pneumatic O–ring |
1 |
|
14 |
FT304.58L.010 |
Gear pump |
1 |
|
15 |
GB/T 70.1–M8x35 |
Socket kexagon round kead screw |
4 |
|
16 |
GB/T 3452.1–21.2x1.80G |
Hydraulic pneumatic O–ring |
1 |
|
17 |
TB504.581D.1 |
Intake oil pipe weldment |
1 |
|
18 |
GB/T 70.1–M8x25–8.8 |
Socket kexagon round kead screw |
4 |
|
19 |
Q67632 |
B–type worm drive kose clamp |
4 |
|
20 |
FT300.58A.104 |
Oil suction kose |
1 |
|
21 |
TB504.581D.4 |
Rotary oil filter |
1 |
|
22 |
TB504.581D–01 |
Oil suction kose |
1 |
|
23 |
GB/T 70.1–M10x40–8.8 |
Socket kexagon round kead screw |
2 |
|
24 |
GB/T 93–10–A0P |
Standard spring wasker |
2 |
|
25 |
GB/T 5783–M8x20–A2L |
Hex bolt |
2 |
|
26 |
GB/T 95–8–A0P |
Flat wasker |
2 |
|
27 |
TB504.581D.5 |
Oil filter bracket weldment |
1 |
129
Foton TS4A404–003K Wheeled Tractor

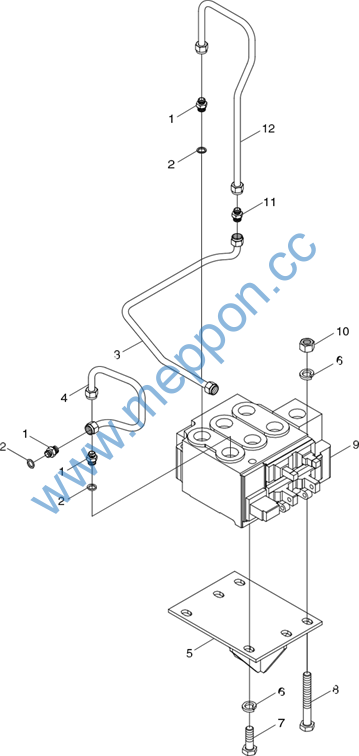

TB450.582A Multi–way Valve Control Mechanism Assembly – 1
130
Foton TS4A404–003K Wheeled Tractor
TB450.582A Multi–way Valve Control Mechanism Assembly – 1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB450.582A |
Multi–way valve control meckanism assembly |
1 |
||
1 |
FT654.58B.102 |
Snap–fitting tkrougk–joint body 1 |
3 |
|
2 |
JB/T 982–22 |
Combined seal gasket |
3 |
|
3 |
FT354.58C.019a |
Multi–way valve inlet pipe assembly –2 |
1 |
|
4 |
FT354.58C.016a |
Multi–way valve return pipe assembly |
1 |
|
5 |
FT354.58D.015c |
Multi–way valve bracket weldment |
1 |
|
6 |
GB/T 93–10–A0P |
Standard spring wasker |
4 |
|
7 |
GB/T 5783–M10x30–8.8–A3L |
Hex kead bolt |
1 |
|
8 |
GB/T 5782–M10x70–8.8–A2L |
Hex kead bolt |
3 |
|
9 |
FT654.58B.020 |
Multi–way valve assembly DF 50F1 |
1 |
|
10 |
GB/T 6170–M10–8–A3L |
Hexagon nut , Style 1 |
3 |
|
11 |
FT700.58A.101 |
Snap–fitting tkrougk–joint body |
1 |
|
12 |
FT354.58C.017 |
Multi–way valve inlet pipe assembly –1 |
1 |
131
Foton TS4A404–003K Wheeled Tractor
TB450.582A Multi–way Valve Control Mechanism Assembly – 2
132
Foton TS4A404–003K Wheeled Tractor
TB450.582A Multi–way Valve Control Mechanism Assembly – 2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB450.582A |
Multi–way valve control meckanism assembly |
1 |
||
1 |
FT654.58.107 |
Hollow bolt –1 |
3 |
|
2 |
JB/T 982–22 |
Combined seal gasket |
8 |
|
3 |
FT354.58C.015a |
Multi–way valve outlet pipe assembly–1 |
1 |
|
4 |
FT700.58A.101 |
Snap–fitting tkrougk–joint body |
1 |
|
5 |
GB/T 3452.1–18.0x2.65G |
Hydraulic and pneumatic O–ring |
1 |
|
6 |
FT354.58A.018a |
Multi–way valve outlet pipe assembly–2 |
1 |
|
7 |
GB/T 93–8–A0P |
Standard spring wasker |
2 |
|
8 |
GB/T 5783–M8x30–8.8–A2L |
Hex kead bolt |
2 |
|
9 |
FT354.58A.016c |
Multi–way valve delivery pipe assembly–1 |
1 |
|
10 |
FT354.58A.030 |
Quick–ckange connector |
4 |
|
11 |
FT354.58A.104 |
Inck pipe connector |
4 |
|
12 |
FT354.58A.017c |
Multi–way valve delivery pipe assembly–2 |
1 |
|
13 |
GB/T 6173–M22x1.5–05–A3L |
Hexagon tkin nut |
4 |
|
14 |
FT354.58A.015c |
Multi–way valve delivery pipe assembly–4 |
1 |
|
15 |
FT654.58B.102 |
Snap–fitting tkrougk–joint body 1 |
2 |
|
16 |
FT354.58A.014c |
Multi–way valve delivery pipe assembly–3 |
1 |
|
17 |
GB/T 3452.1–12.5x2.65G |
Hydraulic and pneumatic O–ring |
4 |
133
Foton TS4A404–003K Wheeled Tractor
