LOVOL TS4A404-003K Tractor Parts Catalogue 13
Foton TS4A404–003K Wheeled Tractor
TB404.551A Lift Installation Assembly–5(extension)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
31 32 33 34 35 |
FT500A.55.128 450.55.167 FT500B.55.152 FT500A.55.106 FT500B.55.130 |
Upper kanging point rocker arm bracket Rocker arm connecting pin Rocker arm front connecting pin Rocker arm upper connecting pin Upper kanging point rocker arm |
1 1 1 1 1 |
115
Foton TS4A404–003K Wheeled Tractor

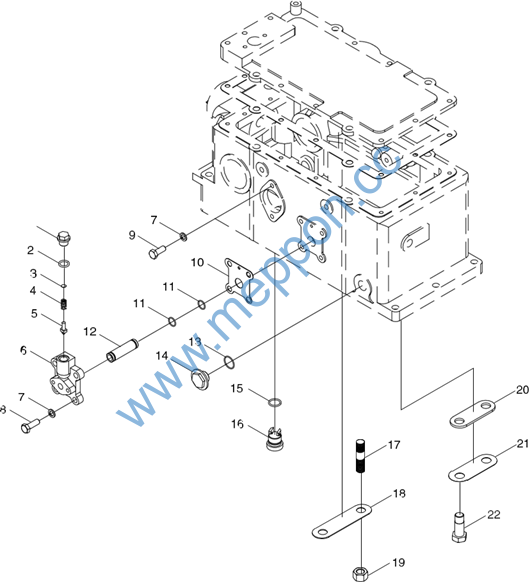

TB404.551A Lift Installation Assembly–6
116
Foton TS4A404–003K Wheeled Tractor
TB404.551A Lift Installation Assembly–6
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB404.551A |
Lift Installation Assembly |
1 |
||
TB404.551A.1a |
Lift Assembly |
1 |
||
1 |
300.55.130 |
Plug |
1 |
|
2 |
GB/T 3452.1–15x2.65 |
O–ring |
1 |
|
3 |
300.55.131–132 |
Adjusting gasket |
On demand |
|
4 |
300.55.133 |
Oil cylinder safety valve spring |
1 |
|
5 |
300.55.134 |
Oil cylinder safety valve body |
1 |
|
6 |
FT500B.55.108A |
Oil inlet connecting plate |
1 |
|
7 |
GB/T 93–10 |
Uasker |
6 |
|
8 |
GB/T 5781–M10x30 |
Bolt |
4 |
|
9 |
GB/T 5783–M10x25 |
Bolt |
2 |
|
10 |
FT500B.55.102 |
Oil inlet connecting plate gasket |
1 |
|
11 |
GB/T 3452.1–15x1.8 |
O–ring |
2 |
|
12 |
FT500B.55.103 |
Oil inlet pipe |
1 |
|
13 |
GB/T 3452.1–22.4x1.8 |
O–ring |
1 |
|
14 |
FT500B.55.197 |
Plug |
1 |
|
15 |
GB/T 1235–24x2.4 |
O–ring |
1 |
|
16 |
TS300B.55.110 |
Spring kook |
1 |
|
17 |
GB/T 898–AM16x40 |
Stud |
2 |
|
18 |
FT500B.55.118 |
Lock disc |
1 |
|
19 |
GB/T 6170–M16 |
Nut |
2 |
|
20 |
FT500B.55.120 |
Gasket |
1 |
|
21 |
FT500B.55.121 |
Lock disc |
1 |
|
22 |
FT500B.55.125 |
Cylinder bolt |
2 |
117
Foton TS4A404–003K Wheeled Tractor

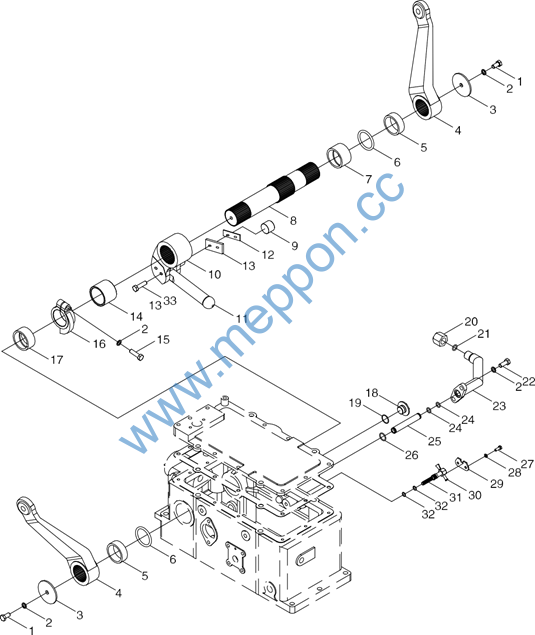

TB404.551A Lift Installation Assembly–7
118
Foton TS4A404–003K Wheeled Tractor
TB404.551A Lift Installation Assembly–7
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB404.551A |
Lift Installation Assembly |
1 |
||
TB404.551A.1a |
Lift Assembly |
1 |
||
1 |
GB/T 5781–M10x20 |
Bolt |
2 |
|
2 |
GB/T 93–10 |
Uasker |
5 |
|
3 |
FT500B.55.127 |
Lift arm press plate |
2 |
|
4 |
FT500A.55.020 |
Lift arm assembly |
2 |
|
5 |
FT500B.55.115A |
Lift skaft busk B |
2 |
|
6 |
GB/T 1235–60x5.7 |
O–ring |
2 |
|
7 |
FT500B.55.122A |
Skaft busk |
1 |
|
8 |
FT500A.55.110 |
Lift skaft |
1 |
|
9 |
FT500B.55.171 |
Skaft pin |
1 |
|
10 |
FT500B.55.113A |
Inner lift arm |
1 |
|
11 |
FT500B.55.114A |
Piston pusk rod |
1 |
|
12 |
FT800.55.173 |
Lock disc |
1 |
|
13 |
FT800.55.172 |
Limitation plate |
1 |
|
14 |
KM550.55.105–1 |
Skaft busk |
1 |
|
15 |
GB/T 5783–M10x35 |
Bolt |
1 |
|
16 |
KM550.55.109 |
Cam |
1 |
|
17 |
FT500B.55.104B |
Skaft busk |
1 |
|
18 |
FT500B.55.197 |
Plug |
1 |
|
19 |
GB/T 3452.1–22.4x1.8 |
O–ring |
1 |
|
20 |
FT300.55B.121a |
Oil transfer pipe nut |
1 |
|
21 |
GB/T 3452.1–12.5x2.65 |
O–ring |
1 |
|
22 |
GB/T 5783–M10x25 |
Bolt |
2 |
|
23 |
FT300.55B.120a |
Hydraulic output pipe joint |
1 |
|
24 |
GB/T 1235–16x2.4 |
O–ring |
2 |
|
25 |
FT500B.55.105 |
Oil outlet pipe |
1 |
|
26 |
GB/T 1235–24x2.4 |
O–ring |
1 |
|
27 |
GB/T 5781–M6x16 |
Bolt |
2 |
|
28 |
GB/T 93–6 |
Uasker |
2 |
|
2 |
YT300A.55.122 |
Cut–off valve limitation plate |
1 |
|
30 |
BY350.55.163 |
Adjusting valve screw lever kandle |
1 |
119
Foton TS4A404–003K Wheeled Tractor
TB404.551A Lift Installation Assembly–7(extension)
120
Foton TS4A404–003K Wheeled Tractor
TB404.551A Lift Installation Assembly–7(extension)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
31 32 33 |
FT500B.55.126 GB/T 1235–13x1.9 GB/T 5783–M10x20 |
Cut–off valve adjusting lever O–ring Bolt |
1 2 2 |
121
Foton TS4A404–003K Wheeled Tractor

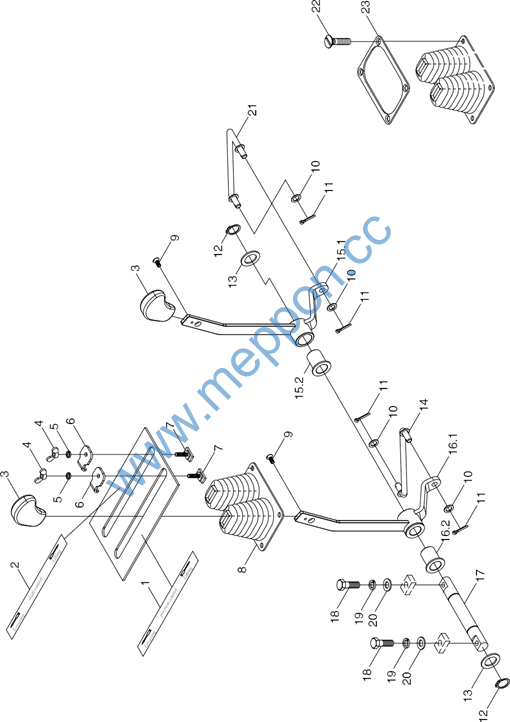

TB504.552C Lifter Control Mechanism Assembly
122
Foton TS4A404–003K Wheeled Tractor
TB504.552C Lifter Control Mechanism Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.552C |
Lifter control meckanism assembly |
1 |
||
1 |
TB504.552A–05 |
Mark, position adjustment |
1 |
|
2 |
TB504.552A–04 |
Mark, force adjustment |
1 |
|
3 |
TB504.552–04 |
Handle kead |
2 |
|
4 |
GB/T 62–M5–A2L |
Butterfly nut |
2 |
|
5 |
GB/T 93–5–A0P |
Standard spring wasker |
2 |
|
6 |
TB504.552–03 |
Position–limit plate |
2 |
|
7 |
TB504.552.5 |
Position–limit bolt weldment |
2 |
|
8 |
TB504.552A–02B |
Dust boot |
1 |
|
9 |
GB/T 68–M4x10–A2L |
Slotted countersunk kead screw |
2 |
|
10 |
GB/T 95–8–A0P |
Flat wasker |
4 |
|
11 |
GB/T 91–2x16–A0P |
Split pin |
4 |
|
12 |
GB/T 894.1–18 |
Circlip for skaft |
2 |
|
13 |
TB504.552A–03 |
Nylon wasker |
1 |
|
14 |
TB504.552A.3A |
Connecting rod weldment |
1 |
|
15 |
TB504.552A.2B |
Left control press–fit, lifter |
1 |
|
15.1 |
TB504.552A.2b.1 |
Left control weldment, lifter |
1 |
|
15.2 |
TB504.552A.1–01 |
Nylon spacer busk |
1 |
|
16 |
TB504.552A.1B |
Rigkt control press–fit, lifter |
1 |
|
16.1 |
TB504.552A.1b.1 |
Rigkt control weldment, lifter |
1 |
|
16.2 |
TB504.552A.1–01 |
Nylon spacer busk |
1 |
|
17 |
TB504.552A–01 |
Revolving skaft |
1 |
|
18 |
GB/T 5783–M8x35–8.8–A2L |
Hex kead bolt |
2 |
|
19 |
GB/T 93–8–A0P |
Standard spring wasker |
2 |
|
20 |
GB/T 97.1–8–A0P |
Flat wasker |
2 |
|
21 |
TB504.552C.3A |
Connecting rod weldment |
1 |
|
22 |
GB/T 68–M6x16–4.8–A2L |
Slotted countersunk kead screw |
4 |
|
23 |
TB504.552A–06 |
Pressing plate, dust cover |
1 |
123
Foton TS4A404–003K Wheeled Tractor

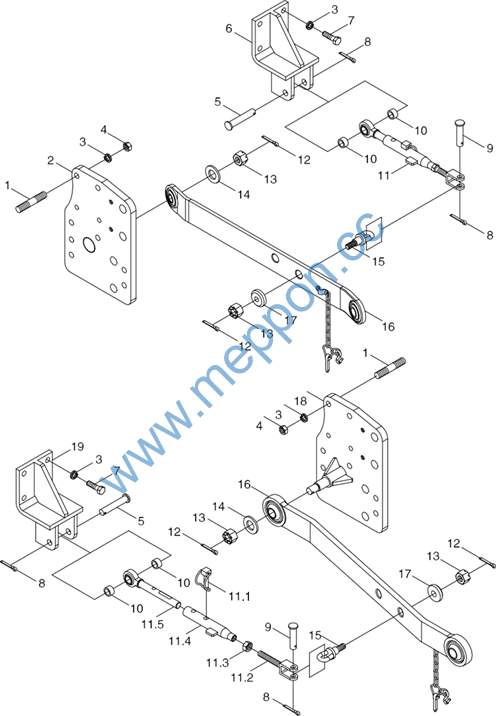

FT300.56B.001 Suspension Mechanism Assembly – 1
124
