LOVOL TL2A354-001K Tractor Parts Catalogue 22

Meppon Parts Posted on by

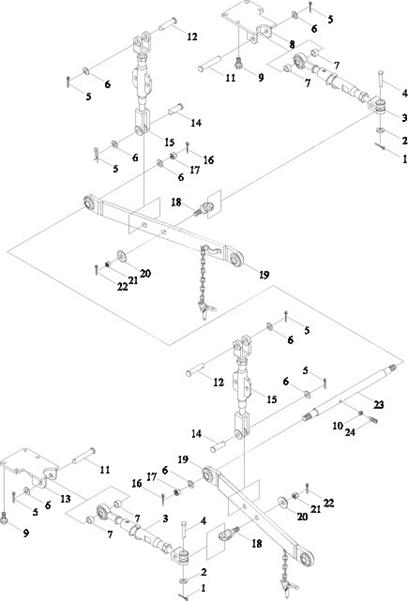

TE354.56 SUSPENSION ASSEMBLY-1














TE354.56 SUSPENSION ASSEMBLY-1



No.

Part No.

Description

Version

QTY.

Remark

1

GBT91-5X32-A0P

PIN



2



2

GBT97.1-18-A0P

WASHER

2

3

TE300.56.3a

LIMIT ROD ASSEMBLY

2

4

GBT882-B18X55

PIN SHAFT

2

5

GBT91-3.2X36-A0P

PIN

6

6

GBT97.1-20-A0P

WASHER

8

7

FT300.56A.103

BUSH

4

8

TE300.56.4a

RIGHT LIMITING ROD BRACKET WELDMENT

1

9

GBT16674.1-M14X30-10.9-A3L

HEXAGON FLANGE NUT

8

10

GBT6172.1-M12-04-A3L

HEXAGON THIN NUT

1

11

TE300.56-07

LIMITING ROD CONNECTING PIN

2

12

FT300.56A.101

LIFTING ROD UPPER CONNECTING PIN

2

13

TE300.56.5a

LEFT LIMITING ROD BRACKET WELDMENT

1

14

TE300.56-03

LIFTING ROD LOWER CONNECTING PIN

2

15

TE354.56.1

LIFTING ROD ASSEMBLY

2

16

GBT91-4X40-A0P

PIN

2

17

GBT6178-M20-8

HEXAGON SLOTTED NUT, STYLE 1

2

18

TE300.56-01

LIMITING ROD REAR CONNECTING PIN

2

19

TE300.56.1

LOWER PULL ROD ASSEMBLY

2

20

TE300.56-02

CIRCULAR PLATE

2

21

GBT6178-M16-8

HEXAGON SLOTTED NUT, STYLE 1

2

22

GBT91-4X36-A0P

PIN

2







TE354.56 SUSPENSION ASSEMBLY-1 (cont’d.)



No.

Part No.

Description

Version

QTY.

Remark

23

24

TE300.56-04

FT250.56.125

LOWER PULL ROD FIXING SHAFT

THRUST SCREW



1

1

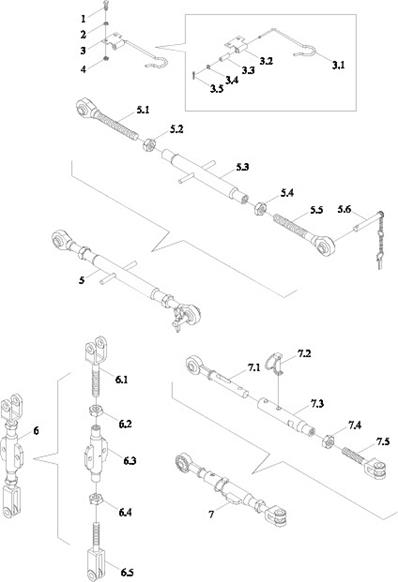

TE354.56 SUSPENSION ASSEMBLY-2














TE354.56 SUSPENSION ASSEMBLY-2



No.

Part No.

Description

Version

QTY.

Remark

1

GBT5783-M8X16-8.8-A2L

HEXAGON BOLT



1



2

GBT93-8-A0P

SPRING WASHER

1

3

TE300.56.6

UPPER PULL ROD FIXED CLIP COMBINATION

1

3.1

TE300.56.6-02

UPPER PULL ROD FIXING CLIP

1

3.2

TE300.56.6-01

FIXING SEAT

1

3.3

TE300.56.6-03

NYLON BUSH

1

3.4

GBT96.1-6-A0P

BIG WASHER

1

3.5

GBT91-2X14-A0P

SPLIT PIN

1

4

GBT6170-M8-8-A2L

HEXAGON NUT, TYPE-1

1

5

FT250.56.012a

UPPER PULL ROD ASSEMBLY

1

5.1

FT250.56.017

UPPER PULL ROD FRONT ADJUSTING ROD ASSEMBLY

1

5.2

GBT6171-M22X1.5-8-A3L

HEXAGON NUT, TYPE-1

1

5.3

FT250.56.031

ADJUSTING SCREW WELDMENT

1

5.4

GBT6171-M22X1.5-LH-8-A3L

HEXAGON NUT, TYPE-1

1

5.5

FT250.56.019

UPPER PULL ROD REAR ADJUSTING ROD ASSEMBLY

1

5.6

FT300.56A.113

LOCKING PIN CHAIN ASSEMBLY

1

6

TE354.56.1(2)

LIFTING ROD ASSEMBLY

1

6.1

TE354.56.1-01

LIFTING ROD UPPER CONNECTING FORK

1

6.2

TE300.56.2-03

NUT

1

6.3

TE300.56.2.1a

LIFTING SOLENOID WELDMENT

1

6.4

TE300.56.2-04

NUT

1

6.5

TE300.56.2-01a

LIFTING ROD LOWER CONNECTING FORK

1

7

TE300.56.3a(2)

LIMIT ROD ASSEMBLY

1







TE354.56 SUSPENSION ASSEMBLY-2 (cont’d.)



No.

Part No.

Description

Version

QTY.

Remark

7.1

TE300.56.3A.1

EXTENSIBLE ROD BALL ASSEMBLY



1



7.2

FT300.56A.023(J)

LIMITING ROD LOCK PIN ASSEMBLY

1

7.3

TE300.56.3A-01

EXTENSIBLE GUIDE PIPE

1

7.4

GBT6170-M22-8-A9L

HEXAGON NUT, TYPE-1

1

7.5

TE300.56.3A-02

LIMITING ROD ADJUSTING SCREW

1

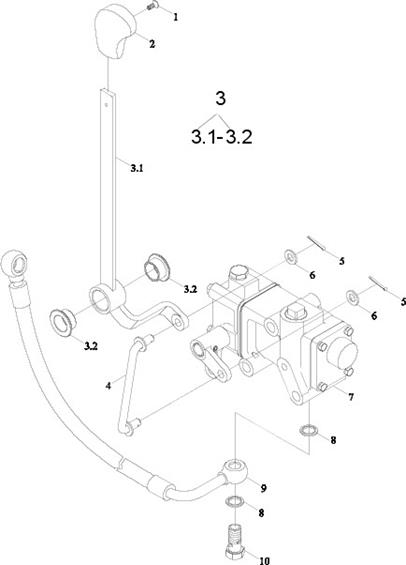

TE354.57 DISTRIBUTOR AND CONTROL MECHANISM ASSEMBLY-1
















TE354.57 DISTRIBUTOR AND CONTROL MECHANISM ASSEMBLY-1



No.

Part No.

Description

Version

QTY.

Remark

1

GBT68-M4X10-4.8-A2L

SLOTTED SCREW



1



2

TB504.552-04

HANDLE HEAD

1

3

TE354.57.1

CONTROL ARM ASSEMBLY

1

3.1

TE354.57.1.1

CONTROL ARM WELDMENT

1

3.2

TE250.57.2-01

NYLON BUSH

2

4

TE250.57.3

PULL ROD WELDMENT

1

5

GBT91-2X18-A0P

SPLIT PIN

2

6

GBT97.1-8-A0P

FLAT WASHER

2

7

TE250.57.1

DISTRIBUTOR ASSEMBLY

1

8

JBT982-18

COMBINED SEAL GASKET

2

9

TE354.57.2

DISTRIBUTOR OIL INLET PIPE ASSEMBLY

1

10

FT654.58.112

HOLLOW BOLT -3

1

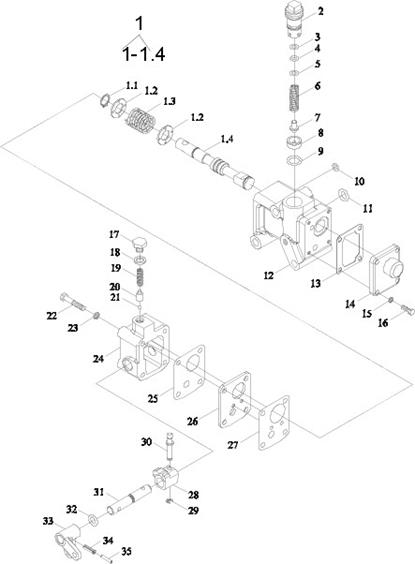

TE354.57 DISTRIBUTOR AND CONTROL MECHANISM ASSEMBLY-2
















TE354.57 DISTRIBUTOR AND CONTROL MECHANISM ASSEMBLY-2



No.

Part No.

Description

Version

QTY.

Remark


TE250.57.1(2)

DISTRIBUTOR ASSEMBLY



1



1

FT250.57.010

SLIDING VALVE ASSEMBLY

1

1.1

GBT894.1-15

RETAINER RING

1

1.2

FT250.57.115

SPRING RETAINER PIECE

2

1.3

FT250.57.114

SLIDING VALVE RETURN SPRING

1

1.4

FT250.57.113

SLIDING VALVE

1

2

FT250.57.128

PRESSURE PLUG

1

3

FT250.57.110

ADJUSTING WASHER

1

4

FT250.57.111

ADJUSTING WASHER

1

5

FT250.57.112

ADJUSTING WASHER

1

6

FT250.57.129

SAFETY VALVE SPRING

1

7

FT250.57.131

SAFETY VALVE CORE

1

8

FT250.57.101

SAFETY VALVE SEAT

1

9

GBT3452.1-15.0X2.65G

RUBBER O-SEAL RING

1

10

GBT3452.1-13.2X2.65G

RUBBER O-SEAL RING

1

11

GBT3452.1-19.0X2.65G

RUBBER O-SEAL RING

1

12

FT250.57.104

DISTRIBUTOR HOUSING

1

13

FT250.57.103

FRONT COVER PAPER GASKET

1

14

FT250.57.102

FRONT COVER

1

15

GBT93-5-A0P

STANDARD SPRING WASHER

4

16

GBT5781-M5X16-4.8-A2L

HEXAGON BOLT

4

17

FT250.57.123

SCREW PLUG

1

18

FT250.57.124

WASHER

1







TE354.57 DISTRIBUTOR AND CONTROL MECHANISM ASSEMBLY-2 (cont’d.)



No.

Part No.

Description

Version

QTY.

Remark

19

FT250.57.122

LOCATING SPRING



1



20

FT250.57.121

LOCATING SPRING SEAT

1

21

GBT308-5-G100-B

STEEL BALL

1

22

GBT5780-M6X55-4.8-A1L

HEXAGON BOLT

4

23

GBT93-6-A0P

STANDARD SPRING WASHER

4

24

FT250.57.108

REAR COVER

1

25

FT250.57.107

REAR COVER PAPER GASKET

1

26

FT250.57.106

RETAINER PLATE

1

27

FT250.57.105

RETAINER PLATE PAPER GASKET

1

28

FT250.57.119

LOCATING BLOCK

1

29

GBT896-4

SPLIT RETAINER RING

1

30

FT250.57.120

DIAL PIN

1

31

TE250.57.1-01

HANDLE SHAFT

1

32

GBT3452.1-9.50X2.65A

RUBBER O-SEAL RING

1

33

TE250.57.1-02

CONTROL ROCKER 1

1

34

GBT879.1-6X22

SPRING COLUMN PIN

1

35

GBT879.1-4X22

SPRING COLUMN PIN

1
