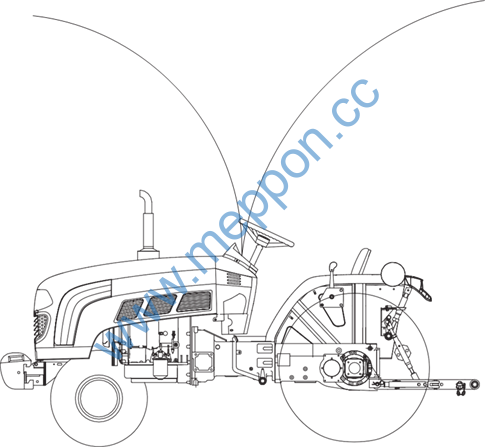

TE250.482N Body Harness Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE250.482N |
Body harness assembly |
1 |
||
1 |
TE250.482N.1 |
Body harness assembly |
1 |
|
2 |
FT300.48.033 |
Brake lamp switch |
2 |
|
3 |
FT300.48.055 |
Starting relay |
1 |
|
4 |
GB/T 6170-M6-A2L |
Nut |
3 |
|
5 |
GB/T 93-6-A0P |
Washer |
5 |
|
6 |
GB/T 97.1-6-A0P |
Washer |
5 |
|
7 |
JF/T 141 |
Voltage regulator |
1 |
|
8 |
GB/T 818-M6×20-A2L |
Screw |
5 |
|
9 |
TH354.482.4 |
Left rocker switch |
1 |
|
10 |
FT300.48.064 |
Ignition lock |
1 |
|
11 |
TH354.482.5 |
Right rocker switch |
1 |
|
12 |
FT250.48E.042 |
Fuse box assembly |
1 |
|
13 |
TE250.482A-02 |
Relay box cover |
1 |
|
14 |
TE250.482A.2 |
Relay box assembly |
1 |
|
15 |
FT65.48.055 |
Lamplight relay |
1 |

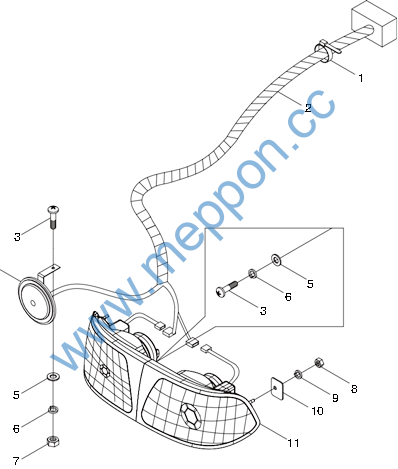

TE250.483A Headlamp harness assembly
4
TE250.483A Headlamp harness assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE250.483A |
Headlamp harness assembly |
1 |
||
1 |
3724D01-201 |
Loosable ties |
1 |
|
2 |
TE250.483A.2 |
Front lamp harness assembly |
1 |
|
3 |
GB/T 818-M8×16-A2L |
Screw |
3 |
|
4 |
TD800.483B.3 |
Electric horn |
1 |
|
5 |
GB/T 97.1-8-A0P |
Washer |
3 |
|
6 |
GB/T 93-8-A0P |
Washer |
3 |
|
7 |
GB/T 6170-M8-A2L |
Nut |
1 |
|
8 |
GB/T 6170-M6-A2L |
Nut |
2 |
|
9 |
GB/T 93-6-A0P |
Washer |
2 |
|
10 |
TE250.483-01 |
Backing board |
2 |
|
11 |
TE250.483A.1 |
Headlamp assembly |
1 |

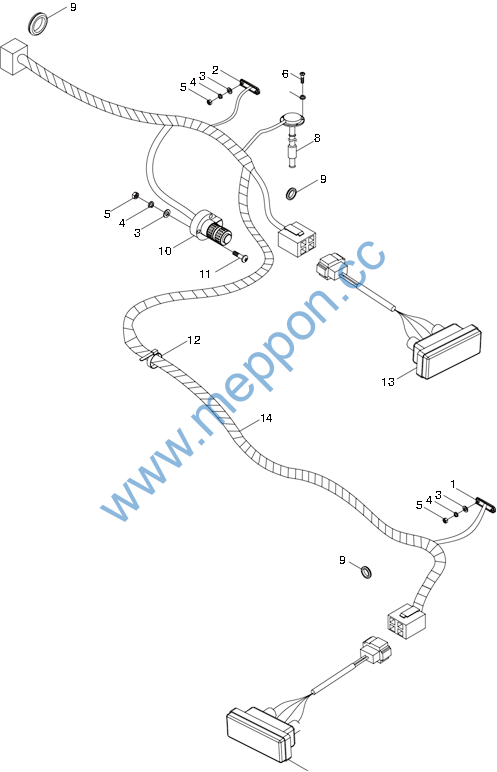

TE250.484L Rear Lamp Harness Assembly
13
TE250.484L Rear Lamp Harness Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE250.484L |
Rear lamp harness assembly |
1 |
||
1 |
TB450.484E.5 |
Left reflector |
1 |
|
2 |
TB450.484E.6 |
Right reflector |
1 |
|
3 |
GB/T 97.1-5-A0P |
Washer |
8 |
|
4 |
GB/T 93-5-A0P |
Washer |
8 |
|
5 |
GB/T 6170-M5-A2L |
Nut |
8 |
|
6 |
GB/T 818-M4×10-A2L |
Screw |
5 |
|
7 |
GB/T 93-4-A0P |
Washer |
5 |
|
8 |
TE250.484H.2 |
Oil amount sensor |
1 |
|
9 |
FT800A.48L.101 |
Wire through ring |
4 |
|
10 |
TD800.484B.6 |
Rear trailer socket assembly |
1 |
|
11 |
GB/T 818-M5×35-A1L |
Screw |
3 |
|
12 |
3724D01-201 |
Loosable cable ties |
5 |
|
13 |
TB404.484.3 |
Rear tail lamp assembly |
2 |
|
14 |
TE250.484L.1 |
Rear lamp harness assembly |
1 |

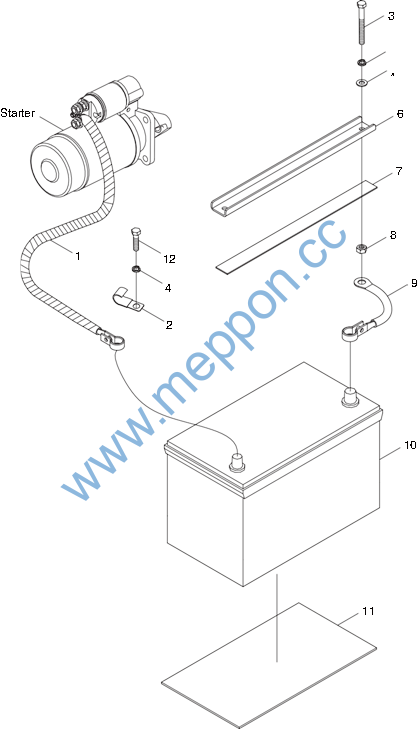

TE300.485C Battery installation assembly
TE300.485C Battery installation assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE300.485C |
Battery installation assembly |
1 |
||
1 |
FT300.48.017(J) |
Power line assembly |
1 |
|
2 |
FT65.48.095 |
Wire harness clip(1) |
1 |
|
3 |
GB/T 5783-M8×80-A2L |
Bolt |
2 |
|
4 |
GB/T 93-8-A0P |
Washer |
3 |
|
5 |
GB/T 97.1-8-A0P |
Washer |
2 |
|
6 |
TE300.485A-01 |
Battery pressure plate |
1 |
|
7 |
TE250.485A-02 |
Pressure pad |
1 |
|
8 |
GB/T 6170-M8-A2L |
Nut |
1 |
|
9 |
TE300.485.3 |
Negative pole cable assembly of battery |
1 |
|
10 |
TE250.24B.1L |
Battery assembly |
1 |
|
11 |
FT250.24B.103 |
Rubber skin |
1 |
|
12 |
GB/T 5783-M8×80-A2L |
Bolt |
1 |

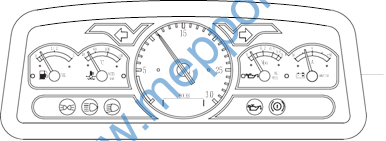

TE250.487 Combination instrument assembly
1
TE250.487 Combination instrument assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 |
TE250.487 |
Combination instrument assembly |
1 |
