FT250.62.001 Safety Belt Assembly
|
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
|
1 |
FT250.62.001 FT250.62.001 |
Safety belt assembly Safety belt assembly |
1 1 |

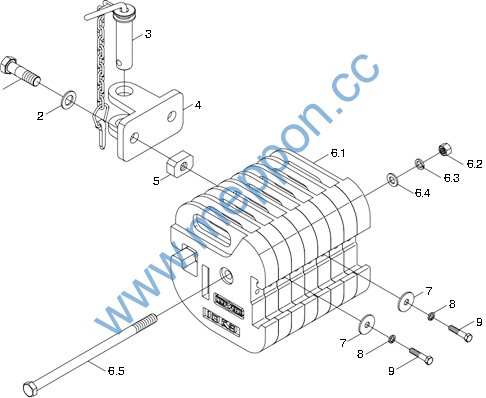

TE254.742 Front ballast assembly
1
TE254.742 Front ballast assembly
|
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
|
TE254.742 |
Front ballast assembly |
1 |
||
|
1 |
TE254.742-04 |
Traction bolt |
2 |
|
|
2 |
GB/T 97.1-20-A0P |
Flat washer |
2 |
|
|
3 |
TB400.74A.2 |
Traction pin and lock pin assembly |
1 |
|
|
4 |
TE254.742-02 |
Traction ear |
1 |
|
|
5 |
FT650.74.108 |
Traction nut |
2 |
|
|
6 |
TE254.742.2 |
Front ballast subassembly |
1 |
|
|
6.1 |
TE254.742-01 |
Ballast block |
8 |
|
|
6.2 |
GB/T 6170-M16-8-A3L |
Type 1 hex nut |
1 |
|
|
6.3 |
GB/T 93-16-A0P |
Standard spring washer |
1 |
|
|
6.4 |
GB/T 97.1-16-A0P |
Flat washer |
1 |
|
|
6.5 |
TE254.742-03 |
Connecting bolt |
1 |
|
|
7 |
TE254.742-05 |
Backing plate |
2 |
|
|
8 |
GB/T 93-10-A0P |
Standard spring washer |
2 |
|
|
9 |
GB/T 5783-M10×45-8.8-A3L |
Hex bolt |
2 |
TE250.81 Fan heater installation assembly
TE250.81 Fan heater installation assembly
|
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
|
TE250.81 |
Fan heater installation assembly |
1 |
||
|
1 |
FT65.45.990（J） |
Fan heater assembly |
1 |
|
|
2 |
GB/T 5783-M6×40-8.8-A1L |
Bolt |
4 |
|
|
3 |
GB/T 97.1-6-A0P |
Washer |
4 |
|
|
4 |
GB/T 93-6-A0P |
Washer |
4 |
|
|
5 |
GB/T 6170-M6-A2L |
Nut |
4 |
|
|
6 |
Q676B25 |
C-worm transmission-type hose hoop |
4 |
|
|
7 |
FT800.45.996（J） |
Water inlet pipe of air conditioner heater |
2 |
|
|
8 |
TB400.81.1（J） |
Heaters water inlet valve |
1 |
|
|
9 |
GB/T 5783-M8×16-8.8-A2L |
Bolt |
1 |
|
|
10 |
GB/T 93-8-A0P |
Washer |
1 |
|
|
11 |
GB/T 97.1-8-A0P |
Washer |
1 |
|
|
12 |
Q67405200 |
Plastic clinching belt |
6 |
|
|
13 |
FT300.48.202（J） |
Fastening clip |
1 |
FT250.91B.001 Rear Ballast Assembly
FT250.91B.001 Rear Ballast Assembly
|
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
|
1 2 3 4
5 6 |
FT250.91B.001 TE350.91.-04 FT650.34.104 FT250.91B.101 FT250.91B.103
FT250.91B.102 GB/T 6171-M16×1.5-8-A3L |
Rear ballast assembly Hex bolt Washer Rear ballast Ballast screw Ⅱ
Ballast screw Ⅰ Type 1 hex nut |
1 3 6 2 3
3 3 |

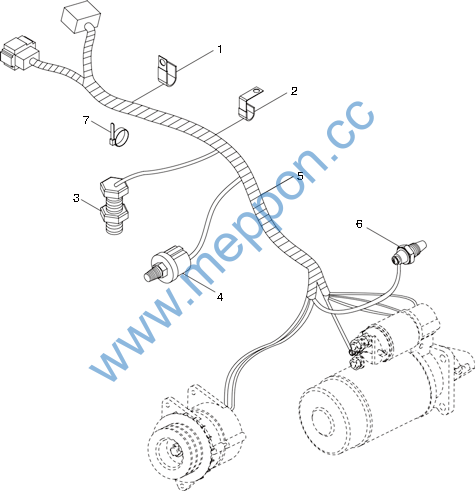

TE250.481 Engine Harness Assembly
TE250.481 Engine Harness Assembly
|
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
|
TE250.481 |
Engine harness assembly |
1 |
||
|
1 |
FT304.48L.203 |
Harness fastener |
1 |
|
|
2 |
FT300.48.105 |
Harness fastener (3) |
2 |
|
|
3 |
FT300.48.074 |
Rotating speed sensor |
1 |
|
|
4 |
FT250.48.036 |
Oil pressure sensor |
1 |
|
|
5 |
TE250.481.1 |
Engine harness assembly |
1 |
|
|
6 |
TE250.481.2 |
Water temperature sensor |
1 |
|
|
7 |
Q67405100 |
Plastic fastening belt |
1 |
TE250.482N Body Harness Assembly
8
