LOVOL TL1A254-004C Tractor Parts Catalogue 18
TE250.474A Instrument Panel Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 |
TE250.474A GB/T 819.1-M5×50-4.8-A1L GB/T 97.1-5-A0P TE250.474A.1 |
Instrument panel assembly Cross recessed countersunk head screw Flat washer Instrument panel |
1 6 6 1 |

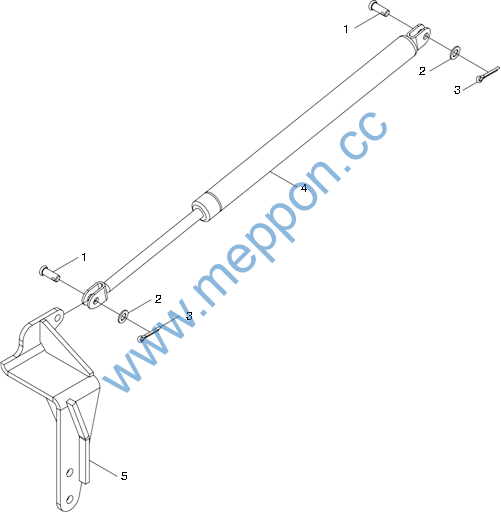

TE250.476D Air Spring Installation Assembly
TE250.476D Air Spring Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
TE250.476D GB/T 882-B8×22 GB/T 95-8-A0P GB/T 91-3.2×16-A0P TE250.476D-01
TE254.471.6 |
Air spring installtion assembly Pin shaft Flat washer Cotter pin Bonnet air spring
Air spring fixing frame weldment |
1 2 2 2 1
1 |

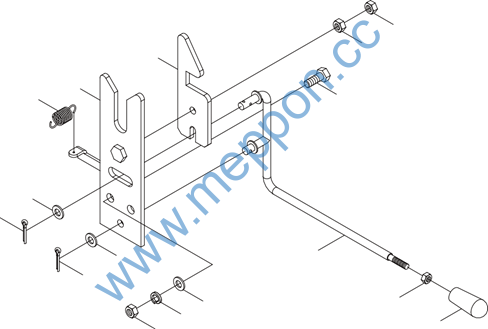

TE250.477 Bonnet Lock Assembly
6
6
TE250.477 Bonnet Lock Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE250.477 |
Bonnet lock assembly |
1 |
||
1 |
TE250B.47.9 |
Handle assembly |
1 |
|
2 |
GB/T 6170-M6-A2L |
Nut |
1 |
|
3 |
TE250B.47.7 |
Lever weldment |
1 |
|
4 |
GB/T 97.1-8-A0P |
Washer |
4 |
|
5 |
GB/T 93-8-A0P |
Gasket |
2 |
|
6 |
GB/T 6170-M8-A2L |
Nut |
4 |
|
7 |
GB/T 91-3.2×16-A0P |
Pin |
2 |
|
8 |
FT200.21.106 |
Retraction spring of release bearing seat |
1 |
|
9 |
TE250B.47.5 |
Limitating plate weldment |
1 |
|
10 |
TE250B.47-01 |
Lock plate |
1 |
|
11 |
GB/T 5783-M8×25-A2L |
Bolt |
2 |

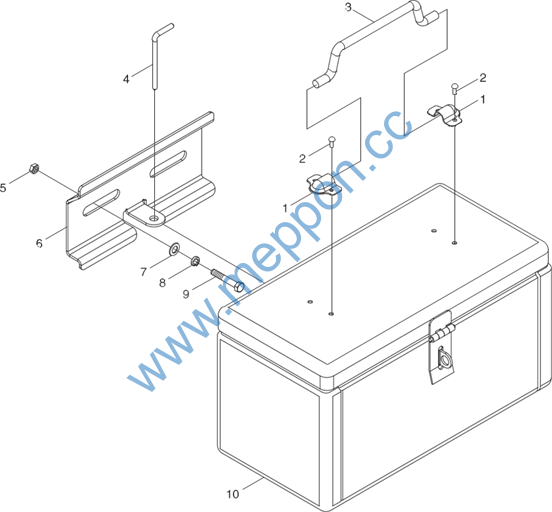

FT300.49.001 Toolbox Installation Assembly
FT300.49.001 Toolbox Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT300.49.001 |
Toolbox installation assembly |
1 |
||
1 |
FT65.49.101 |
Handle seat |
2 |
|
2 |
GB/T 867-4×8 |
Round head rivet |
4 |
|
3 |
FT65.49.115 |
Handle |
1 |
|
4 |
FT65.49.102 |
Pin |
1 |
|
5 |
GB/T 6170-M12-8-A3L |
Type 1 hex nut |
2 |
|
6 |
FT65.49.103 |
Fixing support plate |
1 |
|
7 |
GB/T 97.1-12-A0P |
Flat washer |
2 |
|
8 |
GB/T 93-12-A0P |
Standard spring washer |
2 |
|
9 |
GB/T 5783-M12×35-8.8-A3L |
Hex bolt |
2 |
|
10 |
FT300.49.012 |
Toolbox welding assembly |
1 |
TE254.50A Fuel Tank Assembly
1.1
2
1.2 2
3
6
7 8
9
5 11
4 10
TE254.50A Fuel Tank Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE254.50A |
Fuel tank assembly |
1 |
||
1 |
TE254.50A.1 |
Oil tank assembly |
1 |
|
1.1 |
TD800.501A.1.1 |
Oil tank cover |
1 |
|
1.2 |
TF1004.501.1-02 |
Filter screen |
1 |
|
1.3 |
TE254.50.1-01 |
Oil tank housing |
1 |
|
1.4 |
JB/T 982-16 |
Compound seal washer |
3 |
|
1.5 |
Q617B16 |
Hex screw plug |
1 |
|
2 |
GB/T 6170-M10-A3L |
Type 1 hex nut |
4 |
|
3 |
TE254.50A.2 |
Oil tank rear trestle weldment |
1 |
|
4 |
TE254.50A.4a |
Rear lock cable weldment |
1 |
|
5 |
TE254.50A-01 |
Rubber gasket 1 |
1 |
|
6 |
GB/T 5783-M14×30-8.8-A3L |
Hex bolt |
2 |
|
7 |
GB/T 93-14-A0P |
Standard spring washer |
2 |
|
8 |
TE254.50A-02 |
Rubber gasket 2 |
1 |
|
9 |
TE254.50A.5a |
Front cable ties weldment |
1 |
|
10 |
GB/T 93-10-A0P |
Standard spring washer |
1 |
|
11 |
GB/T 5783-M10×30-A3L |
Hex bolt |
1 |
|
12 |
TE254.50A.3 |
Oil tank front trestle weldment |
1 |
|
13 |
TF1004.502-02 |
Breathing pipe |
1 |
|
14 |
Q673B13 |
Steel band spring clamp |
2 |
|
15 |
JB/T 982-14 |
Compound seal washer |
2 |
|
16 |
FT800A.50.162 |
Oil pipe joint |
1 |
|
17 |
FT65.56.106 |
Hollow bolt |
1 |
|
18 |
TE254.50A.6 |
Oil transfer pipe assembly |
1 |
|
19 |
GB/T 5783-M12×30-A3L |
Hex bolt |
1 |
|
20 |
GB/T 93-12-A0P |
Standard spring washer |
2 |
|
21 |
TE254.50A-03 |
Rubber washer |
1 |
|
22 |
Q67405200 |
Plastic fastening strap |
4 |

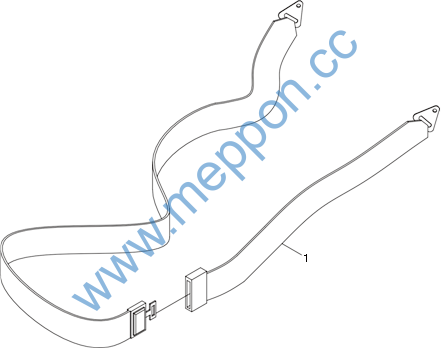

FT250.62.001 Safety Belt Assembly
