LOVOL TL1A254-004C Tractor Parts Catalogue 13
TE250.433C Brake Control Assembly-3
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE250.433C |
Brake control assembly |
1 |
||
1 |
GB/T 882-B10×30-A0P |
Pin shaft |
2 |
|
2 |
FT300.43.110 |
Pull rod rear fork |
1 |
|
3 |
GB/T 97.1-10-A0P |
Flat washer |
4 |
|
4 |
GB/T 91-3.2×22-A0P |
Cotter pin |
4 |
|
5 |
GB/T 6170-M10-A3L |
Type 1 hex nut |
2 |
|
6 |
TE250.433C.17 |
Brake short pull rod weldment |
1 |
|
7 |
FT300.43.108 |
Pull rod front fork |
1 |
|
8 |
TE250.433C.4 |
Left lower rocker arm assembly |
1 |
|
8.1 |
TE250.433C.4-01 |
Bush |
2 |
|
8.2 |
TE250.433C.4.1 |
Left lower rocker arm weldment |
1 |
|
9 |
GB/T 6170-M10-LH-A3L |
Type 1 hex nut |
1 |
|
10 |
TE250.433C-09 |
Connecting lever |
1 |
|
11 |
TE250.433C.11 |
Left brake long pull rod weldment |
1 |
|
12 |
TE250.433C-04 |
Left brake rocker arm |
1 |
|
13 |
TE250.433C-11 |
Connecting fork |
1 |
|
14 |
TE250.433C.12 |
Left brake pull wire assembly |
1 |
|
15 |
GB/T 6171-M10×1-A2L |
Type 1 hex nut |
1 |
|
16 |
TE250.433C-14 |
Brake upper connecting lever |
1 |

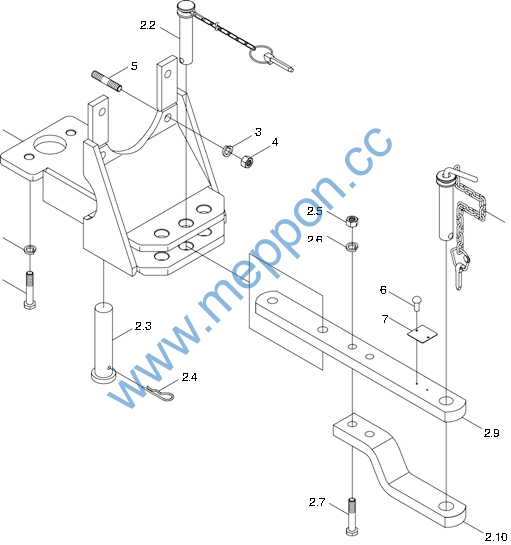

TE250.35C Traction equipment mounting assembly
2.1
3
1
2.8
TE250.35C Traction equipment mounting assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE250.35C |
Traction equipment mounting assembly |
1 |
||
1 |
GB/T 5783-M12×35-A3L |
Bolt |
2 |
|
2 |
TE250.35C.1 |
Traction equipment assembly |
1 |
|
2.1 |
FT250.35.010 |
Traction frame weld |
1 |
|
2.2 |
TE250.35A.1.1 |
Limiting pin and lock pin assembly |
1 |
|
2.3 |
FT250.35.101 |
Connecting pin |
1 |
|
2.4 |
FT65.35.103 |
Elastic lock pin |
1 |
|
2.5 |
GB/T 6170-M16-A3L |
Nut |
2 |
|
2.6 |
GB/T 93-16-AOP |
Washer |
2 |
|
2.7 |
GB/T 5782-M16×80-A3L |
Bolt |
2 |
|
2.8 |
TB400.35.1.2 |
Traction pin and lock pin assembly |
1 |
|
2.9 |
TE250.35C.1-01 |
Swing rod |
1 |
|
2.10 |
TB400.35.1-02 |
Connecting swing rod |
1 |
|
3 |
GB/T 93-12-AOP |
Washer |
6 |
|
4 |
GB/T 6170-M12-A3L |
Nut |
4 |
|
5 |
GB/T 899-GM12-M12×32-A3L |
Stud |
4 |
|
6 |
GB/T 827-3×8 |
Rivet |
2 |
|
7 |
TE250.35C-01 |
Traction label |
1 |
TE250.56D Suspension mechanism assembly-1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE250.56D |
Suspension mechanism assembly |
1 |
||
1 |
TE250.56D-01 |
Upper connecting pin of lifting lever |
2 |
|
2 |
TE250.56D.3 |
Lift rod assembly |
2 |
|
3 |
GB/T 97.1-20-A0P |
Flat washer |
4 |
|
4 |
GB/T 91-4×28-A0P |
Cotter pin |
6 |
|
5 |
TE300.56-03 |
Lower connecting pin of lifting lever |
2 |
|
6 |
TE250.56D.5 |
Right limiting rod bracket welding joint |
1 |
|
7 |
GB/T 93-14-A0P |
Standard spring washer |
8 |
|
8 |
GB/T 5783-M14×35-A3L |
Hex bolt |
8 |
|
9 |
GB/T 91-5×32-A0P |
Cotter pin |
2 |
|
10 |
FT250.56.103 |
Sleeve |
2 |
|
11 |
FT250.56.106 |
Limiting rod connecting pin |
2 |
|
12 |
TE250.56D.2 |
Limiting rod assembly |
2 |
|
13 |
GB/T 882-B18×55 |
Pin shaft |
2 |
|
14 |
GB/T 91-4×36-A0P |
Cotter pin |
4 |
|
15 |
GB/T 6178-M16 |
Type 1 hex slotted nut |
4 |
|
16 |
GB/T 97.1-16-A0P |
Flat washer |
2 |
|
17 |
TE300.56-01 |
Limiting lever rear connecting pin |
2 |
|
18 |
TE250.56D.1 |
Lower pull rod assembly |
2 |
|
19 |
TE300.56-02 |
Round plate |
2 |
|
20 |
FT250.56.102 |
Lower pull rod fixing shaft |
1 |
|
21 |
GB/T 6172.1-M12-A3L |
Hex thin nut |
1 |
|
22 |
FT250.56.125 |
Thrust screw |
1 |
|
23 |
TE250.56D.6 |
Left limiting rod bracket welding joint |
1 |

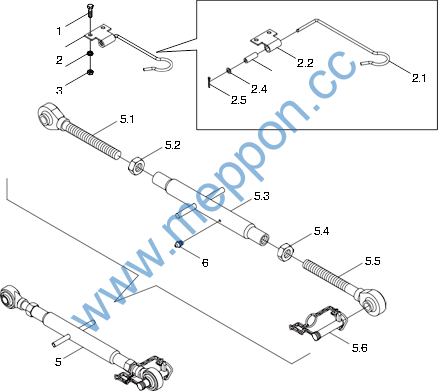

TE250.56D Suspension mechanism assembly-2
TE250.56D Suspension mechanism assembly-2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE250.56D |
Suspension mechanism assembly |
1 |
||
1 |
GB/T 5783-M8×35-8.8-A2L |
Hex bolt |
2 |
|
2 |
TE300.56.6 |
Upper tie rod fixed clamp assembly |
1 |
|
2.1 |
TE300.56.6-02 |
Upper drawbar fixing clip |
1 |
|
2.2 |
TE300.56.6-01 |
Fixing seat |
1 |
|
2.3 |
TE300.56.6-03 |
Nylon bushing |
1 |
|
2.4 |
GB/T 96.1-6-A0P |
Large washer |
1 |
|
2.5 |
GB/T 91-2×14-A0P |
Split pin |
1 |
|
3 |
GB/T 93-8-A0P |
Standard spring washer |
2 |
|
4 |
GB/T 6170-M8-A2L |
Type 1 hex nut |
2 |
|
5 |
TE250.56D.4 |
Upper tie rod assembly |
1 |
|
5.1 |
TE250.56D.4.1 |
Upper tie rod front adjusting rod assembly |
1 |
|
5.2 |
GB/T 6171-M22×1.5-A3L |
Type 1 hex nut |
1 |
|
5.3 |
FT250.56.031 |
Adjusting screw syphon weld |
1 |
|
5.4 |
GB/T 6171-M22×1.5-LH-A3L |
Type 1 hex nut |
1 |
|
5.5 |
TE250.56D.4.2 |
Upper tie rod rear adjusting rod assembly |
1 |
|
5.6 |
FT300.56A.113 |
Locking pin hinge assembly |
1 |
|
6 |
JB/T 7940.1-M6 |
Oil cup |
1 |
|
7 |
TE250.56D.3 |
Lift rod assembly |
2 |
|
7.1 |
TE250.56D.3-01 |
Lift rod upper connect fork |
1 |
|
7.2 |
TE300.56.2-03 |
Trapezoidal nut Tr22×2 |
1 |
|
7.3 |
TE250.56D.3.1 |
Lifting rod screw pipe weldment |
1 |
|
7.4 |
TE250.56D.3-02 |
Lift rod lower link fork |
1 |
|
8 |
JB/T 7940.1-M8×1 |
Press filling oil cup |
1 |
|
9 |
TE250.56D.2 |
Limiting rod assembly |
2 |
|
9.1 |
TE250.56D.2.1A |
Limiting rod assembly |
1 |
|
9.2 |
FT300.56A.023 |
Limiting rod lock pin assembly |
1 |
|
9.3 |
TE250.56D.2.2A |
Limiting sleeve assembly |
1 |
|
9.4 |
GB/T 6170-M22-8-A9L |
Type 1 hex nut |
1 |
|
9.5 |
TE300.56.3A-02 |
Limiting rod adjusting screw rod |
1 |

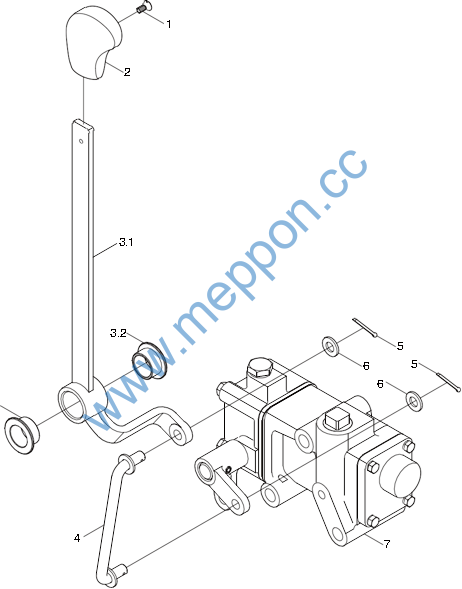

TE250.57 Distributor and control mechanism assembly-1
3.2
TE250.57 Distributor and control mechanism assembly-1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE250.57 |
Distributor and control mechanism assembly |
1 |
||
1 |
GB/T 68-M4×10-A2L |
Slotted counter sunk head screw |
1 |
|
2 |
TB504.552-04 |
Handle cap |
1 |
|
3 |
TE250.57.2a |
Control handle assembly |
1 |
|
3.1 |
TE250.57.2a.1 |
Control handle weld |
1 |
|
3.2 |
TE250.57.2-01 |
Nylon bushing |
2 |
|
4 |
TE250.57.3 |
Tie rod weld |
1 |
|
5 |
GB/T 91-2×18-A0P |
Split pin |
2 |
|
6 |
GB/T 97.1-8-A0P |
Plain washer |
2 |
|
7 |
TE250.57.1 |
Distributor assembly |
1 |
TE250.57 Distributor and control mechanism assembly-2
