LOVOL TL1A254-004C Tractor Parts Catalogue 14
TE250.57 Distributor and control mechanism assembly-2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE250.57.1 |
Distributor assembly |
1 |
||
1 |
FT250.57.010 |
Sliding valve assembly |
1 |
|
1.1 |
GB/T 894.1-15 |
Clip ring |
1 |
|
1.2 |
FT250.57.115 |
Spring retaining piece |
2 |
|
1.3 |
FT250.57.114 |
Sliding valve return spring |
1 |
|
1.4 |
FT250.57.113 |
Sliding valve |
1 |
|
2 |
FT250.57.128 |
Compression plug |
1 |
|
3 |
FT250.57.110 |
Adjusting shim |
1 |
|
4 |
FT250.57.111 |
Adjusting shim |
1 |
|
5 |
FT250.57.112 |
Adjusting shim |
1 |
|
6 |
FT250.57.129 |
Spring of safety valve |
1 |
|
7 |
FT250.57.131 |
Safety valve core |
1 |
|
8 |
FT250.57.101 |
Safety valve seat |
1 |
|
9 |
GB/T 3452.1-15.0×2.65G |
Hydropneumatic O-ring |
1 |
|
10 |
GB/T 3452.1-13.2×2.65G |
Hydropneumatic O-ring |
1 |
|
11 |
GB/T 3452.1-19.0×2.65G |
Hydropneumatic O-ring |
1 |
|
12 |
FT250.57.104 |
Distributor housing |
1 |
|
13 |
FT250.57.103 |
Paper washer for front cover |
1 |
|
14 |
FT250.57.102 |
Front cover |
1 |
|
15 |
GB/T 93-5-A0P |
Standard spring washer |
4 |
|
16 |
GB/T 5781-M5×16-A2L |
Hexagonal head bolt |
4 |
|
17 |
FT250.57.123 |
Screw plug |
1 |
|
18 |
FT250.57.124 |
Washer |
1 |
|
19 |
FT250.57.122 |
Locating spring |
1 |
|
20 |
FT250.57.121 |
Locating spring pedestal |
1 |
|
21 |
GB/T 308-5-G100-B |
Steel ball |
1 |
|
22 |
GB/T 5780-M6×55-A1L |
Hexagonal head bolt |
4 |
|
23 |
GB/T 93-6-A0P |
Standard spring washer |
4 |
|
24 |
FT250.57.108 |
Rear cover |
1 |
|
25 |
FT250.57.107 |
Paper washer for rear cover |
1 |
|
26 |
FT250.57.106 |
Baffle |
1 |
TE250.57 Distributor and control mechanism assembly-2(continued)
TE250.57 Distributor and control mechanism assembly-2(continued)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE250.57.1 |
Distributor assembly |
1 |
||
27 |
FT250.57.105 |
Baffle paper pad |
1 |
|
28 |
FT250.57.119 |
Locating block |
1 |
|
29 |
GB/T 896-4 |
Opening snap ring |
1 |
|
30 |
FT250.57.120 |
Shift pin |
1 |
|
31 |
TE250.57.1-01 |
Handle shaft |
1 |
|
32 |
GB/T 3452.1-9.50×2.65A |
Hydropneumatic O-ring |
1 |
|
33 |
TE250.57.1-02 |
Control rocker arm 1 |
1 |
|
34 |
GB/T 879.1-6×22 |
Elastic column pin |
1 |
|
35 |
GB/T 879.1-4×22 |
Elastic column pin |
1 |

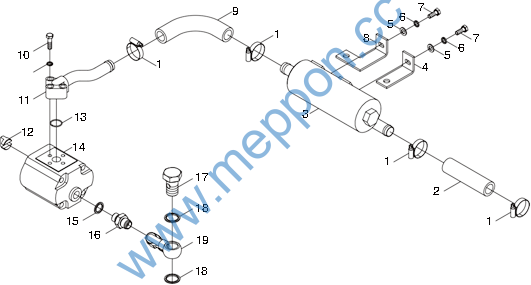

TE254.581H Oil pump and pipe assembly
TE254.581H Oil pump and pipe assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE254.581H |
Fuel pump oil pipe assembly |
1 |
||
1 |
Q67638 |
Type B worm drive hose clamp |
4 |
|
2 |
FT254.58.135 |
Rubber pipe |
1 |
|
3 |
TE254.581H.3 |
Oil suction filter assembly |
1 |
|
4 |
TE254.581H-03 |
Oil filter rear trestle |
1 |
|
5 |
GB/T 97.1-8-A0P |
Flat washer |
2 |
|
6 |
GB/T 93-8-A0P |
Standard spring washer |
5 |
|
7 |
GB/T 5783-M8×20-A2L |
Hex bolt |
2 |
|
8 |
TE254.581H-02 |
Filter front trestle |
1 |
|
9 |
TE254.581H-01 |
Oil suction hose |
1 |
|
10 |
GB/T 5783-M8×40-A2L |
Hex bolt |
3 |
|
11 |
TE254.581H.1 |
Oil pump oil suction pipe weldment |
1 |
|
12 |
FT254.58.127 |
Frontoil pump cross slide |
1 |
|
13 |
GB/T 3452.1-21.2×1.80G |
Hydraulic pneumatic O-ring |
1 |
|
14 |
FT254.58.010 |
CBJ30-E14L gear pump |
1 |
|
15 |
JB/T 982-18 |
Compound seal washer |
1 |
|
16 |
FT804.58.112 |
Joint body |
1 |
|
17 |
FT254.58.132 |
Hollow bolt M24×1.5 |
1 |
|
18 |
JB/T 982-24 |
Compound seal washer |
2 |
|
19 |
TE254.581H.2 |
Gear pump oil outlet pipe assembly |
1 |
TE254.582H Oil tube assembly of multi-way valve-1
.2
TE254.582H Oil tube assembly of multi-way valve-1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE254.582H |
Oil tube assembly of multi-way valve |
1 |
||
1 |
GB/T 819.1-M5×10-A2L |
Cross recessed countersunk head screw |
4 |
|
2 |
GB/T 5781-M6×25-4.8-A2L |
Hexagonal head bolt |
2 |
|
3 |
GB/T 93-6-A0P |
Standard spring washer |
2 |
|
4 |
TE254.582H-10 |
Steel plate mats |
1 |
|
5 |
TE254.582H-09A |
Seal sleeve |
1 |
|
6 |
GB/T 894.1-18 |
Elastic clip ring for shaft |
2 |
|
7 |
TE254.582H-07 |
Spindle |
1 |
|
8 |
GB/T 68-M4×10-A2L |
Slotted countersunk head screw |
2 |
|
9 |
TB504.552-04 |
Handle cap |
2 |
|
10 |
TE254.582H.12a |
Multi-way valve control left handle press fitting |
1 |
|
10.1 |
TE254.582H.12.1 |
Multi-way valve left control pole weld |
1 |
|
10.2 |
TE254.582H.11-01 |
Nylon sleeve |
1 |
|
11 |
TE254.582H.11a |
Multi-way valve control right handle press fitting |
1 |
|
11.1 |
TE254.582H.11.1 |
Right control handle weld |
1 |
|
11.2 |
TE254.582H.11-01 |
Nylon sleeve |
1 |
|
12 |
TE254.582H-08 |
Step bolt |
2 |
|
13 |
GB/T 97.1-8-A0P |
Plain washer |
2 |
|
14 |
GB/T 6174-M6-A2L |
Hexagonal thin nut |
2 |
|
15 |
TE254.582H-05 |
Control right connecting rod of multi-way valve |
1 |
|
16 |
TE254.582H-06 |
Control left connecting rod of multi-way valve |
1 |
|
17 |
GB/T 882-B5×18 |
Pin shaft |
4 |
|
18 |
GB/T 97.1-5-A0P |
Plain washer |
4 |
|
19 |
GB/T 91-2×14-A0P |
Split pin |
4 |
|
20 |
TE254.582H.2 |
Multi-way valve assembly |
1 |
TE254.582H Oil tube assembly of multi-way valve-2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE254.582H |
Oil tube assembly of multi-way valve |
1 |
||
1 |
FT650.40.102 |
Hollow bolt M20×1.5 |
1 |
|
2 |
JB/T 982-20 |
Combination seal washer |
2 |
|
3 |
TE254.582H.10 |
Stationary stream valve oil outlet pipe weld |
1 |
|
4 |
FT354.58A.030 |
Quick joint |
5 |
|
5 |
TE254.582H-01 |
Oil suction steel tube |
1 |
|
6 |
GB/T 6170-M6-A2L |
Hexagonal nut style Ⅰ |
2 |
|
7 |
GB/T 93-6-A0P |
Standard spring washer |
2 |
|
8 |
FT254.58.033 |
Oil pipe clamp and rubber cushion gluing |
4 |
|
9 |
GB/T 5781-M6×30-4.8-A2L |
Hexagonal head bolt |
2 |
|
10 |
TE254.582H.8 |
Oil inlet tube weldment of multi-way valve |
1 |
|
11 |
JB/T 982-22 |
Combination seal washer |
6 |
|
12 |
TE254.582H.7 |
Through joint weld |
1 |
|
13 |
Q67638 |
Type B worm drive-type hose hoop |
2 |
|
14 |
TE254.582H-02 |
Oil suction rubber hose |
1 |
|
15 |
JB/T 982-18 |
Combination seal washer |
12 |
|
16 |
FT654.58.112 |
Hollow bolt-3 |
3 |
|
17 |
TE254.582H.9 |
Distributor oil inlet pipe weld |
1 |
|
18 |
TE254.582H-04 |
Hollow bolt |
1 |
|
19 |
TE254.582H-03 |
Long sleeve |
1 |
|
20 |
FT654.58.107 |
Hollow bolt-1 |
1 |
|
21 |
GB/T 5783-M10×30-A3L |
Hexagonal head bolt |
3 |
|
22 |
GB/T 93-10-A0P |
Standard spring washer |
3 |
|
23 |
GB/T 5783-M12×30-A3L |
Hexagonal head bolt |
3 |
|
24 |
GB/T 93-12-A0P |
Standard spring washer |
3 |
|
25 |
TE254.582H.1A |
Multi-way valve bracket weldment |
1 |

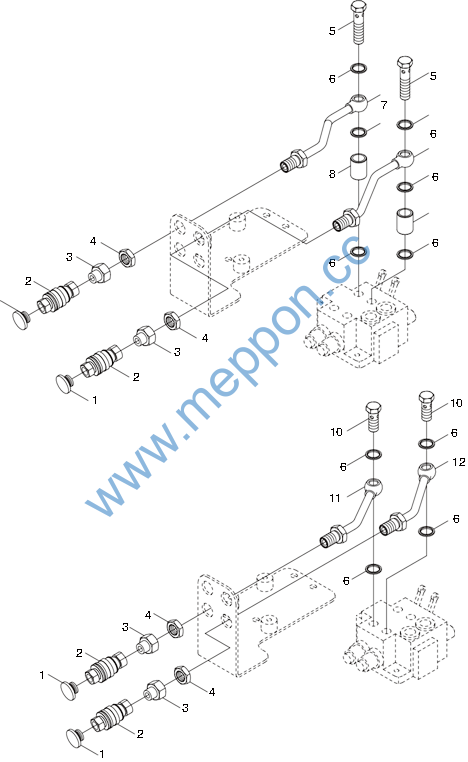

TE254.582H Oil tube assembly of multi-way valve-3
1
