LOVOL TL1A254-004C Tractor Parts Catalogue 12
TE254.403B Steering column assembly-2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE254.403B |
Steering column assembly |
1 |
||
1 |
TE254.403B.1.1 |
Revolving shaft and sleeve assembly |
1 |
|
1.1 |
FT650.40.172 |
Bearing circlip |
1 |
|
1.2 |
GB/T 276-61804-2LS |
Deep-grooved ball bearing |
2 |
|
1.3 |
FT650.40.173 |
Bearing circlip 2 |
1 |
|
1.4 |
GB/T 893.1-32 |
Circlip for hole |
1 |
|
1.5 |
TE254.403B.1.1.2 |
Sleeve weldment 1 |
1 |
|
1.6 |
TE254.403B.1.1.1 |
Steering shaft assembly |
1 |
|
1.6.1 |
TE254.403B.1.1.1-01 |
Steering wheel installation shaft |
1 |
|
1.6.2 |
GB/T 879.1-8×32 |
Elastic column pin |
2 |
|
1.6.3 |
GB/T 879.1-5×32 |
Elastic column pin |
2 |
|
1.6.4 |
TE254.403B.1.1.1.1 |
Universal joint assembly |
1 |
|
1.6.5 |
TE254.403B.1.1.1-02 |
Steering gear connecting shaft |
1 |
|
1.7 |
GB/T 894.1-20 |
Circlip for shaft |
1 |
|
2 |
TE254.403B.1.3 |
Lock mechanism assembly |
1 |
|
2.1 |
TE254.403B.1.3-01 |
Fixing wheel |
1 |
|
2.2 |
TE254.403B.1.3.2 |
Revolving shaft weldment |
1 |
|
2.3 |
TE254.403B.1.3.1 |
Handle weldment |
1 |
|
2.4 |
SPL6177.1-M10-F3 |
Hex flange nut |
1 |
|
2.5 |
TE254.403B.1.3-02 |
Handle head |
1 |
|
2.6 |
GB/T 68-M4×10-A2L |
Slotted countersunk screw |
1 |
TE250.431 Brake Assembly
6.1

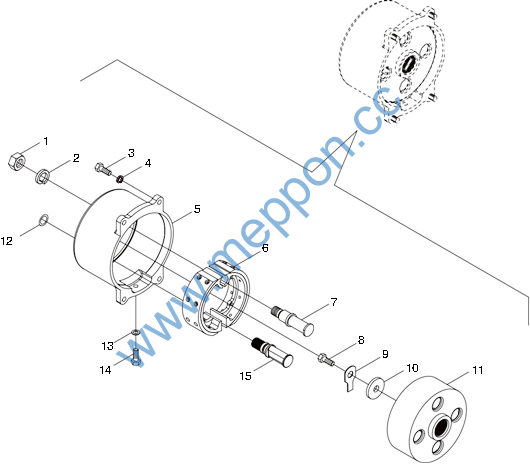

TE250.431 Brake Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE250.431 |
Brake assembly |
1 |
||
1 |
GB/T 6170-M16-A3L |
Type 1 hex nut |
1 |
|
2 |
GB/T 93-16-A0P |
Standard spring washer |
1 |
|
3 |
GB/T 5783-M8×25-A2L |
Hex bolt |
4 |
|
4 |
GB/T 93-8-A0P |
Standard spring washer |
4 |
|
5 |
FT250.43.121 |
Brake housing |
1 |
|
6 |
FT250.43.012 |
Brake shoe assembly |
1 |
|
6.1 |
GB/T 109-4×13 |
Rivet |
16 |
|
6.2 |
FT250.43.129 |
Brake friction disc |
2 |
|
6.3 |
FT250.43.128 |
Brake shoe |
1 |
|
7 |
FT250.43.122 |
Brake shoe pin shaft |
1 |
|
8 |
GB/T 5783-M12×30-A3L |
Hex bolt |
1 |
|
9 |
FT250.43.104a |
Single-ear thrust washer |
1 |
|
10 |
FT250.43.101 |
Washer |
1 |
|
11 |
FT250.43.105 |
Brake drum |
1 |
|
12 |
GB/T 3452.1-15×2.65G |
O-ring |
1 |
|
13 |
JB/T 982-8 |
Compound seal washer |
1 |
|
14 |
GB/T 5783-M8×16-A2L |
Hex bolt |
1 |
|
15 |
FT250.43.124 |
Brake cam |
1 |
|
16 |
FT250.43.123 |
Retraction spring |
2 |
TE250.433C Brake Control assembly-1
9
TE250.433C Brake Control assembly-1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE250.433C |
Brake Control assembly |
1 |
||
1 |
GB/T 5783-M10×35-A3L |
Hex bolt |
2 |
|
2 |
GB/T 6172.1-M10-A3L |
Hex thin nut |
2 |
|
3 |
GB/T 6170-M10-A3L |
Type 1 hex nut |
6 |
|
4 |
TE250.212D-05 |
Clutch pedal retraction spring |
2 |
|
5 |
GB/T 894.1-25 |
Circlip for shaft |
1 |
|
6 |
GB/T 97.1-24-A0P |
Flat washer |
1 |
|
7 |
TE250.433C.2 |
Right brake pedal assembly |
1 |
|
7.1 |
TE250.433C.2.1 |
Right brake pedal weldment |
1 |
|
7.2 |
TE250.433C.2-01 |
Bush |
1 |
|
7.3 |
TE250.433C.2.2 |
Brake interlock lever weldment |
1 |
|
7.4 |
GB/T 879.1-5×16 |
Elastic column pin |
1 |
|
8 |
TE250.433C.1a |
Left brake pedal weldment |
1 |
|
9 |
TE250.433C-02 |
Gasket |
3 |
|
10 |
GB/T 879.1-10×40 |
Elastic column pin |
2 |
|
11 |
GB/T 879.1-6×40 |
Elastic column pin |
2 |
|
12 |
TE250.433C-01 |
Brake rotary shaft |
1 |
|
13 |
TE250.433C.3 |
Left rocker arm weldment |
1 |
|
14 |
FT800A.43.401 |
Lock pin |
1 |
TE250.433C Brake Control Assembly-2

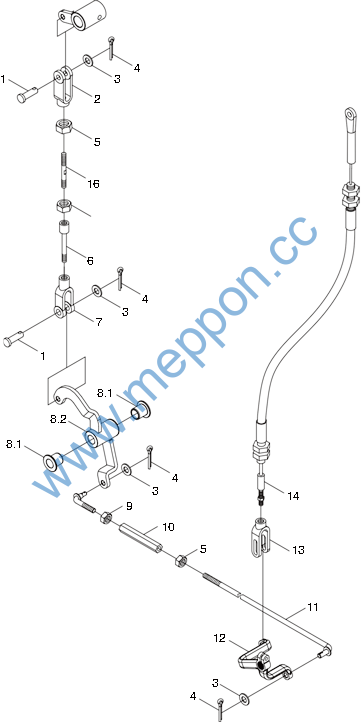

TE250.433C Brake Control Assembly-2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE250.433C |
Brake control assembly |
1 |
||
1 |
GB/T 882-B10×30-A0P |
Pin shaft |
5 |
|
2 |
FT300.43.110 |
Pull rod rear fork |
1 |
|
3 |
GB/T 97.1-10-A0P |
Flat washer |
6 |
|
4 |
GB/T 91-3.2×22-A0P |
Cotter pin |
6 |
|
5 |
GB/T 6170-M10-A3L |
Type 1 hex nut |
2 |
|
6 |
TE250.433C.17 |
Brake short pull rod weldment |
1 |
|
7 |
TE250.433C-08 |
Rubber seal plate |
1 |
|
8 |
FT300.43.108 |
Pull rod front fork |
1 |
|
9 |
GB/T 894.1-20 |
Circlip for shaft |
1 |
|
10 |
TE250.433C.5 |
Right lower rocker arm assembly |
1 |
|
10.1 |
TE250.433C.4-01 |
Bush |
2 |
|
10.2 |
TE250.433C.5.1 |
Right lower rocker arm weldment |
1 |
|
11 |
TE250.433C.11 |
Right brake long lever weldment |
1 |
|
12 |
GB/T 5783-M8×25-A2L |
Hex bolt |
2 |
|
13 |
GB/T 93-8-A0P |
Standard spring washer |
3 |
|
14 |
TE250.433C-03 |
Right brake rocker arm |
1 |
|
15 |
TE250.433C-11 |
Connecting fork |
1 |
|
16 |
TE250.433C.10 |
Right fixing plate weldment |
1 |
|
17 |
GB/T 5783-M12×25-A3L |
Hex bolt |
1 |
|
18 |
GB/T 93-10-A0P |
Standard spring washer |
3 |
|
19 |
GB/T 5783-M10×25-A3L |
Hex bolt |
3 |
|
20 |
TE250.433C.8 |
Right brake pull wire assembly |
1 |
|
21 |
GB/T 882-B10×35-A0P |
Pin shaft |
1 |
|
22 |
GB/T 6170-M8-A2L |
Type 1 hex nut |
1 |
|
23 |
TE250.433C.13 |
Ratchet bracket weldment |
1 |
|
24 |
TA820.213D.3 |
Hand brake handle assembly |
1 |
|
24.1 |
GB/T 5781-M8×30-A2L |
Hex bolt |
2 |
|
24.2 |
TE250.433C.7.1 |
Hand brake handle |
1 |
|
24.3 |
GB/T 93-8-A0P |
Standard spring washer |
2 |
|
24.4 |
GB/T 6170-M8-A2L |
Type 1 hex nut |
2 |
|
25 |
GB/T 5783-M8×35-A2L |
Hex bolt |
1 |
TE250.433C Brake Control Assembly-2(continued)
TE250.433C Brake Control Assembly-2(continued)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE250.433C |
Brake control assembly |
1 |
||
26 |
TE250.433C-12 |
Upper fixing plate of brake pull wire |
1 |
|
27 |
TE250.433C.14 |
Brake short pull rod weldment(Ⅱ) |
1 |
|
28 |
GB/T 6170-M10-LH-A3L |
Type 1 hex nut |
1 |
|
29 |
TE250.433C-09 |
Connecting lever |
1 |
|
30 |
GB/T 93-12-A0P |
Standard spring washer |
1 |
|
31 |
GB/T 6171-M10×1-A2L |
Type 1 hex nut |
1 |
|
32 |
TE250.433C-14 |
Brake upper connecting rod |
1 |
TE250.433C Brake Control Assembly-3
