LOVOL TL1A254-004C Tractor Parts Catalogue 11
FT250.34F.001 Rear driving wheel assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT250.34F.001 |
Rear driving wheel assembly |
2 |
||
1 |
GB/T 2979-9.5-24-6PR |
Cover tire |
1 |
|
2 |
GB/T 2979-9.5-24 |
Inner tube |
1 |
|
3 |
TE254.34B.2-01 |
Wheel hub bolt |
4 |
|
4 |
FT250.34.102 |
Drive wheel hub |
1 |
|
5 |
FT250.34.103 |
Drive wheel hub cover |
1 |
|
6 |
FT250.34.108 |
Wheel hub washer |
10 |
|
7 |
GB/T 6171-M14×1.5-10-A3L |
Nut |
4 |
|
8 |
FT250.34F.010 |
Wheel rim radial plate assembly |
1 |
|
8.1 |
GB/T 6171-M16×1.5-10-A3L |
Nut |
6 |
|
8.2 |
FT300.34.106(J) |
Washer |
6 |
|
8.3 |
FT250.34F.011 |
Rim weld |
1 |
|
8.4 |
TE324.34.1.1-01 |
Radial plate |
1 |
|
8.5 |
FT300.34.102(J) |
Wheel hub bolt |
6 |
|
9 |
GB/T 5786-M14×1.5×35 |
Bolt |
6 |
|
-10.9-A3L |
TE250.401A Steering wheel assembly
1
TE250.401A Steering wheel assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 |
TE250.401A |
Steering wheel assembly |
1 |

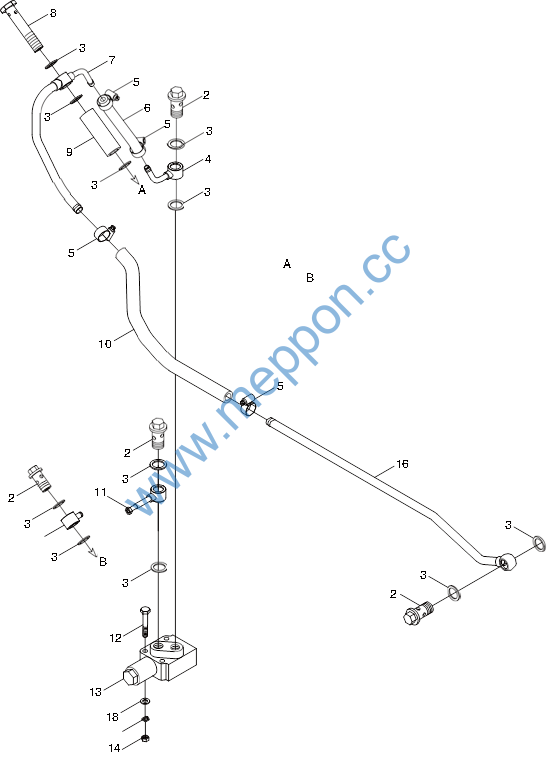

TE254.402F Steering pipe assembly-1
TE254.402F Steering pipe assembly-1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE254.402F |
Steering pipe assembly |
1 |
||
1 |
FT254.40.028 |
Hydraulic steering gear assembly |
1 |
|
2 |
FT254.40.102 |
Hollow bolt |
4 |
|
3 |
JB/T 982-20 |
Assembled seal gasket |
11 |
|
4 |
TE254.402F.2 |
Oil return short pipe weldment |
1 |
|
5 |
Q67627 |
B-type worm drive type hose clamp |
4 |
|
6 |
TE254.402C-01 |
Oil return hose |
1 |
|
7 |
TE254.402F.3 |
Steering gear oil return steel pipe weldment |
1 |
|
8 |
FT250.40A.106 |
Hollow bolt |
1 |
|
9 |
FT250.40A.105 |
Connecting pipe |
1 |
|
10 |
TE254.402F-03 |
Oil return hose |
1 |
|
11 |
TE254.402F.1 |
Steering gear oil inlet pipe weldment |
1 |
|
12 |
GB/T 5782-M8×60-A2L |
Hex bolt |
3 |
|
13 |
FT254.40.030 |
Single-way stabilizer diverter valve |
1 |
|
14 |
GB/T 93-8-A0P |
Standard spring washer |
3 |
|
15 |
GB/T 6170-M8-A2L |
Type 1 hex nut |
3 |
|
16 |
TE254.402F.4 |
Oil return long pipe weldmnet |
1 |
|
17 |
TE254.402F-04 |
Joint |
1 |
|
18 |
GB/T 96.1-8-A0P |
Big washer |
3 |

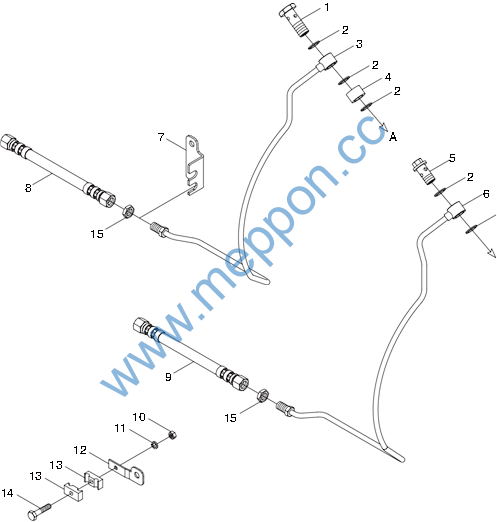

TE254.402F Steering pipe assembly-2
2
B
TE254.402F Steering pipe assembly-2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE254.402F |
Steering pipe assembly |
1 |
||
1 |
TH354.402-02 |
Hollow bolt M20×1.5 |
1 |
|
2 |
JB/T 982-20 |
Assembled seal gasket |
5 |
|
3 |
TE254.402F.5 |
Left oil outlet pipe weldment of steering gear |
1 |
|
4 |
TH354.402-03 |
Spacing sleeve |
1 |
|
5 |
FT254.40.102 |
Hollow bolt |
1 |
|
6 |
TE254.402F.6 |
Right oil outlet pipe weldment of steering gear |
1 |
|
7 |
TE254.402F-01 |
Oil pipe trestle 1 |
1 |
|
8 |
TE254.402F.8 |
High pressure oil transfer hose assembly 2 |
1 |
|
9 |
TE254.402F.7 |
High pressure oil transfer hose assembly 1 |
1 |
|
10 |
GB/T 6170-M8-A2L |
Type 1 hex nut |
1 |
|
11 |
GB/T 93-8-A0P |
Standard spring washer |
1 |
|
12 |
TE254.402F-02 |
Oil pipe trestle 2 |
1 |
|
13 |
FT354.40C.121 |
Double pipe clip |
2 |
|
14 |
GB/T 5782-M8×40-A2L |
Hex bolt |
1 |
|
15 |
GB/T 6173-M16×1.5-A3L |
Hex thin nut |
2 |

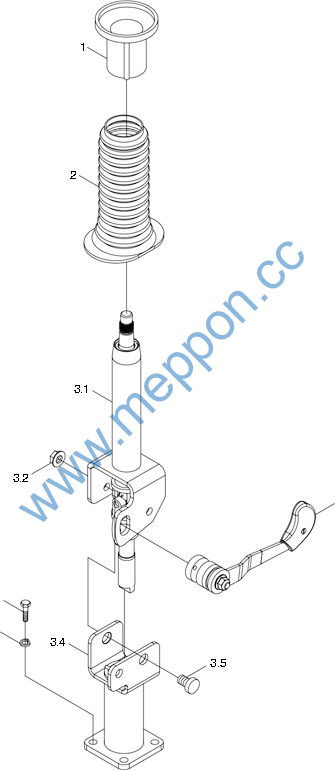

TE254.403B Steering column assembly-1
3.3
4
5
TE254.403B Steering column assembly-1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE254.403B |
Steering column assembly |
1 |
||
1 |
FT650.40.014 |
Horn brush seat assembly |
1 |
|
2 |
TE254.403B-01 |
Steering rod sleeve |
1 |
|
3 |
TE254.403B.1 |
Adjustable steering column assembly |
1 |
|
3.1 |
TE254.403B.1.1 |
Revolving shaft and sleeve assembly |
1 |
|
3.2 |
SPL6177.1-M10-F3 |
Hex flange nut |
2 |
|
3.3 |
TE254.403B.1.3 |
Lock mechanism assembly |
1 |
|
3.4 |
TE254.403B.1.2 |
Column installation sleeve weldment |
1 |
|
3.5 |
TE254.403B.1-01 |
Bracket revolving shaft |
2 |
|
4 |
GB/T 5783-M10×30-A3L |
Hex bolt |
4 |
|
5 |
GB/T 93-10-A0P |
Standard spring washer |
4 |

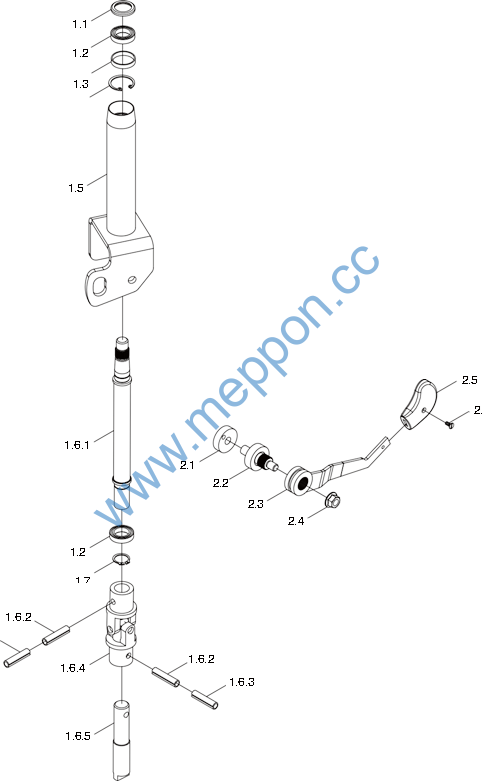

TE254.403B Steering column assembly-2
6
1.6.3
