LOVOL TL1A254-004C Tractor Parts Catalogue 10
TE254.311G Front driving axle assembly-6
|
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
|
TE254.311G.6 |
Right steering horizontal drawbar assembly |
1 |
||
|
1 |
TE254.311G.5.2 |
Oil cylinder joint assembly |
1 |
|
|
1.1 |
TE254.311G.5.2-05 |
Connecting nut |
1 |
|
|
1.2 |
TE254.311G.5.2-06 |
Washer |
1 |
|
|
1.3 |
TE254.311G.5.2-07 |
Oil cylinder ball pin cover Ⅰ |
1 |
|
|
1.4 |
TE254.311G.5.2-03 |
Oil cylinder ball joint pin |
1 |
|
|
1.5 |
TE254.311G.5.2-08 |
Oil cylinder ball pin cover Ⅱ |
1 |
|
|
1.6 |
JB/T 7940.1-M6 |
Oil cup |
1 |
|
|
1.7 |
TE254.311G.5.2-01 |
Oil cylinder ball joint pin seat |
1 |
|
|
1.8 |
Q671B36 |
Steel wire-type elastic hoop |
1 |
|
|
1.9 |
TE254.311G.5.2-04 |
Oil cylinder ball joint seal bushing |
1 |
|
|
1.10 |
Q671B20 |
Steel wire-type elastic hoop |
1 |
|
|
2 |
GB/T 6173-M18×1.5-A3L |
Nut |
1 |
|
|
3 |
TE254.311G.6.1 |
Right rocker arm joint assembly |
1 |
|
|
3.1 |
GB/T 91-3.2×40-A0P |
Split pin |
1 |
|
|
3.2 |
GB/T 6178-M14-A3L |
Hexagonal slotted nut |
1 |
|
|
3.3 |
GB/T 97.1-14-A0P |
Washer |
1 |
|
|
3.4 |
TE254.311G.5.1.1 |
Dust-proof sleeve assembly |
1 |
|
|
3.5 |
TE254.311G.6.1-01 |
Right steering rocker arm |
1 |
|
|
3.6 |
TE254.311G.5.1-03 |
Bowl cap |
1 |
|
|
3.7 |
TE254.311G.5.1-04 |
Ball joint pin |
1 |
|
|
3.8 |
TE254.311G.5.1-02 |
Bowl seat |
1 |
|
|
3.9 |
TE254.311G.5.1-01 |
Topcap |
1 |
|
|
3.10 |
TE254.311G.5.1-05 |
Adjusting shim |
On |
|
|
request |
||||
|
3.11 |
GB/T 893.1-30 |
Clip ring |
1 |

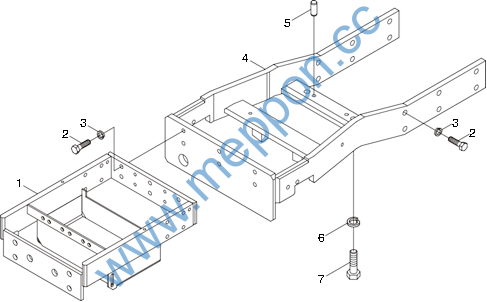

TE254.312K Tray assembly
TE254.312K Tray assembly
|
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
|
TE254.312K |
Tray assembly |
1 |
||
|
1 |
TE254.312K.1 |
Battery mounting frame weld |
1 |
|
|
2 |
GB/T 5783-M12×35-8.8-A3L |
Bolt |
18 |
|
|
3 |
GB/T 93-12-A0P |
Washer |
18 |
|
|
4 |
TE254.312G.1 |
Half frame weld |
1 |
|
|
5 |
GB/T 119.2-8×20-A0P |
Pin |
4 |
|
|
6 |
GB/T 93-16-A0P |
Washer |
4 |
|
|
7 |
GB/T 5783-M16×45-8.8-A3L |
Bolt |
4 |

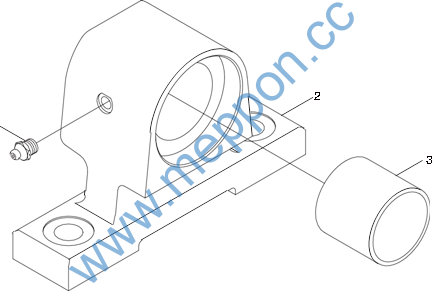

TE254.313G Front support seat assembly
1
TE254.313G Front support seat assembly
|
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
|
1 2 3 |
TE254.313G JB/T 7940.1-M10×1 TE254.313G-01 FT254.31F.136 |
Front support seat assembly Oil cup Front support seat Sliding shaft sleeve 45×50×45 |
1 1 1 1 |

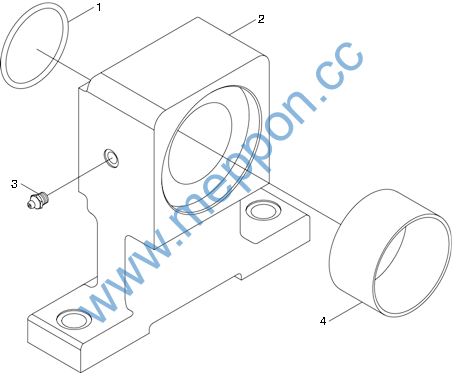

TE254.314G Rear support seat assembly
TE254.314G Rear support seat assembly
|
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
|
1 2 3 4 |
TE254.314G GB/T 3452.1-54.5×3.55G TE254.311B.1-01 JB/T 7940.1-M10×1 FT254.31F.129 |
Rear support seat assembly O-ring Rear support seat Oil cup Sliding shaft sleeve 70×75×40 |
1 1 1 1 1 |

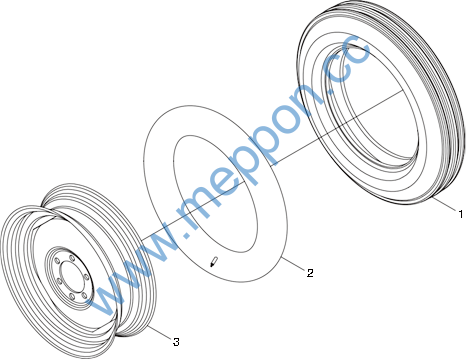

TE284.32F Front drive wheel assembly
TE284.32F Front drive wheel assembly
|
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
|
1 2 3 |
TE284.32F GB/T 1192-6.00-16-6PR GB/T 1192-6.00-16 TE284.32F.1 |
Front drive wheel assembly Driving wheel outer tyre Driving wheel inner tube Rim weld |
2 1 1 1 |

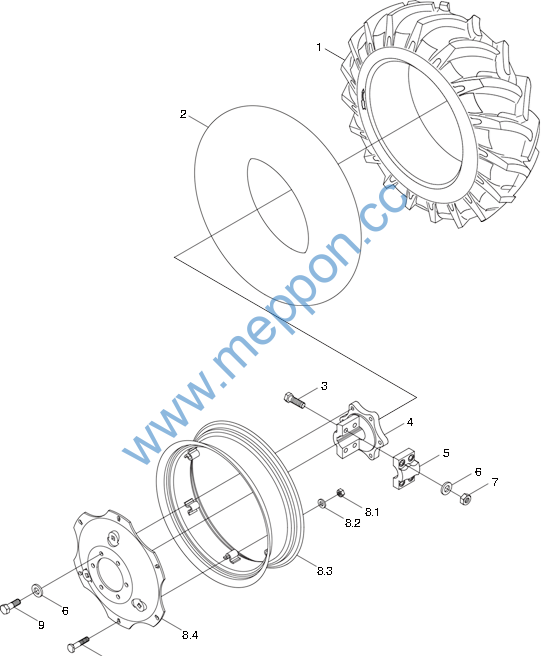

FT250.34F.001 Rear driving wheel assembly
8.5
