LOVOL TL1A254-004C Tractor Parts Catalogue 09
TE254.311G Front driving axle assembly-3.1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE254.311G.3 |
Main reducer box assembly |
1 |
||
1 |
TE254.311G.3-04 |
Main reducer box housing |
1 |
|
2 |
GB/T 93-12-A0P |
Washer |
4 |
|
3 |
GB/T 5783-M12×30-A3L |
Bolt |
4 |
|
4 |
GB/T 3452.1-63.0×3.55G |
O-ring |
2 |
|
5 |
TE254.311G.3-02 |
Front support shaft |
1 |
|
6 |
FT254.31F.132 |
Adjusting gasket |
On request |
|
7 |
TE254.311G.3-01 |
Differential support |
1 |
|
8 |
GB/T 93-10-A0P |
Washer |
18 |
|
9 |
GB/T 5783-M10×30-A3L |
Bolt |
16 |
|
10 |
FT254.31F.127 |
Input bevel gear shaft |
1 |
|
11 |
GB/T 297-31306 |
Bearing |
1 |
|
12 |
GB/T 3452.1-73.0×3.55G |
O-ring |
2 |
|
13 |
FT254.31F.131 |
Adjusting gasket |
On request |
|
14 |
FT254.31F.130 |
Rear supporting shaft |
1 |
|
15 |
GB/T 297-32006 |
Bearing |
1 |
|
16 |
GB/T 3452.1-23.6×2.65G |
O-ring |
1 |
|
17 |
GB/T 9877.1-FB35×55×8B |
Oil seal |
1 |
|
18 |
FT254.31F.128 |
Oil seal bush |
1 |
|
19 |
GB/T 810-M27×1.5 |
Small circular nut |
2 |
|
20 |
GB/T 858-27 |
Washer |
1 |
|
21 |
GB/T 70.1-M10×40 |
Screw |
2 |
|
22 |
FT254.31F.152 |
Locating sleeve |
2 |
|
23 |
FT254.31F.139 |
Bearing fixing bush |
1 |
|
24 |
FT254.31F.141 |
Lock washer |
1 |
|
25 |
GB/T 5783-M8×16-A2L |
Bolt |
1 |

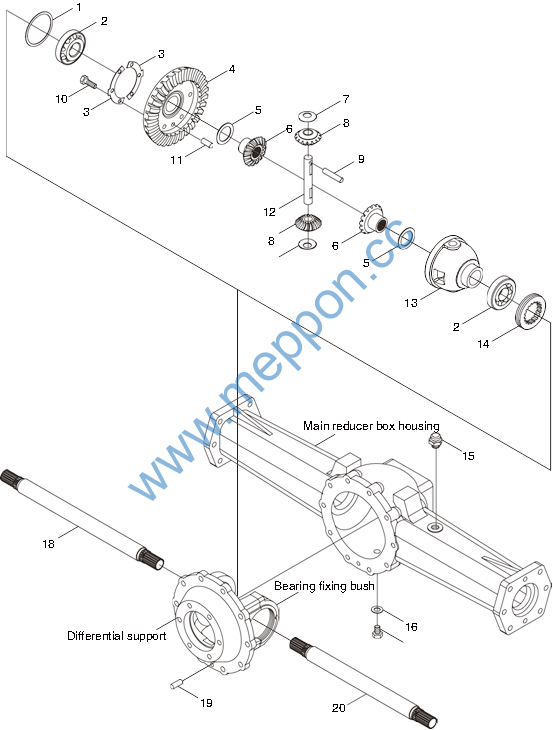

TE254.311G Front driving axle assembly-3.2
TE254.311G Front driving axle assembly-3.2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE254.311G.3 |
Main reducer box assembly |
1 |
||
1 |
FT254.31F.134 |
Adjusting gasket |
1 |
|
2 |
GB/T 297-32009 |
Bearing |
2 |
|
3 |
FT254.31F.135 |
Lock washer |
2 |
|
4 |
FT254.31F.144 |
Large bevel gear |
1 |
|
5 |
FT254.31F.148 |
Plain washer |
2 |
|
6 |
FT254.31F.143 |
Bull gear of differential |
2 |
|
7 |
FT254.31F.146 |
Spherical washer |
2 |
|
8 |
FT254.31F.147 |
Planetary gear |
2 |
|
9 |
GB/T 119.1-8m6×40-A0P |
Pin |
1 |
|
10 |
GB/T 5783-M8×25-A2L |
Bolt |
6 |
|
11 |
GB/T 119.2-8×20-A0P |
Pin |
1 |
|
12 |
FT254.31F.145 |
Differential pin shaft |
1 |
|
13 |
FT254.31F.149 |
Differential casing |
1 |
|
14 |
FT254.31F.140 |
Adjusting nut |
1 |
|
15 |
TE254.311A.1.1 |
Steel ball ventilation plug |
1 |
|
16 |
FT304.42.118 |
Washer |
1 |
|
17 |
Q617B12 |
Hexagonal head plug |
1 |
|
18 |
FT254.31F.142 |
Left half shaft |
1 |
|
19 |
GB/T 119.2-8×18-A0P |
Pin |
1 |
|
20 |
FT254.31F.151 |
Right half shaft |
1 |

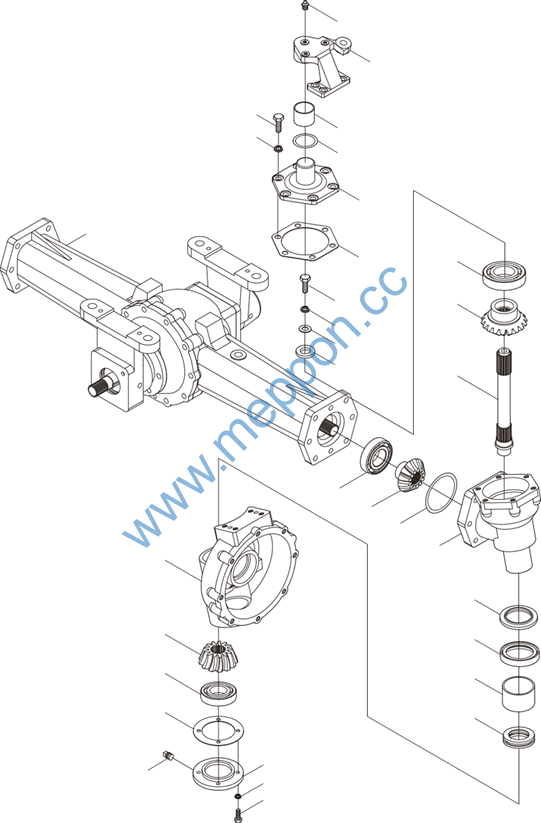

TE254.311G Front driving axle assembly-4.1
1
TE254.311G Front driving axle assembly-4.1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE254.311G.2 |
Right transmission assembly |
1 |
||
1 |
JB/T 7940.1-M10×1 |
Oil cup |
1 |
|
2 |
TE254.311G.2-01 |
Right steering support |
1 |
|
3 |
FT254.31F.104 |
Sliding shaft sleeve 35×39×30 |
1 |
|
4 |
JB/T 3452.1-34.5×3.55G |
O-ring |
1 |
|
5 |
FT254.31F.105 |
Steering shaft seat |
1 |
|
6 |
FT254.31F.102 |
Seal gasket |
On request |
|
7 |
GB/T 5783-M10×25-A3L |
Bolt |
7 |
|
8 |
GB/T 93-10 |
Washer |
7 |
|
9 |
GB/T 96.1-10-A0P |
Washer |
1 |
|
10 |
FT254.31F.106 |
Pad |
1 |
|
11 |
GB/T 276-6210 |
Bearing |
1 |
|
12 |
FT254.31F.108 |
Semi shaft bull gear |
1 |
|
13 |
FT254.31F.119 |
End pin shaft |
1 |
|
14 |
GB/T 276-6207 |
Bearing |
1 |
|
15 |
FT254.31F.101 |
Semi shaft pinion |
1 |
|
16 |
JB/T 3452.1-80×2.65G |
O-ring |
1 |
|
17 |
TE254.311G.1-02 |
Steering knuckle housing |
1 |
|
18 |
FT254.31F.113 |
Dust-proof ring |
1 |
|
19 |
GB/T 9877.1-B507210D |
Oil seal |
1 |
|
20 |
FT254.31F.122 |
Sliding shaft sleeve 50×55×35 |
1 |
|
21 |
GB/T 301-51106 |
Bearing |
1 |
|
22 |
FT254.31F.155 |
Right end housing |
1 |
|
23 |
FT254.31F.118 |
End pinion |
1 |
|
24 |
GB/T 276-6305 |
Bearing |
1 |
|
25 |
FT254.31F.117 |
Adjusting gasket |
On request |
|
26 |
Q614B01 |
Square head tapered screw plug |
1 |
|
27 |
FT254.31F.116 |
Bottom end cover |
1 |
|
28 |
GB/T 93-6 |
Washer |
4 |
|
29 |
GB/T 5783-M6×20-A2L |
Bolt |
4 |

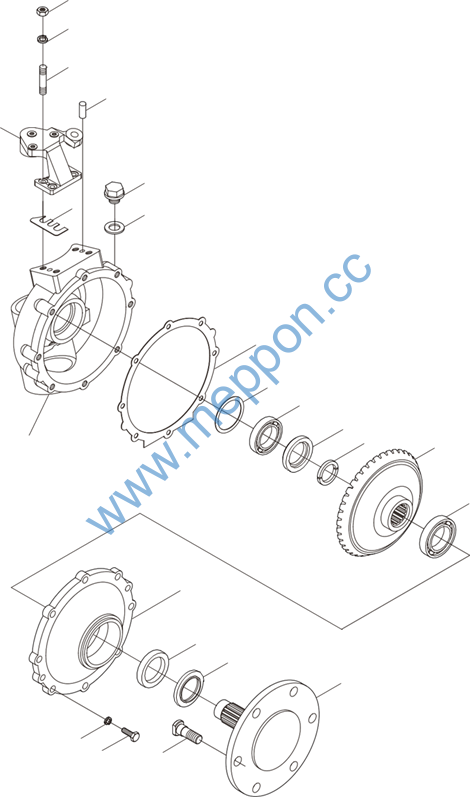

TE254.311G Front driving axle assembly-4.2
1
2
3
2
18 19
TE254.311G Front driving axle assembly-4.2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE254.311G.2 |
Right transmission assembly |
1 |
||
1 |
GB/T 6171-M10×1.25-A2L |
Nut |
4 |
|
2 |
GB/T 93-10 |
Washer |
12 |
|
3 |
GB/T 899-AM10-M10×1.25 |
Stud |
4 |
|
×30-8.8-A2L |
||||
4 |
FT254.31F.107 |
Adjusting gasket |
On request |
|
5 |
GB/T 119.2-B8×20-A0P |
Pin |
2 |
|
6 |
FT254.31F.175 |
Plug |
1 |
|
7 |
FT254.31F.176 |
Washer |
1 |
|
8 |
FT254.31F.114 |
Adjusting gasket |
On request |
|
9 |
FT254.31F.115 |
Adjusting gasket |
On request |
|
10 |
GB/T 276-6206 |
Bearing |
1 |
|
11 |
FT254.31F.110a |
End bull gear |
1 |
|
12 |
FT254.31F.112a |
Steel wire clip ring |
2 |
|
13 |
GB/T 276-6307 |
Bearing |
1 |
|
14 |
FT254.31F.109 |
End of large cover |
1 |
|
15 |
GB/T 9877.1-B507210D |
Oil seal |
2 |
|
16 |
FT254.31F.113 |
Dust-proof ring |
2 |
|
17 |
FT254.31F.111a |
Front drive shaft |
1 |
|
18 |
GB/T 5783-M10×30-A3L |
Bolt |
8 |
|
19 |
FT254.31F.177 |
Knurled bolt |
6 |
|
20 |
FT254.31F.178 |
Locating ring |
1 |

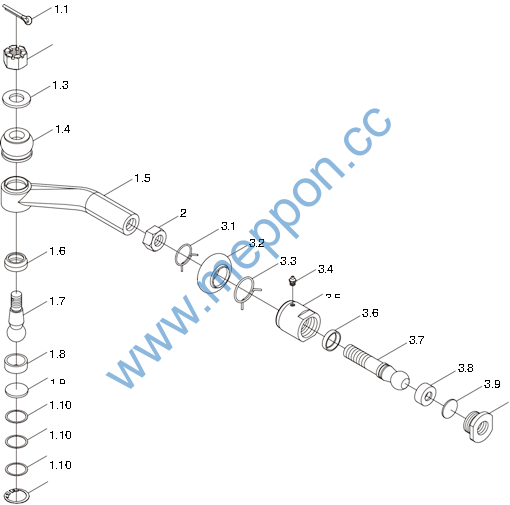

TE254.311G Front driving axle assembly-5
3.10
TE254.311G Front driving axle assembly-5
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE254.311G.5 |
Left steering horizontal drawbar assembly |
1 |
||
1 |
TE254.311G.5.1 |
Left rocker arm joint assembly |
1 |
|
1.1 |
GB/T 91-3.2×40-A0P |
Split pin |
1 |
|
1.2 |
GB/T 6178-M14-A3L |
Hexagonal slotted nut |
1 |
|
1.3 |
GB/T 97.1-14-A0P |
Washer |
1 |
|
1.4 |
TE254.311G.5.1.1 |
Dust-proof sleeve assembly |
1 |
|
1.5 |
TE254.311G.5.1-06 |
Left steering rocker arm |
1 |
|
1.6 |
TE254.311G.5.1-03 |
Bowl cap |
1 |
|
1.7 |
TE254.311G.5.1-04 |
Ball joint pin |
1 |
|
1.8 |
TE254.311G.5.1-02 |
Bowl seat |
1 |
|
1.9 |
TE254.311G.5.1-01 |
Topcap |
1 |
|
1.10 |
TE254.311G.5.1-05 |
Adjusting shim |
On request |
|
TE254.311G.5.1-07 |
Adjusting shim |
On request |
||
TE254.311G.5.1-08 |
Adjusting shim |
On request |
||
1.11 |
GB/T 893.1-30 |
Clip ring |
1 |
|
2 |
GB/T 6173-M18×1.5-A3L |
Nut |
1 |
|
3 |
TE254.311G.5.2 |
Oil cylinder joint assembly |
1 |
|
3.1 |
Q671B20 |
Steel wire-type elastic hoop |
1 |
|
3.2 |
TE254.311G.5.2-04 |
Oil cylinder ball joint seal bushing |
1 |
|
3.3 |
Q671B36 |
Steel wire-type elastic hoop |
1 |
|
3.4 |
JB/T 7940.1-M6 |
Oil cup |
1 |
|
3.5 |
TE254.311G.5.2-01 |
Oil cylinder ball joint pin seat |
1 |
|
3.6 |
TE254.311G.5.2-08 |
Oil cylinder ball pin cover Ⅱ |
1 |
|
3.7 |
TE254.311G.5.2-03 |
Oil cylinder ball joint pin |
1 |
|
3.8 |
TE254.311G.5.2-07 |
Oil cylinder ball pin cover Ⅰ |
1 |
|
3.9 |
TE254.311G.5.2-06 |
Washer |
1 |
|
3.10 |
TE254.311G.5.2-05 |
Connecting nut |
1 |
TE254.311G Front driving axle assembly-6
