LOVOL TL1A254-004C Tractor Parts Catalogue 07

Meppon Parts Posted on by

TE250.411B PTO Shaft Assembly (6 teeth)

Label

Part code and specifications

Part name

Quantity

Remark

TE250.411B

PTO shaft assembly (6 teeth)

1
1

TE250.411B-02

Thrust disc circlip

On demand

TE250.411B-03

Thrust disc circlip

On demand

TE250.411B-04

Thrust disc circlip

On demand
2

FT250.41.131

Thrust disc

1
3

GB/T 276-6207

Deep groove ball bearing

1
4

TE250.411B-01

PTO shaft

1
5

GB/T 9877.1-FB35×55×8D

Framework oil seal

2
6

FT250.41.133

Gasket

1
7

FT250.41.104

PTO output shaft bearing cover

1
8

GB/T 93-10-A0P

Washer

3
9

GB/T 5783-M10×25-A3L

Bolt

3
10

TB550.412-02

PTO shaft head shield

1

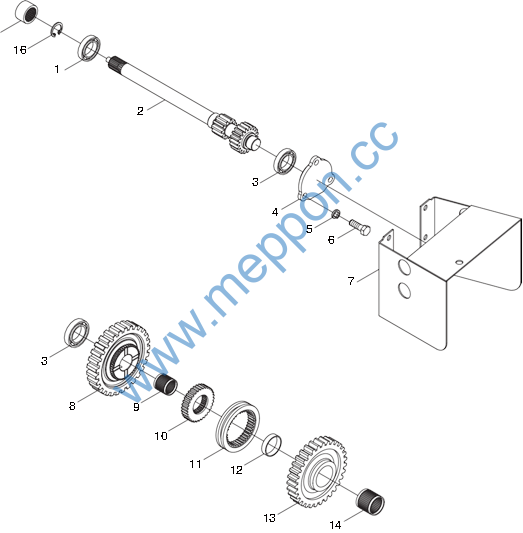

TE250.412E    PTO gear assembly

15

TE250.412E    PTO gear assembly

Label

Part code and specifications

Part name

Quantity

Remark

TE250.412E

PTO gear assembly

1
1

GB/T 276-6206

Deep groove ball bearing

1
2

TE250.412C-01

PTO transmission shaft

1
3

GB/T 276-6305

Deep groove ball bearing

2
4

FT250.41.103

Bearing cover of transmission shaft

1
5

GB/T 93-10-A0P

Washer

3
6

GB/T 5783-M10×25-A3L

Bolt

3
7

TE250.412D.1

PTO protective hood weld

1
8

TE250.412B-02

PTO driven gear

1
9

TE250.412B-07

Needle bearing K26×30×28

1
10

TE250.412B-06

PTO sliding seat

1
11

TE250.412B-03

PTO sliding sleeve

1
12

TE250.412B-04

Spacer sleeve

1
13

TE250.412C-02

PTO driven gear

1
14

GB/T 7918-K35×40×27

Needle bearing

1
15

FT300.37.136（J）

Connecting sleeve

1
16

GB/T 893.1-21

Elastic clip ring for hole

1

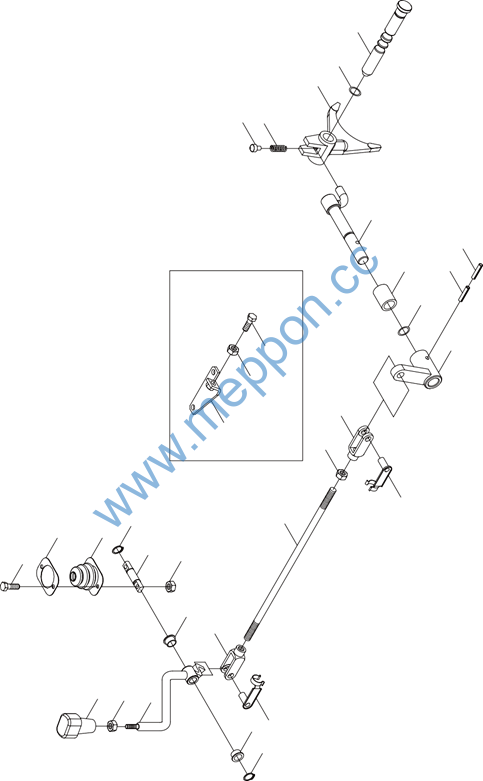

TE250.413D PTO Control Mechanism Assembly

Label

Part code and specifications

Part name

Quantity

Remark

TE250.413D

PTO control mechanism assembly

1
1

GB/T 5783-M8×30-A2L

Bolt

2
2

TE250.413D-07

Press plate

1
3

TE250.413D-03

Dustproof sleeve

1
4

GB/T 894.1-18

Circlip

2
5

TE250.413D-04

Fixing shaft

1
6

GB/T 6170-M8-A3L

Nut

2
7

TE250.413D.2

Nylon lever press

1
7.1

TE250.413D.2-01

Nylon sleeve

2
7.2

TE250.413D.2.1

Control lever weldment

1
8

TE300.413A.1

PTO shift lever

1
9

GB/T 6170-M10-A3L

Nut

1
10

FT800A.43B.119

Left-hand pull rod fork

1
11

FT800A.43B.011

Locating pin riveted unit

2
12

TE250.413D-01

Middle pull rod

1
13

GB/T 6172.1-M10-A3L

Nut

1
14

FT800A.43B.116

Right-hand pull rod fork

1
15

TE250.413D.4

Rocker arm weldment

1
16

GB/T 879.1-6×26

Elastic column pin

1
17

GB/T 879.1-3.5×26

Elastic column pin

1
18

GB/T 3452.1-11.8×1.80G

O-ring

2
19

TE300.413-04

Spacing sleeve

1
20

TE250.413D.3

Shift lever weldment

1
21

TE250.413D-05

Shift shaft lock pin

1
22

FT250.37.148

Shift fork shaft lock spring

1
23

TE250.413D-02

Shift fork

1
24

TE250.413D-06

Shift fork shaft

1
25

GB/T 5783-M8×45-A2L

Bolt

1
26

GB/T 6172.1-M8-A2L

Nut

1
27

TE250.413D.1

Limitation plate

1
Label

Part code and specifications

Part name

Quantity

Remark

TE254.421B

Transfer case assembly

1
1

TE254.421B.1

Transfer case body assembly

1
1.1

GB/T 5783-M10×20-A3L

Bolt

5
1.2

GB/T 93-10-A0P

Spring washer

8
1.3

TE254.421A.1-04

Rear bearing cover

1
1.4

GB/T 276-6305

Bearing

1
1.5

FT254.42.107

Output shaft rear thrust ring

1
1.6

JB/T 7918-K25×31×20

Needle bearing

2
1.7

FT254.42.108

Output shaft needle bearing spacing sleeve

1
1.8

TE254.421B.1-01a

Transfer case driven gear

1
1.9

FT254.42F.103

Joggle sleeve

1
1.10

TE254.421A.1-01

Transfer case housing

1
1.11

TE254.421A.1-02

Transfer case shift fork

1
1.12

GB/T 879.1-6×24

Elastic column pin

1
1.13

GB/T 879.1-3.5×24

Elastic column pin

1
1.14

TE254.421A.1-03

Transfer case shift fork shaft

1
1.15

GB/T 3452.1-12.5×1.80G

O-ring

2
1.16

JB/T 982-12

Washer

1
1.17

Q617B12

Hex screw plug

1
1.18

FT254.42.121

Transfer case shift fork head

2
1.19

FT254.42.102

Output shaft

1
1.20

FT254.42.109

Output shaft front thrust ring

1
1.21

GB/T 276-6206

Bearing

1
1.22

TE254.421.1.1

Oil seal

1
1.23

TE254.421A.1-09

Front bearing cover

1
1.24

GB/T 5783-M10×30-A3L

Bolt

3
1.25

TE254.421A.1-10

Middle shaft small thrust ring

1
1.26

GB/T 276-6204

Bearing

2
1.27

GB/T 893.1-47

Circlip for hole

1
1.28

TE254.421B.1-02

Transfer case middle gear

1
1.29

TE254.421A.1-11

Middle shaft big thrust ring

1

TE254.421B Transfer Case Assembly(continued)

TE254.421B Transfer Case Assembly(continued)

Label

Part code and specifications

Part name

Quantity

Remark

TE254.421B

Transfer case assembly

1
1.30

GB/T 3452.1-15.0×2.65G

O-ring

2
1.31

TE254.421A.1-05

Middle shaft

1
1.32

TE254.421A.1-07

Middle shaft location plate

1
2

GB/T 119.1-10m6×18-A0P

Pin

2
3

GB/T 3452.1-53.0×2.65G

O-ring

1
4

GB/T 93-10-A0P

Spring washer

4
5

GB/T 5783-M10×30-10.9-A3L

Bolt

4

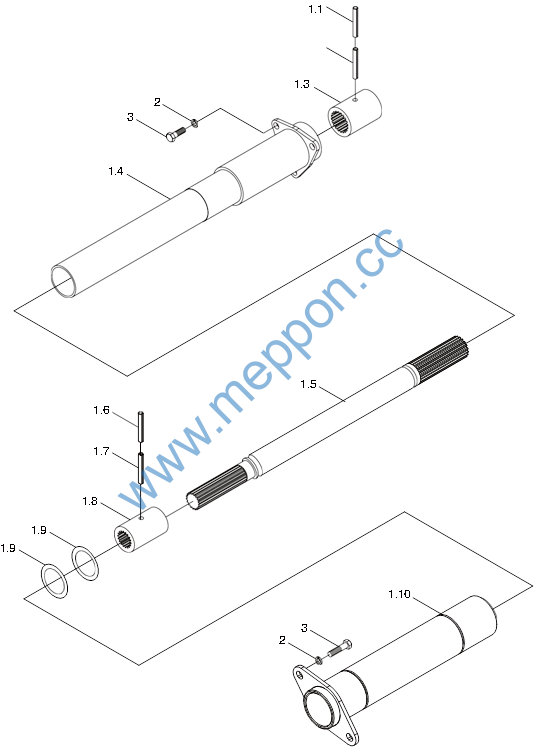

TE254.422A Transfer case transmission shaft assembly
