Label

Part code and specifications

Part name

Quantity

Remark

TE250.373F

Transmission control mechanism assembly

1

1

GB/T 5783-M8×40-A2L

Hex bolt

6

2

GB/T 93-8-A0P

Standard spring washer

6

3

FT250.37.249

Fixing screw

1

4

GB/T 6173-M8×1-A2L

Hex thin nut

1

5

TE250.373F-01

Gearbox lock pressure cover

1

6

FT250.37.250

Fixing pin

3

7

FT250.37.148

Shift fork shaft lock spring

3

8

GB/T 308-8-G100-b

Steel ball

3

9

GB/T 879.1-3×24

Cotter pin

6

10

GB/T 879.1-5×24

Cotter pin

6

11

TE250.373F-11

High-low gear shift block

1

12

TE250.373F-08

High-low gear shift fork shaft

1

13

FT250.37.145

High-low gear shift fork

1

14

TE250.373F-10

Gear Ⅲ-Ⅳ shift block

1

15

TE250.373F-07

Gear Ⅲ-Ⅳ shift fork shaft

1

16

TE250.373B-01

Gear Ⅲ-Ⅳ shift fork

1

17

TE250.373F-09

GearⅠ-Ⅱ shift block

1

18

TE250.373F-06

GearⅠ-Ⅱ shift fork shaft

1

19

FT250.37.131

Gear Ⅰ-Ⅱ shift fork

1

20

Q72114

Plug piece

1

21

FT700.37.178

Interlock pin of shift shaft

1

Label

Part code and specifications

Part name

Quantity

Remark

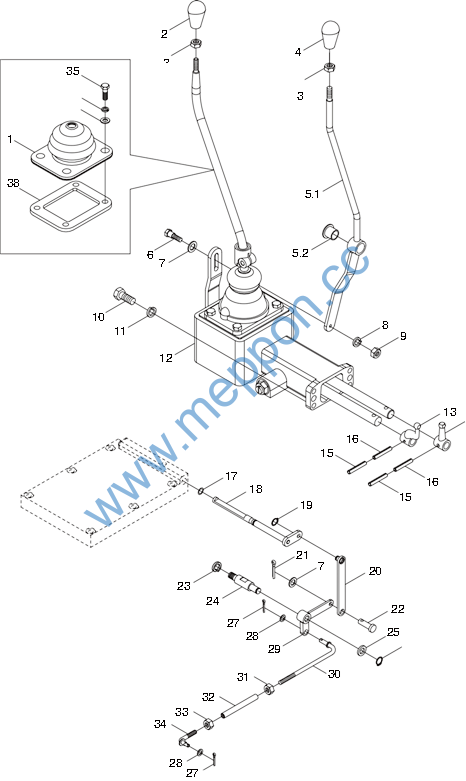

TE250.373F

Transmission control mechanism assembly

1

1

TE250.373F-15

Shield cover

1

2

TE250.371G.2.2

Main shift control lever

1

3

GB/T 6170-M10-A3L

Type 1 hex nut

2

4

FT250.37.037

Auxiliary shift control lever

1

5

TE250.373F.5

Auxiliary shift upper control lever press

1

5.1

TE250.373F.5.1

Auxiliary shift upper control lever weldment

1

5.2

TE254.582H.11-01

Nylon sleeve

1

6

TE250.373F-13

Step bolt

1

7

GB/T 95-8-A0P

Flat washer

2

8

GB/T 93-6-A0P

Standard spring washer

1

9

GB/T 6170-M6-A2L

Hex nut

1

10

GB/T 5783-M8×25-A2L

Hex bolt

4

11

GB/T 93-8-A0P

Standard spring washer

4

12

TE250.373F.1

Side control mechanism assembly

1

13

TE250.373F-02

Main shift control inner shift head

1

14

TE250.373F-03

Auxiliary shift control inner shift head

1

15

GB/T 879.2-3.5×24

Cotter pin

2

16

GB/T 879.1-6×24

Cotter pin

2

17

GB/T 3452.1-8.75×1.80G

O-ring

1

18

TE250.373F.2

Interlock shaft weldment

1

19

GB/T 896-6

Split circlip

1

20

TE250.373F.7

Pull plate weldment

1

21

GB/T 91-3.2×20-A0P

Cotter pin

1

22

GB/T 882-B8×16-A0P

Pin shaft

1

23

GB/T 93-12-A0P

Standard spring washer

1

24

TE250.373F-14

Stud

1

25

GB/T 848-12-A0P

Small washer

1

26

GB/T 894.1-12

Circlip for shaft

1

27

GB/T 91-3.2×25-A0P

Cotter pin

2

28

GB/T 95-10-A0P

Flat washer

2

Label

Part code and specifications

Part name

Quantity

Remark

TE250.373F

Transmission control mechanism assembly

1

29

TE250.373F.4

Interlock sleeve weldment

1

30

TE250.373F.6

Pull rod weldment

1

31

GB/T 6171-M10×1-A2L

Type 1 hex nut

1

32

TE250.433C-09

Connecting lever

1

33

GB/T 6171-M10×1-LH-A2L

Type 1 hex nut

1

34

TE250.433C.14

Brake short pull rod weldment（Ⅱ）

1

35

GB/T 5783-M5×20-8.8-A2L

Hex bolt

4

36

GB/T 93-5-A0P

Standard spring washer

4

37

GB/T 95-5-A0P

Flat washer

4

38

TE250.373F-12

Press plate

1

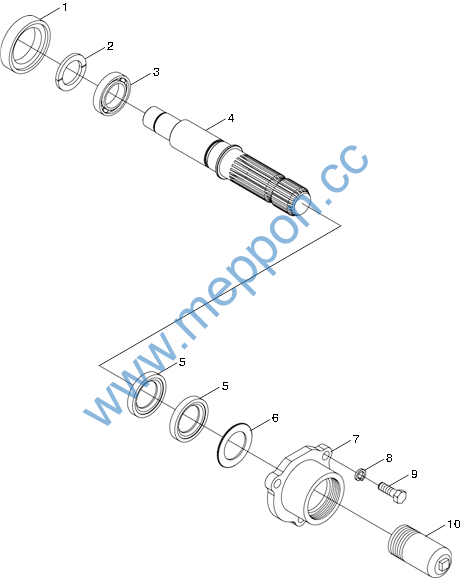

Label

Part code and specifications

Part name

Quantity

Remark

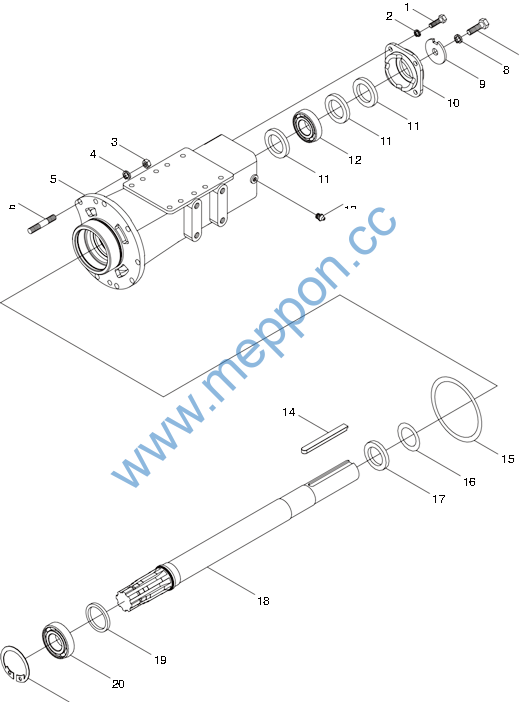

TE250.391C

Final transmission assembly (left)

1

1

GB/T 5783-M16×35-8.8-A3L

Bolt

1

2

GB/T 93-16-A0P

Washer

1

3

FT250.37.216

Snap ring

1

4

FT250.37.214

Drive shaft bearing cap

1

5

GB/T 9877.1-FB50×72×8F

Framework oil seal

3

6

GB/T 276-6210

Deep groove ball bearing

1

7

TE250.391C-01

Left drive shaft sleeve

1

8

GB/T 6171-M12×1.25-10-A2L

Nut

8

9

GB/T 93-12-A0P

Washer

8

10

GB/T 898-AM12-M12×1.25

Stud

8

×35-10.9-A3L

11

GB/T 5783-M10×25-8.8-A3L

Bolt

4

12

GB/T 93-10-A0P

Washer

4

13

JB/T 7940.1-M10×1

Oil cup

1

14

GB/T 3452.1-112×3.55G

O-ring

1

15

FT250.37.242

Oil seal spacer

1

16

GB/T 9877.1-FB55×75×8F

Framework oil seal

1

17

FT250.37.215

Flat keys

1

18

FT250.37B.212

Driving shaft

1

19

FT250.37.218

Bearing ring

1

20

GB/T 276-6211

Deep groove ball bearing

1

21

GB/T 893.1-100

Snap ring

1

Label

Part code and specifications

Part name

Quantity

Remark

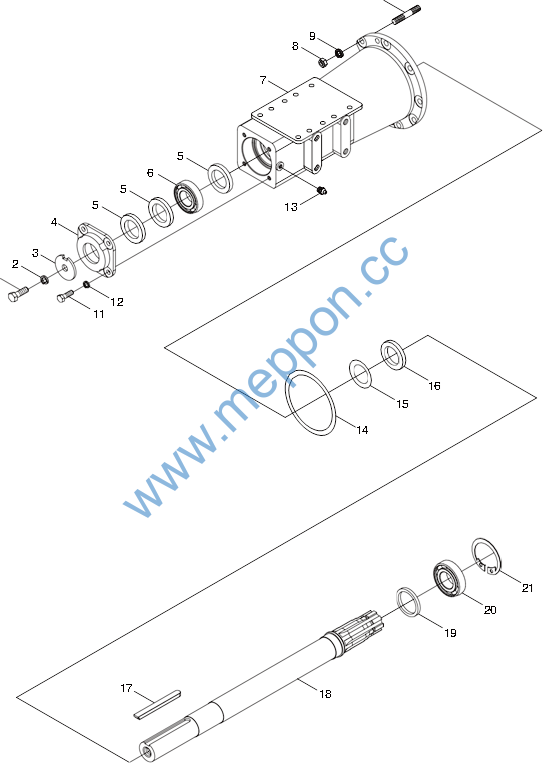

TE250.392C

Final transmission assembly（right）

1

1

GB/T 5783-M10×25-8.8-A3L

Bolt

4

2

GB/T 93-10-A0P

Washer

4

3

GB/T 6171-M12×1.25-10-A2L

Nut

8

4

GB/T 93-12-A0P

Washer

8

5

TE250.392C-01

Right drive shaft sleeve

1

6

GB/T 898-AM12-M12×1.25

Stud

8

×35-10.9-A3L

7

GB/T 5783-M16×35-8.8-A3L

Bolt

1

8

GB/T 93-16-A0P

Washer

1

9

FT250.37.216

Snap ring

1

10

FT250.37.214

Drive shaft bearing cap

1

11

GB/T 9877.1-FB50×72×8F

Framework oil seal

3

12

GB/T 276-6210

Deep groove ball bearing

1

13

JB/T 7940.1-M10×1

Oil cup

1

14

FT250.37.215

Flat keys

1

15

GB/T 3452.1-112×3.55G

O-ring

1

16

FT250.37.242

Oil seal spacer

1

17

GB/T 9877.1-FB55×75×8F

Framework oil seal

1

18

FT250.37B.212

Driving shaft

1

19

FT250.37.218

Bearing ring

1

20

GB/T 276-6211

Deep groove ball bearing

1

21

GB/T 893.1-100

Snap ring

1
