TG1204.435-2 43.5.2-驻车制动操纵机构总成-2(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

4

5

6

7

8



8

9

9

TG1204.435-03 FT800.21.240

GBT882-B10X30-A0P GBT97.1-10-A0P GBT91-3.2X20-A0P



GBT91-3.2X20-A0P GBT879.1-5X40 GBT879.1-5X40

FRONT DRIVING CONTROL ROD PULL ROD FRONT FORK

PIN WASHER PIN



PIN PIN PIN

1

2

2

2

2



2

1

1

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_



2011-11_

2011-11_

2011-11_








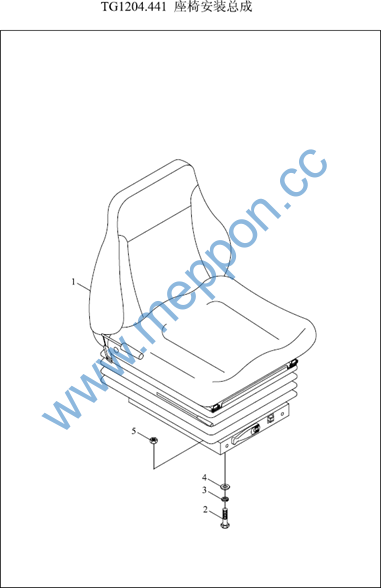

TG1204.441 44.1-座椅安装总成 44.1-SEAT INSTALLATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5

TG1204.441.1

GBT5783-M10X40-A3L GBT93-10-A0P GBT97.1-10-A0P GBT6140-M10-A3L

SEAT ASSEMBLY BOLT

WASHER WASHER NUT

1

4

4

4

4

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_








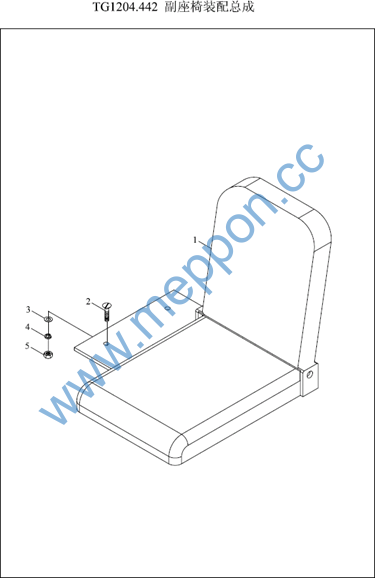

TG1204.442 44.2-副座椅装配总成 44.2-ASSISTANT SEAT INSTALLATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5

TG1204.442.1 GBT68-M8X25-A2L GBT97.1-8-A0P GBT93-8-A0P GBT6170-M8-A2L

AUXILIARY CHAIR ASSEMBLY SCREW

WASHER WASHER NUT

1

4

4

4

4

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_








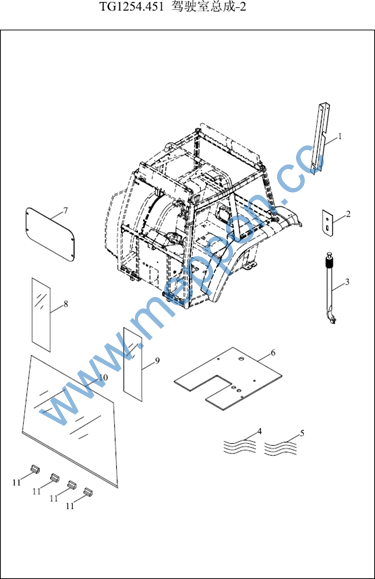

TG1254.451-2 45.1-驾驶室总成-2 DRIVER’S CAB ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT65.45.309

LEFT MIDDLE COLUMN UPHOLSTERY

1

2011-11_

10

TG1254.451-01

FRONT WIND SHIELD

1

2011-11_

11

FT65.45.604

GLASS MAT BLOCK

10

2011-11_

11

FT65.45.604

GLASS MAT BLOCK

10

2011-11_

2

FT800A.45.947

AIR CONDITION REAR BRACKET CONDOLE EAR

1

2011-11_

3

FT65.45.017

SUPPORTING PLATE ASSEMBLY

2

2011-11_

4

FT800.45.948

COOLANT（R134A）

1

2011-11_

5

FT800.45.949

SEAL GLUE

1

2011-11_

6

TG1254.451-04

INSULATION LAYER

1

2011-11_

7

FT65.45C.351

FRONT BLOCK PLATE

1

2011-11_

8

TG1254.451-03

RIGHT FRONT LOWER WINDOW GLASS

1

2011-11_

8

TG1254.451-03

RIGHT FRONT LOWER WINDOW GLASS

1

2011-11_

9

TG1254.451-02

LEFT FRONT LOWER WINDOW GLASS

1

2011-11_








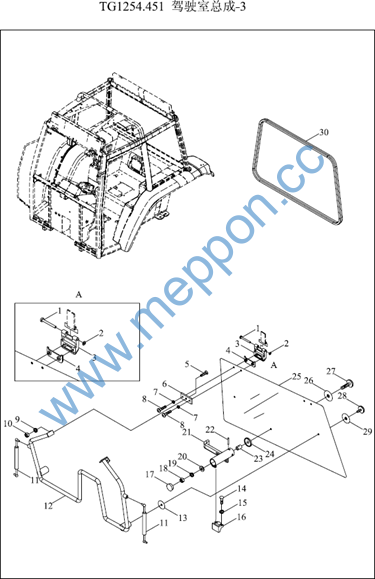

TG1254.451-3 45.1-驾驶室总成-3 DRIVER’S CAB ASSEMBLY-3



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

TG1254.451.4

REAR WINDOW ASSEMBLY

1

2011-11_

1

FT65.45.834

REAR WINDOW HINGE PIN

2

2011-11_

10

GBT6170-M8-A2L

NUT

2

2011-11_

11

FT65.45.818

REAR WINDOW PNEUMATIC SPRING

2

2011-11_

12

FT65.45.082A

REAR WINDOW HANDLE ASSEMBLY

1

2011-11_

13

FT65.45.840

FIXED BLOCK WASHER

2

2011-11_

14

GBT818-M5X20-A2L

SCREW

2

2011-11_

15

GBT93-5-A0P

WASHER

2

2011-11_

16

FT65.45.837

CLAMP BLOCK

1

2011-11_

17

FT65.45.826

COVER REAR

1

2011-11_

18

GBT6170-M12-A3L

NUT

1

2011-11_

19

GBT93-12-A0P

SPRING WASHER

1

2011-11_

2

GBT896-6

SNAP RING

2

2011-11_

20

FT65.45.827

WASHER

1

2011-11_

21

FT65.45.831

LOCK BODY

1

2011-11_

22

FT65.45.828

REAR WINDOW LOCKING PIN

1

2011-11_

23

FT65.45.830

SLEEVE

1

2011-11_

24

FT65.45.838

SEAL GASKET

1

2011-11_

25

TG1254.451.4-01

BACK WINDOW GLASS

1

2011-11_

26

FT65.45.839

REAR WINDOW LOCKING BOLT WASHER

1

2011-11_

27

FT65.45.829

BOLT ROD

1

2011-11_

28

FT65.45.825

CAST BOLT

2

2011-11_

29

FT65.45.836

CAST BOLT WASHER

2

2011-11_

3

FT65.45.832

BASE SEAT

2

2011-11_

30

TG1254.451.4-02

REAR WINDOW SEAL STRIP

1

2011-11_








TG1254.451-3 45.1-驾驶室总成-3(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

4

5

6

7

8



9

FT65.45.833

GBT819-M8X16-A2L FT65.45.824

GBT93-6-A0P GBT818-M6X16-A2L



GBT93-8-A0P

BASE SEAT WASHER SCREW

PRESSURE COVER SPRING WASHER SCREW



WASHER

2

2

2

4

4



2

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_



2011-11_








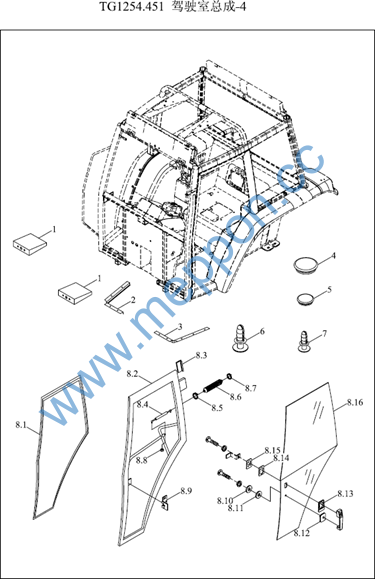

TG1254.451-4 45.1-驾驶室总成-4 DRIVER’S CAB ASSEMBLY-4



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT65.45.098

FRONT UPPER LAMP BRACKET ASSEMBLY

2

2011-11_

2

TG1254.451-07

RIGHT FLOOR MAT PRESSURE STRIP

1

2011-11_

3

TG1254.451-08

LEFT FLOOR MAT PRESSURE PIECE

1

2011-11_

4

TG1254.451-09

PROCESS HOLE COVER（1）

2

2011-11_

5

TG1254.451-10

PROCESS HOLE COVER（2）

2

2011-11_

6

Q69208

PLASTIC SPLIT PIN

14

2011-11_

7

Q69206

PLASTIC SPLIT PIN

22

2011-11_

8

TG1254.451.7

LEFT DOOR ASSEMBLY

1

2011-11_

8

TG1254.451.8

RIGHT DOOR ASSEMBLY

1

2011-11_

8.1

FT65.45.502

RIGHT DOOR FRAME SEAL STRIP

1

2011-11_

8.1

FT65.45.408

DOOR WASHER (2)

2

2011-11_

8.1

FT65.45.402

LEFT DOORFRAME SEAL STRIP

1

2011-11_

8.11

FT65.45.406

DOOR GLASS WASHER (2)

2

2011-11_

8.12

FT65.45.405

GLASS MAT BLOCK (2)

2

2011-11_

8.13

FT65.45.403

DOOR GLASS WASHER (1)

2

2011-11_

8.14

FT65.45.407

DOOR WASHER (1)

2

2011-11_

8.15

FT65.45.404

GLASS MAT BLOCK (1)

2

2011-11_

8.16

FT65.45.401

LEFT DOOR GLASS

1

2011-11_

8.16

FT65.45.501

RIGHT DOOR GLASS

1

2011-11_

8.2

TG1254.451.7.1

LEFT DOOR WELD ASSEMBLY

1

2011-11_

8.3

FT65.45.504

DOOR HINGE

2

2011-11_

8.3

TG1254.451.8.1

RIGHT DOOR FRAME WELD ASSEMBLY

1

2011-11_

8.4

FT65.45.536

AIR SPRING

2

2011-11_

8.5

GBT619-45

Clip

2

2011-11_

8.6

FT65.45.421

PNEUMATIC SPRING HOUSING

1

2011-11_








TG1254.451-4 45.1-驾驶室总成-4(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

8.7

8.8

8.9

8.9

GBT619-32 GBT6170-M8-A2L FT65.45.055 FT65.45.056

Clip NUT

LEFT DOOR LOCK ASSEMBLY RIGHT DOOR LOCK ASSEMBLY

2

2

1

1

2011-11_

2011-11_

2011-11_

2011-11_
