LOVOL TG1254-F463K11K Tractor Parts Catalogue 12
Lovol TG1254-F463K11K Wheeled Tractor

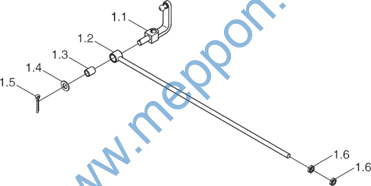

TG1204.802 Storage Air Canister Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TG1204.802 |
Storage air canister assembly |
1 |
||
1 |
FT65.80.014 |
Safety valve |
1 |
|
2 |
GB/T 5783-M10×25-A3L |
Hex bolt |
3 |
|
3 |
GB/T 93-10-A0P |
Standard spring washer |
3 |
|
4 |
TG1204.802.1 |
Storage air canister weldment |
1 |
|
5 |
FT300.80.033 |
Drain valve assembly |
1 |
|
5.1 |
FT300.80.325 |
Retainer ring |
1 |
|
5.2 |
FT300.80.324 |
Drain valve seal spring |
1 |
|
5.3 |
FT300.80.322 |
Drain valve |
1 |
|
5.4 |
FT300.80.323 |
Drain valve seal gasket |
1 |
|
5.5 |
FT300.80.326 |
Drain valve seat |
1 |
|
5.6 |
FT300.80.320 |
Drain valve pull ring |
1 |
125
Lovol TG1254-F463K11K Wheeled Tractor

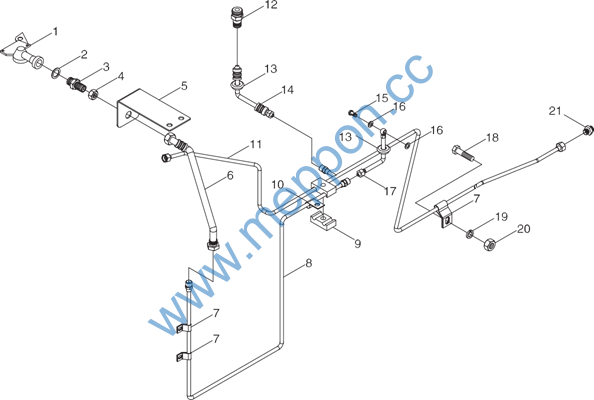

TG1204.803 Air Pipe Assembly
126
Lovol TG1254-F463K11K Wheeled Tractor
TG1204.803 Air Pipe Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TG1204.803 |
Air pipe assembly |
1 |
||
1 |
TD800.803D.1 |
Quick connecting joint |
1 |
|
2 |
FT65.80.213 |
Output joint seal gasket |
1 |
|
3 |
TD800.803D-01 |
Output joint |
1 |
|
4 |
GB/T 6171-M18×1.5-A3L |
Nut |
1 |
|
5 |
TG1204.803.8 |
Quick joint assembly plate |
1 |
|
6 |
TG1204.803.9 |
Trailer air brake hose |
1 |
|
7 |
FT300.80.101a |
Pipe clamp |
3 |
|
8 |
TG1204.803.7 |
Air brake valve output hose weldment |
1 |
|
9 |
FT354.40C.121 |
Double pipe clamp |
1 |
|
10 |
FT250.80.142 |
Pipe clamp Ⅰ |
1 |
|
11 |
TG1204.803.1 |
Air engine output pipe weldment |
1 |
|
12 |
TG1204.803-01 |
Air brake intake air pipe joint |
1 |
|
13 |
TF1004.482-01 |
Through harness washer |
2 |
|
14 |
TG1204.803.4 |
Air brake intake air hose |
1 |
|
15 |
FT354.40E.172 |
Hollow bolt |
1 |
|
16 |
JB/T 982-14 |
Combination seal washer |
2 |
|
17 |
TG1204.803.3 |
Air brake valve output hose |
1 |
|
18 |
GB/T 5783-M10×20-A3L |
Bolt |
2 |
|
19 |
GB/T 93-10-A0P |
Washer |
2 |
|
20 |
GB/T 6170-M10-A3L |
Nut |
1 |
|
21 |
FT700.80G.101 |
Pipe joint |
1 |
127
Lovol TG1254-F463K11K Wheeled Tractor

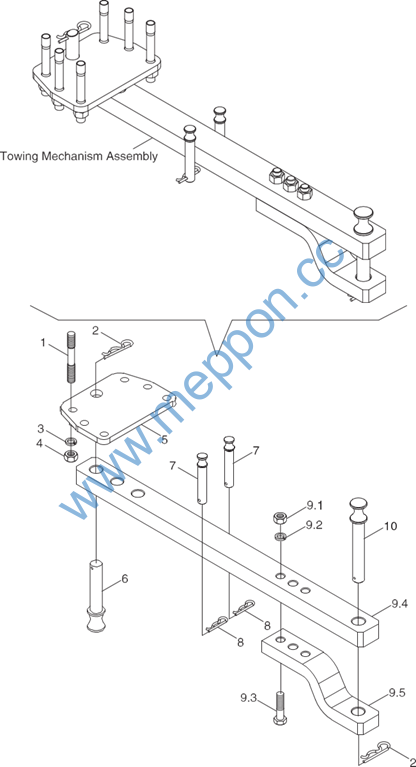

TG1204.35 Traction Mechanism Assembly
128
Lovol TG1254-F463K11K Wheeled Tractor
TG1204.35 Traction Mechanism Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TG1204.35 |
Traction mechanism assembly |
1 |
||
1 |
GB/T 899-GM20-M20×130-A2L |
Stud |
6 |
|
2 |
FT800.56.115 |
Spring lock pin |
2 |
|
3 |
GB/T 93-20-A0P |
Washer |
6 |
|
4 |
GB/T 6170-M20-A2L |
Nut |
6 |
|
5 |
TG1204.35.1 |
Lower pull rod bracket bottom plate weldment |
1 |
|
6 |
TG1204.35-01 |
Swing pin |
1 |
|
7 |
TG1204.35-03 |
Limitation pin |
2 |
|
8 |
FT65.35.103 |
Spring lock pin |
2 |
|
9 |
TG1204.35.2 |
U-shaped hook assembly |
1 |
|
9.1 |
GB/T 6170-M16-AOP |
Nut |
2 |
|
9.2 |
GB/T 93-16-AOP |
Washer |
2 |
|
9.3 |
GB/T 5782-M16×110-A2L |
Bolt |
2 |
|
9.4 |
TG1204.35-02 |
Swing rod |
1 |
|
9.5 |
TG1204.35-04 |
Connecting swing rod |
1 |
|
10 |
TG1204.35-05 |
Towing pin |
1 |
129
Lovol TG1254-F463K11K Wheeled Tractor

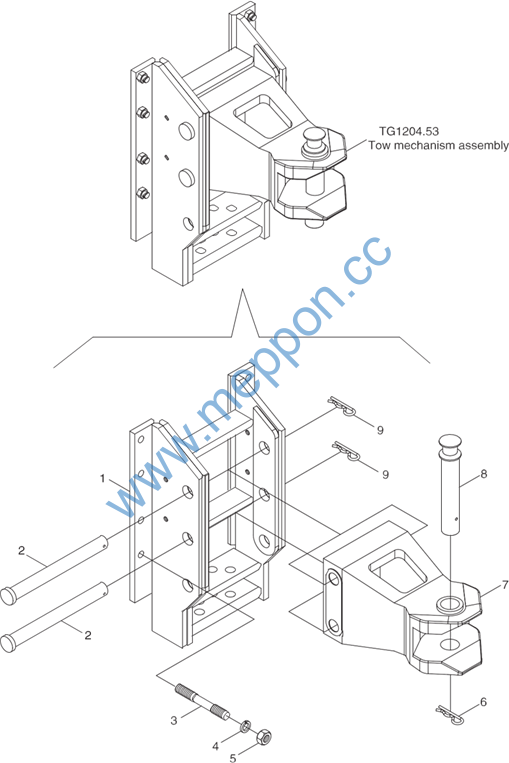

TG1204.53 Tow Mechanism Assembly
130
Lovol TG1254-F463K11K Wheeled Tractor
TG1204.53 Tow Mechanism Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TG1204.53 |
Tow mechanism assembly |
1 |
||
1 |
TG1204.53.1 |
Traction frame weldment |
1 |
|
2 |
TG1204.53-02 |
Tow pin |
2 |
|
3 |
GB/T 899-GM16-M16×200-A2L |
Stud |
8 |
|
4 |
GB/T 93-16-AOP |
Washer |
8 |
|
5 |
GB/T 6170-M16-AOP |
Nut |
8 |
|
6 |
FT800.53.111 |
Spring lock pin |
1 |
|
7 |
TG1204.53-01 |
Tow bracket |
1 |
|
8 |
FT800.53.102 |
Pothook pin |
1 |
|
9 |
FT800.35.112 |
Spring lock pin |
2 |
131
Lovol TG1254-F463K11K Wheeled Tractor

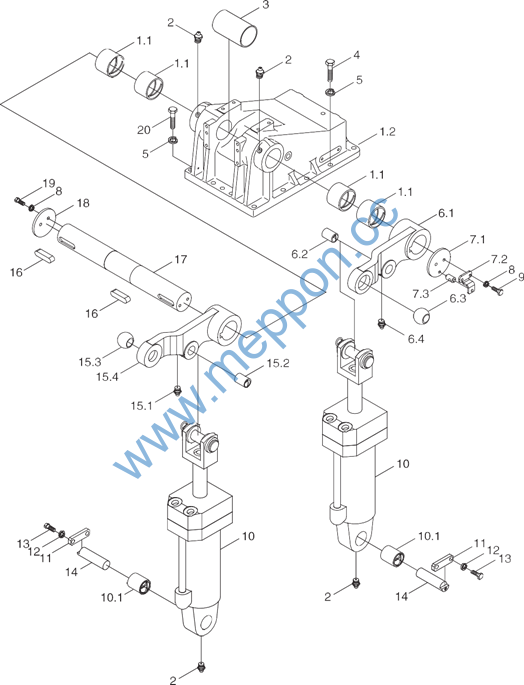

TG1204.551 Lifting Device Assembly
132
Lovol TG1254-F463K11K Wheeled Tractor
TG1204.551 Lifting Device Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TG1204.551 |
Lifting Device Assembly |
1 |
||
1 |
TG1204.551.2 |
Lift housing press-fitting assembly |
1 |
|
1.1 |
TG1204.551.2-02 |
Copper shaft sleeve |
4 |
|
1.2 |
TG1204.551.2-01 |
Lift housing |
1 |
|
2 |
JB/T 7940.1-M10×1 |
Through forced filling oil cup |
2 |
|
3 |
TG1204.551-05 |
Bush |
1 |
|
4 |
GB/T 5783-M16×55-A3L |
Hex bolt |
8 |
|
5 |
GB/T 93-16-AOP |
Standard spring washer |
14 |
|
6 |
TG1204.551.3 |
Right lift arm assembly |
1 |
|
6.1 |
TG1204.551.3-01 |
Right lift arm |
1 |
|
6.2 |
TG1204.551.3-03 |
Copper sleeve |
1 |
|
6.3 |
TG1204.551.3-02 |
Buttonhead |
1 |
|
6.4 |
JB/T 7940.1-M10×1 |
Through forced filling oil cup |
1 |
|
7 |
TG1204.551.5 |
Lift right end cover assembly |
1 |
|
7.1 |
TG1204.551.5-03 |
Lift right end cover |
1 |
|
7.2 |
TG1204.551.5-01 |
Limit board |
1 |
|
7.3 |
TG1204.551.5-02 |
Steering shaft |
1 |
|
8 |
GB/T 93-10-AOP |
Standard spring washer |
4 |
|
9 |
GB/T 5783-M10×30-A3L |
Hex bolt |
2 |
|
10 |
TG1204.551.1 |
Oil cylinder assembly |
2 |
|
10.1 |
TG1204.551.1-01 |
Shaft bush |
2 |
|
11 |
TG1204.551-03 |
Oil cylinder pin shaft lock piece |
2 |
|
12 |
GB/T 93-12-AOP |
Standard spring washer |
4 |
|
13 |
GB/T 5783-M12×30-A3L |
Hex bolt |
4 |
|
14 |
TG1204.551-02 |
Oil cylinder pin shaft |
2 |
|
15 |
TG1204.551.4 |
Left lift arm assembly |
1 |
|
15.1 |
JB/T 7940.1-M10×1 |
Through forced filling oil cup |
1 |
|
15.2 |
TG1204.551.3-03 |
Copper sleeve |
1 |
|
15.3 |
TG1204.551.3-02 |
Buttonhead |
1 |
|
15.4 |
TG1204.551.4-01 |
Left lift arm |
1 |
|
16 |
GB/T 1096-20×12×80 |
Flat key |
2 |
|
17 |
TG1204.551-01 |
Lift shaft |
1 |
|
18 |
TG1204.551-04 |
Lift shaft pressure plate |
1 |
|
19 |
GB/T 5783-M10×25-A3L |
Hex bolt |
2 |
|
20 |
GB/T 5783-M16×65-A3L |
Hex bolt |
6 |
133
Lovol TG1254-F463K11K Wheeled Tractor

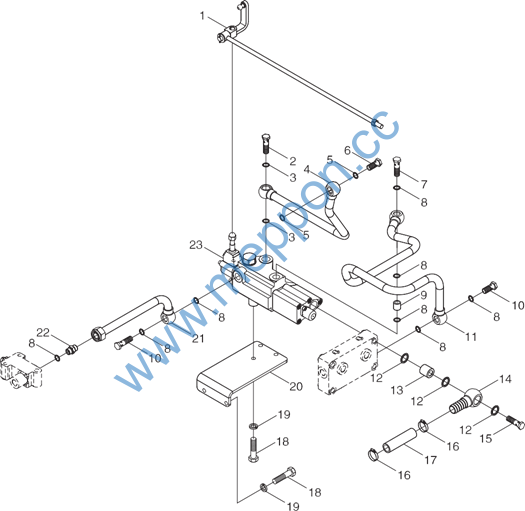

TG1454.552C Distributor And Oil Pipe Assembly-1
134
Lovol TG1254-F463K11K Wheeled Tractor
TG1454.552C Distributor And Oil Pipe Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TG1454.552C |
Distributor and oil pipe assembly |
1 |
||
1 |
GB/T 3452.1-17.0×2.65G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
2 |
TG1454.552A-03 |
Cover plate |
1 |
|
3 |
GB/T 93-10-A0P |
Standard spring washer |
6 |
|
4 |
GB/T 5783-M10×25-8.8-A3L |
Hexagon head bolt |
8 |
|
5 |
TG1204.552.4 |
Cylinder safety valve assembly |
1 |
|
5.1 |
GB/T 91-2×36-A0P |
Cotter pin |
1 |
|
5.2 |
FT700.55.172 |
Pressure regulating stud |
1 |
|
5.3 |
GB/T 3452.1-23.6×2.65G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
5.4 |
GB/T 3452.1-10.6×2.65G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
5.5 |
FT65.55.147 |
Cylinder safety valve spring |
1 |
|
5.6 |
FT700.55.146 |
Cylinder safety valve body |
1 |
|
5.7 |
FT700.55.145 |
Safety valve seat |
1 |
|
5.8 |
GB/T 3452.1-19.0×2.65G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
5.9 |
TG1204.552.4-01 |
Cylinder safety valve housing |
1 |
|
5.1 |
GB/T 3452.1-17.0×2.65G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
6 |
GB/T 6170-M10-8-A3L |
Hexagon nut, style 1 |
3 |
|
7 |
TG1454.552A-01 |
Safety valve connecting plate |
1 |
|
8 |
GB/T 5782-M10×80-8.8-A2L |
Hexagon head bolt |
3 |
|
9 |
JB/T 982-16 |
Compound seal washer |
2 |
|
10 |
GB/T 3733.2-G12 |
Straight thread connector, body |
2 |
|
11 |
TG1454.552A.5 |
Safety valve oil return pipe assembly |
1 |
|
12 |
TG1204.552-03a |
By-pass valve block |
1 |
|
13 |
GB/T 93-12 |
Standard spring washer |
4 |
|
14 |
GB/T 5782-M12×70-8.8-A2L |
Hexagon head bolt |
4 |
|
15 |
JB/T 982-20 |
Compound seal washer |
4 |
|
16 |
TG1204.552-04 |
Hollow bolt M20×1.5 |
2 |
|
17 |
TG1454.552A.4 |
Oil cylinder oil inlet pipe assembly 3 |
1 |
135
Lovol TG1254-F463K11K Wheeled Tractor

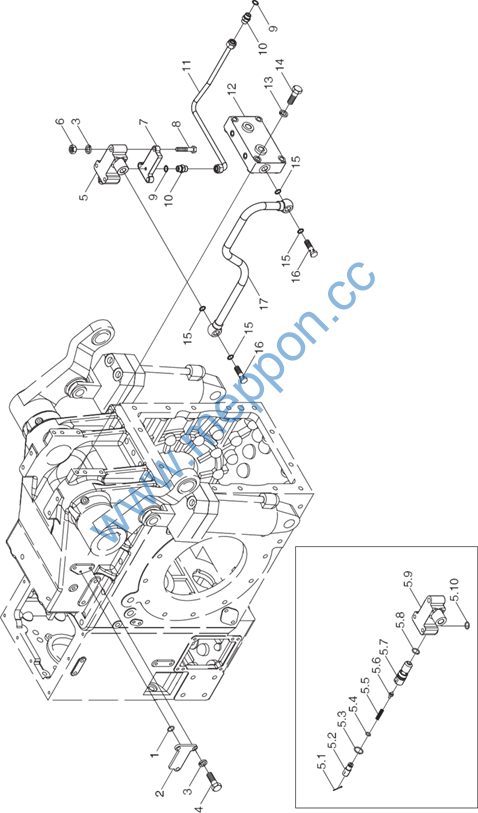

TG1454.552C Distributor Control And Oil Pipe Assembly-2
136
