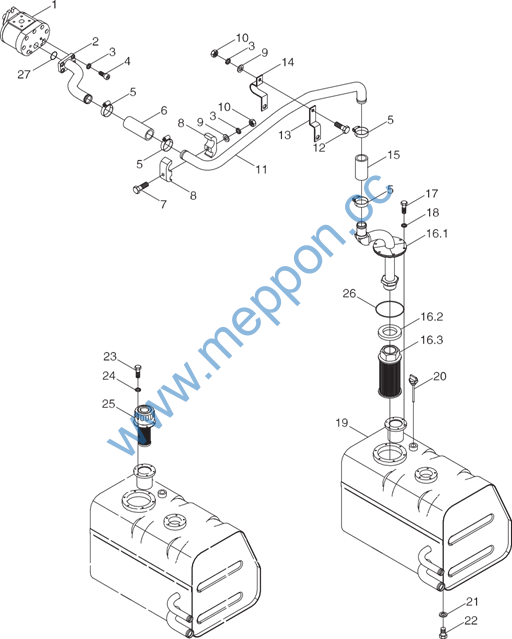

Lovol TG1254-F463K11K Wheeled Tractor

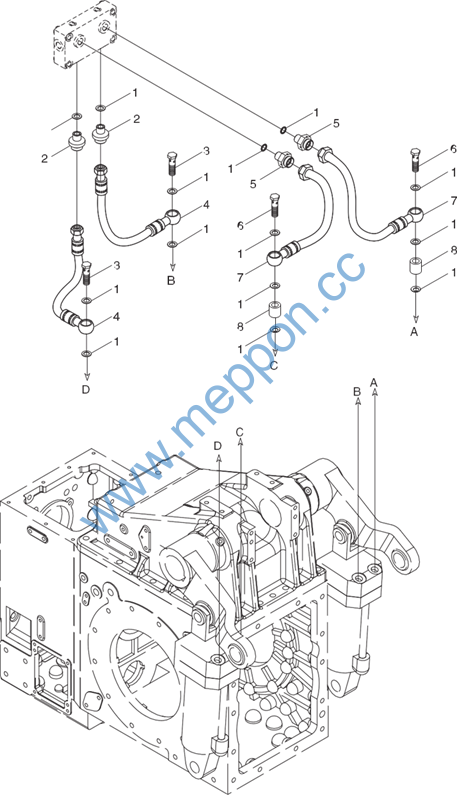

TG1454.552C Distributor Control And Oil Pipe Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TG1454.552C |
Distributor control and oil pipe assembly |
1 |
||
1 |
TG1454.552A.12 |
Control crank assembly |
1 |
|
1.1 |
TG1454.552A.12.1 |
Control crank weldment |
1 |
|
1.2 |
TG1454.552A.12.2 |
Feedback lever weldment |
1 |
|
1.3 |
TG1204.552.12-04 |
Nylon bush |
1 |
|
1.4 |
GB/T 97.1-12-A0P |
Plain washer |
1 |
|
1.5 |
GB/T 91-2×20-A0P |
Cotter pin |
1 |
|
1.6 |
GB/T 6172.1-M10-04-A3L |
Hexagon thin nut |
2 |
|
2 |
TG1204.552-06 |
Hollow bolt M24×1.5 |
1 |
|
3 |
JB/T 982-24 |
Compound seal washer |
2 |
|
4 |
TG1454.552.3 |
Distributor oil inlet pipe assembly |
1 |
|
5 |
JB/T 982-22 |
Compound seal washer |
2 |
|
6 |
FT300.58.101 |
Hollow bolt |
1 |
|
7 |
TG1204.552-07 |
Hollow bolt M20×1.5 |
1 |
|
8 |
JB/T 982-20 |
Compound seal washer |
7 |
|
9 |
TG1204.552-08 |
Thick washer |
1 |
|
10 |
TG1204.552-04 |
Hollow bolt M20×1.5 |
2 |
|
11 |
TG1454.552.2 |
Cylinder oil inlet pipe assembly 2 |
1 |
|
12 |
JB/T 982-27 |
Compound seal washer |
3 |
|
13 |
TG1204.552B-02 |
Spacing sleeve |
1 |
|
14 |
TG1454.552A.1 |
Distributor oil return pipe weldment |
1 |
|
15 |
TG1204.552B-01 |
Hollow bolt M27×1.5 |
1 |
|
16 |
Q67638 |
B-type worm transmission hose clamp |
2 |
|
17 |
TG1854.581-12 |
Oil suction hose 3 |
1 |
|
18 |
GB/T 5783-M10×25-8.8-A3L |
Hexagon head bolt |
5 |
|
19 |
GB/T 93-10-A0P |
Standard spring washer |
5 |
|
20 |
TG1204.552.11 |
Distributor bracket weldment |
1 |
|
21 |
TG1454.552C.3 |
Cylinder oil inlet pipe assembly 1 |
1 |
|
22 |
TG1454.552A-02 |
Straight thread connector, body |
1 |
|
23 |
TG1204.552A.2 |
Distributor assembly |
1 |
137
Lovol TG1254-F463K11K Wheeled Tractor
TG1454.552C Distributor Control And Oil Pipe Assembly-3
138
Lovol TG1254-F463K11K Wheeled Tractor
TG1454.552C Distributor Control And Oil Pipe Assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TG1454.552C |
Distributor control and oil pipe assembly |
1 |
||
1 |
JB/T 982-20 |
Compound seal washer |
14 |
|
2 |
TG1454.552C-01 |
Slow down valve body |
2 |
|
3 |
FT650.40.102 |
Hollow bolt M20×1.5 |
2 |
|
4 |
TG1454.552C.4 |
Cylinder oil pipe assembly 1 |
2 |
|
5 |
TG1454.552C.2 |
Slow down valve assembly 2 |
2 |
|
6 |
TG1204.552-10 |
Hollow bolt M20×1.5 |
2 |
|
7 |
TG1454.552C.3 |
Cylinder oil pipe assembly 2 |
2 |
|
8 |
TG1204.552-11 |
Thick washer-2 |
2 |
139
Lovol TG1254-F463K11K Wheeled Tractor
TG1204.56F Suspension Mechanism Assembly-1
140
Lovol TG1254-F463K11K Wheeled Tractor
TG1204.56F Suspension Mechanism Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |

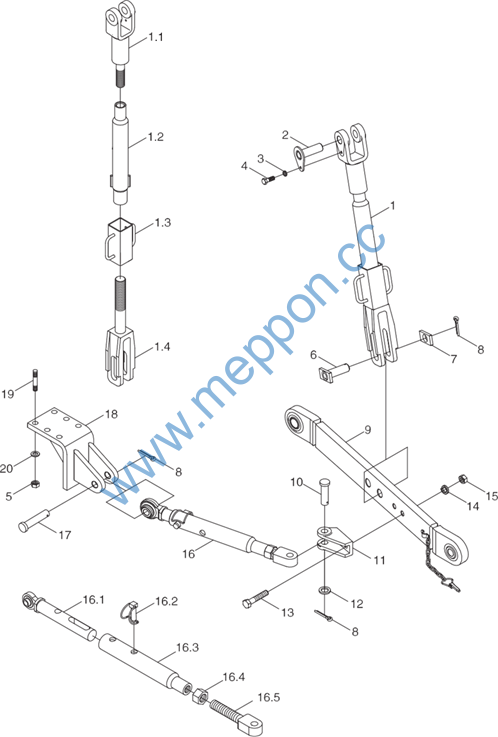

TG1204.56F |
Suspension mechanism assembly |
1 |
||
1 |
TG1204.56F.4 |
Lift link assembly |
1 |
|
1.1 |
TG1204.56F.4.1 |
Upper clevis weldment, lift link |
1 |
|
1.2 |
TG1204.56.4.2 |
Adjustment solenoid weldment |
1 |
|
1.3 |
TG1204.56F.4.3 |
Sheath weldment |
1 |
|
1.4 |
TG1204.56F.4.4 |
Lower clevis weldment, lift link |
1 |
|
2 |
TG1654.56B.5 |
Upper connecting pin weldment, lift link |
1 |
|
3 |
GB/T 93-8-A0P |
Standard spring washer |
1 |
|
4 |
GB/T 5783-M8×25-8.8-A2L |
Hex head bolt |
1 |
|
5 |
GB/T 6176-M20×1.5-10-A3L |
Hexagon nut , Style 2 |
6 |
|
6 |
TG1204.56.9 |
Lower connecting pin weldment, lift link |
1 |
|
7 |
TG1204.56-05 |
Position-limit plate |
1 |
|
8 |
GB/T 91-5×63-A0P |
Split pin |
3 |
|
9 |
TG1204.56F.2a |
Lower link assembly |
1 |
|
10 |
TG1204.56-07 |
Rear fixed pin, position-limit link |
1 |
|
11 |
TG1204.56-08 |
Rear support, position-limit link |
1 |
|
12 |
GB/T 95-24-A0P |
Flat washer |
1 |
|
13 |
GB/T 5782-M16×80-A3L |
Hex head bolt |
2 |
|
14 |
GB/T 93-16-A0P |
Standard spring washer |
2 |
|
15 |
GB/T 6170-M16-A3L |
Hexagon nut , Style 1 |
2 |
|
16 |
TG1204.56.5 |
Position-limit link assembly |
1 |
|
16.1 |
TG1204.56.5.1 |
Position-limit link extrusion assembly |
1 |
|
16.2 |
TG1204.56.5.2 |
Lockpin assembly |
1 |
|
16.3 |
TG1204.56.5-01 |
Position-limit pipe |
1 |
|
16.4 |
TG1204.56.1-01 |
Front locknut, upper link |
1 |
|
16.5 |
TG1204.56.5-02 |
Adjusting screw |
1 |
|
17 |
TG1204.56-06 |
Front fixed pin, position-limit link |
1 |
|
18 |
TG1204.56.6a |
Left position-limit link support assembly |
1 |
|
19 |
GB/T 899-AM20-M20×1.5×50-10.9-A3L |
Stud |
6 |
|
20 |
FT800.39.130 |
Washer |
6 |
141
Lovol TG1254-F463K11K Wheeled Tractor
TG1204.56F Suspension Mechanism Assembly-2
142
Lovol TG1254-F463K11K Wheeled Tractor
TG1204.56F Suspension Mechanism Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |

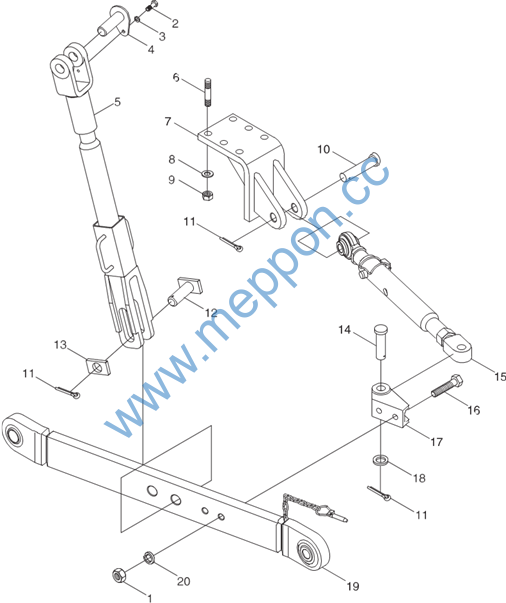

TG1204.56F |
Suspension mechanism assembly |
1 |
||
1 |
GB/T 6170-M16-8-A3L |
Hexagon nut , Style 1 |
2 |
|
2 |
GB/T 5783-M8×25-8.8-A2L |
Hex head bolt |
1 |
|
3 |
GB/T 93-8-A0P |
Standard spring washer |
1 |
|
4 |
TG1654.56B.5 |
Upper connecting pin weldment, lift link |
1 |
|
5 |
TG1204.56F.4 |
Lift link assembly |
1 |
|
6 |
GB/T 899-AM20-M20×1.5×50-10.9-A3L |
Stud |
6 |
|
7 |
TG1204.56.7a |
Right position-limit link support assembly |
1 |
|
8 |
FT800.39.130 |
Washer |
6 |
|
9 |
GB/T 6176-M20×1.5-10-A3L |
Hexagon nut , Style 2 |
6 |
|
10 |
TG1204.56-06 |
Front fixed pin, position-limit link |
1 |
|
11 |
GB/T 91-5×63-A0P |
Split pin |
3 |
|
12 |
TG1204.56.9 |
Lower connecting pin weldment, lift link |
1 |
|
13 |
TG1204.56-05 |
Position-limit plate |
1 |
|
14 |
TG1204.56-07 |
Rear fixed pin, position-limit link |
1 |
|
15 |
TG1204.56.5 |
Position-limit link assembly |
1 |
|
16 |
GB/T 5782-M16×80-8.8-A3L |
Hex head bolt |
2 |
|
17 |
TG1204.56-08 |
Rear support, position-limit link |
1 |
|
18 |
GB/T 95-24-A0P |
Flat washer |
1 |
|
19 |
TG1204.56F.2a |
Lower link assembly |
1 |
|
20 |
GB/T 93-16-A0P |
Standard spring washer |
2 |
143
Lovol TG1254-F463K11K Wheeled Tractor
TG1204.56F Suspension Mechanism Assembly-3
144
Lovol TG1254-F463K11K Wheeled Tractor
TG1204.56F Suspension Mechanism Assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TG1204.56F |
Suspension mechanism assembly |
1 |
||
1 |
GB/T 5783-M10×30-8.8-A3L |
Hex head bolt |
4 |
|
2 |
GB/T 93-10-A0P |
Standard spring washer |
4 |
|
3 |

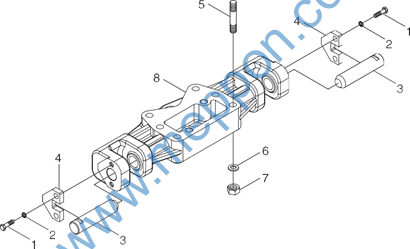

TG1204.56-02a |
Lower link articulated shaft |
2 |
|
4 |
TG1204.56-03a |
Position-limit plate |
2 |
|
5 |
GB/T 899-AM20-M20×1.5×110-10.9-A3L |
Stud |
6 |
|
6 |
FT800.39.130 |
Washer |
6 |
|
7 |
GB/T 6176-M20×1.5-10-A3L |
Hexagon nut , Style 2 |
6 |
|
8 |
TG1204.56E-01 |
Lower link bracket |
1 |
|
9 |
GB/T 5783-M12×25 |
Hex head bolt (Full thread) |
2 |
|
10 |
GB/T 93-12-A0P |
Standard spring washer |
2 |
|
11 |

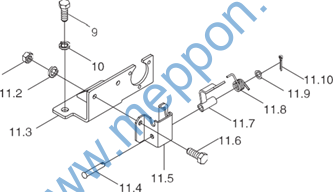

TG1204.56F.8 |
Mounting base assembly, fixed clip |
1 |
|
11.1 |
GB/T 6170-M8-A2L |
Hexagon nut , Style 1 |
2 |
|
11.2 |
GB/T 93-8-A0P |
Standard spring washer |
2 |
|
11.3 |
TG1204.56F.8.1 |
Mounting base weldment, fixed clip |
1 |
|
11.4 |
GB/T 882-B8×48 |
Axis pin |
1 |
|
11.5 |
TG1204.56F.8-02 |
Fixed clip base |
2 |
|
11.6 |
GB/T 5783-M8×20-8.8-A2L |
Hex head bolt |
2 |
|
11.7 |
TG1204.56F.8.2 |
Fixed card weldment |
1 |
|
11.8 |
TG1204.56F.8-01 |
Torsion spring |
1 |
|
11.9 |
GB/T 97.1-8-A0P |
Flat washer |
1 |
|
11.10 |
GB/T 91-3.2×16-A0P |
Split pin |
1 |
|
12 |

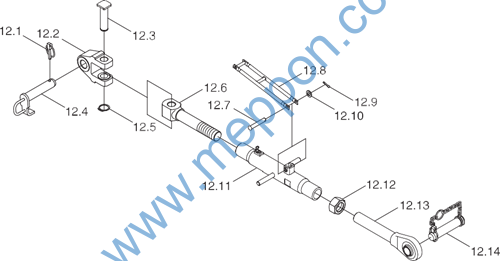

TG1204.56F.1a |
Upper link assembly |
1 |
|
12.1 |
TG1204.56F.1.5 |
Lockpin assembly |
1 |
|
12.2 |
TG1204.56F.1-03 |
Front clevis, upper link |
1 |
|
12.3 |
TG1204.56F.1-05 |
Connecting axis pin, upper link |
1 |
|
12.4 |
TG1204.56F.1.1 |
Front connecting pin weldment, upper link |
1 |
|
12.5 |
GB/T 894.2-28 |
Circlip for shaft |
1 |
|
12.6 |
TG1204.56F.1-04 |
Front adjusting screw, upper link |
1 |
|
12.7 |
GB/T 882-B10×60 |
Axis pin |
1 |
|
12.8 |
TG1204.56F.1a.2 |
Fixed clip weldment |
1 |
|
12.9 |
GB/T 91-3.2×16-A0P |
Split pin |
1 |
