LOVOL TG1254-F463K11K Tractor Parts Catalogue 11
Lovol TG1254-F463K11K Wheeled Tractor

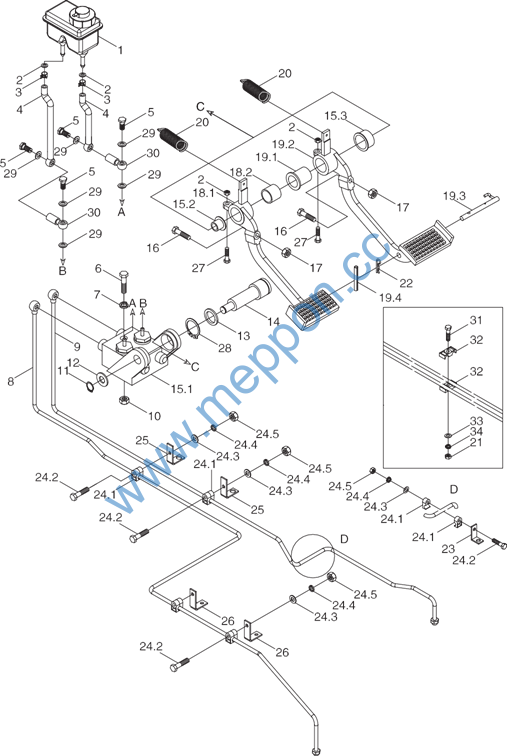

TG1254.433 Control Mechanism Assembly, Service Brake
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TG1254.433 |
Control mechanism assembly, service brake |
1 |
||
1 |
TG1204.433.2 |
Brake reservoir assembly |
1 |
|
2 |
TG1204.433-04 |
Snap ring |
2 |
|
3 |
Q673B115 |
Strip elastic hoop |
2 |
|
4 |
TG1654.433.4 |
Oil-delivery hose assembly |
2 |
|
5 |
FT800.43.115 |
Oil pipe joint screw |
4 |
|
6 |
GB/T 5782-M16×90-8.8-A2L |
Hex head bolt |
2 |
|
7 |
GB/T 93-16-A0P |
Standard spring washer |
2 |
|
8 |
TG1654.433.1a |
Brake pipe weldment, LH |
1 |
|
9 |
TG1654.433.2a |
Brake pipe weldment, RH |
1 |
|
10 |
GB/T 6170-M16-8-A3L |
Hexagon nut , Style 1 |
2 |
|
11 |
GB/T 894.1-17 |
Circlip for shaft |
1 |
|
12 |
TG1204.433-02 |
Retainer ring |
1 |
|
13 |
TG1204.433-06 |
Big retainer ring |
1 |
|
14 |
TG1204.433-07 |
Revolving shaft |
1 |
|
15 |
TG1654.433.3 |
Brake pump press-fit assembly |
1 |
|
15.1 |
TG1654.433.3.1 |
Brake pump assembly |
1 |
|
15.2 |
TG1204.433.6-02 |
Bush (B) |
1 |
|
15.3 |
TG1204.433.6-01 |
Bush (A) |
1 |
|
16 |
TG1204.433-05 |
Adjusting screw |
2 |
|
17 |
GB/T 6171-M10×1-8-A2L |
Hexagon nut , Style 1 |
4 |
|
18 |
TG1204.433.3 |
Left brake pedal press-fit |
1 |
|
18.1 |
TG1204.433.3.1 |
Left brake pedal weldment |
1 |
|
18.2 |
TG1654.212B.1-01 |
Bush |
1 |
|
19 |
TG1204.433.4 |
Right brake pedal press-fit |
1 |
|
19.1 |
TG1654.212B.1-01 |
Bush |
1 |
|
19.2 |
TG1204.433.4.1 |
Right brake pedal weldment |
1 |
|
19.3 |
FT800A.43.065 |
Brake interlocking lever weldment |
1 |
|
19.4 |
GB/T 879.1-5×16 |
Elastic cylindrical pin |
1 |
|
20 |
TD800.43-01 |
Pedal return spring |
2 |
|
21 |
GB/T 6170-M8-8-A2L |
Hexagon nut , Style 1 |
2 |
|
22 |
FT800A.43.401 |
Lockpin |
1 |
113
Lovol TG1254-F463K11K Wheeled Tractor
TG1254.433 Control Mechanism Assembly, Service Brake(extension)
114
Lovol TG1254-F463K11K Wheeled Tractor
TG1254.433 Control Mechanism Assembly, Service Brake(extension)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
23 |
TG1204.433-12 |
Oil pipe bracket C |
1 |
|
24 |
F600190 |
Pipe clamp combination (E) |
5 |
|
24.1 |
F600209 |
Single-hole pipe clamp (B) |
2 |
|
24.2 |
GB/T 5783-M8×40-8.8-A2L |
Bolt |
1 |
|
24.3 |
GB/T 95-8-AOP |
Flat washer |
1 |
|
24.4 |
GB/T 93-8-AOP |
Standard spring washer |
1 |
|
24.5 |
GB/T 6170-M8-8-A2L |
Nut |
1 |
|
25 |
TG1204.433-01 |
Oil pipe bracket A |
1 |
|
26 |
TG1204.433-10 |
Oil pipe bracket B |
3 |
|
27 |
TG1204.433-09 |
Limiting screw |
2 |
|
28 |
GB/T 894.1-40 |
Circlip for shaft |
1 |
|
29 |
JB/T 982-12 |
Combined seal gasket |
8 |
|
30 |
TD800.43B.2 |
Pipe joint welded unit |
2 |
|
31 |
GB/T 5783-M8×40-8.8-A2L |
Hex head bolt |
2 |
|
32 |
TG1204.433-11 |
Dual-hole pipe clamp |
4 |
|
33 |
GB/T 97.1-8-A0P |
Flat washer |
2 |
|
34 |
GB/T 93-8-A0P |
Standard spring washer |
2 |
115
Lovol TG1254-F463K11K Wheeled Tractor

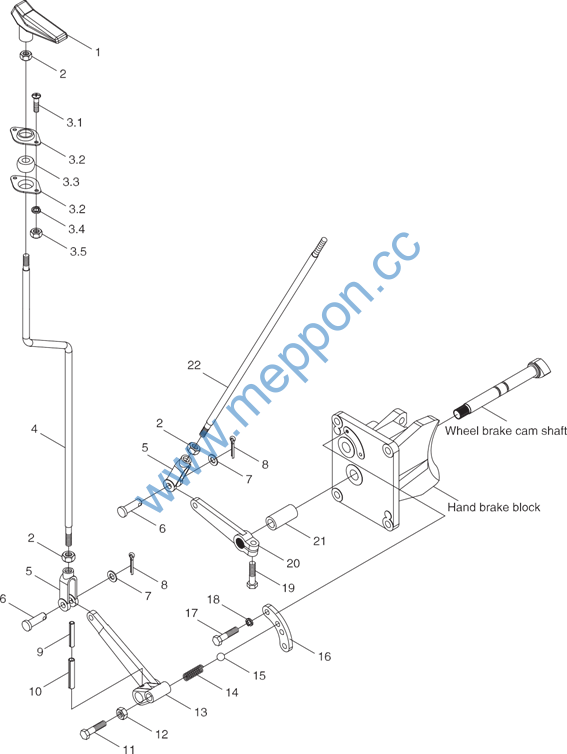

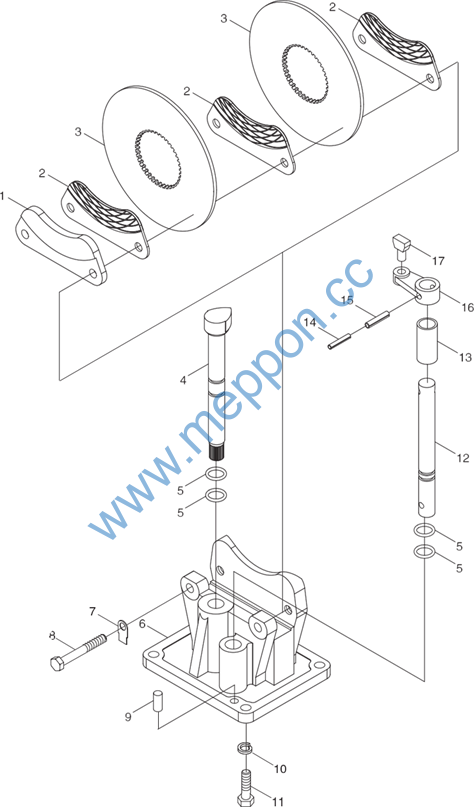

TG1204.434 Handle Brake Block Assembly
116
Lovol TG1254-F463K11K Wheeled Tractor
TG1204.434 Handle Brake Block Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TG1204.434 |
Handle brake block assembly |
1 |
||
1 |
TG1204.434-07 |
Handle brake pressure plate |
1 |
|
2 |
TG1204.434.1 |
Wearing piece unit |
3 |
|
3 |
TG1204.434-08 |
Handle brake steel piece |
2 |
|
4 |
TG1204.434-01 |
Brake camshaft |
1 |
|
5 |
GB/T 3452.1-15×2.65G |
O-ring |
4 |
|
6 |
TG1204.434-02 |
Handle brake block |
1 |
|
7 |
GB/T 854-12 |
Stopping washer |
2 |
|
8 |
TG1204.434-06 |
Bolt |
2 |
|
9 |
TG1204.434-10-10×25 |
Pin |
2 |
|
10 |
GB/T 93-12-AOP |
Washer |
4 |
|
11 |
GB/T 5783-M12×35-A3L |
Bolt |
4 |
|
12 |
TG1204.434-09 |
Fork shaft |
1 |
|
13 |
TG1204.434-05 |
Locating sleeve |
1 |
|
14 |
GB/T 879.1-5×40 |
Pin |
1 |
|
15 |
GB/T 879.1-8×40 |
Pin |
1 |
|
16 |
TG1204.434-04 |
Fork head block |
1 |
|
17 |
TG1204.434-03 |
Fork block |
1 |
117
Lovol TG1254-F463K11K Wheeled Tractor

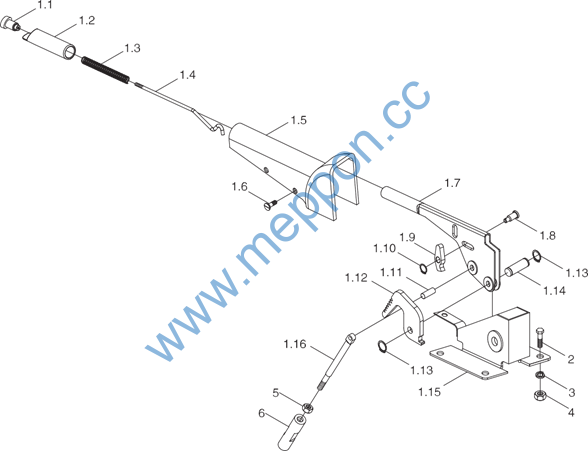

TG1654.435 Parking Brake Control Mechanism Assembly-1
118
Lovol TG1254-F463K11K Wheeled Tractor
TG1654.435 Parking Brake Control Mechanism Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TG1654.435 |
Parking brake control mechanism assembly |
1 |
||
1 |
TG1654.435.1 |
Handle brake control handle assembly |
1 |
|
1.1 |
FT800A.21.045 |
Button assembly |
1 |
|
1.2 |
FT800A.21.319 |
Control handle rubber grip |
1 |
|
1.3 |
FT800.43.180 |
Spring |
1 |
|
1.4 |
FT800A.21.315 |
Top rod |
1 |
|
1.5 |
FT800A.21.320 |
Bonnet |
1 |
|
1.6 |
GB/T 68-M4×10-A3L |
Screw |
4 |
|
1.7 |
FT800A.21.044 |
Control handle assembly |
1 |
|
1.8 |
FT800A.21.322 |
Small pin shaft |
1 |
|
1.9 |
FT800A.21.314 |
Pawl |
1 |
|
1.10 |
GB/T 894.1-6 |
Retainer ring |
1 |
|
1.11 |
FT800A.21.323 |
Pin |
1 |
|
1.12 |
FT800A.43.310 |
Ratchet |
1 |
|
1.13 |
GB/T 894.1-13 |
Retainer ring |
2 |
|
1.14 |
FT800A.21.321 |
Pin shaft |
1 |
|
1.15 |
FT800A.43.058 |
Handle brake control handle fixing seat weldment |
1 |
|
1.16 |
TG1654.435.1-01 |
Handle brake pull rod |
1 |
|
2 |
GB/T 5781-M8×20-A2L |
Bolt |
4 |
|
3 |
GB/T 93-8-A0P |
Washer |
4 |
|
4 |
GB/T 6170-M8-A2L |
Nut |
4 |
|
5 |
GB/T 6171-M10×1-A2L |
Nut |
1 |
|
6 |
TG1204.435-01 |
Adjusting sleeve |
1 |
119
Lovol TG1254-F463K11K Wheeled Tractor
TG1654.435 Parking Brake Control Mechanism Assembly-2
120
Lovol TG1254-F463K11K Wheeled Tractor
TG1654.435 Parking Brake Control Mechanism Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TG1654.435 |
Parking brake control mechanism assembly |
1 |
||
1 |
TG1204.435.3 |
Handle assembly |
1 |
|
2 |
GB/T 6171-M10×1-A2L |
Nut |
3 |
|
3 |
TG1204.435.2 |
Seal lining block assembly |
1 |
|
3.1 |
GB/T 818-M6×14-A2L |
Screw |
2 |
|
3.2 |
TG1204.435.2-01 |
Spherical shaft lining block |
2 |
|
3.3 |
TG1204.435.2-02 |
Spherical shaft lining |
1 |
|
3.4 |
GB/T 93-6-AOP |
Washer |
2 |
|
3.5 |
GB/T 6170-M6-A2L |
Nut |
2 |
|
4 |
TG1654.435-01 |
Front driving control rod |
1 |
|
5 |
FT800.21.240 |
Pull rod front fork |
2 |
|
6 |
GB/T 882-B10×30-A0P |
Pin shaft |
2 |
|
7 |
GB/T 97.1-10-A0P |
Washer |
2 |
|
8 |
GB/T 91-3.2×20-A0P |
Pin |
2 |
|
9 |
GB/T 879.1-5×40 |
Pin |
1 |
|
10 |
GB/T 879.1-8×40 |
Pin |
1 |
|
11 |
GB/T 5786-M14×1.5×35-A3L |
Bolt |
1 |
|
12 |
GB/T 6173-M14×1.5-A3L |
Nut |
1 |
|
13 |
TG1204.435-04 |
Fork shaft seat |
1 |
|
14 |
FT65.38.165a |
Spring |
1 |
|
15 |
GB/T 308-12 |
Steel ball |
1 |
|
16 |
TG1204.435-05 |
Locating piece |
1 |
|
17 |
GB/T 5781-M6×16-A2L |
Bolt |
2 |
|
18 |
GB/T 93-6-A0P |
Washer |
2 |
|
19 |
GB/T 5783-M10×25-A3L |
Bolt |
1 |
|
20 |
TG1204.435-06 |
Handle brake rocker |
1 |
|
21 |
TG1204.435-07 |
Spacer bush |
1 |
|
22 |
TG1204.435-02 |
Handle brake long pull rod |
1 |
121
Lovol TG1254-F463K11K Wheeled Tractor

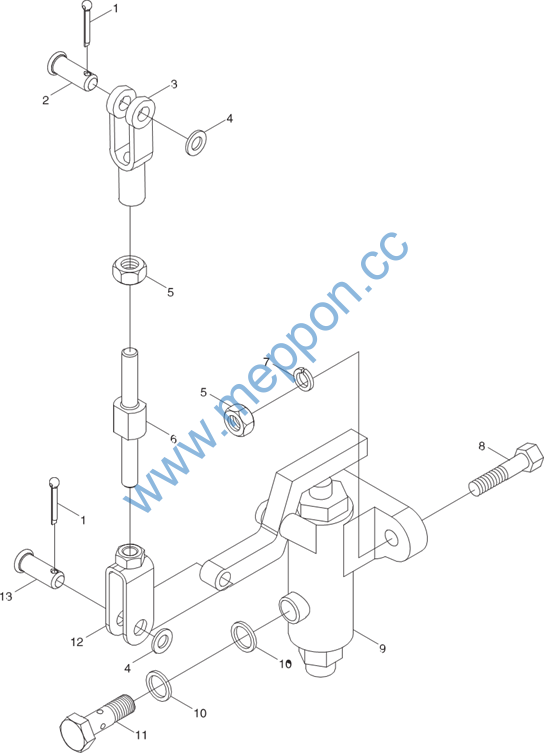

TG1204.801 Brake Valve Assembly
122
Lovol TG1254-F463K11K Wheeled Tractor
TG1204.801 Brake Valve Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TG1204.801 |
Brake valve assembly |
1 |
||
1 |
GB/T 91-3.2×20-A0P |
Cotter pin |
2 |
|
2 |
GB/T 882-B10×32 |
Pin shaft |
1 |
|
3 |
FT800.80.103 |
Pull rod front fork |
1 |
|
4 |
GB/T 97.1-10-A0P |
Flat washer |
2 |
|
5 |
GB/T 6170-M10-A3L |
1-type hex nut |
3 |
|
6 |
TG1204.801-01 |
Push rod |
1 |
|
7 |
GB/T 93-10-A0P |
Standard spring washer |
2 |
|
8 |
GB/T 5781-M10×40-A3L |
Bolt |
2 |
|
9 |
FT800.80.014 |
QFJ10/0.63 type air cut brake valve |
1 |
|
10 |
JB/T 982-14 |
Combination seal washer |
2 |
|
11 |
FT354.40E.172 |
Hollow bolt |
1 |
|
12 |
TD800.801.1 |
Connecting fork weldment |
1 |
|
13 |
GB/T 882-B10×26 |
Pin shaft |
1 |
123
Lovol TG1254-F463K11K Wheeled Tractor

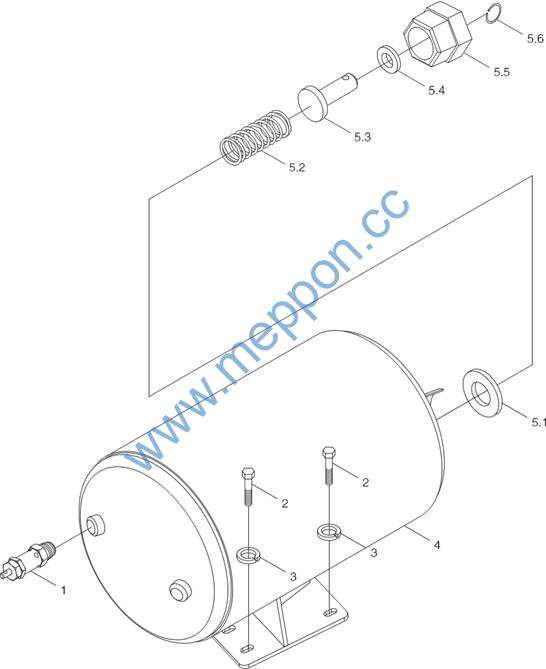

TG1204.802 Storage Air Canister Assembly
