TE250.55-1 55.1-提升器装配总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

45

150.31.105

SPRING LOCK PIN

1

2011-11_

46

TE250.55.107

UPPER PULL ROD FRONT CONNECTING PIN

1

2011-11_

47

150.55.164

CONNECTING TUBE

1

2011-11_

48

TE250.55.131

SCREW PLUG

1

2010-08_

48

TE250.55.022

VENTILATION PLUG

1

2004-01_

49

18.55.104

WASHER

1

2011-11_

5

GBT1235-22X2.4

O-RING

1

2011-11_

50

TE250.55.136



1

2011-11_

51

TE250.55.201

PIPE

1



52

GBT3452.1-30X2.65

O-SEAL RING

1

2011-11_

53

TE250.55.105

OIL DIPSTRICK PRESSURE UNIT

1

2011-11_

54

GBT5781-M6X16



1

2011-11_

55

GBT97.1-6

WASHER 6

1

2011-11_

56

YT18.54.120

FILTER MESH LOWER COVER

1

2011-11_

57

YT18.54.118-1

OIL SUCTION PIPE

1

2011-11_

58

YT18.54.122

OIL SUCTION STRAINER

1

2011-11_

59

YT18.54.123

FILTER MESH FRAMEWORK

1

2011-11_

6

YT18.55.129

ADJUSTING VALVE

1

2011-11_

60

YT18.54.119

FILTER MESH UPPER COVER

1

2011-11_

61

YT18.54.124

FILTER MESH CLOSING PIECES

1

2011-11_

62

FT254.58.138

FILTER COVER

1

2011-11_

63

FT254.58.140

OIL SUCTION CAP THREAD

1

2011-11_

64

YT18.54.125

OIL SUCTION PIPE JOINT PAPER WASHER

1

2011-11_

65

YT18.54.121

SEAL WASHER

1

2011-11_

66

GBT3452.1-20X2.65

O-SEAL RING

1

2011-11_








TE250.55-1 55.1-提升器装配总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

67

TE250.55.103-1

LIFTING SHAFT

1

2011-11_

68

TE250.55.133-1

INNER LIFTING ARM

1

2011-11_

69

GBT91-2X12

PIN

1

2011-11_

7

JB1000-M10X1X12

PLUG

1

2011-11_

70

GBT97.1-6

WASHER 6

1

2011-11_

71

GBT882-B6X50

PIN

1



72

TE250.55.106-1

SHAFT SLEEVE

1

2004-01_

72

TE250.55.114

SHAFT SLEEVE

1

2010-08_

73

TE250.55.113-1

SHAFT SLEEVE

2

2004-01_

73

TE250.55.113

SHAFT SLEEVE

2

2010-08_

74

TE250.55.105A

LIFTING SHAFT SLEEVE

2

2004-01_

74

TE250.55.111

LIFTING SHAFT SLEEVE

2

2010-08_

75

TE250.55.110

O RING

2

2011-11_

76

TE250.55.132

SHAFT SLEEVE

1

2011-11_

77

TE250.55.013

RIGHT LIFTING ARM ASSEMBLY

1

2011-11_

78

GBT97.1-12

WASHER

1

2011-11_

79

TE250.55.145

RETURN RETAINER PLATE

1

2011-11_

8

150D.55.227-2

SEAL RING

1

2011-11_

80

GBT97.1-8

WASHER

1

2011-11_

81

GBT91-2X16

PIN

3

2011-11_

82

14.55.108A

LIFTING ADJUSTING ROD

1

2011-11_

83

GBT6170-M8

NUT M8

3

2011-11_

84

TE250.55.110

O RING

1

2011-11_

85

14.55.107

LIMITING PIN SHAFT

1

2011-11_

9

25.55.109A

HEXAGON SCREW PLUG

1

2011-11_

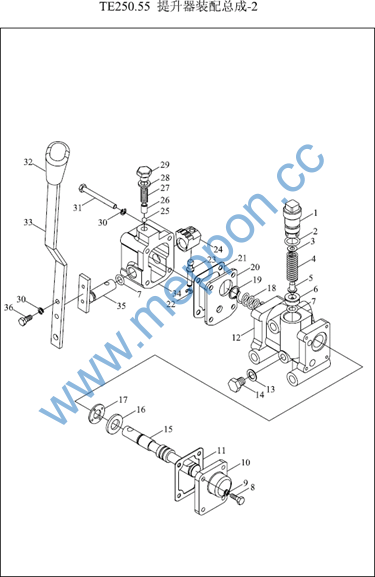

TE250.55-2 55.2-提升器装配总成-2 LIFTER INSTALLATION ASSEMBLY-7-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT250.57.128

PRESSURE PLUG

1

2011-11_

10

FT250.57.102

FRONT COVER

1

2011-11_

11

FT250.57.103

FRONT COVER PAPER GASKET

1

2011-11_

12

FT250.57.104

DISTRIBUTOR HOUSING

1

2011-11_

13

150D.55.227-2

SEAL RING

1

2011-11_

14

JB1000-M10X1X12

PLUG

1

2011-11_

15

FT250.57.113

SLIDING VALVE

1

2011-11_

16

18FP.57.120

WASHER

1

2011-11_

17

FT250.57.115

SPRING RETAINER PIECE

1

2011-11_

18

FT250.57.114

SLIDING VALVE RETURN SPRING

1

2011-11_

19

GBT894.1-15

SNAP RING

1

2011-11_

2

GBT3452.1-15X2.65G

O-SEAL RING

1

2011-11_

20

FT250.57.106

RETAINER PLATE

1

2011-11_

21

FT250.57.107

REAR COVER GASKET

2

2011-11_

22

GBT896-4

SNAP RING

1

2011-11_

23

FT250.57.120

DIAL PIN

1

2011-11_

24

FT250.57.119

LOCATING BLOCK

1

2011-11_

25

GBT308-6

BALL

1

2011-11_

25

GBT308-6

BALL

1

2011-11_

26

FT250.57.121

LOCATING SPRING SEAT

1

2011-11_

27

FT250.57.122

LOCATING SPRING

1

2011-11_

28

14FP.57.121

WASHER

1

2011-11_

28

14FP.57.121

WASHER

1

2011-11_

29

FT250.57.123

SCREW PLUG

1

2011-11_

3

FT250.57.124

ADJUSTING WASHER

1

2011-11_








TE250.55-2 55.2-提升器装配总成-2(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

30

GBT93-6

WASHER

6

2011-11_

31

GBT5782-M6X60

BOLT

4

2011-11_

32

FT65.57.013

HANDLE HEAD ASSEMBLY

1

2011-11_

32

FT65.57.013

HANDLE HEAD ASSEMBLY

1

2011-11_

33

TE300.57.101

HANDLE

1

2011-11_

34

FT250.57.108

COVER REAR

1

2011-11_

35

FT250.57.109

HANDLE SHAFT

1

2011-11_

35

FT250.57.109

HANDLE SHAFT

1

2011-11_

36

GBT5783-M6X14

BOLT

2

2011-11_

4

FT250.57.129

SAFETY VALVE SPRING

1

2011-11_

5

FT250.57.131

SAFETY VALVE CORE

1

2011-11_

6

FT250.57.101

SAFETY VALVE SEAT

1

2011-11_

7

GBT3452.1-9.5X2.65G

O-SEAL RING

2

2011-11_

8

GBT5783-M5X16

BOLT

4

2011-11_

9

GBT93-5

WASHER

4

2011-11_








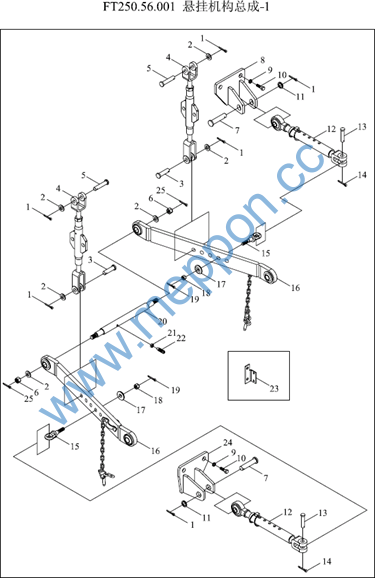

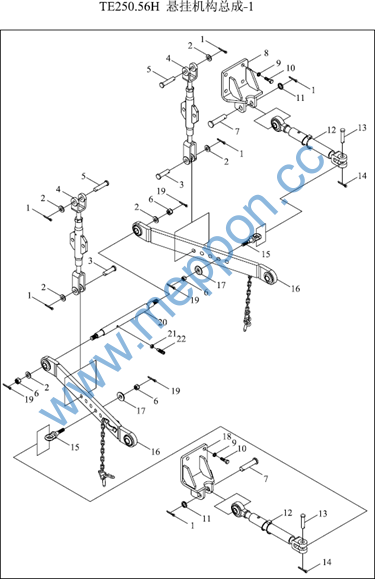

FT250.56.001-1 56.1-悬挂机构总成-1 SUSPENSION MECHANISM ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

FT250.56.148

LIMITING ROD REAR CONNECTING PIN

2

2014-07_

1

GBT91-4X28-A0P

PIN

6

2011-11_

10

GBT5783-M14X35-A3L

BOLT

4

2011-11_

11

FT250.56.103

COVER

4

2011-11_

12

FT250.56.016a

LIMIT ROD ASSEMBLY

2

2011-11_

13

GBT882-B16X55-A0P

PIN

2

2011-11_

14

GBT91-5X32-A0P

PIN

2

2011-11_

15

FT250.56.138

LIMITING ROD REAR CONNECTING PIN

2

2004-01_

15

FT250.56.138a

LIMITING ROD REAR CONNECTING PIN

2

2011-11_

16

FT250.56.013

LOWER PULL ROD ASSEMBLY

2

2011-11_

17

FT250.56.139a

ROUND BOARD

2

2011-11_

17

FT250.56.139

ROUND BOARD

2

2004-01_

18

GBT6178-M14-A3L

SLOTTED NUT

2

2011-11_

19

GBT91-3.2X28-A0P

PIN

2

2004-01_

2

GBT97.1-16-A0P

WASHER

6

2011-11_

20

FT250.56.102

LOWER PULL ROD FIXING SHAFT

1

2011-11_

21

GBT6172.1-M12-A3L

NUT

1

2011-11_

22

FT250.56.125

THRUST SCREW

1

2004-01_

22

FT250.56.125

THRUST SCREW

1

2004-01_

23

FT250.56.144

OIL PIPE BRACKET

1

2011-11_

24

FT250.56.018

LEFT LIMITING ROD BRACKET WELDMENT

1

2011-11_

25

GBT91-4X36-A0P

PIN

2

2011-11_

3

FT250.56.104

LIFTING ROD LOWER CONNECTING PIN

2

2011-11_

4

FT250.56.011

LIFTING ROD ASSEMBLY

2

2011-11_

5

FT250.56.101

LIFTING ROD UPPER CONNECTING PIN

2

2004-01_








FT250.56.001-1 56.1-悬挂机构总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

5

6

7

8

9



9

FT250.56.101a GBT6178-M16-A3L FT250.56.106 FT250.56.015 GBT93-14-A0P



GBT93-14-A0P

LIFTING ROD UPPER CONNECTING PIN NUT (PAGE81)

LIMITING ROD CONNECTING PIN

RIGHT LIMITING ROD BRACKET WELDMENT SPRING WASHER



SPRING WASHER

2

2

2

1

4



4

2008-01_

2011-11_

2011-11_

2011-11_

2011-11_



2011-11_
