TE250.56H-1 56.1-悬挂机构总成-1 SUSPENSION MECHANISM ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT91-4X28-A0P

PIN

6

2011-11_

10

GBT5783-M14X35-A3L

BOLT

8

2011-11_

11

FT250.56.103

COVER

2

2011-11_

12

TE250.56H.2

LIMIT ROD ASSEMBLY

2

2011-11_

13

GBT882-B16X55-A0P

PIN

2

2011-11_

14

GBT91-5X32-A0P

PIN

2

2011-11_

15

TE300.56-01

LIMITING ROD REAR CONNECTING PIN

2

2011-11_

16

TE250.56H.1

LOWER PULL ROD ASSEMBLY

2

2011-11_

17

TE300.56-02

ROUND BOARD

2

2011-11_

17

TE300.56-11

LIMITING ROD REAR CONNECTING PIN

2

2014-07_

18

FT250.56.018

LEFT LIMITING ROD BRACKET WELDMENT

1

2011-11_

2

GBT97.1-16-A0P

WASHER

6

2011-11_

20

FT250.56.102

LOWER PULL ROD FIXING SHAFT

1

2011-11_

21

GBT6172.1-M12-A3L

NUT

1

2011-11_

22

FT250.56.125

THRUST SCREW

1

2011-11_

22

FT250.56.125

THRUST SCREW

1

2011-11_

3

FT250.56.104

LIFTING ROD LOWER CONNECTING PIN

2

2011-11_

4

FT250.56.011

LIFTING ROD ASSEMBLY

2

2011-11_

5

FT250.56.101a

LIFTING ROD UPPER CONNECTING PIN

2

2011-11_

6

GBT6178-M16-A3L

NUT (PAGE81)

4

2011-11_

7

FT250.56.106

LIMITING ROD CONNECTING PIN

2

2011-11_

8

FT250.56.015

RIGHT LIMITING ROD BRACKET WELDMENT

1

2011-11_

9

GBT93-14-A0P

SPRING WASHER

8

2011-11_

9

GBT93-14-A0P

SPRING WASHER

8

2011-11_








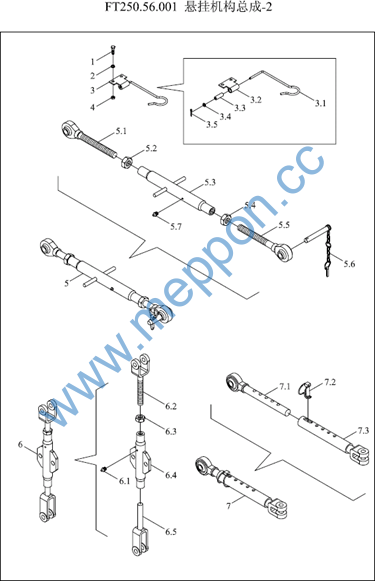

FT250.56.001-2 56.2-悬挂机构总成-2 SUSPENSION MECHANISM ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M8X16-A2L

BOLT

2

2011-11_

2

GBT93-8-AOP

SPRING WASHER

2

2011-11_

3

TE300.56.6

UPPER PULL ROD FIXED CLIP COMBINATION

1

2011-11_

3.1

TE300.56.6-02

UPPER PULL ROD FIXING CLIP

1

2011-11_

3.2

TE300.56.6-01

FIXING SEAT

1

2011-11_

3.3

TE300.56.6-03

NYLON BUSH

1

2011-11_

3.4

GBT96.1-6-A0P

WASHER

1

2011-11_

3.5

GBT91-2X14-A0P

PIN

1

2011-11_

4

GBT6170-8-A2L

NUT

2

2011-11_

5

FT250.56.012a

UPPER PULL ROD ASSEMBLY

1

2011-11_

5.1

FT250.56.017

UPPER PULL ROD FRONT ADJUSTING ROD ASSEMBLY

1

2011-11_

5.2

GBT6171-M22X1.5-A3L

NUT

1

2011-11_

5.3

FT250.56.031

ADJUSTING SCREW WELDMENT

1

2011-11_

5.4

GBT6171-M22X1.5LH-A3L

NUT

1

2011-11_

5.5

FT250.56.019

UPPER PULL ROD REAR ADJUSTING ROD ASSEMBLY

1

2011-11_

5.6

FT300.56A.113

LOCKING PIN CHAIN ASSEMBLY

1

2011-11_

6

FT250.56.011

LIFTING ROD ASSEMBLY

1

2011-11_

6.1

JBT7940.1-M6

STRAIGHT PRESSURE FILLING OIL CUP

1

2011-11_

6.2

FT250.56.107

LIFTING ROD UPPER CONNECTING FORK

1

2004-01_

6.2

FT250.56.107a

LIFTING ROD UPPER CONNECTING FORK

1

2008-01_

6.3

GBT6171-M18X1.5-A3L

NUT

1

2011-11_

6.4

FT250.56.022a

LIFTING ROD SOLENOID ASSEMBLY

1

2008-01_

6.4

FT250.56.022

LIFTING ROD SOLENOID ASSEMBLY

1

2004-01_

6.5

FT250.56.108

LIFTING ROD LOWER CONNECTING FORK

1

2004-01_

6.5

FT250.56.108a

LIFTING ROD LOWER CONNECTING FORK

1

2008-01_








FT250.56.001-2 56.2-悬挂机构总成-2(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

7

FT250.56.016a

LIMIT ROD ASSEMBLY

1

2011-11_

7.1

FT250.56.023a

EXTENSIBLE GUIDE ROD ASSEMBLY

1

2008-02_

7.1

FT250.56.023B

EXTENSIBLE GUIDE ROD ASSEMBLY

1

2011-07_

7.1

FT250.56.023

EXTENSIBLE GUIDE ROD ASSEMBLY

1

2004-01_

7.11

FT250.56.126b

SLEEVE

1

2011-07_

7.2

FT250.56.021a

LIMIT ROD LOCK PIN ASSEMBLY

1

2011-11_

7.3

FT250.56.025a

EXTENSIBLE PIPE ASSEMBLY

1

2004-01_

7.3

FT250.56.025b

EXTENSIBLE PIPE ASSEMBLY

1

2008-02_

7.7

FT250.56.129

THREAD SLEEVE

1



7.8

FT250.56.126

EXTENSIBLE GUIDE PIPE



7.9

FT250.56.126a

EXTENSIBLE GUIDE PIPE

1

2008-02_








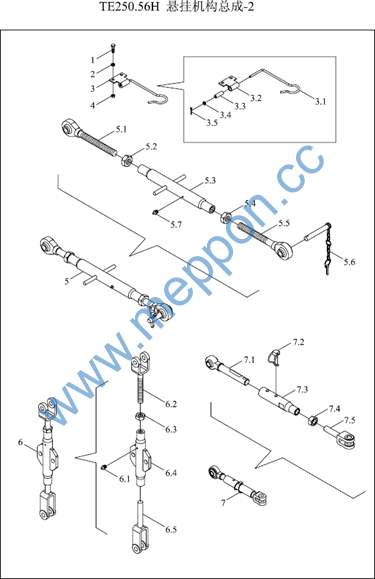

TE250.56H-2 56.2-悬挂机构总成-2 SUSPENSION MECHANISM ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M8X16-A2L

BOLT

2

2011-11_

2

GBT93-8-AOP

SPRING WASHER

2

2011-11_

3

TE300.56.6

UPPER PULL ROD FIXED CLIP COMBINATION

1

2011-11_

3.1

TE300.56.6-02

UPPER PULL ROD FIXING CLIP

1

2011-11_

3.2

TE300.56.6-01

FIXING SEAT

1

2011-11_

3.3

TE300.56.6-03

NYLON BUSH

1

2011-11_

4

GBT6170-8-A2L

NUT

2

2011-11_

5

FT250.56.012a

UPPER PULL ROD ASSEMBLY

1

2011-11_

5.1

FT250.56.017

UPPER PULL ROD FRONT ADJUSTING ROD ASSEMBLY

1

2011-11_

5.2

GBT6171-M22X1.5-A3L

NUT

1

2011-11_

5.3

FT250.56.031

ADJUSTING SCREW WELDMENT

1

2011-11_

5.4

GBT6171-M22X1.5LH-A3L

NUT

1

2011-11_

5.5

FT250.56.019

UPPER PULL ROD REAR ADJUSTING ROD ASSEMBLY

1

2011-11_

5.6

FT300.56A.113

LOCKING PIN CHAIN ASSEMBLY

1

2011-11_

5.7

JBT7940.1-M6

STRAIGHT PRESSURE FILLING OIL CUP

1

2011-11_

6

FT250.56.011

LIFTING ROD ASSEMBLY

1

2011-11_

6.1

JBT7940.1-M6

STRAIGHT PRESSURE FILLING OIL CUP

1

2011-11_

6.2

FT250.56.107a

LIFTING ROD UPPER CONNECTING FORK

1

2011-11_

6.3

TE250.56.1-02

TRAPEZOIDAL NUT TR18×2

1

2011-11_

6.4

FT250.56.022a

LIFTING ROD SOLENOID ASSEMBLY

1

2011-11_

6.5

FT250.56.108a

LIFTING ROD LOWER CONNECTING FORK

1

2011-11_

7

TE250.56H.2

LIMIT ROD ASSEMBLY

1

2011-11_

7.1

TE250.56H.2.1

EXTENSIBLE ROD BALL ASSEMBLY

1

2011-11_

7.2

FT300.56A.023

LIMITING ROD LOCK PIN ASSEMBLY

1

2011-11_

7.3

TE250.56H.2-01

EXTENSIBLE GUIDE PIPE

1

2011-11_








TE250.56H-2 56.2-悬挂机构总成-2(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

7.4

7.5

GBT6170-M22-8-A9L TE300.56.3a-02

NUT

LIMITING ROD ADJUSTING SCREW

1

1

2011-11_

2011-11_








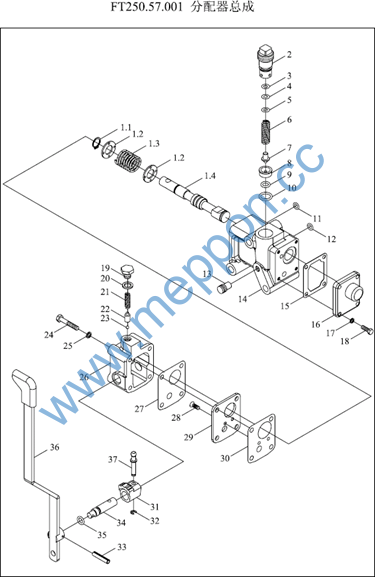

FT250.57.001 57-分配器总成



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT250.57.010

SLIDING VALVE ASSEMBLY

1

2011-11_

1.1

GBT894.1-15

SNAP RING

1

2011-11_

1.2

FT250.57.115

SPRING RETAINER PIECE

2

2011-11_

1.3

FT250.57.114

SLIDING VALVE RETURN SPRING

1

2011-11_

1.4

FT250.57.113

SLIDING VALVE

1

2011-11_

10

GBT3452.1-15X2.65G

O-SEAL RING

1

2011-11_

11

GBT3452.1-13.2X2.65G

O-SEAL RING

1

2011-11_

12

GBT3452.1-19X2.65G

O-SEAL RING

1

2011-11_

13

JBZQ4447-Z1-8

SCREW PLUG

1

2011-11_

14

FT250.57.104

DISTRIBUTOR HOUSING

1

2011-11_

15

FT250.57.103

FRONT COVER PAPER GASKET

1

2011-11_

16

FT250.57.102

FRONT COVER

1

2011-11_

17

GBT93-5

WASHER

4

2004-01_

18

GBT5781-M5X16-A2L

BOLT

4

2004-01_

19

FT250.57.123

SCREW PLUG

1

2011-11_

2

FT250.57.128

PRESSURE PLUG

1

2011-11_

20

FT250.57.124

ADJUSTING WASHER

1

2011-11_

21

FT250.57.122

LOCATING SPRING

1

2011-11_

22

FT250.57.121

LOCATING SPRING SEAT

1

2011-11_

23

GBT308-5-G100b

BALL

1

2004-01_

24

GBT5780-M6X55-A1L

BOLT

4

2004-01_

25

GBT93-6

WASHER

4

2004-01_

26

FT250.57.108

COVER REAR

1

2011-11_

27

FT250.57.107

REAR COVER GASKET

1

2011-11_

28

GBT68-M4X10-A2L



2
