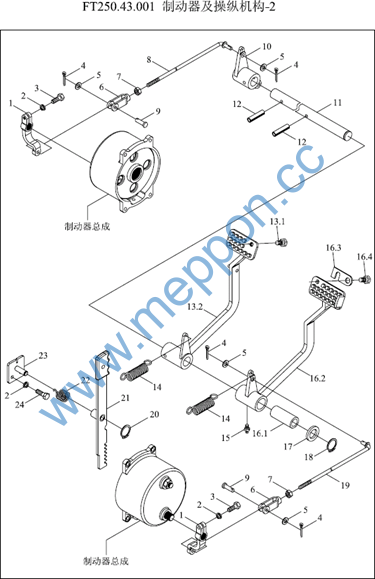

FT250.43.001-2 43-制动器及操纵机构-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT250.43.102

BRAKE ROCKER

2

2011-11_

10

FT250.43.111

LEFT BRAKE SHORT ROCKER

1

2011-11_

11

FT250.43.113

BRAKE PEDAL SHAFT

1

2011-11_

11

TE250.433-01

BRAKE PEDAL SHAFT

1

2010-10_

12

GBT879.1-8X40

PIN

2

2011-11_

13

TE250.433.1

LEFT BRAKE PEDAL ASSEMBLY

1

2010-10_

13

FT250.43.018

LEFT BRAKE PEDAL ASSEMBLY

1

2011-11_

13.1

FT65.43.132

SCREW

1

2011-11_

13.2

FT250.43.021

LEFT BRAKE PEDAL WELDMENT

1

2011-11_

14

FT200.21.101

CLUTCH PEDAL SPRING

2

2011-11_

15

JBT7940.1-M10X1

STRAIGHT PRESSURE FILLING OIL CUP

1

2011-11_

16

TE250.433.2

RIGHT BRAKE PEDAL ASSEMBLY

1

2010-10_

16

FT250.43.019

RIGHT BRAKE PEDAL ASSEMBLY

1

2011-11_

16.1

FT250.43.162

BRAKE PEDAL HUB BUSH

1

2011-11_

16.2

FT250.43.020

RIGHT BRAKE PEDAL WELDMENT

1

2011-11_

16.3

FT65.43.130

INTERLOCKING PLATE

1

2011-11_

16.4

FT65.43.132

SCREW

1

2011-11_

17

FT250.43.112

RETAINER RING

1

2011-11_

18

GBT894.1-25

RETAINER RING

1

2011-11_

19

FT250.43.013

RIGHT BRAKE PULL ROD WELDMENT

1

2011-11_

2

GBT93-8-Zn.D

WASHER

4

2004-01_

20

GBT894.1-12

SNAP RING

1

2011-11_

21

FT250.43.015

BRAKE LOCKING PLATE COMBINATION

1

2011-11_

22

FT250.43.157

TORQUE SPRING

1

2011-11_

23

FT250.43.025

FIXING PLATE WELDMENT

1

2011-11_








FT250.43.001-2 43-制动器及操纵机构-2(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

3

4

5

6

7



8

9

9

GBT5783-M8X25-8.8-A2 GBT91-3.2X16-Zn.D GBT97.1-8

FT250.43.103 GBT6170-M8-Zn.D



FT250.43.014 GBT882-B8×30-A0P GBT882-B8×30-A0P

BOLT PIN WASHER

BRAKE PULL ROD ADJUSTING FORK NUT



LEFT BRAKE PULL ROD WELDMENT PIN

PIN

2

5

5

2

2



1

2

2

2004-01_

2011-11_

2004-01_

2011-11_

2011-11_



2011-11_

2011-04_

2011-04_








FT250.44B.001 44-座椅总成 44-SEAT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5



6

7

8

9

FT250.44B.010 GBT5783-M8X25-Zn.D FT250.44.144

GBT97.1-8 GBT93-8-Zn.D



GBT6170-M8-Zn.D GBT5783-M10X20-Zn.D GBT93-10-Zn.D GBT5783-M8X20-Zn.D

SEAT BOLT

SEAT FRONT BRACKET WASHER

WASHER



NUT

HEXAGON BOLT WASHER

BOLT

1

2

1

4

4



2

2

2

2

2011-11_

2004-01_



2011-11_

2004-01_



2011-11_

2011-01_

2011-11_

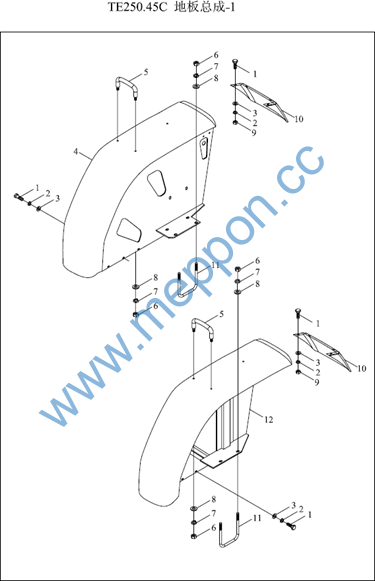

TE250.45C-1 45.1-地板总成-1 45FLOOR ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5781-M6X16-A2L

BOLT

14

2011-11_

10

TE250.45C.4

MUDGUARD REAR PIECE WELDMENT

2

2011-11_

11

FT250.47.130

U BOLT

6

2011-11_

12

TE250.45C.1

LEFT MUD GUARD WELDMENT

1

2011-11_

2

GBT93-6-A0P

SPRING WASHER

14

2011-11_

3

GBT97.1-6-A0P

WASHER

6

2011-11_

4

TE250.45C.2

RIGHT MUD GUARD WELDMENT

1

2011-11_

5

FT250.47.163

ARMREST

2

2011-11_

6

GBT6170-M12-A3L

NUT

16

2011-11_

7

GBT93-12-A0P

SPRING WASHER

16

2011-11_

8

GBT97.1-12-A0P

WASHER

16

2011-11_

9

GBT6170-M6-A2L

NUT

14

2011-11_

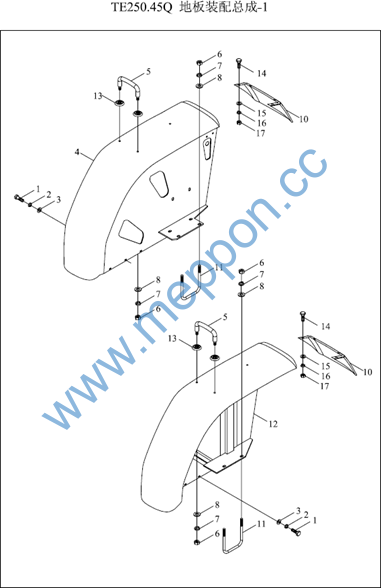

TE250.45Q-1 45.1-地板装配总成-1 45FLOOR MOUNTING ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5781-M6X16-A2L

BOLT

6

2011-11_

10

TE250.45C.4

MUDGUARD REAR PIECE WELDMENT

2

2011-11_

11

FT250.47.130

U BOLT

6

2011-11_

12

TE250.45C.1

LEFT MUD GUARD WELDMENT

1

2011-11_

13

TE250.45E.5

ARMREST WASHER UNIT

4

2011-11_

14

GBT5783-M5X16-A2L

BOLT

8

2011-11_

15

GBT97.1-5-A0P

WASHER

8

2011-11_

16

GBT93-5-A0P

WASHER

8

2011-11_

2

GBT93-6-A0P

SPRING WASHER

6

2011-11_

3

GBT97.1-6-A0P

WASHER

6

2011-11_

4

TE250.45C.2

RIGHT MUD GUARD WELDMENT

1

2011-11_

5

FT250.47.163

ARMREST

2

2011-11_

6

GBT6170-M12-A3L

NUT

16

2011-11_

7

GBT93-12-A0P

SPRING WASHER

16

2011-11_

8

GBT97.1-12-A0P

WASHER

16

2011-11_

9

GBT6170-M6-A2L

NUT

6

2011-11_

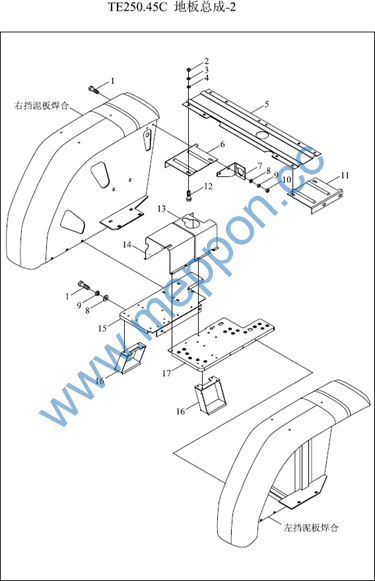

TE250.45C-2 45.2-地板总成-2 FLOOR ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5781-M10X25-A3L

BOLT

8

2011-11_

10

GBT6170-M10-A2L

NUT

4

2011-11_

11

FT250.47.272

LEFT CONNECTING PLATE

1

2011-11_

12

GBT5781-M8X20-A2L

BOLT

12

2011-11_

12

GBT5781-M8X20-A2L

BOLT

12

2011-11_

13

TE250.454-27

U-TYPE REAR PLATE

1

2011-11_

14

TE250.45C.3

U-TYPE FRONT PLATE WELDMENT

1

2011-11_

15

FT250.47.005



1

2011-11_

16

FT250.47.041

PEDAL

2

2011-11_

17

TE250.45C.5

LEFT FLOOR WELDMENT

1

2011-11_

2

GBT6170-M8-A2L

NUT

12

2011-11_

3

GBT93-8-A0P

WASHER

12

2011-11_

4

GBT97.1-8-A0P

WASHER

12

2011-11_

5

FT250.47.051

AIR CYLINDER BRACKET WELDMENT

1

2011-11_

5

FT250.47.051

AIR CYLINDER BRACKET WELDMENT

1

2011-11_

6

FT250.47.271

RIGHT CONNECTING PLATE

1

2011-11_

7

FT250.47.274

SOCKET FIXING PLATE

1

2011-11_

8

GBT97.1-10-A0P

WASHER

8

2011-11_

9

GBT93-10-A0P

WASHER

8

2011-11_
