LOVOL TD904-1F163F10K Tractor Parts Catalogue 17
Foton TD904-1F163F10K Wheeled Tractor
TD800.502 Assistant Oil Tank Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD800.502 |
Assistant Oil Tank Assembly |
1 |
||
1 |
Q67645 |
Hoop |
4 |
|
2 |
TD800.502-03a |
Main/Assistant Oil Tank Connecting Pipe |
1 |
|
3 |
TD800.502-05 |
Rubber Connecting Pipe |
2 |
|
4 |
TD800.502.3 |
Assistant Oil Tank Belt Weldment |
2 |
|
5 |
GB/T 6170-M10-A3L |
Nut |
4 |
|
6 |
TD800.502-02 |
Assistant Oil Tank Belt Rubber Piece |
2 |
|
7 |
TD800.502.1 |
Assistant Oil Tank Weldment |
1 |
|
8 |
TD800.502-01 |
Oil Tank Rubber Washer |
4 |
|
9 |
JB/T 982-16 |
Combined Seal Gasket |
1 |
|
10 |
FT65.50.226 |
Discharge Oil Screw Plug |
1 |
|
11 |
TD800.502.2 |
Assistant Oil Tank Bracket Weldment |
2 |
|
12 |
GB/T 5783-M10×20-A3L |
Bolt |
4 |
|
13 |
GB/T 93-10-A0P |
Washer |
4 |
|
14 |
TD800.505-01 |
Breath Hose |
1 |
|
15 |
Q673B23 |
Steel Strip Elastic Hoop |
2 |
185
Foton TD904-1F163F10K Wheeled Tractor

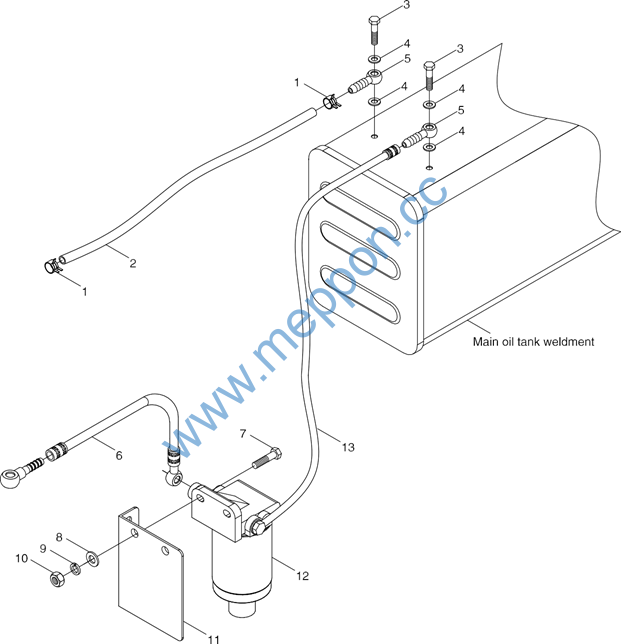

TD800.503A Oil Inlet/Outlet Pipe Assembly
186
Foton TD904-1F163F10K Wheeled Tractor
TD800.503A Oil Inlet/Outlet Pipe Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD800.503A |
Oil Inlet/Outlet Pipe Assembly |
1 |
||
1 |
Q673B155 |
Steel Strip Elastic Hoop |
2 |
|
2 |
FT700.50G.121 |
Oil Return Pipe |
1 |
|
3 |
FT65.50.106 |
Hollow Bolt |
2 |
|
4 |
JB/T 982-14 |
Combined Seal Gasket |
4 |
|
5 |
FT800A.50.162 |
Oil Pipe Joint |
1 |
|
6 |
FT800A.50P.081 |
Oil Pipe Assembly |
1 |
|
7 |
GB/T 5783-M8×30-A2L |
Bolt |
2 |
|
8 |
GB/T 97.1-8-A0P |
Washer |
2 |
|
9 |
GB/T 93-8-A0P |
Washer |
2 |
|
10 |
GB/T 6170-M8-A0P |
Nut |
2 |
|
11 |
TD800.503A-01 |
Assembly Bracket |
1 |
|
12 |
FT800A.50.061a |
Fuel Filter Assembly |
1 |
|
Filter element |
1 |
|||
13 |
TD800.503A.1 |
Outlet Pipe Assembly |
1 |
187
Foton TD904-1F163F10K Wheeled Tractor

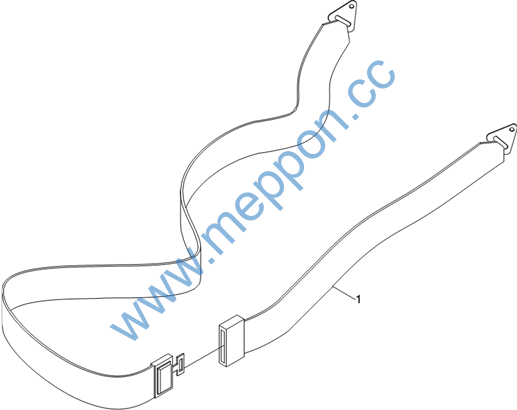

TA600.62 Safety Belt Assembly
188
Foton TD904-1F163F10K Wheeled Tractor
TA600.62 Safety Belt Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 |
TA600.62 TA600.62 |
Safety Belt Assembly Safety Belt |
1 2 |
189
Foton TD904-1F163F10K Wheeled Tractor

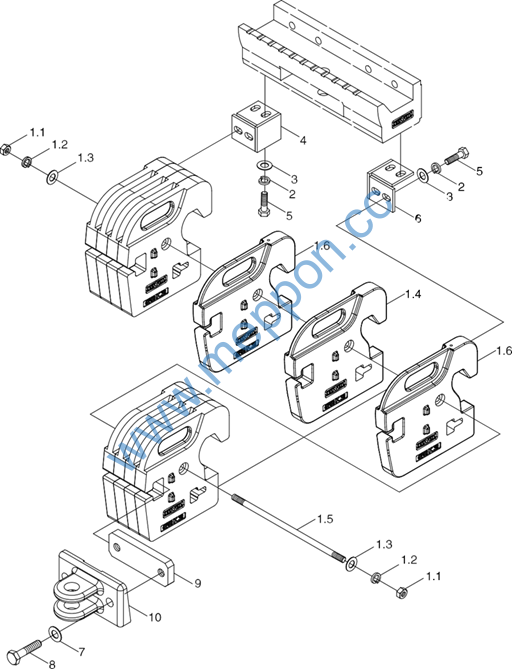

FT800.74B.001 Front Counterweight Assembly
190
Foton TD904-1F163F10K Wheeled Tractor
FT800.74B.001 Front Counterweight Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800.74B.001 |
Front counterweight assembly |
1 |
||
1 |
FT800.74B.010 |
Small front counterweight assembly |
1 |
|
1.1 |
GB/T 6170-M16-A3L |
Nut |
2 |
|
1.2 |
GB/T 93-16-A0P |
Spring washer |
2 |
|
1.3 |
GB/T 97.1-16-A0P |
Washer |
2 |
|
1.4 |
FT800.74B.106a |
Counterweight |
9 |
|
1.5 |
F700.74B.107 |
Bolt |
1 |
|
1.6 |
FT800.74B.104 |
Counterweight |
2 |
|
2 |
GB/T 93-16-A0P |
Spring washer |
8 |
|
3 |
GB/T 97.1-16-A0P |
Washer |
8 |
|
4 |
FT700.74B.010 |
Right fixing block welding assembly |
1 |
|
5 |
GB/T 5783-M16×35-A3L |
Bolt |
8 |
|
6 |
FT700.74B.011 |
Left fixing plate welding assembly |
1 |
|
7 |
GB/T 97.1-20-A0P |
Washer |
2 |
|
8 |
GB/T 5785-M20×1.5×80-A3L |
Bolt |
2 |
|
9 |
TA700.741-02 |
Towing plate |
1 |
|
10 |
FT650.74.107 |
Towing lug |
1 |
191
Foton TD904-1F163F10K Wheeled Tractor

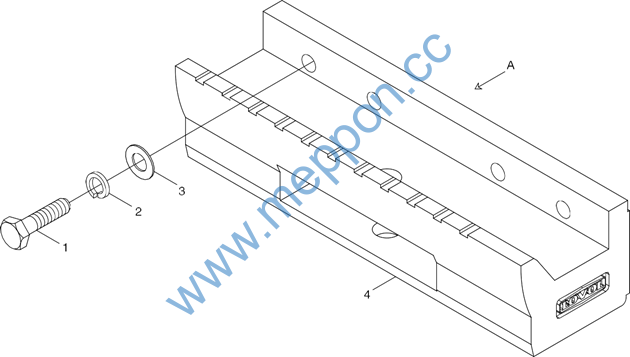

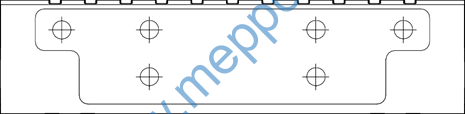

FT800.74B.002 Front Ballast Bracket Assembly
192
Foton TD904-1F163F10K Wheeled Tractor
FT800.74B.002 Front Ballast Bracket Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 4 |
FT800.74B.002 GB/T 5785-M18×1.5×70-A3L GB/T 93-18-AOP GB/T 97.1-18-AOP FT800.74B.105a |
Front Ballast Bracket Assembly Bolt Spring Washer Flat Washer Ballast Bracket |
1 6 6 6 1 |
193
Foton TD904-1F163F10K Wheeled Tractor

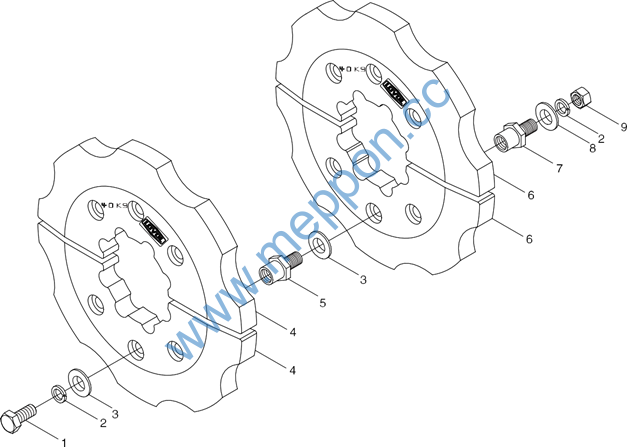

FT800.91B.001 Rear Ballast Assembly
194
Foton TD904-1F163F10K Wheeled Tractor
FT800.91B.001 Rear Ballast Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800.91B.001 |
Rear Ballast Assembly |
1 |
||
1 |
GB/T 5783-M16×40-A3L |
Bolt |
6 |
|
2 |
GB/T 93-16-AOP |
Washer |
12 |
|
3 |
FT800.34.108 |
Flat Washer |
12 |
|
4 |
FT804.91.105 |
Rear Ballast |
2 |
|
5 |
FT804.91.102 |
Ballast Screw II |
6 |
|
6 |
FT800.91B.103 |
Rear Ballast II |
2 |
|
7 |
FT804.91.101 |
Ballast Screw I |
6 |
|
8 |
GB/T 97.1-16-AOP |
Flat Washer |
6 |
|
9 |
GB/T 6170-M16-A3L |
Nut |
6 |
195
Foton TD904-1F163F10K Wheeled Tractor

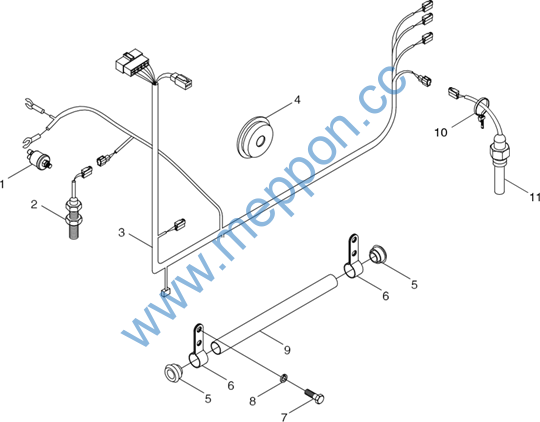

TC05481010000K Harness Installation Assembly, Engine
196
