LOVOL TD904-1F163F10K Tractor Parts Catalogue 18
Foton TD904-1F163F10K Wheeled Tractor
TC05481010000K Harness Installation Assembly, Engine
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC05481010000K |
Harness installation assembly, engine |
|||
1 |
FT65.48.073a |
Oil pressure alarm |
1 |
|
2 |
TS10481010002 |
Rotating speed sensor |
1 |
|
3 |
TC05481010001K |
Engine harness assembly |
1 |
|
4 |
FT800A.48L.101 |
Wire through ring (1) |
1 |
|
5 |
FT800.48L.107 |
Grommet |
2 |
|
6 |
FT800.48L.108a |
Fastening clip |
2 |
|
7 |
GB/T 5783-M10×20-8.8-A3L |
Hexagon head bolt |
2 |
|
8 |
GB/T 93-10-A0P |
Standard spring washer |
2 |
|
9 |
FT800.48L.106 |
Wire sleeve |
1 |
|
10 |
Q67405100 |
Plastic fastening belt |
1 |
|
11 |
TC05481010002K |
Water temperature sensor assembly |
1 |
197
Foton TD904-1F163F10K Wheeled Tractor
TC05482010000K Harness Installation Assembly, Body
198
Foton TD904-1F163F10K Wheeled Tractor
TC05482010000K Harness Installation Assembly, Body
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC05482010000K |
Harness installation assembly, body |
1 |
||
1 |
GB/T 5783-M6×12-8.8-A2L |
Hexagon head bolt |
2 |
|
2 |
FT300.48.055 |
Starting relay |
1 |
|
3 |
GB/T 97.1-6-A0P |
Plain washer |
6 |
|
4 |
GB/T 93-6-A0P |
Standard spring washer |
6 |
|
5 |
GB/T 6170-M6-8-A2L |
Hexagon nut, style 1 |
6 |
|
6 |
TC05482010001K |
Body harness assembly |
1 |
|
7 |
TF1004.482-01 |
Rubber ring |
1 |
|
8 |
TD900.482A.1 |
Left rocker switch |
1 |
|
9 |
FT65.48.652 |
Four-function rocker switch (2) |
1 |
|
10 |
TB550.482.3 |
Ignition lock |
1 |
|
11 |
TD900.482-01 |
Rubber ring |
1 |
|
12 |
GB/T 6170-M4-8-A2L |
Hexagon nut, style 1 |
2 |
|
13 |
GB/T 97.1-4-A0P |
Plain washer |
2 |
|
14 |
FT800.48B.068 |
Work lamp socket |
1 |
|
15 |
GB/T 68-M4×35-4.8-A1L |
Slotted countersunk head screw |
2 |
|
16 |
FT800A.48L.105 |
Wire ring (5) |
1 |
|
17 |
TC07482010002K |
Charger socket |
1 |
|
18 |
TD800.482.3 |
Electric box |
1 |
|
19 |
TB550.484.2 |
Brake lamp switch |
2 |
|
20 |
3724D01-201 |
Loosable tie strap |
6 |
|
21 |
GB/T 818-M6×25-4.8-A2L |
Cross recessed pan head screw |
4 |
199
Foton TD904-1F163F10K Wheeled Tractor

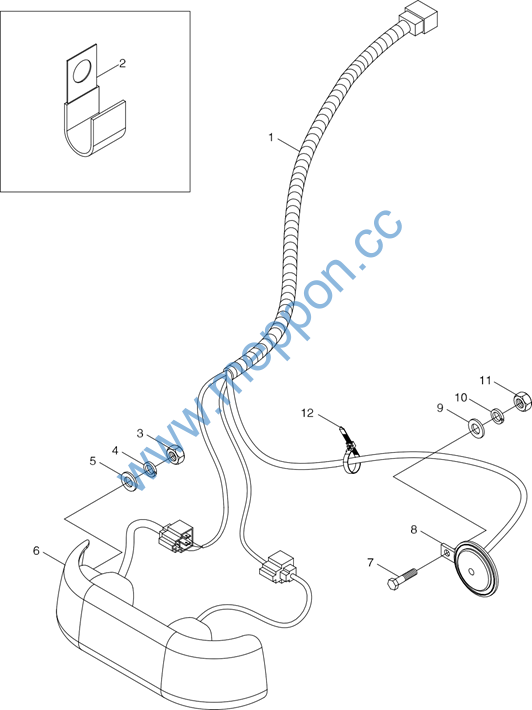

TC05483010000K Harness Installation Assembly, Front Lamp
200
Foton TD904-1F163F10K Wheeled Tractor
TC05483010000K Harness Installation Assembly, Front Lamp
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC05483010000K |
Harness installation assembly, front lamp |
1 |
||
1 |
TC05483010001K |
Front lamp harness assembly |
1 |
|
2 |
FT65.48.095 |
Harness fastening clip (1) |
2 |
|
3 |
GB/T 6170-M6-8-A2L |
Hexagon nut, style 1 |
2 |
|
4 |
GB/T 93-6-A0P |
Standard spring washer |
2 |
|
5 |
GB/T 97.1-6-A0P |
Plain washer |
2 |
|
6 |
TC07483010002K |
Front lamp combination assembly |
1 |
|
7 |
GB/T 5783-M8×16-8.8-A2L |
Hexagon head bolt |
3 |
|
8 |
FT65.48.340 |
Horn assembly |
1 |
|
9 |
GB/T 97.1-8-A0P |
Plain washer |
3 |
|
10 |
GB/T 93-8-A0P |
Standard spring washer |
3 |
|
11 |
GB/T 6170-M8-8-A2L |
Hexagon nut, style 1 |
1 |
|
12 |
Q67405100 |
Plastic fastening strap |
1 |
201
Foton TD904-1F163F10K Wheeled Tractor

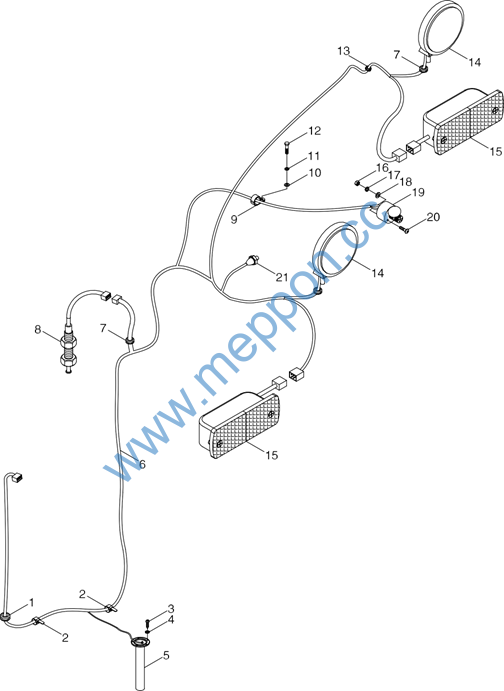

TC05484030000K Harness Installation Assembly, Rear Lamp
202
Foton TD904-1F163F10K Wheeled Tractor
TC05484030000K Harness Installation Assembly, Rear Lamp
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC05484030000K |
Harness installation assembly, rear lamp |
1 |
||
1 |
FT800A.48L.101 |
Wire through ring (1) |
1 |
|
2 |
3724D01-201 |
Loosable tie band |
6 |
|
3 |
GB/T 818-M4×10-4.8-A2L |
Cross recessed pan head screw |
5 |
|
4 |
GB/T 93-4-A0P |
Standard spring washer |
5 |
|
5 |
TD800.484.2 |
Oil amount sensor |
1 |
|
6 |
TC05484030001K |
Rear lamp harness assembly |
1 |
|
7 |
FT65.48.094 |
Wire through ring (2) |
3 |
|
8 |
FT800A.48L.088 |
Parking brake switch |
1 |
|
9 |
FT800A.48L.106 |
Harness clip |
1 |
|
10 |
GB/T 97.1-12-A0P |
Plain washer |
1 |
|
11 |
GB/T 93-12-A0P |
Standard spring washer |
1 |
|
12 |
GB/T 5783-M12×25-8.8-A3L |
Hexagon head bolt |
1 |
|
13 |
FT65.48.092 |
Wire through ring (3) |
2 |
|
14 |
TS10484010008 |
Rear lamp assembly |
2 |
|
15 |
TD800.484B.2 |
Rear taillamp assembly |
2 |
|
16 |
GB/T 6170-M5-8-A2L |
Hexagon nut, style 1 |
3 |
|
17 |
GB/T 93-5 |
Standard spring washer |
3 |
|
18 |
GB/T 97.1-5-A0P |
Plain washer |
3 |
|
19 |
TD900.484.2 |
Rear trailer socket |
1 |
|
20 |
GB/T 819.1-M5×35-4.8-A1L |
Cross recessed countersunk head screw |
3 |
|
21 |
TD800.484B.7 |
Air pressure alarm |
1 |
203
Foton TD904-1F163F10K Wheeled Tractor

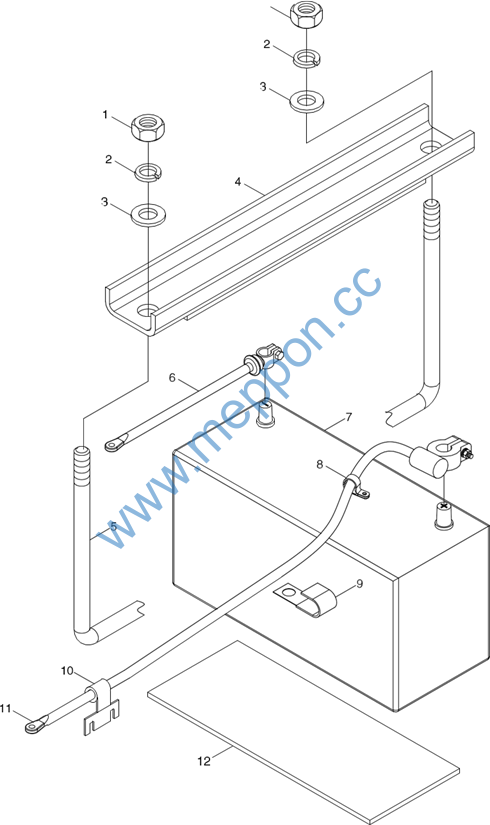

TD800.485A Battery Installation Assembly
204
Foton TD904-1F163F10K Wheeled Tractor
TD800.485A Battery Installation Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD800.485A |
Battery Installation Assembly |
1 |
||
1 |
GB/T 6170-M10-A3L |
Nut |
2 |
|
2 |
GB/T 93-10-A0P |
Washer |
2 |
|
3 |
GB/T 97.1-10-A0P |
Washer |
2 |
|
4 |
TG1204.485-02 |
Battery Pressure Plate |
1 |
|
5 |
TG1204.485-01 |
Battery U-Type Pull Rod |
1 |
|
6 |
FT65.48.091 |
Battery Iron Wire |
1 |
|
7 |
TG1204.485.1 |
Battery Assembly |
1 |
|
8 |
TD800.485A-03 |
Locking Clamp |
1 |
|
9 |
TD800.485A-04 |
Harness Fixing Clamp |
1 |
|
10 |
FT65.48.112 |
Power Wire Locking Plate |
1 |
|
11 |
FT65.48.090a |
Battery Power Wire |
1 |
|
12 |
TG1204.485-03 |
Rubber Washer (1) |
1 |
205
Foton TD904-1F163F10K Wheeled Tractor

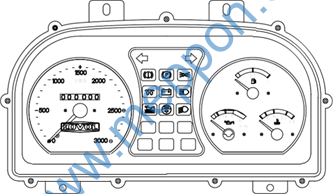

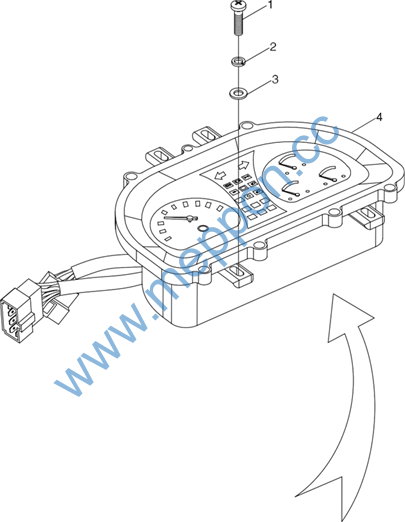

TC07487020000K Combination Instrument Assembly
206
Foton TD904-1F163F10K Wheeled Tractor
TC07487020000K Combination Instrument Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 4 |
TC07487020000K GB/T 818-M6×16-4.8-A2L GB/T 93-6-A0P GB/T 96.1-6-A0P TC07487020001K |
Combination Instrument Assembly Cross recessed pan head screw Standard spring washer Big washer Compound instrument assembly |
1 4 4 4 1 |
207
