LOVOL TD904-1F163F10K Tractor Parts Catalogue 16
Foton TD904-1F163F10K Wheeled Tractor
TD800.471A Engine Hood Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD800.471A |
Engine hood assembly |
1 |
||
1 |
FT800B.47.016 |
Engine hood hinge assembly |
1 |
|
1.1 |
GB/T 91-5×32-A0P |
Split pin |
2 |
|
1.2 |
GB/T 97.1-16-A0P |
Washer |
2 |
|
1.3 |
FT800B.47B.162 |
Lower mount of hinge |
1 |
|
1.4 |
GB/T 5782-M12×45-A3L |
Bolt |
3 |
|
1.5 |
FT800B.47.060a |
Lower bracket welding of engine hood |
1 |
|
1.6 |
GB/T 97.1-12-A0P |
Washer |
3 |
|
1.7 |
GB/T 93-12-A0P |
Washer |
3 |
|
1.8 |
GB/T 6170-M12-A3L |
Nut |
3 |
|
1.9 |
FT800B.47B.161 |
Upper mount of hinge |
2 |
|
1.10 |
GB/T 882-B16×90-A0P |
Pin |
2 |
|
1.11 |
GB/T 5783-M10×40-A3L |
Bolt |
2 |
|
1.12 |
GB/T 6170-M10-A3L |
Nut |
2 |
|
2 |
GB/T 96.1-10-A0P |
Large washer |
6 |
|
3 |
GB/T 93-10-A0P |
Standard spring washer |
3 |
|
4 |
GB/T 5783-M10×45-8.8-A3L |
Hexagon head bolt |
2 |
|
5 |
GB/T 5783-M10×30-8.8-A3L |
Hexagon head bolt |
1 |
|
6 |
GB/T 5783-M12×30-8.8-A3L |
Hexagon head bolt |
3 |
|
7 |
GB/T 93-12-A0P |
Standard spring washer |
5 |
|
8 |
GB/T 96.1-12-A0P |
Large washer |
5 |
|
9 |
GB/T 6170-M12-8-A3L |
Hexagon nut, type 1 |
2 |
173
Foton TD904-1F163F10K Wheeled Tractor

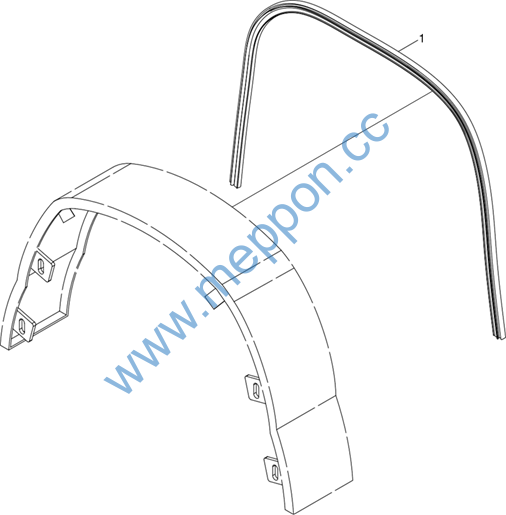

TD800.472B Bonnet Low Plate Assembly
174
Foton TD904-1F163F10K Wheeled Tractor
TD800.472B Bonnet Low Plate Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 |
TD800.472B FT800B.47.241 |
Bonnet lower plate assembly Bonnet lower plate seal strip |
1 1 |
175
Foton TD904-1F163F10K Wheeled Tractor

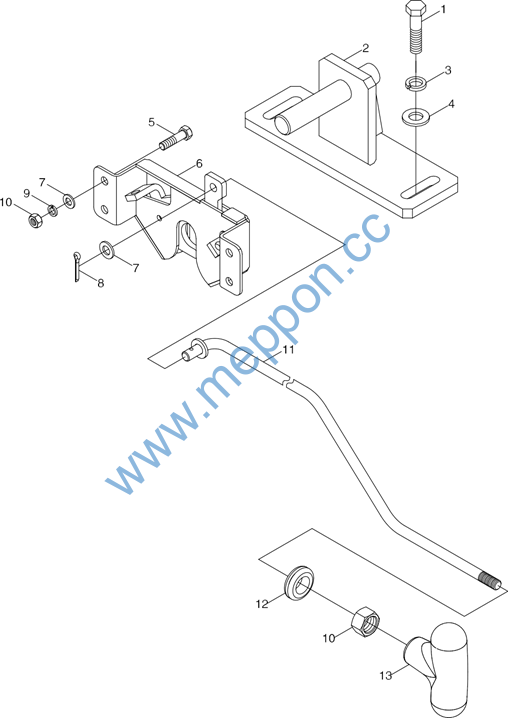

TD800.474B Bonnet Lock Control Assembly
176
Foton TD904-1F163F10K Wheeled Tractor
TD800.474B Bonnet Lock Control Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD800.474B |
Bonnet lock control assembly |
1 |
||
1 |
GB/T 5783-M8×30-8.8-A3L |
Bolt |
2 |
|
2 |
TD800.474B.4 |
Bonnet lock cylinder Weldment |
1 |
|
3 |
GB/T 93-8-A0P |
Washer |
2 |
|
4 |
GB/T 96.1-8-A0P |
Washer |
2 |
|
5 |
GB/T 5783-M6×20-8.8-A2L |
Bolt |
4 |
|
6 |
TG1654.471A.2.1-01 |
Bonnet lock |
1 |
|
7 |
GB/T 97.1-6-A0P |
Washer |
5 |
|
8 |
GB/T 91-1.6×32-A0P |
Cotter pin |
1 |
|
9 |
GB/T 93-6-A0P |
Washer |
5 |
|
10 |
GB/T 6170-M6-8-A2L |
Nut |
5 |
|
11 |
TD800.474B.2 |
Pull rod weldment |
1 |
|
12 |
TB450.473-02 |
Rubber ring |
1 |
|
13 |
FT800A.47.056 |
Handle assembly |
1 |
177
Foton TD904-1F163F10K Wheeled Tractor

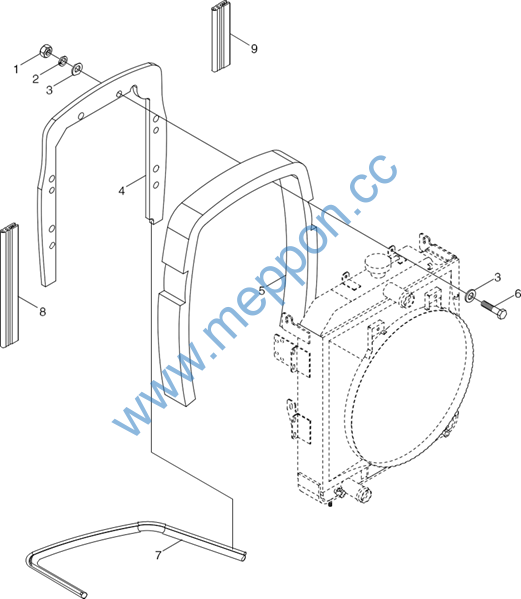

TD800.475B Bonnet Seal Installation Assembly
178
Foton TD904-1F163F10K Wheeled Tractor
TD800.475B Bonnet Seal Installation Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD800.475B |
Bonnet seal installation assembly |
1 |
||
1 |
GB/T 6170-M6-A2L |
Nut |
10 |
|
2 |
GB/T 93-6-A0P |
Washer |
10 |
|
3 |
GB/T 97.1-6-A0P |
Washer |
20 |
|
4 |
TD800.475B-05 |
Water tank seal plate |
1 |
|
5 |
TD800.475B-01 |
Water tank seal block |
1 |
|
6 |
GB/T 5783-M6×20-A2L |
Bolt |
10 |
|
7 |
TD800.475B-06 |
Seal pressure piece |
1 |
|
8 |
TD800.475B-04 |
Seal piece |
1 |
|
9 |
TD800.475B-07 |
Seal pressure piece 1 |
1 |
179
Foton TD904-1F163F10K Wheeled Tractor

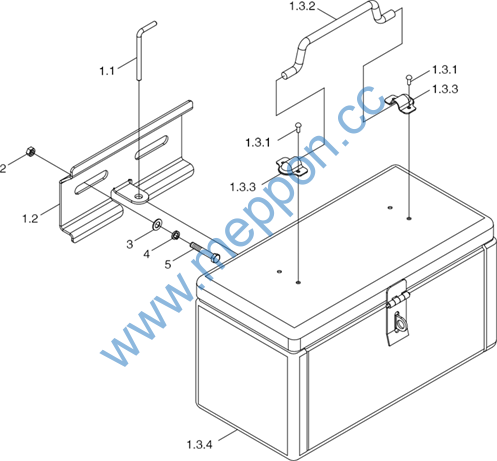

FT300.49.001 Tool Box Assembly
180
Foton TD904-1F163F10K Wheeled Tractor
FT300.49.001 Tool Box Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT300.49.001 |
Tool box assembly |
1 |
||
1 |
FT300.49.012 |
Tool box supply assembly |
1 |
|
1.1 |
FT65.49.102 |
Latch |
1 |
|
1.2 |
FT65.49.103 |
Fixing support plate |
1 |
|
1.3 |
TB400.49.1.1 |
Tool box welding and riveting assembly |
1 |
|
1.3.1 |
GB/T 867-4×8 |
Round head rivet |
4 |
|
1.3.2 |
FT65.49.115 |
Handle |
1 |
|
1.3.3 |
FT65.49.101 |
Handle seat |
2 |
|
1.3.4 |
FT300.49.012 |
Tool box welding assembly |
1 |
|
2 |
GB/T 6170-M12-8-A3L |
Type 1 hexagon nut |
2 |
|
3 |
GB/T 97.1-12-A0P |
Flat washer |
2 |
|
4 |
GB/T 93-12-A0P |
Standard spring washer |
2 |
|
5 |
GB/T 5783-M12×35-8.8-A3L |
Hexagon head bolt |
2 |
181
Foton TD904-1F163F10K Wheeled Tractor
TD800.501A Main Oil Tank Assembly
182
Foton TD904-1F163F10K Wheeled Tractor

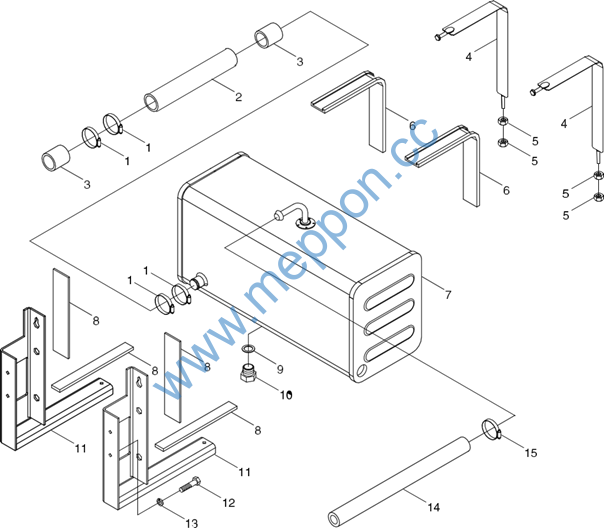

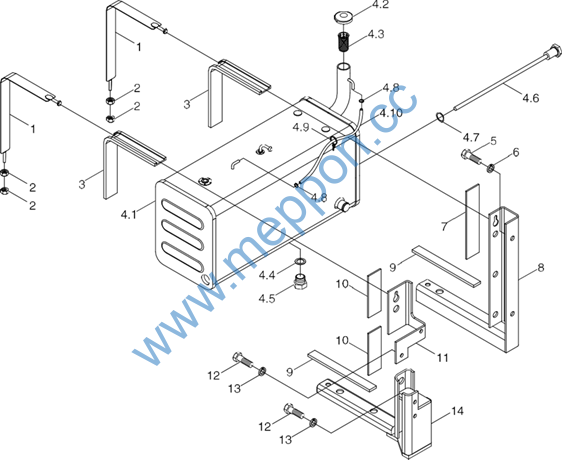

TD800.501A Main Oil Tank Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD800.501A |
Main Oil Tank Assembly |
1 |
||
1 |
FT800A.50.051 |
Main Oil Tank Belt Weldment |
2 |
|
2 |
GB/T 6170-M10-A3L |
Nut |
4 |
|
3 |
FT800A.50.209 |
Main Oil Tank Belt Rubber Piece |
2 |
|
4 |
TD800.501A.1 |
Main Oil Tank Assembly |
1 |
|
4.1 |
TD800.501A.1.2 |
Main Oil Tank Weldment |
1 |
|
4.2 |
TD800.501A.1.1 |
Oil Tank Cover |
1 |
|
4.3 |
FT300.50.015 |
Filter Screen Assembly |
1 |
|
4.4 |
JB/T 982-16 |
Combined Seal Gasket |
1 |
|
4.5 |
FT65.50.226 |
Discharge Oil Screw Plug |
1 |
|
4.6 |
TD800.501.1.1 |
Oil suction pipe weldment |
1 |
|
4.7 |
JB/T 982-22 |
Compound sealing washer |
1 |
|
4.8 |
Q67627 |
B worm drive type hose hoop |
2 |
|
4.9 |
Q67405300 |
Plastic fastening belt |
3 |
|
4.10 |
TD800.501A.1-01 |
Breathing hose |
1 |
|
5 |
GB/T 5783-M16×35-A3L |
Bolt |
2 |
|
6 |
GB/T 93-16-A0P |
Washer |
2 |
|
7 |
FT800A.50.207 |
Main Oil Tank Rubber Washer (1) |
1 |
|
8 |
TD800.501.2 |
Main Oil Tank Front Bracket Weldment |
1 |
|
9 |
TD800.502-01 |
Oil Tank Rubber Washer |
2 |
|
10 |
TD800.501-05 |
Oil Tank Short Rubber Washer |
2 |
|
11 |
TD800.501.3 |
UpperBracket Weldment |
1 |
|
12 |
GB/T 5783-M10×20-A3L |
Bolt |
4 |
|
13 |
GB/T 93-10-A0P |
Washer |
4 |
|
14 |
TD800.501.4 |
Lower Bracket Weldment |
1 |
183
Foton TD904-1F163F10K Wheeled Tractor
TD800.502 Assistant Oil Tank Assembly
