LOVOL TD904-1F163F10K Tractor Parts Catalogue 13
Foton TD904-1F163F10K Wheeled Tractor

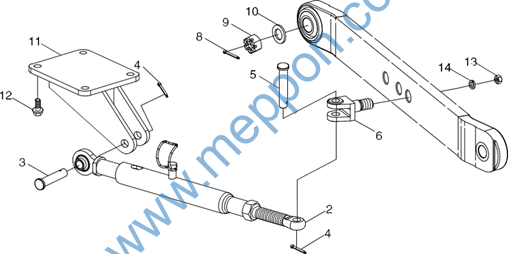

FT800.56A.001 Hitch Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800.56A.001 |
Hitch assembly |
1 |
||
1 |
FT800.56A.017 |
Upper pull rod assembly |
1 |
|
1.1 |
TD800.56A.1.1 |
Front connecting pin assembly of upper pull rod |
1 |
|
1.2 |
FT800.56.025 |
Front adjusting screw extrusion assembly of upper pull rod |
1 |
|
1.3 |
FT800.56.024 |
Adjusting solenoid handle welded assembly |
1 |
|
1.4 |
FT800.56.029 |
Upper pull rod lock nut assembly |
1 |
|
1.5 |
FT800.56.023 |
Rear adjusting screw extrusion assembly of upper pull rod |
1 |
|
1.6 |
FT800.56.027 |
Upper pull rod pin and lock pin assembly |
1 |
|
2 |
SPL-CO-M16-F3 |
Hex. flange nut |
4 |
|
3 |
FT800.56A.101a |
Upper pull rod support |
1 |
|
4 |
GB/T 899-M16×65-8.8-A3L |
Stud |
4 |
137
Foton TD904-1F163F10K Wheeled Tractor

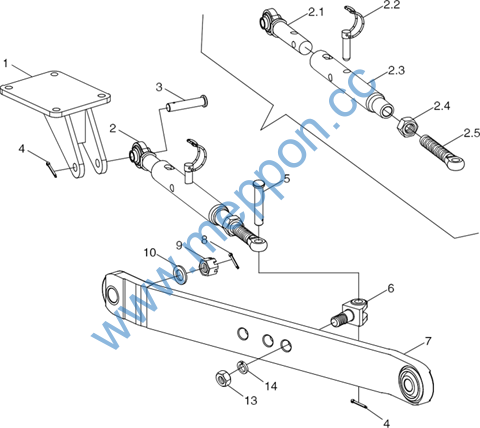

FT800.56A.001 Hitch Assembly-2
138
Foton TD904-1F163F10K Wheeled Tractor
FT800.56A.001 Hitch Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800.56A.001 |
Hitch assembly |
1 |
||
1 |
FT800.56.026 |
Right limit rod clevis welded assembly |
1 |
|
2 |
FT800.56.011a |
Limit rod assembly |
2 |
|
2.1 |
FT800.56.018 |
Limit rod riveting assembly |
2 |
|
2.2 |
FT800.56.019 |
Limit rod lock pin assembly |
2 |
|
2.3 |
FT800.56.036 |
Limit rod guide pipe welding |
2 |
|
2.4 |
FT800.56.264 |
Trapezoidal nut |
2 |
|
2.5 |
FT800.56.107 |
Adjustment screw |
2 |
|
3 |
FT800.56.101 |
Pin |
2 |
|
4 |
GB/T 91-4×50-A0P |
Split pin |
4 |
|
5 |
FT800.56.103 |
Pin |
2 |
|
6 |
FT800.56.104 |
Limit rod bolt |
2 |
|
7 |
FT800.56A.012a |
Lower pull rod assembly |
2 |
|
8 |
GB/T 91-5×40-AOP |
Split pin |
2 |
|
9 |
GB/T 9459-M24×2-8.8-A3L |
Thin hexagon slotted nut |
2 |
|
10 |
GB/T 95-24-AOP |
Plain washer |
2 |
|
11 |
FT800.56.014 |
Left limit rod clevis welded assembly |
1 |
|
12 |
GB/T 16674.1-M16×35-10.9-A3L |
Hexagon flange bolt |
8 |
|
13 |
GB/T 6171-M24×2-8-A3L |
Hexagon nut-type 1 |
2 |
|
14 |
GB/T 93-24-A0P |
Standard spring washer |
2 |
139
Foton TD904-1F163F10K Wheeled Tractor

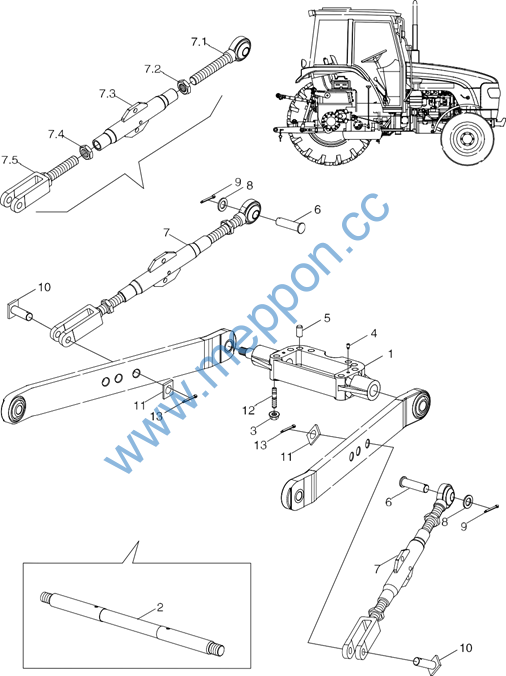

FT800.56A.001 Hitch Assembly-3
140
Foton TD904-1F163F10K Wheeled Tractor
FT800.56A.001 Hitch Assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800.56A.001 |
Hitch assembly |
1 |
||
1 |
FT800.56.112d |
Lower pull rod bracket |
1 |
|
2 |
FT800.56.102d |
Lower pull rod supporting rod |
1 |
|
3 |
SPL-CO-M16-F3 |
Hex. flange nut |
6 |
|
4 |
GB/T 72-M8×16-14H-A2L |
Slotted cone end positioning screw |
2 |
|
5 |
GB/T 119.1-20m6×35-A0P |
Cylindrical pin |
2 |
|
6 |
FT800.56.124 |
Pin |
2 |
|
7 |
FT800.56A.015a |
Lifting lever assembly |
2 |
|
7.1 |
FT800.56.020a |
Upper screw riveting assembly |
2 |
|
7.2 |
FT800.56.265 |
Trapezoidal nutTr30×3 |
2 |
|
7.3 |
FT800.56A.042 |
Lifting lever guide pipe welding |
2 |
|
7.4 |
FT800.56A.264 |
Left -hand trapezoid nut Tr30×3 |
2 |
|
7.5 |
FT800.56A.040 |
Lower clevis component of lifting lever |
2 |
|
8 |
FT800.56A.262 |
Washer |
2 |
|
9 |
GB/T 91-5×50-A0P |
Split pin |
2 |
|
10 |
FT800.56A.041 |
Lift rod rear connecting pin welding |
2 |
|
11 |
FT800.56A.261 |
Baffle(II) |
2 |
|
12 |
GB/T 899-GM16-M16×95-10.9-A3L |
Stud |
6 |
|
13 |
GB/T 91-4×50-A0P |
Split pin |
2 |
141
Foton TD904-1F163F10K Wheeled Tractor

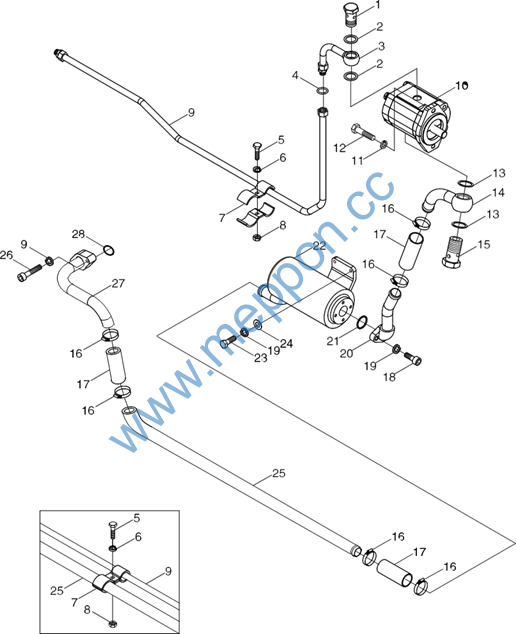

TD924.581 Oil Pump/Pine/Filter Assembly
142
Foton TD904-1F163F10K Wheeled Tractor
TD924.581 Oil Pump/Pine/Filter Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD924.581 |
Oil pump/pine/filter assembly |
1 |
||
1 |
FT750.58A.101 |
Hollow bolt-1 |
1 |
|
2 |
JB/T 982-27 |
Assembled seal washer |
2 |
|
3 |
TD924.581.1 |
Oil pump outlet pipe weldment |
1 |
|
4 |
TS09580020006 |
O-ring 12×2-L15-L16-S16 |
1 |
|
5 |
GB/T 5783-M6×25-8.8-A2L |
Hex bolt |
3 |
|
6 |
GB/T 93-6-A0P |
Standard spring washer |
3 |
|
7 |
FT650.58.060 |
Oil pipe clip and gasket paste |
6 |
|
8 |
GB/T 6170-M6-8-A2L |
Type 1 hex nut |
3 |
|
9 |
TD924.581.2 |
High-pressure oil pipe assembly |
1 |
|
10 |
FT800.58C.012 |
Gear pump |
1 |
|
11 |
GB/T 93-10-A0P |
Standard spring washer |
2 |
|
12 |
GB/T 70.1-M10×30-8.8-A3L |
Hexagon socket head cap screw |
2 |
|
13 |
JB/T 982-33 |
Assembled seal washer |
2 |
|
14 |
FT750.58A.050 |
Oil suction short pipe weldment 2 |
1 |
|
15 |
FT750.58A.102 |
Hollow bolt-2 |
1 |
|
16 |
Q67645 |
B type worm drive type hose clamp |
6 |
|
17 |
FT650.58.105 |
Hose |
3 |
|
18 |
GB/T 70.1-M8×25-8.8-A2L |
Hexagon socket head cap screw |
2 |
|
19 |
GB/T 93-8-A0P |
Standard spring washer |
6 |
|
20 |
FT750.58.040 |
Oil suction short pipe weldment 1 |
1 |
|
21 |
GB/T 3452.1-26.5×2.65G |
Hydraulic pneumatic O-ring |
1 |
|
22 |
FT750.58A.080 |
Oil filter assembly |
1 |
|
23 |
GB/T 5783-M8×25-8.8-A2L |
Hex bolt |
2 |
|
24 |
GB/T 97.1-8-A0P |
Flat washer |
2 |
|
25 |
FT800.58C.103 |
Oil suction long pipe |
1 |
|
26 |
GB/T 70.1-M8×30-8.8-A2L |
Hexagon socket head cap screw |
2 |
|
27 |
FT800.58C.040 |
Oil suction short pipe weldment |
1 |
|
28 |
GB/T 3452.1-32.5×2.65G |
Hydraulic pneumatic O-ring |
1 |
143
Foton TD904-1F163F10K Wheeled Tractor

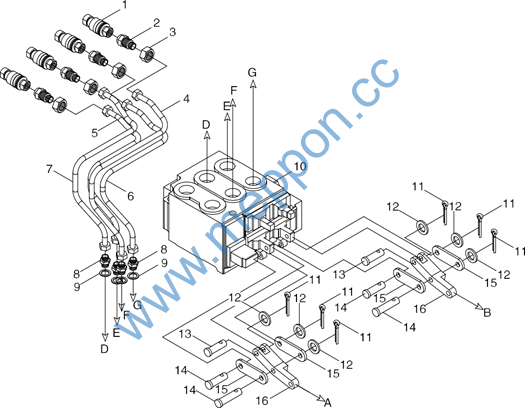

TD924.582B Hydraulic System Assembly-1
144
Foton TD904-1F163F10K Wheeled Tractor
TD924.582B Hydraulic System Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD924.582B |
Hydraulic system assembly |
1 |
||
1 |
FT354.58A.030 |
Quick change coupler |
4 |
|
2 |
TD920.582B-01 |
Oil pipe connector (British system) |
4 |
|
3 |
GB/T 6173-M27×2-05-A3L |
Hexagon thin nut |
4 |
|
4 |
TD924.582A.4 |
Oil output pipe welding-1-2 |
1 |
|
5 |
TD924.582A.5 |
Oil output pipe welding-2-1 |
1 |
|
6 |
TD924.582A.6 |
Oil output pipe welding-2-2 |
1 |
|
7 |
TD924.582A.3 |
Oil output pipe welding-1-1 |
1 |
|
8 |
GB/T 3733-L14A |
Straight-through joint |
4 |
|
9 |
JB/T 982-18 |
Composite seal washer |
6 |
|
10 |
FT654.58.020 |
Multi-way valve assembly |
1 |
|
11 |
GB/T 91-2×12-A0P |
Split pin |
10 |
|
12 |
GB/T 97.1-6-A0P |
Plain washer |
10 |
|
13 |
GB/T 882-B6×24-A0P |
Pin |
2 |
|
14 |
GB/T 882-B6×28-A0P |
Pin |
8 |
|
15 |
FT654.58.103 |
Connecting plate |
4 |
|
16 |
FT804A.58L.132 |
Rocker arm |
2 |
|
17 |
GB/T 68-M4×10-4.8-A2L |
Slotted countersunk head screw |
3 |
|
18 |
TB504.552-04 |
Head, handle |
3 |
|
19 |
GB/T 6170-M8-LH-8-A2L |
Hexagon nut, type 1 |
2 |
|
20 |
FT804A.58L.136 |
Left -hand pull rod fork |
2 |
|
21 |
FT904A.58.120 |
Multi-way valve control operating rod |
2 |
|
22 |
FT804A.58L.133 |
Right-hand pull rod fork |
2 |
|
23 |
GB/T 6170-M8-8-A2L |
Hexagon nut, type 1 |
2 |
145
Foton TD904-1F163F10K Wheeled Tractor

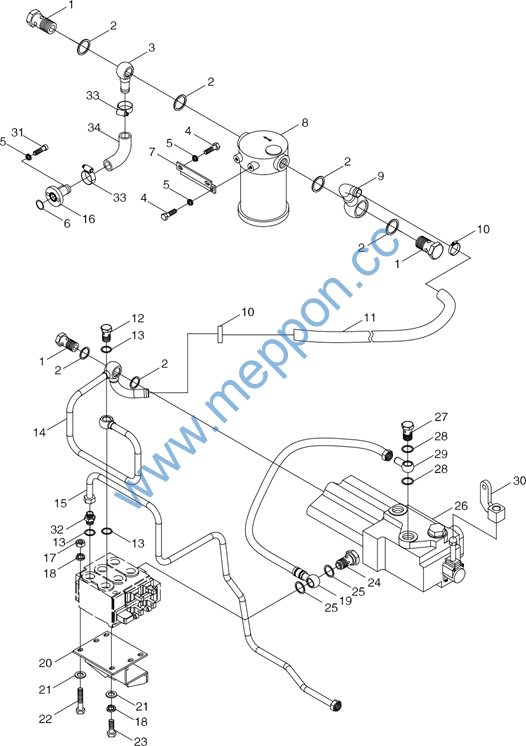

TD924.582B Hydraulic System Assembly-2
146
Foton TD904-1F163F10K Wheeled Tractor
TD924.582B Hydraulic System Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD924.582B |
Hydraulic system assembly |
1 |
||
1 |
FT65.55.139 |
Hollow bolt |
3 |
|
2 |
JB/T 982-27 |
Washer |
6 |
|
3 |
TA820.582.1 |
Oil outlet pipe assembly of return oil filter 1 |
1 |
|
4 |
GB/T 5783-M8×25-8.8-A2L |
Hexagon head bolt |
4 |
|
5 |
GB/T 93-8-A0P |
Washer |
6 |
|
6 |
GB/T 3452.1-22.4×1.80G |
O-ring |
1 |
|
7 |
FT800.58A.105 |
Return oil filter bracket |
1 |
|
8 |
FT800.58A.040a |
Return oil filter assembly |
1 |
|
9 |
FT800.58A.037 |
Oil inlet pipe assembly of return oil filter |
1 |
|
10 |
Q67645 |
Hose hoop |
2 |
|
11 |
FT904A.58.890 |
Oil return hose |
1 |
|
12 |
FT654.58.107 |
Hollow bolt-1 |
1 |
|
13 |
JB/T 982-22 |
Washer |
3 |
|
14 |
FT904A.58.031 |
Return oil pipe welding |
1 |
|
15 |
TD924.582A.1 |
Multi-way valve oil inlet pipe assembly |
1 |
|
16 |
TD924.582.9 |
1 |
||
17 |
GB/T 6170-M10-10-A3L |
Nut |
3 |
|
18 |
GB/T 93-10-A0P |
Washer |
9 |
|
19 |
TD924.582A.2 |
Distributor oil inlet pipe assembly |
1 |
|
20 |
FT904A.58.012 |
Multi-way valve bracket welding |
1 |
|
21 |
GB/T 95-10-A0P |
Washer |
4 |
|
22 |
GB/T 5782-M10×70-8.8-A2L |
Hexagon head bolt |
3 |
|
23 |
GB/T 5783-M10×20-8.8-A3L |
Hexagon head bolt |
1 |
|
24 |
FT654.58.112 |
Hollow bolt-3 |
1 |
|
25 |
JB/T 982-20 |
Washer |
2 |
|
26 |
FT800.58A.010 |
FP-L15E single valve distributor |
1 |
|
27 |
FT704.58J.112 |
Hollow bolt |
1 |
|
28 |
JB/T 982-24 |
Washer |
2 |
|
29 |
TD924.582A-01 |
Connector |
1 |
|
30 |
FT904A.58.080a |
Connecting sleeve welding |
1 |
|
31 |
GB/T 70.1-M8×25-8.8-A2L |
Hexagon socket cap head screw |
2 |
|
32 |
GB/T 3733-S16A |
Body,bite type end straight pipe joint |
1 |
|
33 |
Q67638 |
Type B worm drive hose clamp |
2 |
|
34 |
TD924.582.8 |
Oil return hose |
1 |
147
Foton TD904-1F163F10K Wheeled Tractor
TD924.582B Hydraulic System Assembly-3
148
