LOVOL TD904-1F163F10K Tractor Parts Catalogue 14
Foton TD904-1F163F10K Wheeled Tractor
TD924.582B Hydraulic System Assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD924.582B |
Hydraulic system assembly |
1 |
||
1 |
FT650.40.102 |
Hollow bolt |
6 |
|
2 |
JB/T 982-20 |
Washer |
14 |
|
3 |
TD924.582.4 |
Oil cylinder inlet pipe assembly-1 |
2 |
|
4 |
TD924.582.6 |
Slow lowering valve assembly |
2 |
|
5 |
TD924.582.5 |
Oil cylinder inlet pipe assembly-2 |
2 |
|
6 |
GB/T 3733-L16A |
Body,bite type end straight pipe joint |
4 |
|
7 |
FT800.58A.107a |
Oil pipe connecting block |
1 |
|
8 |
GB/T 93-8-A0P |
Washer |
4 |
|
9 |
GB/T 5782-M8×65-8.8-A2L |
Hexagon head bolt |
2 |
|
10 |
GB/T 5782-M8×45-8.8-A2L |
Hexagon head bolt |
2 |
|
11 |
TD924.582.1 |
Distributor oil outlet pipe assembly 2 |
1 |
|
12 |
FT904A.58.030 |
Distributor bracket welding |
1 |
|
13 |
GB/T 93-10-A0P |
Washer |
5 |
|
14 |
GB/T 5783-M10×25-8.8-A3L |
Bolt |
3 |
|
15 |
TD924.582.2 |
Distributor oil outlet pipe assembly 1 |
1 |
|
16 |
GB/T 70.1-M10×25-8.8-A3L |
Hexagon socket cap head screw |
2 |
149
Foton TD904-1F163F10K Wheeled Tractor

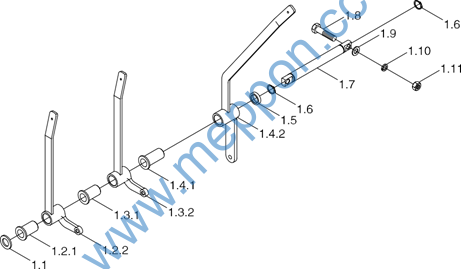

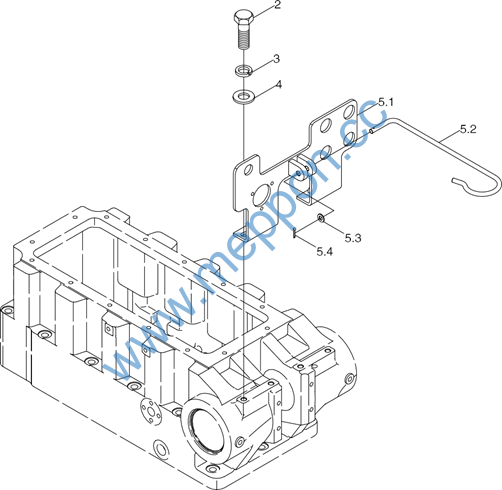

TD924.582B Hydraulic System Assembly-4
150
Foton TD904-1F163F10K Wheeled Tractor
TD924.582B Hydraulic System Assembly-4
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD924.582B |
Hydraulic system assembly |
1 |
||
1 |
TD904A.582.1 |
Control mechanism assembly |
1 |
|
1.1 |
TF1004.583A.9-03 |
Washer 18 |
1 |
|
1.2 |
TD904A.582.1.2 |
Control handle pressing assembly |
1 |
|
1.2.1 |
TD800.57C.1.2-01 |
Nylon sleeve2 |
1 |
|
1.2.2 |
FT904A.58.051a |
Control lever welding-1 |
1 |
|
1.3 |
TD904A.582.1.3 |
Control handle pressing assembly |
1 |
|
1.3.1 |
TD800.57C.1.2-01 |
Nylon sleeve2 |
1 |
|
1.3.2 |
FT904A.58.052a |
Control lever welding-2 |
1 |
|
1.4 |
TD904A.582.1.1 |
Control handle pressing assembly |
1 |
|
1.4.1 |
TD800.57C.1.1-01 |
Nylon sleeve 1 |
1 |
|
1.4.2 |
FT904A.58.050b |
Distributor control handle welding |
1 |
|
1.5 |
FT800A.57.103a |
Stop collar 1 |
1 |
|
1.6 |
GB/T 894.1-18 |
Circlip for shaft |
2 |
|
1.7 |
FT800A.57.102a |
Fixing shaft |
1 |
|
1.8 |
GB/T 5783-M8×30-8.8-A2L |
Hexagon head bolt |
2 |
|
1.9 |
GB/T 97.1-8-A0P |
Plain washer |
2 |
|
1.10 |
GB/T 93-8-A0P |
Standard spring washer |
2 |
|
1.11 |
GB/T 6170-M8-8-A2L |
Hexagon nut, type 1 |
2 |
|
2 |
GB/T 5783-M10×25-8.8-A3L |
Hexagon head bolt |
2 |
|
3 |
GB/T 93-10-A0P |
Standard spring washer |
2 |
|
4 |
GB/T 97.1-10-A0P |
Plain washer |
2 |
|
5 |
FT800.56A.018a |
Upper pull rod fixing clamp combination |
1 |
|
5.1 |
FT800.56A.035b |
Connecting plate weldment |
1 |
|
5.2 |
FT800.56.263a |
Fixing clamp |
1 |
|
5.3 |
GBT97.1-8-A0P |
Plain washer |
1 |
|
5.4 |
GBT91-2.5X14-A0P |
Split pin |
1 |
151
Foton TD904-1F163F10K Wheeled Tractor

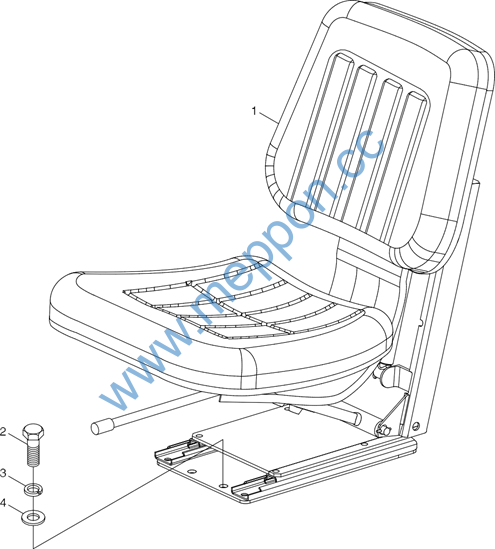

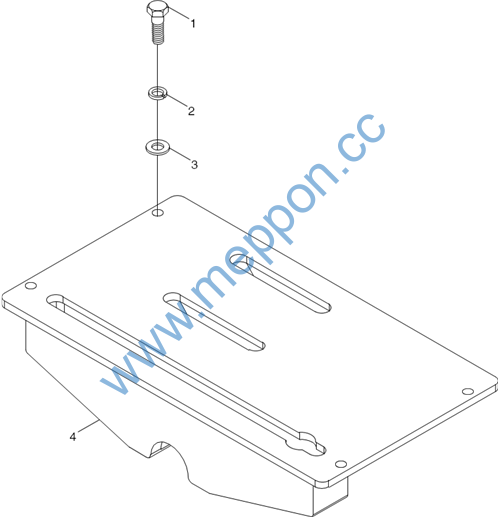

FT800A.44.001 Seat Installation Assembly
152
Foton TD904-1F163F10K Wheeled Tractor
FT800A.44.001 Seat Installation Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 4 |
FT800A.44.001 FT800A.44.011 GB/T 5783-M12×35-8.8-A3L GB/T 93-12-A0P GB/T 96.1-12-A0P |
Seat Installation Assembly Seat Assembly Bolt Washer Washer |
1 1 4 4 4 |
153
Foton TD904-1F163F10K Wheeled Tractor

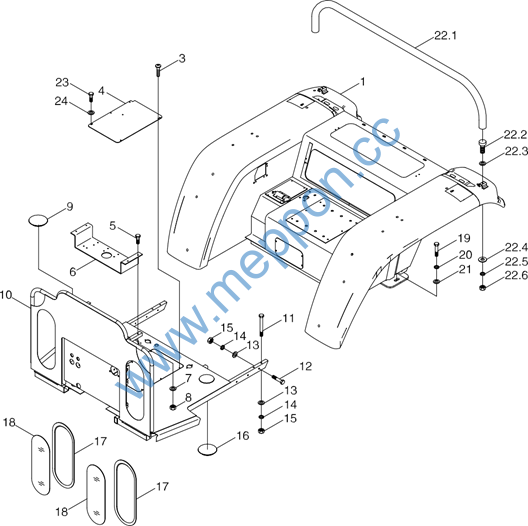

TD800.452J Floor Assembly-1
154
Foton TD904-1F163F10K Wheeled Tractor
TD800.452J Floor Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD800.452J |
Floor assembly |
1 |
||
1 |
TD800.452C.2 |
Rear floor weldment |
1 |
|
2 |
TD800.452N.1 |
Pedal installation assembly |
1 |
|
2.1 |
TD800.452N.1.1 |
Pedal weldment |
1 |
|
2.2 |
GB/T 97.1-10-A0P |
Flat washer |
6 |
|
2.3 |
GB/T 93-10-A0P |
Standard spring washer |
6 |
|
2.4 |
GB/T 5783-M10×35-8.8-A3L |
Hexagon head bolt |
6 |
|
2.5 |
TD800.452N.1.2 |
Pedal weldment (right) |
1 |
|
3 |
GB/T 819.1-M5×16-4.8-A2L |
Cross recessed countersunk head screw |
6 |
|
4 |
TD800.452A-01a |
Cover plate |
1 |
|
5 |
GB/T 5783-M5×30-8.8-A1L |
Hexagon head bolt |
5 |
|
6 |
FT800A.45.160 |
Support plate |
1 |
|
7 |
GB/T 97.1-5-A0P |
Flat washer |
5 |
|
8 |
GB/T 6170-M5-8-A2L |
Hexagon nut type 1 |
8 |
|
9 |
TD800.452-11 |
Plug |
1 |
|
10 |
TD800.452I.1 |
Front floor weldment |
1 |
|
11 |
GB/T 5782-M12×130-10.9-A2L |
Hexagon head bolt |
4 |
|
12 |
GB/T 5782-M12×60-8.8-A2L |
Hexagon head bolt |
6 |
|
13 |
GB/T 96.1-12-A0P |
Big washer |
10 |
|
14 |
GB/T 93-12 |
Standard spring washer |
10 |
|
15 |
GB/T 6170-M12-8-A3L |
Hexagon nut type 1 |
10 |
|
16 |
TD800.452-04 |
Plug |
1 |
|
17 |
TD800.452H-04 |
Seal strip of front lower window |
2 |
|
18 |
TD800.452H-03 |
Glass of front lower window |
2 |
|
19 |
GB/T 5783-M10×30-8.8-A3L |
Hexagon head bolt |
2 |
|
20 |
GB/T 93-10 |
Standard spring washer |
19 |
|
21 |
GB/T 97.1-10-A0P |
Flat washer |
2 |
|
22 |
FT65.45B.073 |
Rear wall assembly |
1 |
|
22.1 |
FT65.45B.737 |
Rear wall |
1 |
|
22.2 |
FT65.45B.738 |
Connecting screw head |
1 |
|
22.3 |
GB/T 97.1-16-A0P |
Washer |
2 |
|
22.4 |
GB/T 96-16-A0P |
Washer |
2 |
155
Foton TD904-1F163F10K Wheeled Tractor
TD800.452J Floor Assembly-1(extension)
156
Foton TD904-1F163F10K Wheeled Tractor
TD800.452J Floor Assembly-1(extension)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
22.5 22.6 23 24 |
GB/T 93-16-A0P GB/T 6170-M16-A2L GB/T 5783-M8×30-8.8-A2L GB/T 96.1-8-A0P |
Washer Nut Hexagon head bolt Big washer |
2 2 2 2 |
157
Foton TD904-1F163F10K Wheeled Tractor

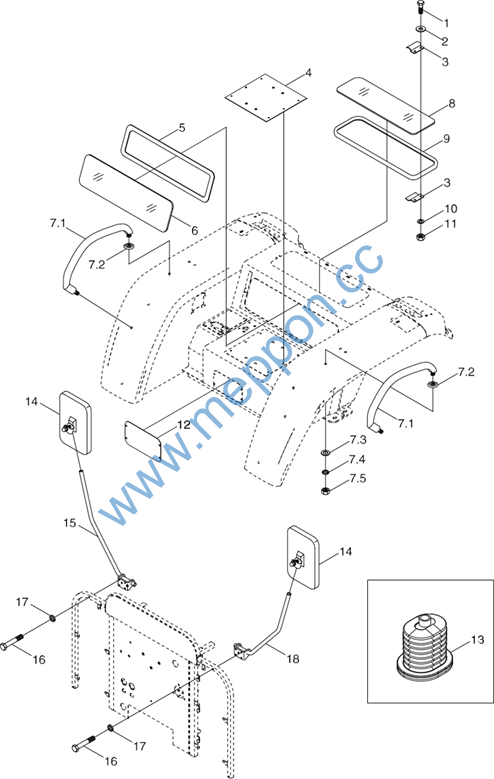

TD800.452J Floor Assembly-2
158
Foton TD904-1F163F10K Wheeled Tractor
TD800.452J Floor Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD800.452J |
Floor assembly |
1 |
||
1 |
GB/T 5783-M5×30-8.8-A1L |
Hexagon head bolt |
5 |
|
2 |
GB/T 97.1-5-A0P |
Flat washer |
5 |
|
3 |
TD800.452-07 |
Glass holder |
8 |
|
4 |
FT800A.45.031 |
Seal plate weldment |
1 |
|
5 |
TD800.452-02 |
Rear lower glass seal strip |
1 |
|
6 |
TD800.452-01 |
Rear lower window glass |
1 |
|
7 |
FT704.45E.088 |
Armrest assembly |
2 |
|
7.1 |
FT704.45E.765 |
Armrest |
2 |
|
7.2 |
FT704.45E.766 |
Armrest washer unit |
4 |
|
7.3 |
GB/T 96.1-16-AOP |
Big washer |
4 |
|
7.4 |
GB/T 93-16-AOP |
Washer |
4 |
|
7.5 |
GB/T 6170-M16-A3L |
Nut |
4 |
|
8 |
TD800.452J-02 |
Rear floor upper glass |
1 |
|
9 |
TD800.452J-03 |
Rear floor upper glass seal strip |
1 |
|
10 |
GB/T 96.1-5-A0P |
Big washer |
8 |
|
11 |
GB/T 6170-M5-8-A2L |
Type 1 hex nut |
8 |
|
12 |
TD800.452-14 |
Front stop plate |
1 |
|
13 |
TD800.452-09 |
Seal sleeve |
1 |
|
14 |
TD904.452.4 |
Rear-view mirror assembly |
2 |
|
15 |
TD904.452.5 |
Right rear-view mirror trestle weldment |
1 |
|
16 |
GB/T 5783-M8×20-8.8-A2L |
Hexagon head bolt |
8 |
|
17 |
GB/T 93-8-A0P |
Standard spring washer |
8 |
|
18 |
TD904.452.3 |
Rear-view mirror trestle weldment |
1 |
159
Foton TD904-1F163F10K Wheeled Tractor
TD800.454E Control Cover Assembly
160
