LOVOL TD904-1F163F10K Tractor Parts Catalogue 12
Foton TD904-1F163F10K Wheeled Tractor
FT800.35B.001 Towing Mechanism Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800.35B.001 |
Towing Mechanism Assembly |
1 |
||
1 |
FT800.35.112 |
Spring Lock Pin |
2 |
|
2 |
GB/T 899-GM16-M16×110-A2L |
Stud |
6 |
|
3 |
FT800.35.012 |
Lower Link Seat Bottom Plate Weldment |
1 |
|
4 |
FT300.35A.131 |
Lock Pin |
2 |
|
5 |
GB/T97.1-20-A0P |
Washer |
2 |
|
6 |
FT800.35B.010 |
Towing Bracket Weldment |
1 |
|
7 |
GB/T 899-GM16-M16×40-A2L |
Stud |
4 |
|
8 |
GB/T 93-16-A0P |
Washer |
12 |
|
9 |
GB/T 6170-M16-A0P |
Nut |
8 |
|
10 |
FT800.35.101 |
Oscillating Pin |
1 |
|
11 |
GB/T 6173-M16×1.5-A3L |
Nut |
4 |
|
12 |
FT800.35B.103 |
Limiting Pin |
2 |
|
13 |
FT800.35A.101 |
Swing Rod |
1 |
|
14 |
FT800.35.109 |
Towing Pin |
1 |
|
15 |
FT800.35.104 |
Connecting Swing Rod |
1 |
|
16 |
GB/T 5782-M16×90-A3L |
Bolt |
2 |
125
Foton TD904-1F163F10K Wheeled Tractor

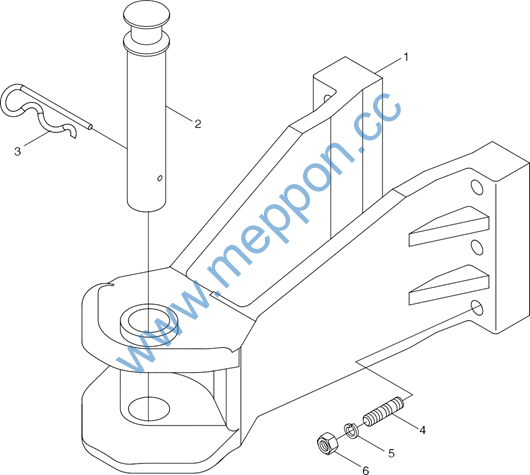

FT800.53.001 Tow Equipment Assembly
126
Foton TD904-1F163F10K Wheeled Tractor
FT800.53.001 Tow Equipment Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 4
5 6 |
FT800.53.001 FT800.53.101a FT800.53.102 FT800.53.111 GB/T 899-GM16-M16×75-8.8-A2L
GB/T 93-16-AOP GB/T 6170-M16-A2L |
Tow Equipment Assembly Tow Bracket Pothook Pin Spring Lock Pin Stud
Washer Nut |
1 1 1 1 6
6 6 |
127
Foton TD904-1F163F10K Wheeled Tractor

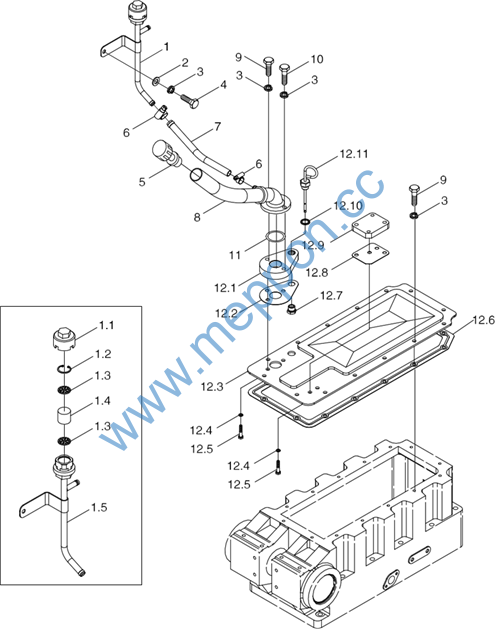

TD800.55 Lifter Assembly-1
128
Foton TD904-1F163F10K Wheeled Tractor
TD800.55 Lifter Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD800.55 |
Lifter assembly |
1 |
||
1 |
TD800.55.6a |
Breather assembly |
1 |
|
1.1 |
FT700.55D.136 |
Breather cap |
1 |
|
1.2 |
GB/T 893.1-26 |
Internal circlip |
1 |
|
1.3 |
FT650.40.167 |
Base plate |
2 |
|
1.4 |
FT700.55D.109 |
Breather filter element |
1 |
|
1.5 |
TD800.55.6A.1 |
Breather body welding |
1 |
|
2 |
GB/T 97.1-8-A0P |
Plain washer |
1 |
|
3 |
GB/T 93-8-A0P |
Standard spring washer |
18 |
|
4 |
GB/T 5783-M8×16-8.8-A2L |
Hexagon head bolt |
1 |
|
5 |
TA700.55A.7 |
Oil filling plug assembly |
1 |
|
6 |
Q67522 |
Hoop, worm drive hose, type A |
4 |
|
7 |
TD800.55.3-01 |
Connection hose |
1 |
|
8 |
TD800.55.3a.1 |
Oil filling plug assembly |
1 |
|
9 |
GB/T 5781-M8×20-4.8-A2L |
Hexagon head bolt |
14 |
|
10 |
GB/T 5782-M8×45-8.8-A2L |
Hexagon head bolt |
3 |
|
11 |
GB/T 3452.1-34.5×2.65G |
O-ring rubber seal for hydraulic and pneumatic equipment |
1 |
|
12 |
TD800.55.8 |
Cover plate assembly |
1 |
|
12.1 |
TD800.55.8-03 |
Oil filling port cushion block |
1 |
|
12.2 |
TD800.55.8-04 |
Oil filling port gasket |
1 |
|
12.3 |
TD800.55.8-01 |
Upper cover plate substrate |
1 |
|
12.4 |
GB/T 5783-M8×16-8.8-A2L |
Hexagon head bolt |
4 |
|
12.5 |
GB/T 93-8-A0P |
Standard spring washer |
4 |
|
12.6 |
TD800.55.8-02 |
Upper cover plate gasket |
4 |
|
12.7 |
TD800.55.8-06 |
Support gasket |
1 |
|
12.8 |
TD800.55.8-05 |
Support cushion block |
1 |
|
12.9 |
TD800.55.8-07 |
Hollow plug |
1 |
|
12.10 |
JB/T 982-16 |
Composite seal washer |
1 |
|
12.11 |
FT800.55A.011 |
Dipstick assembly |
1 |
129
Foton TD904-1F163F10K Wheeled Tractor

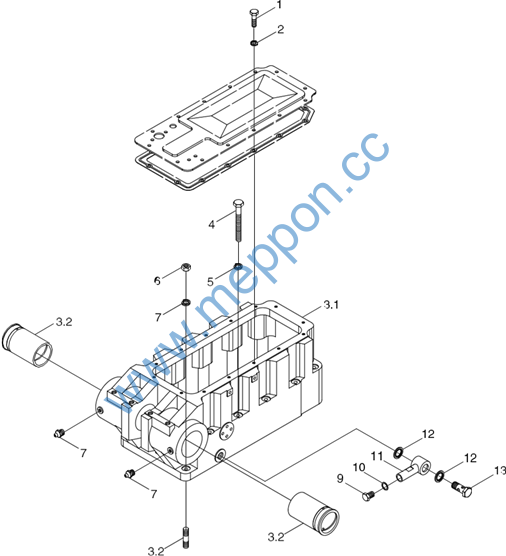

TD800.55 Lifter Assembly-2
130
Foton TD904-1F163F10K Wheeled Tractor
TD800.55 Lifter Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD800.55 |
Lifter assembly |
1 |
||
1 |
GB/T 5781-M8×20-4.8-A2L |
Hexagon head bolt |
14 |
|
2 |
GB/T 93-8-A0P |
Standard spring washer |
18 |
|
3 |
FT800.55A.015 |
Press fitting assembly, lifter housing |
1 |
|
3.1 |
FT800.55A.103 |
Lifter housing |
1 |
|
3.2 |
FT800.55A.111 |
Copper shaft sleeve |
2 |
|
4 |
TD800.55-02 |
Hexagon head bolt |
10 |
|
5 |
TB404.312B-01 |
Washer |
10 |
|
6 |
SPL-CO-M12-10-F3 |
Hex. flange nut |
3 |
|
7 |
JB/T 7940.1-M10×1 |
Thru forced filling oil cup |
2 |
|
8 |
GB/T 899-GM12-M12×40-10.9-A3L |
Stud |
3 |
|
9 |
JB/ZQ4451-M18×1.5 |
Plug |
1 |
|
10 |
JB/ZQ4454-18×22 |
Gasket |
1 |
|
11 |
FT800.55A.016 |
Joint assembly |
1 |
|
12 |
JB/T 982-24 |
Composite seal washer |
2 |
|
13 |
FT800.55A.118 |
Hollow bolt |
1 |
131
Foton TD904-1F163F10K Wheeled Tractor

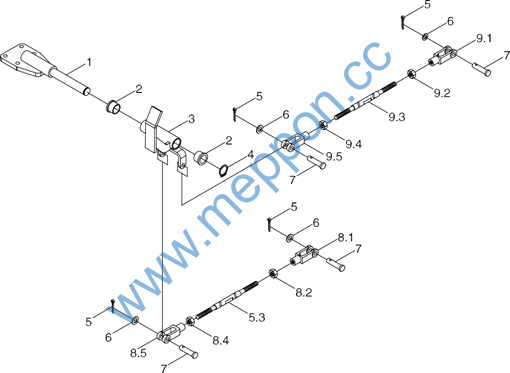

TD800.55 Lifter Assembly-3
132
Foton TD904-1F163F10K Wheeled Tractor
TD800.55 Lifter Assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD800.55 |
Lifter assembly |
1 |
||
TD800.55.2a |
Feedback mechanism assembly |
1 |
||
1 |
TD800.55.2.3 |
Bearing assembly |
1 |
|
2 |
TD800.55.2a-01 |
Nylon sleeve |
2 |
|
3 |
TD800.55.2.1a |
Rocker arm welding |
1 |
|
4 |
GB/T 894.1-20 |
Circlip for shaft |
1 |
|
5 |
GB/T 91-3.2×16-AOP |
Pin |
4 |
|
6 |
GB/T 97.1-8-AOP |
Washer |
4 |
|
7 |
GB/T 882-B8×30-A3L |
Pin |
4 |
|
8 |
TD800.55.2.2 |
Control rod assembly |
1 |
|
8.1 |
TD800.55.2.2-01 |
Right-hand pull rod fork |
1 |
|
8.2 |
GB/T 6170-M8-A2L |
Nut |
1 |
|
8.3 |
TD800.55.2.2-02 |
Adjusting rod |
1 |
|
8.4 |
GB/T 6170-M8-LH-A2L |
Nut |
1 |
|
8.5 |
TD800.55.2.2-03 |
Left -hand pull rod fork |
1 |
|
9 |
TD800.55.2a.4 |
Control rod assembly 1 |
1 |
|
9.1 |
TD800.55.2.2-01 |
Right-hand pull rod fork |
1 |
|
9.2 |
GB/T 6170-M8-A2L |
Hexagon nut, type 1 |
1 |
|
9.3 |
TD800.55.2A.4-01 |
Adjusting rod |
1 |
|
9.4 |
GB/T 6170-M8-LH-A2L |
Hexagon nut, type 1 |
1 |
|
9.5 |
TD800.55.2.2-03 |
Left -hand pull rod fork |
1 |
133
Foton TD904-1F163F10K Wheeled Tractor

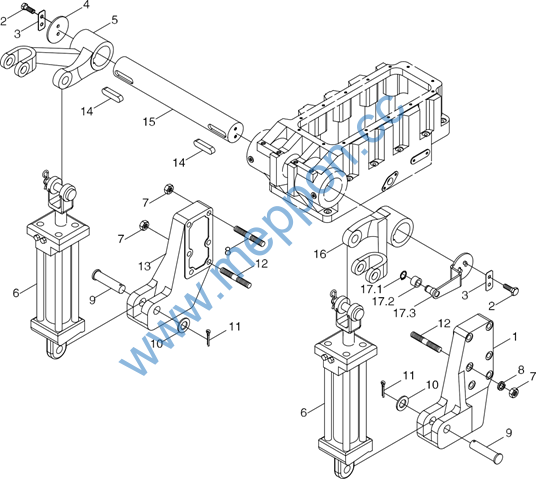

TD800.55 Lifter Assembly-4
134
Foton TD904-1F163F10K Wheeled Tractor
TD800.55 Lifter Assembly-4
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD800.55 |
Lifter assembly |
1 |
||
1 |
FT800.55A.114C |
Right oil cylinder bracket |
1 |
|
2 |
GB/T 5783-M10×20-8.8-A3L |
Hexagon head bolt |
4 |
|
3 |
FT800.55A.112 |
Stop washer |
2 |
|
4 |
FT800.55A.115 |
Lift arm pressing plate |
1 |
|
5 |
TD800.55.4 |
Left lift arm pressing |
1 |
|
6 |
FT800.55A.012 |
Lift cylinder assembly |
2 |
|
7 |
SPL-CO-M18-F3 |
Hex. flange nut |
12 |
|
8 |
GB/T 899-GM18-M18×65-10.9-A3L |
Stud |
8 |
|
9 |
FT800.55A.116 |
Pin |
2 |
|
10 |
FT800.55A.105 |
Washer |
2 |
|
11 |
GB/T 91-6.3×40-A0P |
Split pin |
2 |
|
12 |
GB/T 899-GM18-M18×55-10.9-A3L |
Stud |
4 |
|
13 |
FT800.55A.104c |
Left oil cylinder bracket |
1 |
|
14 |
GB/T 1096-20×12×80 |
Flat key |
2 |
|
15 |
FT800.55A.107 |
Lifter shaft |
1 |
|
16 |
TD800.55.5 |
Right lift arm pressing |
1 |
|
17 |
TD800.55.1 |
Feedback arm assembly |
1 |
|
17.1 |
GB/T 894.1-20 |
Retainer ring |
1 |
|
17.2 |
TD800.55.1-01 |
Roller |
1 |
|
17.3 |
TD800.55.1.1 |
Feedback arm welding |
1 |
135
Foton TD904-1F163F10K Wheeled Tractor

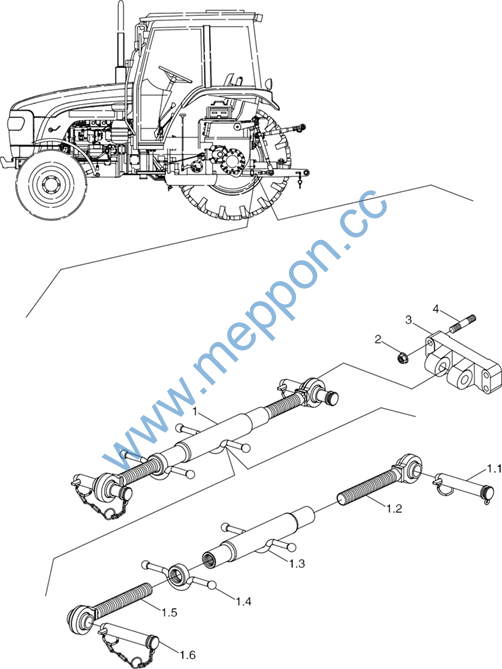

FT800.56A.001 Hitch Assembly-1
