LOVOL TD904-1F163F10K Tractor Parts Catalogue 11
Foton TD904-1F163F10K Wheeled Tractor
FT800A.43C.001 Brake System Assembly-5
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800A.43C.001 |
Brake system assembly |
1 |
||
1 |
TD800.43-01 |
Pedal return spring |
2 |
|
2 |
FT800.43.103 |
Adjusting screw |
2 |
|
3 |
GB/T 5783-M8×20-A2L |
Bolt |
1 |
|
4 |
GB/T 93-8-A0P |
Washer |
1 |
|
5 |
FT800A.43.053 |
Brake pedal supporting shaft welding |
1 |
|
6 |
FT800A.43C.014 |
Right brake rocker arm combination |
1 |
|
6.1 |
TG1654.212B.1-01 |
Bushing |
2 |
|
6.2 |
FT800A.43C.016 |
Right brake rocker arm welding |
1 |
|
6.3 |
GB/T 879.1-5×16 |
Pin |
1 |
|
6.4 |
FT800A.43.065 |
Brake locking lever welding |
1 |
|
7 |
GB/T 6170-M10-A3L |
Nut |
2 |
|
8 |
FT800A.43C.013 |
Left brake rocker arm combination |
1 |
|
8.1 |
TG1654.212B.1-01 |
Bushing |
1 |
|
8.2 |
FT800A.43C.015 |
Left brake rocker arm welding |
1 |
|
9 |
GB/T 894.1-30 |
Retainer ring |
1 |
|
10 |
FT800A.43.401 |
Lock pin |
1 |
|
11 |
FT800.43.030 |
Adjusting screw combination |
2 |
|
12 |
JB/T 7940.1-M8×1 |
Thru forced filling oil cup |
1 |
|
13 |
TD800.311C.1-01 |
Oil cup dust cap |
1 |
|
14 |
TF1004.433-01 |
Nylon spacer bush |
4 |
113
Foton TD904-1F163F10K Wheeled Tractor

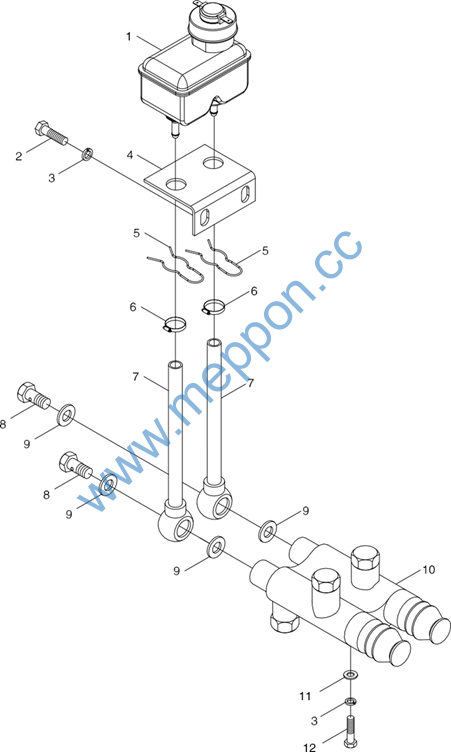

FT800A.43C.001 Brake System Assembly-6
114
Foton TD904-1F163F10K Wheeled Tractor
FT800A.43C.001 Brake System Assembly-6
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800A.43C.001 |
Brake system assembly |
1 |
||
1 |
TG1204.433.2 |
Brake oil tank assembly |
1 |
|
2 |
GB/T 5783-M10×20-A3L |
Bolt |
2 |
|
3 |
GB/T 93-10-A0P |
Washer |
5 |
|
4 |
TD800.43.2 |
Brake oil tank bracket welding |
1 |
|
5 |
TG1204.433-04 |
Snap ring |
2 |
|
6 |
Q673B115 |
Steel strip type elastic ring |
2 |
|
7 |
FT800A.43C.105 |
Oil delivery hose |
2 |
|
8 |
FT800.43.115 |
Oil pipe joint screw |
2 |
|
9 |
JB/T 982-12 |
Combination Sealing gasket |
4 |
|
10 |
FT800A.43C.018 |
Brake pump assembly |
1 |
|
11 |
GB/T 97.1-10-A0P |
Washer |
3 |
|
12 |
GB/T 5783-M10×30-A3L |
Bolt |
3 |
115
Foton TD904-1F163F10K Wheeled Tractor

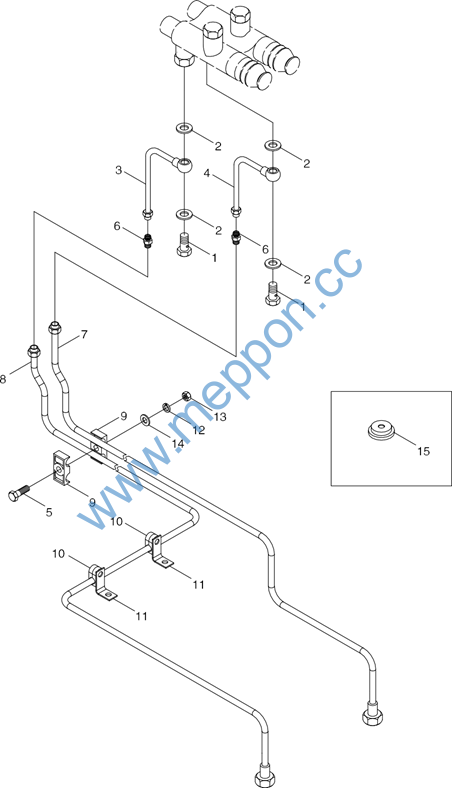

FT800A.43C.001 Brake System Assembly-7
116
Foton TD904-1F163F10K Wheeled Tractor
FT800A.43C.001 Brake System Assembly-7
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800A.43C.001 |
Brake system assembly |
1 |
||
1 |
FT800.43.115 |
Oil pipe joint screw |
2 |
|
2 |
JB/T 982-12 |
Combination Sealing gasket |
4 |
|
3 |
FT800A.43C.011b |
Left brake short oil pipe assembly |
1 |
|
4 |
FT800A.43C.012b |
Right brake short oil pipe assembly |
1 |
|
5 |
GB/T 5783-M8×40-A2L |
Bolt |
2 |
|
6 |
FT800A.43.315 |
Body, union |
2 |
|
7 |
FT800A.43.057b |
Right brake long oil pipe assembly |
1 |
|
8 |
FT800A.43.056b |
Left brake long oil pipe assembly |
1 |
|
9 |
FT800A.43C.229 |
Double-hole pipe clamp |
4 |
|
10 |
F600190 |
Pipe clamp combination (V) |
2 |
|
11 |
FT800A.43.335 |
Oil pipe fixing plate |
2 |
|
12 |
GB/T 93-8-A0P |
Washer |
2 |
|
13 |
GB/T 6170-M8-A2L |
Nut |
2 |
|
14 |
GB/T 97.1-8-A0P |
Plain washer |
2 |
|
15 |
FT800A.43C.230 |
Packing gland |
2 |
117
Foton TD904-1F163F10K Wheeled Tractor

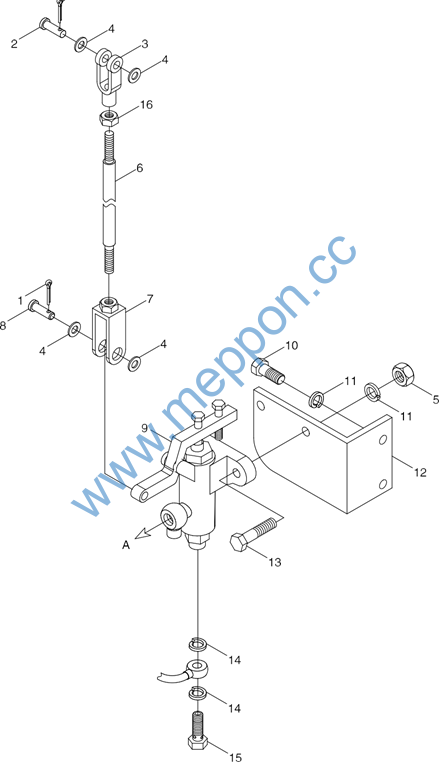

TD800.801 Brake valve assembly
118
Foton TD904-1F163F10K Wheeled Tractor
TD800.801 Brake valve assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD800.801 |
Brake valve assembly |
1 |
||
1 |
GB/T 91-3.2×20-A0P |
Pin |
2 |
|
2 |
GB/T 882-B10×35-A0P |
Pin |
1 |
|
3 |
FT65.43.152 |
Left -hand connecting fork |
1 |
|
4 |
GB/T 97.1-10-A0P |
Washer |
4 |
|
5 |
GB/T 6170-M10-8-A3L |
Nut |
2 |
|
6 |
TD800.801-02 |
Push rod |
1 |
|
7 |
TD800.801.1 |
Clevis welding piece |
1 |
|
8 |
GB/T 882-B10×26-A0P |
Pin |
1 |
|
9 |
FT800.80.014 |
QFJ-10/0.63 air cut brake valve |
1 |
|
10 |
GB/T 5781-M10×25-4.8-A3L |
Bolt |
2 |
|
11 |
GB/T 93-10-A0P |
Washer |
4 |
|
12 |
TD800.801-01 |
Bracket,brake valve |
1 |
|
13 |
GB/T 5781-M10×40-4.8-A3L |
Bolt |
2 |
|
14 |
JB/T 982-14 |
Composite seal washer |
4 |
|
15 |
FT800.40.172 |
Hollow bolt |
2 |
|
16 |
GB/T 6170-M10-LH-8-A3L |
Hexagon nut, type 1 |
1 |
119
Foton TD904-1F163F10K Wheeled Tractor

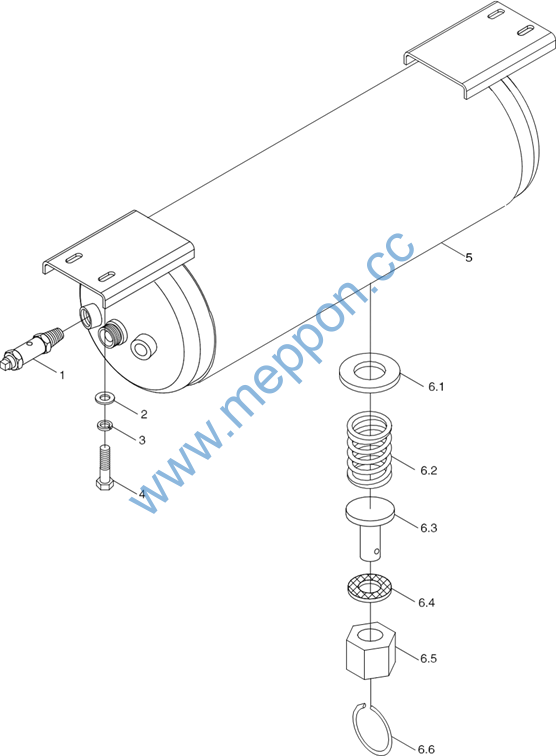

TD800.802 Air Cylinder Assembly
120
Foton TD904-1F163F10K Wheeled Tractor
TD800.802 Air Cylinder Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD800.802 |
Air Cylinder Assembly |
1 |
||
1 |
FT65.80.014 |
Safety Valve Assembly |
1 |
|
2 |
GB/T 97.1-10-A0P |
Washer |
4 |
|
3 |
GB/T 93-13-A0P |
Washer |
4 |
|
4 |
GB/T 5783-M10×25-A3L |
Bolt |
4 |
|
5 |
TD800.802.1 |
Storage Air Canister Weldment |
1 |
|
6 |
FT300.80.033 |
Drain Valve Assembly |
1 |
|
6.1 |
FT300.80.325 |
Retainer Ring |
1 |
|
6.2 |
FT300.80.324 |
Spring for Drain Valve Seal |
1 |
|
6.3 |
FT300.80.322 |
Drain Valve Body |
1 |
|
6.4 |
FT300.80.323 |
Drain Valve Rubber Washer |
1 |
|
6.5 |
FT300.80.326 |
Drain Valve Seat |
1 |
|
6.6 |
FT300.80.320 |
Drain Valve Pull Ring |
1 |
121
Foton TD904-1F163F10K Wheeled Tractor

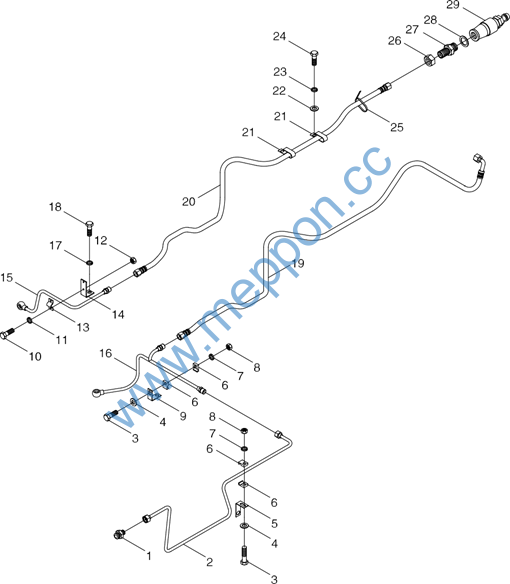

TD800.803 Oil Delivery Pipeline Assembly
122
Foton TD904-1F163F10K Wheeled Tractor
TD800.803 Oil Delivery Pipeline Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD800.803 |
Oil delivery pipeline assembly |
1 |
||
1 |
FT700.80G.101 |
Pipe joint |
1 |
|
2 |
TD800.803.7 |
Air outlet pipe assembly |
1 |
|
3 |
GB/T 5783-M8×35-A2L |
Hexagon head bolt |
2 |
|
4 |
GB/T 97.1-8-A0P |
Plain washer |
2 |
|
5 |
TD800.803-05 |
Bracket, pipe clamp |
1 |
|
6 |
TB454.40×-01 |
Single-hole pipe clamp |
4 |
|
7 |
GB/T 93-8-A0P |
Standard spring washer |
2 |
|
8 |
GB/T 6170-M8-8-A2L |
Hexagon nut, type 1 |
2 |
|
9 |
TD800.803-06 |
Bracket, pipe clamp2 |
1 |
|
10 |
GB/T 5783-M4×10-A2L |
Bolt |
2 |
|
11 |
GB/T 93-4-A0P |
Washer |
2 |
|
12 |
GB/T 6170-M4-A2L |
Hexagon nut, type 1 |
2 |
|
13 |
FT800A.80.201 |
Retaining clip |
1 |
|
14 |
TD800.803-01 |
Bracket |
1 |
|
15 |
TD800.803G.1 |
Air outlet pipe welding |
1 |
|
16 |
TD800.803.6 |
Air inlet pipe welding |
1 |
|
17 |
GB/T 93-12-A0P |
Standard spring washer |
1 |
|
18 |
GB/T 5783-M12×20-A3L |
Hexagon head bolt |
1 |
|
19 |
TD800.803.4 |
Hose assembly ( I) |
1 |
|
20 |
TD800.803.5 |
Hose assembly (II) |
1 |
|
21 |
TD800.803-07 |
Hose clip |
2 |
|
22 |
GB/T 97.1-10-A0P |
Plain washer |
1 |
|
23 |
GB/T 93-10-A0P |
Standard spring washer |
1 |
|
24 |
GB/T 5783-M10×20-A3L |
Hexagon head bolt |
1 |
|
25 |
Q67405200 |
Plastic strap |
3 |
|
26 |
GB/T 6171-M18×1.5-A3L |
Nut |
1 |
|
27 |
FT800.80L.212 |
Output joint body |
1 |
|
28 |
FT65.80.213 |
Output joint body sealing gasket |
1 |
|
29 |
FT65.80.018 |
Quick connector |
1 |
123
Foton TD904-1F163F10K Wheeled Tractor

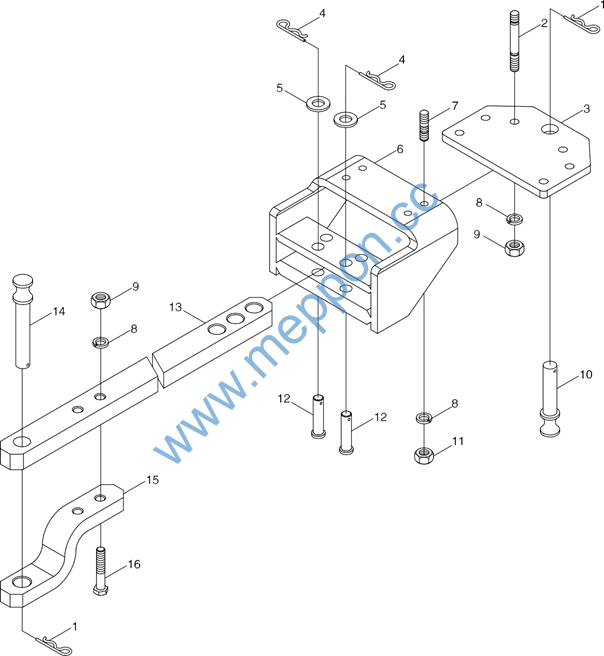

FT800.35B.001 Towing Mechanism Assembly
124
