LOVOL TD904-1F163F10K Tractor Parts Catalogue 10
Foton TD904-1F163F10K Wheeled Tractor
TD904.402H Hydraulic Steering Pipeline Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD904.402H |
Hydraulic steering pipeline assembly |
1 |
||
1 |
FT800.40L.110 |
Hollow short bolt |
2 |
|
2 |
JB/T 982-20 |
Composite seal washer |
4 |
|
3 |
FT800A.40L.111 |
Oil outlet steel pipe |
1 |
|
4 |
FT800.40L.109 |
Short connecting pipe |
2 |
|
5 |
Q67627 |
Hoop, worm drive hose, type B |
4 |
|
6 |
FT800A.40L.102 |
Oil intake hose |
1 |
|
7 |
GB/T 5781-M10×20-4.8-A3L |
Hexagon head bolt |
1 |
|
8 |
FT800A.40.020 |
Steering oil tank and breather assembly |
1 |
|
9 |
FT800A.40A.017 |
Steering oil tank bracket assembly |
1 |
|
10 |
GB/T 5781-M12×30-4.8-A3L |
Hexagon head bolt |
2 |
|
11 |
GB/T 93-12-A0P |
Standard spring washer |
2 |
|
12 |
GB/T 6170-M10-8-A3L |
Hexagon nut, type 1 |
2 |
|
13 |
GB/T 93-10-A0P |
Standard spring washer |
4 |
|
14 |
FT800A.40.104 |
Oil inlet hose |
1 |
|
15 |
TD904.402A.1 |
Oil suction steel pipe assembly of oil pump |
1 |
|
16 |
TD904.402A.3 |
High pressure hose assembly |
1 |
|
17 |
TD904.402A.2 |
Oil delivery steel pipe assembly of oil pump |
1 |
|
18 |
GB/T 6170-M6-8-A2L |
Hexagon nut, type 1 |
1 |
|
19 |
GB/T 93-6-A0P |
Standard spring washer |
1 |
|
20 |
FT800.40L.108 |
Short oil pipe clamp |
2 |
|
21 |
GB/T 5781-M6×25-4.8-A2L |
Hexagon head bolt |
1 |
|
22 |
GB/T 5783-M10×30-8.8-A3L |
Hexagon head bolt |
2 |
|
23 |
TD904.402A-01 |
End straight joint body M27-M24 |
1 |
|
24 |
JB/T 982-27 |
Composite seal washer |
1 |
|
25 |
FT800A.40.028 |
Steering pump assembly |
1 |
|
26 |
JB/T 982-18 |
Composite seal washer |
2 |
|
27 |
FT700.40G.109 |
Hollow bolt |
1 |
|
28 |
GB/T 5781-M10×25-4.8-A3L |
Hexagon head bolt |
1 |
|
29 |
GB/T 95-10-A0P |
Flat washer |
1 |
|
30 |
FT800A.40.108 |
Drive sleeve |
1 |
101
Foton TD904-1F163F10K Wheeled Tractor

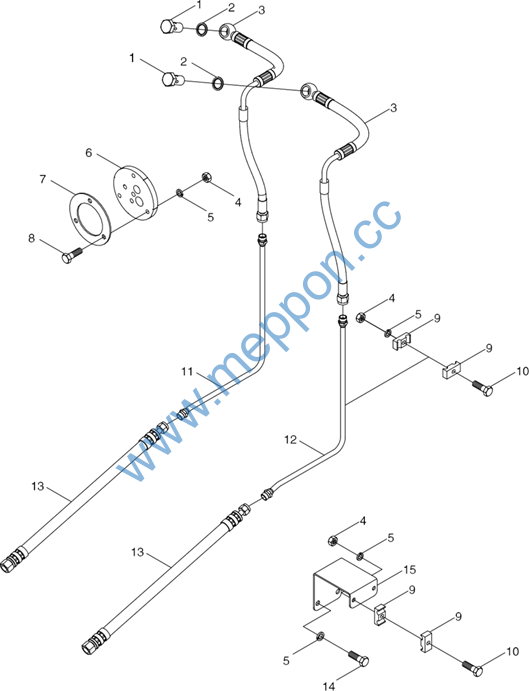

TD904.402H Hydraulic Steering Pipeline Assembly-2
102
Foton TD904-1F163F10K Wheeled Tractor
TD904.402H Hydraulic Steering Pipeline Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD904.402H |
Hydraulic steering pipeline assembly |
1 |
||
1 |
FT650.40.102 |
Hollow bolt M20X1.5 |
2 |
|
2 |
JB/T 982-20 |
Composite seal washer |
6 |
|
3 |
TD904.402A.4 |
Steering gear oil outlet rubber pipe assembly |
2 |
|
4 |
GB/T 6170-M8-8-A2L |
Hexagon nut, type 1 |
6 |
|
5 |
GB/T 93-8-A0P |
Standard spring washer |
8 |
|
6 |
FT800A.40L.106 |
Cushion |
1 |
|
7 |
FT800A.40L.107 |
Backing plate |
1 |
|
8 |
GB/T 5781-M8×30-4.8-A2L |
Hexagon head bolt |
3 |
|
9 |
FT354.40C.121 |
Dual-pipe clamp |
6 |
|
10 |
GB/T 5781-M8×40-4.8-A2L |
Hexagon head bolt |
3 |
|
11 |
TD904.402A.6 |
Left oil delivery hard pipe assembly |
1 |
|
12 |
TD904.402A.5 |
Right oil delivery hard pipe assembly |
1 |
|
13 |
TD904.402B.1 |
Steering rubber pipe assembly |
2 |
|
14 |
GB/T 5781-M8×16-4.8-A2L |
Hexagon head bolt |
2 |
|
15 |
FT800A.40.103 |
Retaining plate |
1 |
103
Foton TD904-1F163F10K Wheeled Tractor

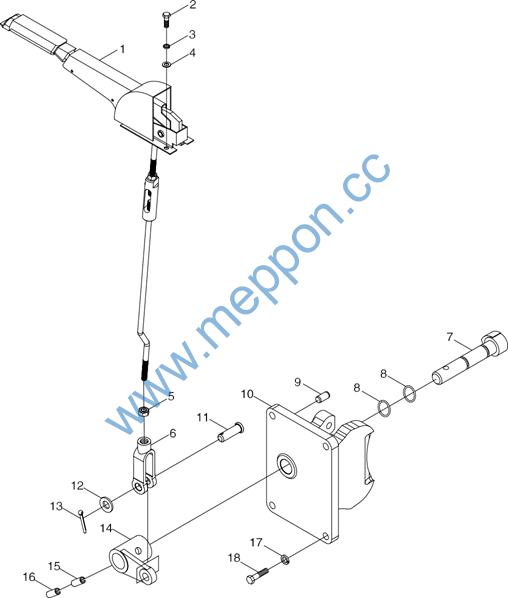

FT800A.43C.001 Brake System Assembly-1
104
Foton TD904-1F163F10K Wheeled Tractor
FT800A.43C.001 Brake System Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800A.43C.001 |
Brake system assembly |
1 |
||
FT800A.43.014 |
Hand brake assembly |
1 |
||
1 |
FT800A.43.051 |
Hand brake control handle assembly |
1 |
|
2 |
GB/T 5783-M8×35-A2L |
Hexagon head bolt |
4 |
|
3 |
GB/T 93-8 |
Standard spring washer |
4 |
|
4 |
GB/T 97.1-8-A0P |
Plain washer |
4 |
|
5 |
GB/T 6171-M10×1-A2L |
Hexagon nut, type 1 |
1 |
|
6 |
FT800.21.240 |
Front fork of pull rod |
1 |
|
7 |
FT800.43.169 |
Brake camshaft |
1 |
|
8 |
GB/T 3452.1-15×2.65G |
Hydraulic and pneumatic O rubber seal ring |
2 |
|
9 |
GB/T 119.1-8h8×16-A0P |
Cylindrical pin |
2 |
|
10 |
FT800.43.132 |
Cover frame |
1 |
|
11 |
GB/T 882-B10×30 |
Pivot |
1 |
|
12 |
GB/T 97.1-10-A0P |
Plain washer |
1 |
|
13 |
GB/T 91-3.2×20-A0P |
Split pin |
1 |
|
14 |
FT800A.43.321 |
Rotating handle |
1 |
|
15 |
GB/T 879.1-8×30 |
Elastic cylindrical pin |
1 |
|
16 |
GB/T 879.1-5×30 |
Elastic cylindrical pin |
1 |
|
17 |
GB/T 93-10 |
Standard spring washer |
4 |
|
18 |
GB/T 5783-M10×30-A3L |
Hexagon head bolt |
4 |
105
Foton TD904-1F163F10K Wheeled Tractor

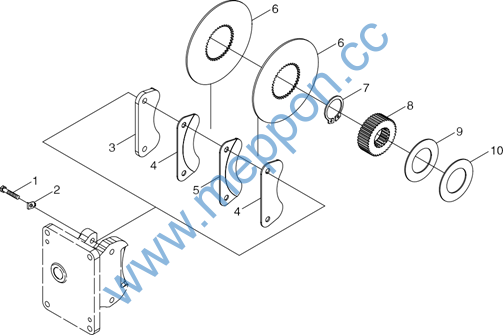

FT800A.43C.001 Brake System Assembly-2
106
Foton TD904-1F163F10K Wheeled Tractor
FT800A.43C.001 Brake System Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800A.43C.001 |
Brake system assembly |
1 |
||
FT800A.43.014 |
Hand brake assembly |
1 |
||
1 |
FT800.43.194 |
Bolt |
2 |
|
2 |
GB/T 854-10 |
Stop washer |
2 |
|
3 |
FT800.43.131 |
Pressure plate |
1 |
|
4 |
FT800.43.023 |
Friction plate combination |
2 |
|
5 |
FT800.43.024 |
Intermediate friction plate combination |
1 |
|
6 |
FT800.43.141 |
Steel plate |
2 |
|
7 |
GB/T 894.1-48 |
Circlip for shaft |
1 |
|
8 |
FT800.43.136 |
Spline hub |
1 |
|
9 |
FT800.43.142 |
Adjustment washer |
As required |
|
10 |
FT800.43.145 |
Adjustment washer |
As required |
107
Foton TD904-1F163F10K Wheeled Tractor
FT800A.43C.001 Brake System Assembly-3
108
Foton TD904-1F163F10K Wheeled Tractor
FT800A.43C.001 Brake System Assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800A.43C.001 |
Brake system assembly |
1 |
||
FT800A.43.014 |
Hand brake assembly |
1 |
||
FT800A.43.051 |
Hand brake control handle assembly |
1 |
||
1 |
FT800A.21.045 |
Button assembly |
1 |
|
2 |
FT800A.21.319 |
Control handle sleeve |
1 |
|
3 |
FT800.43.180 |
Spring |
1 |
|
4 |
FT800A.21.315 |
Support rod |
1 |
|
5 |
FT800A.21.320 |
Guard |
1 |
|
6 |
GB/T 68-M4×10-A2L |
Slotted countersunk flat head screw |
4 |
|
7 |
FT800A.21.322 |
Small pin |
1 |
|
8 |
FT800A.21.044 |
Control handle assembly |
1 |
|
9 |
FT800A.21.314 |
Pawl |
1 |
|
10 |
GB/T 894.1-6 |
Circlip for shaft |
1 |
|
11 |
FT800A.21.323 |
Pin |
1 |
|
12 |
FT800A.43.070 |
Hand brake short pull rod welding |
1 |
|
13 |
GB/T 6171-M10×1-A2L |
Type I hexagon nut |
1 |
|
14 |
TG1204.435-01 |
Regulating sleeve |
1 |
|
15 |
FT800A.43.403 |
Hand brake long pull rod |
1 |
|
16 |
GB/T 894.1-14 |
Circlip for shaft |
2 |
|
17 |
FT800A.43.058 |
Hand brake control handle fixed seat welding |
1 |
|
18 |
FT800A.21.321 |
Pivot |
1 |
|
19 |
FT800A.43.310 |
Ratchet |
1 |
|
20 |
GB/T97.1-14-AOP |
Washer |
2 |
109
Foton TD904-1F163F10K Wheeled Tractor

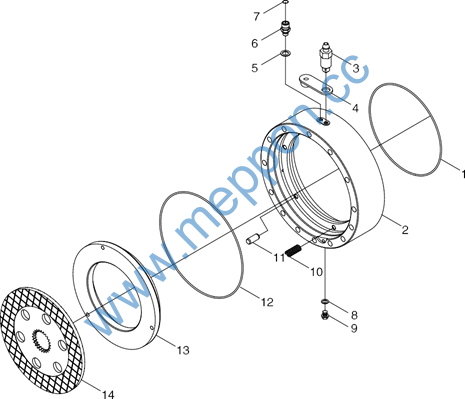

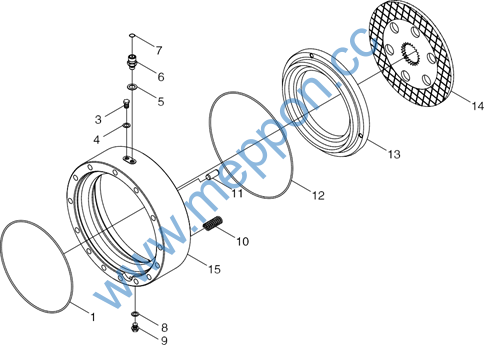

FT800A.43C.001 Brake System Assembly-4
110
Foton TD904-1F163F10K Wheeled Tractor
FT800A.43C.001 Brake System Assembly-4
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800A.43C.001 |
Brake system assembly |
1 |
||
FT800.43.015 |
Brake assembly |
1 |
||
1 |
FT800.43.149 |
Seal ring (I) |
2 |
|
2 |
FT800.43.153b |
Right brake cylinder block |
1 |
|
3 |
TD950.43.5-04 |
Air bleed screw |
2 |
|
4 |
TD950.43.5-05 |
Boot |
2 |
|
5 |
JB/T 982-16 |
Composite seal washer |
2 |
|
6 |
FT800.43.130 |
Joint body |
2 |
|
7 |
GB/T 3452.1-10.0×1.80G |
O-ring |
2 |
|
8 |
JB/T 982-10 |
Composite seal washer |
2 |
|
9 |
TG1204.431-08 |
Hexagon head plug M10×1 |
2 |
|
10 |
FT800.43.173 |
Spring |
12 |
|
11 |
GB/T 119.1-10m6×22-AOP |
Cylindrical pin |
6 |
|
12 |
FT800.43.150 |
Seal ring (II) |
2 |
|
13 |
FT800.43.151 |
Brake piston |
2 |
|
14 |
FT800.43.027 |
Friction plate combination |
2 |
|
15 |
FT800.43.147b |
Left brake cylinder block |
1 |
111
Foton TD904-1F163F10K Wheeled Tractor

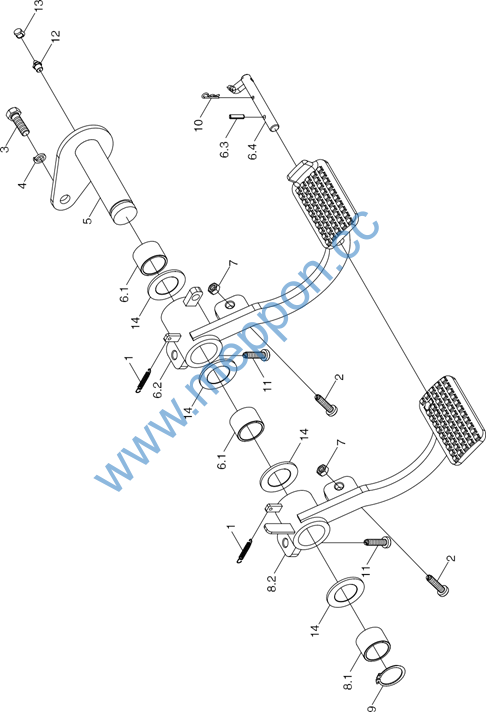

FT800A.43C.001 Brake System Assembly-5
