LOVOL TD904-1F163F10K Tractor Parts Catalogue 09
Foton TD904-1F163F10K Wheeled Tractor
TD904.311 Front Axle Assembly-5
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD904.311.1 |
Front driving axle assembly |
1 |
||
804.31B.017 |
Steering cylinder assembly |
1 |
||
1 |
11066870/12245 |
Circlip 20 |
2 |
|
2 |
5100730/1.63.589 |
Cylinder pin washer |
4 |
|
3 |
4987671/1.63.584 |
Cylinder pin |
2 |
|
4 |
GB/T 1152-M10×1 |
Oil cup |
4 |
|
5 |
Plastic tie rope |
2 |
||
6 |
1004 cylinder shield |
2 |
||
7 |
JK-3X |
Clamp (Φ50~Φ70) |
4 |
|
8 |
5142046/22 |
Steering cylinder |
2 |
|
9 |
JB/T 982-14 |
Compound seal washer |
8 |
|
10 |
10184314/14256 |
Hollow bolt M14 |
4 |
|
11 |
5142048/22 |
Cylinder pin assembly |
2 |
|
12 |
GB/T 7244-8 |
Washer |
2 |
|
13 |
GB/T 5783-M8×16 |
Bolt |
2 |
|
14 |
5142223/22 |
Cylinder pin spacing sleeve |
2 |
|
15 |
804.31.022 |
Left cylinder right steering transfer pipe assembly |
1 |
|
16 |
804.31.021 |
Left cylinder left steering transfer pipe assembly |
1 |
|
17 |
5145419A/22 |
Cylinder hose (D=8×470) |
2 |
|
18 |
1004.31.022 |
Right cylinder left steering transfer pipe assembly |
1 |
|
19 |
1004.31.023 |
Right cylinder right steering transfer pipe assembly |
1 |
|
20 |
GB/T 5783-M6×16 |
Bolt |
2 |
|
21 |
GB/T 7244-6 |
Spring washer |
2 |
|
22 |
4999554/1.63.583 |
Oil pipe clip |
2 |
|
23 |
5138294/1.63.22 |
Support plate |
2 |
|
5142233 |
Steering tie rod assembly |
1 |
||
24 |
12576014/10125 |
Lock nut M18×1.5 |
2 |
|
25 |
5117314/1.40.516B |
Ball joint assembly |
1 |
|
26 |
10726914/10114 |
Lock thin nut M24×1.5 |
1 |
|
27 |
5142234/14 |
Steering tie rod unit |
1 |
89
Foton TD904-1F163F10K Wheeled Tractor
TD804.312 Bracket Assembly
90
Foton TD904-1F163F10K Wheeled Tractor
TD804.312 Bracket Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
TD804.312 TD804.312-01 TD800.312-02 TB604.312-04 TD800.312A-02
FT800.31.120 |
Bracket assembly Bracket Bolt M16 × 95-10.9-A2L Washer Bolt M16 × 105-10.9-A2L
Bracket Connecting Sleeve |
1 1 6 8 2
2 |
91
Foton TD904-1F163F10K Wheeled Tractor

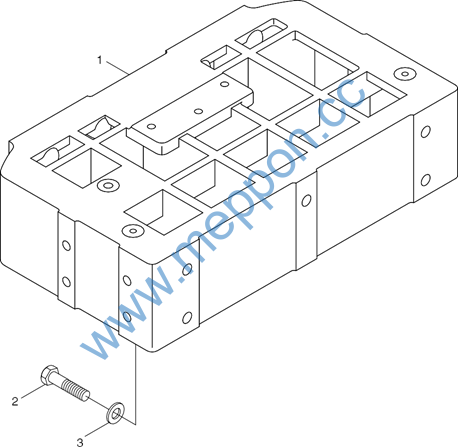

TD800.313A Bracket Front Body Assembly
92
Foton TD904-1F163F10K Wheeled Tractor
TD800.313A Bracket Front Body Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 |
TD800.313A TD800.313A-01 GB/T 5783-M16×55-10.9-A3L TB604.312-04 |
Bracket front body assembly Bracket front body Hexagon head bolt Washer |
1 1 5 5 |
93
Foton TD904-1F163F10K Wheeled Tractor
FT904.32F.001 Front Driving Wheel Assembly
94
Foton TD904-1F163F10K Wheeled Tractor
FT904.32F.001 Front Driving Wheel Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT904.32F.001 |
Front driving wheel assembly |
1 |
||
1 |
TE354.34F.1.2 |
Inner tube/tyre assembly 12.4-24 |
1 |
|
1.2 |
GB/T 2979-12.4-24-6PR-R |
General section bias tyre of tractor drive wheel |
1 |
|
1.2 |
GB/T 2979-12.4-24-R |
Inner tube of tractor drive wheel |
1 |
|
2 |
FT804.32F.010 |
Rim spoke combination |
1 |
|
2.1 |
FT804.32.103 |
Front drive wheel spoke |
1 |
|
2.2 |
GB/T 5785-M14×1.5×70-10.9-A3L |
Bolt |
6 |
|
2.3 |
FT804.32F.011 |
W10×24 rim welded assembly |
1 |
|
2.4 |
FT804.32.104 |
Washer |
6 |
|
2.5 |
GB/T 6171-M14×1.5-10-A3L |
Nut |
6 |
95
Foton TD904-1F163F10K Wheeled Tractor

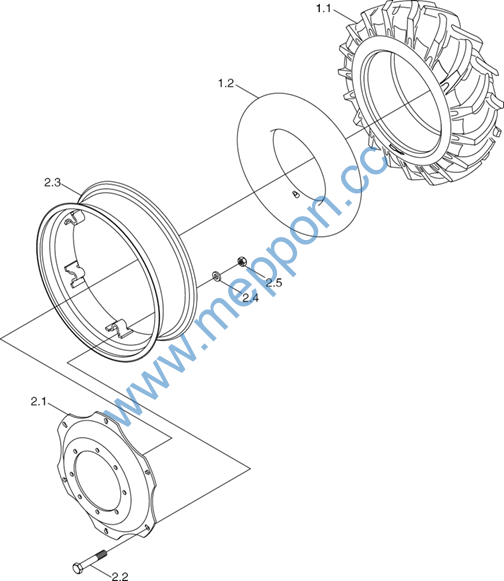

FT820.34F.001 Rear drive wheel assembly
96
Foton TD904-1F163F10K Wheeled Tractor
FT820.34F.001 Rear drive wheel assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT820.34F.001 |
Rear drive wheel assembly |
1 |
||
1 |
FT800.34B.014 |
Inner tube/tyre assembly 18.4-30 |
1 |
|
1.1 |
GB/T 2979-18.4-30-10PR-R |
General section bias tyre of tractor drive wheel |
1 |
|
1.2 |
GB/T 2979-18.4-30-R |
Inner tube of tractor drive wheel |
1 |
|
2 |
FT820.34F.011 |
Rim spoke assembly |
1 |
|
2.1 |
FT804.34.107 |
Rim bolt |
8 |
|
2.2 |
FT800.34B.013 |
Spoke welding |
1 |
|
2.3 |
FT820.34F.012 |
Rim welding |
1 |
|
2.4 |
FT800.34.108 |
Plain washer |
8 |
|
2.5 |
GB/T 6171-M16×1.5-10-A3L |
Hexagon nut, type 1 |
8 |
97
Foton TD904-1F163F10K Wheeled Tractor
TC05401030000K Steering Gear and Steering Wheel Assembly
98
Foton TD904-1F163F10K Wheeled Tractor
TC05401030000K Steering Gear and Steering Wheel Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC05401030000K |
Steering gear and steering column assembly |
1 |
||
1 |
FT800A.40L.050 |
Steering wheel assembly |
1 |
|
2 |
GB/T 97.1-16-A0P |
Plain washer |
1 |
|
3 |
TC07401010001K |
Horn brush holder assembly |
1 |
|
3.1 |
GB/T 67-M5×12-4.8-A2L |
Slotted pan head screw |
1 |
|
3.2 |
GB/T 848-5-A0P |
Small washer |
2 |
|
3.3 |
FT650.40.170 |
Copper brush |
1 |
|
3.4 |
FT650.40.169 |
Horn brush holder |
1 |
|
3.5 |
GB/T 73-M5×8-14H-A2L |
Slotted set screws with flat point |
1 |
|
3.6 |
TC07401010002K |
Horn wire combination |
1 |
|
3.7 |
GB/T 93-5 |
Standard spring washer |
1 |
|
3.8 |
GB/T 6170-M5-8-A2L |
Type 1 hex nut |
1 |
|
4 |
FT800A.40L.029 |
Steering column assembly |
1 |
|
4.1 |
GB/T 6173-M16×1.5-05-A3L |
Hexagon thin nut |
1 |
|
4.2 |
FT650.40.172 |
Bearing retainer ring |
1 |
|
4.3 |
GB/T 894.1-20 |
Circlip for shaft |
1 |
|
4.4 |
GB/T 276-61804-2LS |
Deep groove ball bearing |
1 |
|
4.5 |
FT650.40.173 |
Bearing retainer ring 2 |
1 |
|
4.6 |
GB/T 893.1-32 |
Internal circlip |
1 |
|
4.7 |
FT800A.40L.109 |
Steering lever |
1 |
|
4.8 |
FT800A.40L.030 |
Steering sleeve welding |
1 |
|
5 |
GB/T 5783-M10×25-8.8-A3L |
Hexagon head bolt |
4 |
|
6 |
GB/T 93-10-A0P |
Standard spring washer |
4 |
|
7 |
FT804.40L.032 |
Steering gear and valve block assembly |
1 |
|
8 |
TA700.40Q.1-01 |
Steering lever sheath |
1 |
99
Foton TD904-1F163F10K Wheeled Tractor

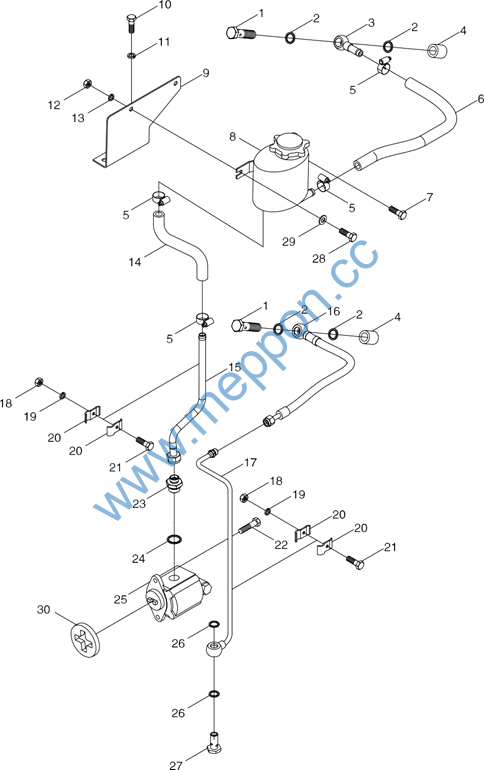

TD904.402H Hydraulic Steering Pipeline Assembly-1
100
