TD800.802 80.2-储气筒总成 80.2-AIR CYLINDER ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT65.80.014

SAFETY VALVE ASSEMBLY

1

2011-11_

2

GBT97.1-10-AOP

WASHER

4

2011-11_

3

GBT93-10-A0P

WASHER

1

2012-08_

4

GBT5783-M10X25-A3L

BOLT

4

2011-11_

5

TD800.802.1

AIR HOLDER WELDMENT

1

2011-11_

5

TD800.802.1

AIR HOLDER WELDMENT

1

2011-11_

6

FT300.80.033

DRAIN VALVE ASSEMBLY

1

2011-11_

6.1

FT300.80.325

RETAINER RING

1

2011-11_

6.2

FT300.80.324

SPRING FOR DRAIN VALVE SEAL

1

2011-11_

6.3

FT300.80.322

DRAIN VALVE

1

2011-11_

6.4

FT300.80.323

DRAIN VALVE SEAL RUBBER WASHER

1

2011-11_

6.5

FT300.80.326

DRAIN VALVE SEAT

1

2011-11_

6.6

FT300.80.320

DRAIN VALVE PULL RING

1

2011-11_

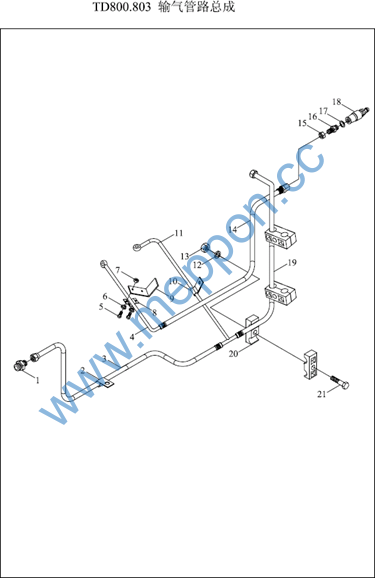

TD800.803 80.3-输气管路总成 80.3-AIR CONVEYING PIPELINE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT700.80G.101

PIPE JOINT

1

2011-11_

10

TD800.803-02

PIPE CLAMP

1

2011-11_

11

TD800.803.2

AIR INLET PIPE WELDMENT

1

2011-11_

11

TD800.803.6

AIR INLET PIPE WELDMENT

1

2012-10_

12

GBT93-12-A0P

SPRING WASHER

3

2011-11_

13

GBT6170-M12-A3L

NUT

3

2011-11_

14

TD800.803.5

HOSE COMBINATION (2)

1

2011-11_

15

GBT6171-M18X1.5-A3L

NUT

1

2011-11_

16

FT800.80L.212

OUTPUT JOINT BODY

1

2011-11_

17

FT65.80.213

OUTPUT JOINT BODY SEAL GASKET

1

2011-11_

18

FT65.80.018

QUICK JOINT

1

2011-11_

19

TD800.803.4

HOSE COMBINATION (1)

1

2011-11_

2

FT250.80.142

PIPE CLAMP I

2

2011-11_

20

FT750.40.108

DOUBLE-HOLE PIPE CLIP

6

2011-11_

21

GBT5783-M12X55-A3L

BOLT

3



3

TD800.803.3

AIR INLET PIPE WELDMENT OF AIR HOLDER

1

2011-11_

4

TD800.803.1

AIR OUTLET PIPE WELDMENT

1

2011-11_

4

TD800.803.1

AIR OUTLET PIPE WELDMENT

1

2011-11_

5

GBT5783-M4X10-A2L

BOLT

2

2011-11_

6

GBT93-4-A0P

WASHER

2

2011-11_

7

GBT6170-M4-A2L

NUT

2

2011-11_

7

GBT6170-M4-A2L

NUT

2

2011-11_

8

FT800A.80.201

LOCKING CLAMP

1

2011-11_

9

TD800.803-01

SUPPOT BRACKET

1

2011-11_








FT800.91B.001 91-后配重总成 91-REAR BALLAST ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M16X40-A3L

BOLT

6

2011-11_

2

GBT93-16-AOP

WASHER

12

2004-01_

2

GBT93-16-A0P

SPRING WASHER

12

2012-09_

3

FT800.34.108

WASHER

12

2011-11_

4

FT804.91.105

REAR BALLAST

2

2011-11_

5

FT804.91.102

BALLAST SCREW II

6

2011-11_

6

FT800.91B.103

REAR BALLAST II

2

2011-11_

7

FT804.91.101

BALLAST SCREW I

6

2011-11_

8

GBT97.1-16-AOP

WASHER

6

2004-01_

9

GBT6170-M16-A3L

NUT M16-A3L

6

2011-11_







TD904.311.1 前驱动桥总成 FRONT DRIVING AXLE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

10

2

2

4

8

TD804.311-02

GBT119.1-12h8X24-A0P GBT119.1-12h8X24-A0P GBT93-18-A0P GBT119.1-5h8X24-A0P

O-RING PIN PIN

WASHER PIN

2

4

4

4

1

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_
