LOVOL TD904-1F161F18K Tractor Parts Catalogue 24

Meppon Parts Posted on by

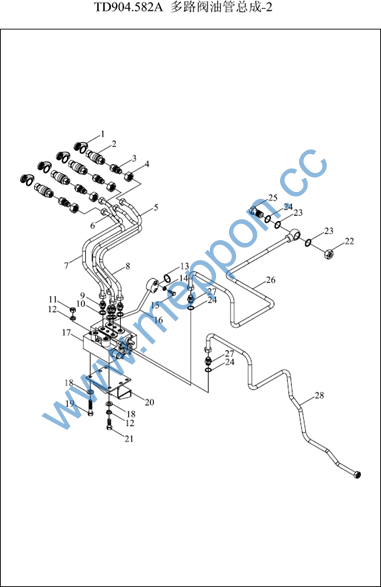

TD904.582A-2 58.2.2-多路阀油管总成-2 MULTI-WAY VALVE OIL PIPE ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT354.58A.103

DUSTPROOF COVER

4

2011-11_

10

JBT982-18

COMBINED SEAL GASKET

4

2011-11_

10

JBT982-18

COMBINED SEAL GASKET

4

2011-11_

11

GBT6170-M10-A3L

NUT

3

2013-07_

12

GBT93-10-A0P

WASHER

4

2011-11_

13

GBT3452.1-12.5X2.65G

O-SEAL RING

1

2011-11_

14

GBT93-8-A0P

WASHER

2

2011-11_

15

GBT5783-M8X35-A2L

BOLT

2

2013-07_

16

FT904.58A.020

DISTRIBUTOR OIL INLET PIPE WELDMENT

1

2011-11_

17

FT654.58.020

MULTI-WAY VALVE ASSEMBLY

1

2011-11_

18

GBT95-10-A0P

WASHER

4

2011-11_

19

GBT5782-M10X70-A2L

BOLT

3

2011-11_

2

FT654.58.010a

QUICK CHANGING JOINT

4

2011-11_

20

FT804.58L.012

MULTI-WAY VALVE INSTALLATION BRACKET WELDMENT

1

2011-11_

21

GBT5783-M10X20-A3L

BOLT

1

2011-11_

22

FT800.55.151

OIL DISCHARGING NUT

1

2011-11_

23

JBT982-20

COMBINED SEAL GASKET

2

2011-11_

24

JBT982-22

COMBINED SEAL GASKET

3

2011-11_

25

TD904.582-01

OIL DISCHARGING HOLLOW BOLT

1

2007-10_

25

FT804.58.101

HOLLOW BOLT

1

2004-01_

26

FT804.58L.013

OIL RETURN PIPE WELDMENT-1

1

2011-11_

27

FT654.58B.102

STRAIGHT THREAD JOINT BODY 1

2

2011-11_

28

FT904.58A.010

MULTI-WAY VALVE OIL INLET PIPE ASSEMBLY

1

2011-11_

3

FT654.58B.101b

JOINT

4

2011-11_

4

GBT6173-M27X2-A0P

NUT

4

2011-11_








TD904.582A-2 58.2.2-多路阀油管总成-2(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

5

6

7

8

9

FT804.58.040 FT804.58.060 FT804.58.030 FT804.58.050 FT804.58.112

OIL OUTLET PIPE WELDMENT-1-2 OIL OUTLET PIPE WELDMENT-2-1 OIL OUTLET PIPE WELDMENT-1-1 OIL OUTLET PIPE WELDMENT-2-2 STRAIGHT PIPE JOINT BODY

1

1

1

1

4

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_

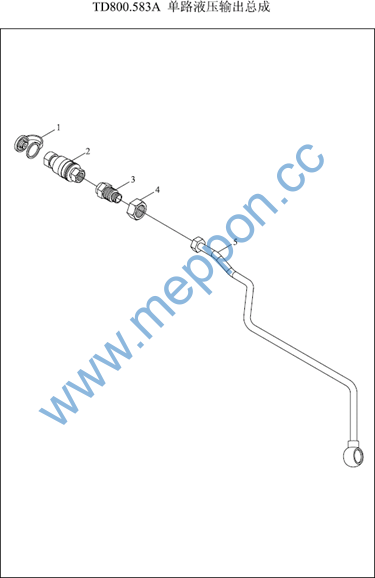

TD800.583A 58.3-单路液压输出总成 58.3-SINGLE-WAY HYDRAULIC OUTPUT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5

FT354.58A.103 FT354.58A.030 FT754.58.102 GBT6173-M27X2-A3L FT800.55.021

DUSTPROOF COVER QUICK CHANGING JOINT JOINT

NUT

HYDRAULIC OUTPUT PIPE WELDMENT

1

1

1

1

1

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_

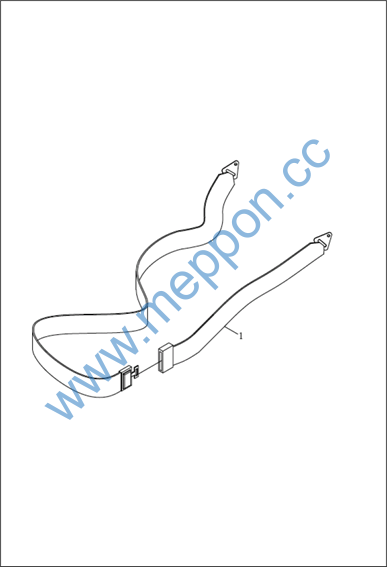

TA600.62ZC 62-安全带 62-SAFETY BELT



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TA600.62

SAFETY BELT INSTALLATION ASSEMBLY

1

2012-01_

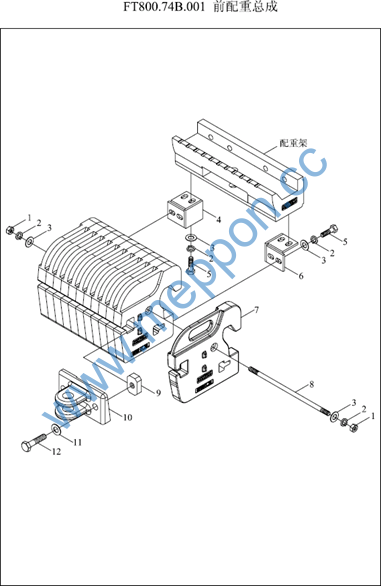

FT800.74B.001 74-前配重总成 74-FRONT BALLAST ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT6170-M16-8-A3L

NUT

2

2011-11_

10

FT650.74.107

TOWING LUG

1

2011-11_

11

GBT97.1-20-A0P

WASHER

2

2011-11_

11

GBT97.1-20-A0P

WASHER

2

2011-11_

12

GBT5785-M20X1.5X80-A3L

BOLT

2

2011-11_

2

GBT93-16-A0P

SPRING WASHER

10

2011-11_

3

GBT97.1-16-A0P

WASHER

10

2011-11_

4

FT700.74B.010

RIGHT FIXING BLOCK WELDMENT ASSEMBLY

1

2011-11_

5

GBT5783-M16X35-A3L

BOLT

8

2011-11_

6

FT700.74B.011

LEFT FIXING BLOCK WELDMENT ASSEMBLY

1

2011-11_

7

FT800.74B.106a

BALLAST

11

2011-11_

8

F700.74B.107

CONNECTING BOLT

1

2011-11_

9

FT650.74.108

TOWING NUT

2

2004-01_

9

TA700.741-02

TOWING PLATE

2

2009-12_

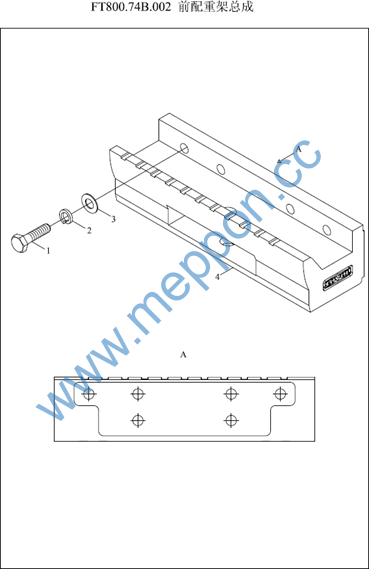

FT800.74B.002 74-前配重架总成 74-FRONT BALLAST BRACKET ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

4

GBT5785-M18X1.5X70-10.9-A3L GBT93-18-AOP

GBT97.1-18-A0P FT800.74B.105a FT800.74B.105

BOLT

SPRING WASHER WASHER

BALLAST BRACKET BALLAST BRACKET

6

6

6

1

1

2004-01_

2004-01_

2004-01_

2009-08_

2008-03_

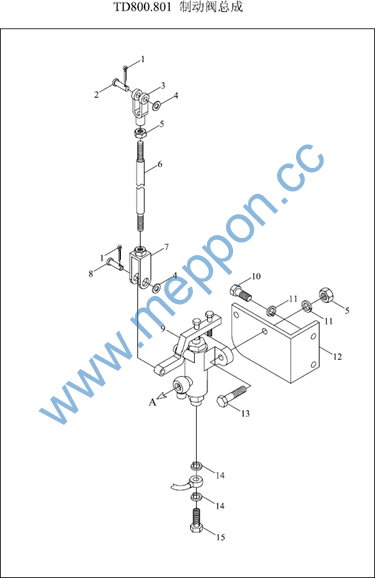

TD800.801 80.1-制动阀总成 80.1-BRAKE VALVE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT91-3.2X20-A0P

PIN

2

2011-11_

1

GBT91-3.2X20-A0P

PIN

2

2011-11_

10

GBT5781-M10X25-A3L

BOLT

2

2011-11_

11

GBT93-10-A0P

WASHER

4

2011-11_

12

TD800.801-01

BRAKE VALVE BRACKET

1

2011-11_

13

GBT5781-M10X40-A3L

BOLT

2

2011-11_

14

GBT93-14-A0P

SPRING WASHER

4

2011-11_

14

GBT93-14-A0P

SPRING WASHER

4

2011-11_

15

FT800.40.172

HOLLOW BOLT

2

2011-11_

2

GBT882-B10X32-A0P

PIN

1

2011-11_

3

FT65.43.152

LEFT REVOLVING CONNECTING FORK

1

2012-12_

3

FT65.43.152

LEFT REVOLVING CONNECTING FORK

1

2012-12_

4

GBT97.1-10-A0P

WASHER

2

2011-11_

5

GBT6170-M10-A3L

NUT

3

2011-11_

6

TD800.801-02

PUSH ROD

1

2011-11_

7

FT65.80.013

CONNECTING ROD FORK WELDMENT

1



7

TD800.801.1

CONNECTING FORK WELDMENT

1

2011-11_

8

GBT882-B10X26-A0P

PIN

1

2011-11_

9

FT800.80.014

QFJ-10/0.63 TYPE AIR CUT BRAKE VALVE

1

2012-08_
