TD800.413 41.3-动力输出操纵机构总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

5

6

7

8

9

GBT6170-M6-A2L TD800.41-04 GBT6170-M12-A3L GBT3452.1-17X1.8G FT800.41.011

NUT

LOCKING SCREW NUT

O-SEAL RING

PTO CONTROL INNER ROCKER ASSEMBLY

2

1

1

1

1

2004-01_

2011-11_





2011-11_








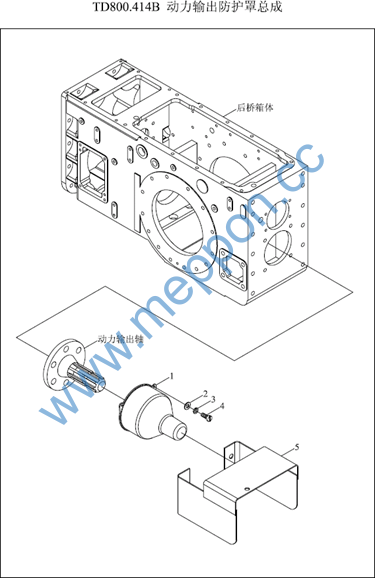

TD800.414B 41.4-动力输出防护罩总成 41.4-PTO BONNET INSTALLATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5

TD800.411A-02 GBT97.1-5-A0P GBT93-5-A0P GBT65-M5X12-A2L FT800A.41.016

PTO SHAFT HOOD SHIELD WASHER

WASHER SCREW

SHIELD WELDMENT

1

2

2

2

1

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_








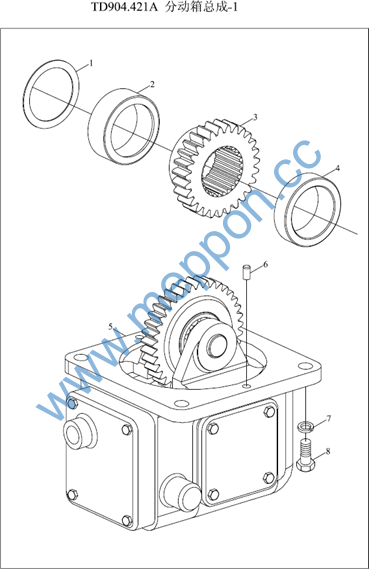

TD904.421A-1 42.1.1-分动箱总成-1 TRANSFER CASE ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT804.42.109

ADJUSTING WASHER

1

2011-11_

2

FT804.42.101

SPACER BUSH

1

2011-11_

3

FT804.42B.102a

DRIVING GEAR

1

2011-11_

4

FT804.42.111

SPACER BUSH

1

2011-11_

5

TD904.421A.1

TRANSFER CASE HOUSING ASSEMBLY

1

2011-11_

6

GBT119.1-8h8X16-A0P

PIN

2

2011-11_

7

GBT93-14-A0P

SPRING WASHER

4

2011-11_

7

GBT93-14-A0P

SPRING WASHER

4

2011-11_

8

GBT5783-M14X35-A3L

BOLT

4

2011-11_








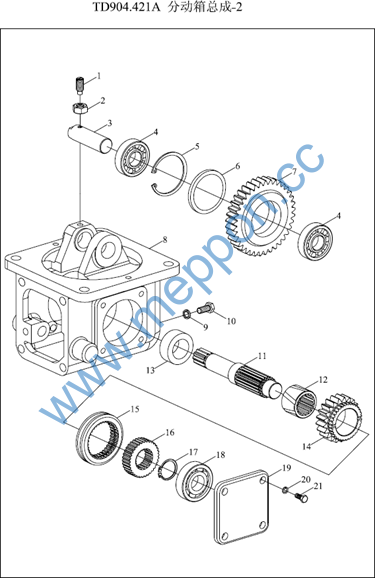

TD904.421A-2 42.1.2-分动箱总成-2 TRANSFER CASE ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

TD904.421A.1

TRANSFER CASE HOUSING ASSEMBLY

1

2011-11_

1

GBT75-M10X25-A3L

SCREW

1

2011-11_

10

FT804.42.110

SCREW PLUG

1

2011-11_

11

FT804.42.118b

TRANSFER CASE GEAR SHAFT

1

2011-11_

11

FT804.42.118b

TRANSFER CASE GEAR SHAFT

1

2011-11_

12

FT804.42.117c

GEAR BUSH

1

2011-11_

13

FT804.42.119a

SPACER BUSH

1

2011-11_

14

FT804.42.116a

DRIVEN GEAR

1

2011-11_

15

FT804.42.114

SHIFT COLLAR

1

2011-11_

16

FT804.42.115

MESH GEAR SEAT

1

2011-11_

17

GBT894.1-38

SNAP RING

1

2011-11_

18

GBT276-6306

BEARING

1

2011-11_

19

FT804.42.112

COVER REAR

1

2011-11_

2

GBT6170-M10-A3L

NUT

1

2011-11_

20

GBT93-10-A0P

WASHER

4

2011-11_

21

GBT5783-M10X25-A3L

BOLT

4

2011-11_

3

FT804.42.104a

MIDDLE GEAR SHAFT

1

2011-11_

3

FT804.42.104a

MIDDLE GEAR SHAFT

1

2011-11_

4

GBT283-NJ305E

BEARING

2

2011-11_

4

GBT283-NJ305E

BEARING

2

2011-11_

5

GBT893.1-62

BLOCKING RING – HOLE

1

2011-11_

6

FT804.42B.161a

WASHER

1

2011-11_

7

FT804.42.103a

MIDDLE GEAR

1

2011-11_

8

FT804.42.105a

TRANSFER CASE BODY

1

2011-11_

9

JBT982-18

COMBINED SEAL GASKET

1

2011-11_








TD904.421A-2 42.1.2-分动箱总成-2(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

9

JBT982-18

COMBINED SEAL GASKET

1

2011-11_








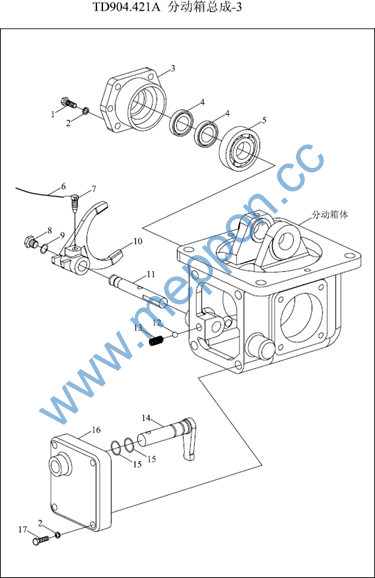

TD904.421A-3 42.1.3-分动箱总成-3 TRANSFER CASE ASSEMBLY-3



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

TD904.421A.1

TRANSFER CASE HOUSING ASSEMBLY

1

2011-11_

1

GBT5783-M10X30-A3L

BOLT

4

2011-11_

10

FT804.42.107

RELEASE SHIFT FORK

1

2011-11_

11

FT804.42.108

FORK SHAFT

1

2011-11_

12

GBT308-10-G100-b

BALL

1

2011-11_

13

FT804.42.151

SPRING

1

2011-11_

13

FT800.37.139

SPRING

1

2011-09_

14

FT804.42.010

ROTARY SHAFT WELDMENT

1

2011-11_

15

GBT3452.1-17.0X1.80G

O-SEAL RING

2

2011-11_

16

FT804.42.106

SIDE COVER

1

2011-11_

17

GBT5783-M10X45-A3L

BOLT

4

2011-11_

2

GBT93-10-A0P

WASHER

8

2011-11_

3

FT804.42.120

FRONT COVER

1

2011-11_

4

GBT9877.1-FB30X52X7D

O RING

2

2011-11_

5

GBT276-6306

BEARING

1

2011-11_

6

TD904.421.2-04

LOCKING STEEL WIRE

1

2011-11_

7

FT800.37.194

LOCKING SCREW

1

2011-11_

8

FT804.42.110

SCREW PLUG

1

2011-11_

9

JBT982-18

COMBINED SEAL GASKET

1

2011-11_

9

JBT982-18

COMBINED SEAL GASKET

1

2011-11_








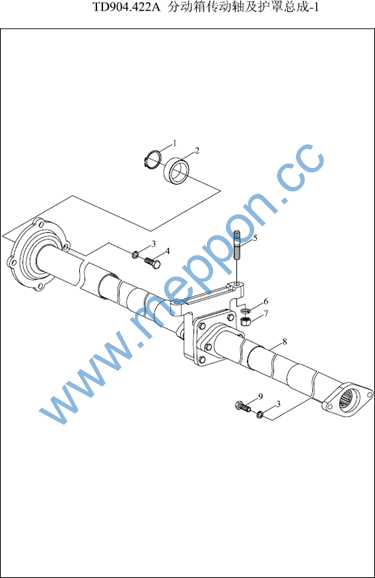

TD904.422A-1 42.2.1-分动箱传动轴及护罩总成-1 TRANSFER CASE COVER ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT894.1-30

RETAINER RING

2

2011-11_

2

FT804.42.131

SPACER BUSH

1

2004-01_

2

FT804.42.131a

SPACER BUSH

1

2008-12_

2

FT804.42.131a

SPACER BUSH

1

2008-12_

3

GBT93-10-A0P

WASHER

6

2011-11_

4

GBT5783-M10X25-A3L

BOLT

4

2011-11_

5

GBT899-AM16-M16X1.5X50-A3L

8.8-A3L STUD

2

2011-11_

6

GBT93-16-A0P

SPRING WASHER

2

2011-11_

7

GBT6176-M16X1.5

HEXAGON NUT, TYPE-2

2

2011-11_

8

TD904.422A.1

TRANSFER CASE TRANSMISSION SHAFT AND BONNET INSTALLATION

1

2011-11_

9

GBT5783-M10X30-A3L

BOLT

2

2011-11_
