TD904.422A-2 42.2.2-分动箱传动轴及护罩总成-2 TRANSFER CASE COVER ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

TD904.422A.1

TRANSFER CASE TRANSMISSION SHAFT AND BONNET INSTALLATION

1

2011-11_

1

FT804A.42.016

OUTER SLEEVE WELDMENT (2)

1

2011-11_

10

GBT93-10-A0P

WASHER

8

2011-11_

11

GBT9877.1-FB30X52X7D

O RING

2

2011-11_

12

FT804.42.128

RUBBER RING

1

2011-11_

13

GBT276-6006

BEARING

1

2011-11_

14

FT804.42.127

SUPPORT SEAT COVER

1

2011-11_

15

FT804.42.014

INNER SLEEVE WELDMENT (1)

1

2011-11_

16

FT804.42.125b

MIDDLE TRANSMISSION SHAFT

1

2008-12_

16

FT804.42.125a

MIDDLE TRANSMISSION SHAFT

1



17

FT804.42.011

OUTER SLEEVE WELDMENT (1)

1

2011-11_

17

FT804.42.011

OUTER SLEEVE WELDMENT (1)

1

2011-11_

2

FT804.42.123a

SPLINE BUSH

3



2

FT804.42.123b

SPLINE BUSH

3

2008-12_

3

GBT894.1-30

RETAINER RING

4

2011-11_

4

FT804A.42.130a

FRONT TRANSMISSION SHAFT

1

2008-12_

4

FT804A.42.130

FRONT TRANSMISSION SHAFT

1



5

GBT3452.1-45.0X3.55G

O-SEAL RING

4



5

GBT3452.1-46.2X3.55G

O-SEAL RING

4

2012-11_

6

FT804.42.015

INNER SLEEVE WELDMENT (2)

1

2011-11_

7

FT804A.42.129

SUPPORTING SEAT

1

2011-11_

8

JBT7940.1-M10X1

STRAIGHT PRESSURE FILLING OIL CUP

1

2011-11_

9

GBT5783-M10X30-A3L

BOLT

8

2011-11_








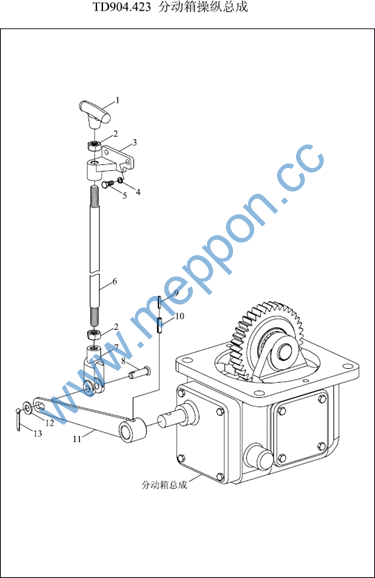

TD904.423 42.3-分动箱操纵总成 42.3-TRANSFER CASE CONTROL ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT65.38.051

PULL/PRESS HANDLE

1

2011-11_

10

GBT879.1-8X30

PIN

1

2011-11_

11

FT804A.42.012

ROCKER WELDMENT

1

2011-11_

12

GBT97.1-8-A0P

WASHER

1

2011-11_

13

GBT91-3.2X20-A0P

PIN

1

2011-11_

13

GBT91-3.2X20-A0P

PIN

1

2011-11_

2

GBT6170-M10-A3L

NUT

2

2011-11_

3

FT804A.42.121

GUIDE PIPE

1

2011-11_

3

FT804A.42.121

GUIDE PIPE

1

2011-11_

4

GBT93-10-A0P

WASHER

2

2011-11_

5

GBT5781-M10X25-A3L

BOLT

2

2011-11_

6

FT804A.42.122

CONTROL ROD

1

2011-11_

7

FT804.42.150

PULL ROD FRONT FORK

1

2011-11_

8

GBT882-B8X26

PIN

1

2011-11_

9

GBT879.2-5X30

PIN

1

2011-11_










FT800A.43C.001 43-制动系总成 43-BRAKE SYSTEM ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

FT800A.43C.001-1

43BRAKING SYSTEM ASSEMBLY-1

0

2011-11_

0

FT800A.43C.001-2

43BRAKING SYSTEM ASSEMBLY-2

0

2011-11_

0

FT800A.43C.001-3

43BRAKING SYSTEM ASSEMBLY-3

0

2011-11_

0

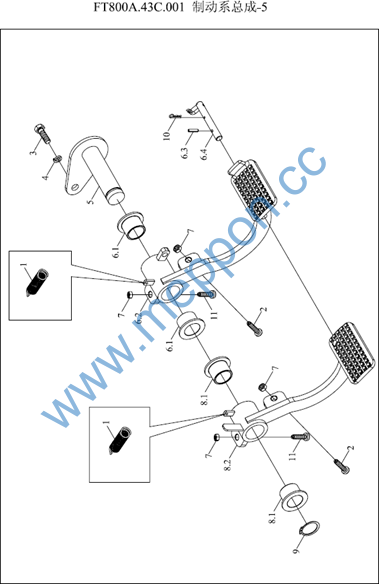

FT800A.43C.001-5

43BRAKING SYSTEM ASSEMBLY-5

0

2011-11_

0

FT800A.43C.001-6

43BRAKING SYSTEM ASSEMBLY-6

0

2011-11_

0

FT800A.43C.001-7

BREAKE SYSTEM ASSEMBLY-7

0

2011-11_

0

FT800A.43C.001-4

43BRAKING SYSTEM ASSEMBLY-4

0

2011-11_

11

GBT6170-M8-A2L

NUT

1

2011-11_

9

GBT882-B10X30

PIN

1

2011-11_








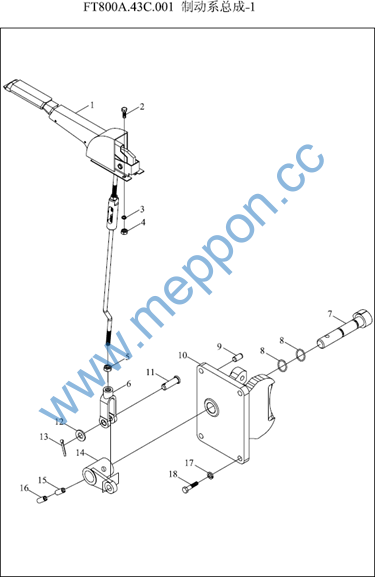

FT800A.43C.001-1 43.1-制动系总成-1 43BRAKING SYSTEM ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

FT800A.43.014

HANDLE BRAKE ASSEMBLY

1

2011-11_

1

FT800A.43.051

HAND BRAKE CONTROLLING HANDLE ASSEMBLY

1

2011-11_

10

FT800.43.132

COVER SEAT

1

2011-11_

11

GBT882-B10X30

PIN

1

2011-11_

12

GBT97.1-10-AOP

WASHER

1

2011-11_

13

GBT5781-M10X30-A3L

BOLT

4

2004-01_

14

FT800A.43.321

ROTARY HANDLE

1

2011-11_

15

GBT879.1-8X30

PIN

1

2011-11_

16

GBT879.1-5X30

PIN

1

2011-11_

17

GBT93-10

WASHER 10

4

2011-11_

18

GBT5783-M10X30-A3L

BOLT

4

2011-11_

2

GBT5783-M8X20-A2L

BOLT

4

2011-11_

3

GBT93-8

WASHER 8

4

2011-11_

4

GBT6170-M8-A2L

NUT

4

2011-11_

5

GBT6171-M10X1-A2L

NUT

1

2011-11_

6

FT800.21.240

PULL ROD FRONT FORK

1

2011-11_

7

FT800.43.169

BRAKE CAMSHAFT

1

2011-11_

8

GBT3452.1-15.0X2.65

O-SEAL RING

2

2011-11_

9

GBT882-B10×30

PIN

1

2011-11_








FT800A.43C.001-2 43.2-制动系总成-2 43BRAKING SYSTEM ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

FT800A.43.014

HANDLE BRAKE ASSEMBLY

1

2011-11_

1

FT800.43.194

BOLT

2

2011-11_

10

FT800.43.145

ADJUSTING WASHER

999

2011-11_

2

GBT854-10

WASHER

2

2011-11_

2

GBT854-10

WASHER

2

2011-11_

3

FT800.43.131

PRESSURE PLATE

1

2011-11_

4

FT800.43.023

FRICTION PLATE UNIT

2

2011-11_

5

FT800.43.024

MIDDLE FRICTION PLATE UNIT

1

2011-11_

6

FT800.43.141

STEEL PIECE

2

2011-11_

7

GBT894.1-48

RETAINER RING

1

2011-11_

8

FT800.43.136

SPLINE BUSH WHEEL

1

2011-11_

9

FT800.43.142

ADJUSTING WASHER

999

2011-11_








FT800A.43C.001-3 43.3-制动系总成-3 43BRAKING SYSTEM ASSEMBLY-3



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

FT800A.43.051

HAND BRAKE CONTROLLING HANDLE ASSEMBLY

1

2011-11_

0

FT800A.43.014

HANDLE BRAKE ASSEMBLY

1

2011-11_

1

FT800A.21.045

BUTTON ASSEMBLY

1

2011-11_

10

GBT894.1-6

SNAP RING

1

2011-11_

11

FT800A.21.323

PIN

1

2011-11_

12

FT800A.43.070

PULL ROD WELDMENT

1

2011-11_

13

GBT6171-M10X1-A2L

NUT

1

2011-11_

14

TG1204.435-01

ADJUSTING SLEEVE

1

2011-11_

15

FT800A.43.403

HANDLE BRAKE LONG PULL ROD

1

2011-11_

16

GBT894.1-13

SNAP RING

2

2011-11_

17

FT800A.43.058

HANDLE FIXING SEAT WELDMENT OF HAND BRAKE

1

2011-11_

18

FT800A.21.321

PIN

1

2011-11_

19

FT800A.43.310

RATCHET WHEEL

1

2011-11_

2

FT800A.21.319

CONTROLLING HANDLE SLEEVE

1

2011-11_

3

FT800.43.180

SPRING

1

2011-11_

4

FT800A.21.315

TOP ROD

1

2011-11_

5

FT800A.21.320

BONNET

1

2011-11_

6

GBT68-M4X10-A2L



4

2011-11_

7

FT800A.21.322

SMALL PIN SHAFT

1

2011-11_

8

FT800A.21.044

CONTROLLING HANDLE ASSEMBLY

1

2011-11_

9

FT800A.21.314

PAWL

1

2011-11_








FT800A.43C.001-4 43.4-制动系总成-4 43BRAKING SYSTEM ASSEMBLY-4



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

FT800.43.015

BREAK ASS.

1

2011-11_

1

FT800.43.149

O-SEAL RING

2

2011-11_

10

FT800.43.173

SPRING

6

2011-11_

11

GBT879.1-5X16

PIN

1



12

FT800.43.150

O-SEAL RING

2

2011-11_

13

FT800.43.151

BRAKE PISTON

2

2011-11_

14

FT800.43.027

FRICTION PLATE UNIT

2

2011-11_

15

FT800.43.147

LEFT BRAKE CYLINDER HOUSING

1

2004-01_

15

FT800.43.147B

LEFT BRAKE CYLINDER HOUSING

1

2011-01_

15

FT800.43.147

LEFT BRAKE CYLINDER HOUSING

1

2004-01_

2

FT800.43.153

RIGHT BRAKE CYLINDER

1

2004-01_

2

FT800.43.153

RIGHT BRAKE CYLINDER

1

2004-01_

2

FT800.43.153B

RIGHT BRAKE CYLINDER

1

2011-01_

3

FT800.43.152

DISCHARGE AIR PLUG

2

2011-11_

4

FT800.43.156



2

2011-11_

5

JBT982-16

COMBINED SEAL GASKET

2

2011-11_

6

FT800.43.130

JOINT BODY

2

2011-11_

7

GBT3452.1-10.0X1.80G

O-SEAL RING

2

2011-11_

8

JBT982-10

COMBINED SEAL GASKET

2

2011-11_

8

JBT982-10

COMBINED SEAL GASKET

2

2011-11_

9

TG1204.431-08

SCREW PLUG

2

2011-11_
