TD800.811A 81.1-空调系统总成-驾驶室 81.1-AIR CONDITION SYSTEM ASSEMBLY-DRIVER’S CAB



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800.45.085

蒸发器总成

EVAPORATOR ASSEMBLY

1

2004-01_

1

FT800.45.085a

蒸发器总成

EVAPORATOR ASSEMBLY

1

2011-02_

10

TD800.811-16

双孔管夹

DOUBLE-HOLE PIPE CLIP

4

2011-11_

11

GBT845-ST3.5X16

十字槽盘头自攻螺钉

SCREW

12

2011-11_

11

GBT845-ST3.5X16

十字槽盘头自攻螺钉

SCREW

12

2011-11_

12

FT800.45.084

控制面板

CONTROL PANEL

1

2011-11_

12

FT800.45.084

控制面板

CONTROL PANEL

1

2011-11_

13

FT800.45.086

回风口

WIND RETURN MOUTH

2

2011-11_

14

FT800.45.087

出风口

WIND OUTPUT GATE

2

2011-11_

15

GBT6170-M8-A2L

螺母

NUT

1

2011-11_

2

TD800.811A-01

压缩机吸气管一

COMPRESSOR AIR INLET PIPE 1

1

2004-01_

2

TD800.811A-01a

压缩机吸气管一

COMPRESSOR AIR INLET PIPE 1

1

2011-02_

3

TD800.811-07

排水管

DRAIN PIPE

2

2011-11_

4

FT800.45.997

空调暖风进水管

AIR CONDITION WATER INLET PIPE

1

2013-01_

4

FT800.45.995

空调暖风出水管

AIR CONDITION WATER OUTPUT PIPE

1



5

GBT5783-M8X20-A2L

螺栓

BOLT

3

2011-11_

6

GBT93-8-AOP

弹簧垫圈

SPRING WASHER

3

2011-11_

7

GBT97.1-8-A0P

平垫圈

WASHER

3



8

TD800.811-10

管夹3

PIPE CLAMP 3

2

2011-11_

9

TD800.811A-02

干燥瓶-蒸发器高压软管一

DRYING BOTTLE-EVAPORATOR HIGH PRESSURE

1




HOSE (1)



9

TD800.811A-02

干燥瓶-蒸发器高压软管一



1



9

TD800.811A-02a

干燥瓶-蒸发器高压软管一

DRYING BOTTLE-EVAPORATOR HIGH PRESSURE

1

2011-02_


HOSE (1)




DRYING BOTTLE-EVAPORATOR HIGH PRESSURE




HOSE (1)










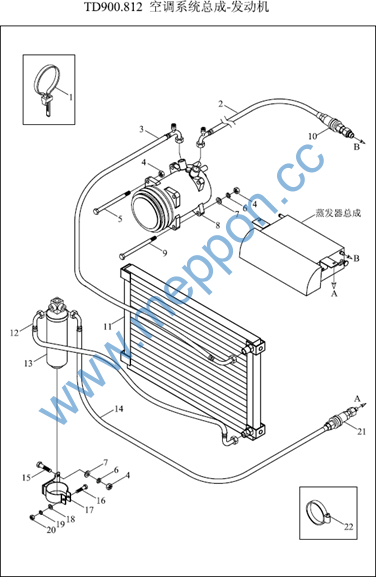

TD900.812 81.2-空调系统总成-发动机 81.2-AIR CONDITION SYSTEM ASSEMBLY-ENGINE



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

Q67407200

塑料紧箍带

PLASTIC FASTEN STRIP

5

2011-11_

1

TD800.812A-01

压缩机吸气管二

COMPRESSOR AIR INLET PIPE 2

1

2004-01_

10

TG1204.81-14

空调低压快换接头

AIR CONDITION LOW VOLTAGE QUICK

1

2011-11_

11

TD900.812.1a

冷凝器总成

CHANGING JOINT

1

2011-11_

11

TD900.812.1

冷凝器总成

CONDENSER ASSEMBLY

1

2011-11_


CONDENSER ASSEMBLY



12

TD800.811-03a

冷凝器-储液罐高压管



1

2011-02_

12

TD800.811-03

冷凝器-储液罐高压管

CONDENSER-LIQUID TANK HIGH PRESSURE

1

2004-01_

13

FT800.45.082a

干燥瓶总成

HOSE

1

2011-02_

13

FT800.45.082

干燥瓶总成

CONDENSER-LIQUID TANK HIGH PRESSURE

1

2004-01_

14

TD900.812-02

干燥瓶-蒸发器高压软管

HOSE

1

2004-01_


DRYING BOTTLE ASSEMBLY



14

TD900.812-02a

干燥瓶-蒸发器高压软管

DRYING BOTTLE ASSEMBLY

1

2011-02_

14

TD900.812-02

干燥瓶-蒸发器高压软管

DRYING BOTTLE-EVAPORATOR HIGH PRESSURE

1

2004-01_

15

GBT5783-M8X20-A2L

螺栓

HOSE

5

2011-11_

16

GBT5783-M6X30-A2L

螺栓



1

2011-11_

17

FT800.45.081

储液罐支架焊合件

DRYING BOTTLE-EVAPORATOR HIGH PRESSURE

1

2011-11_


HOSE



18

GBT97.1-6-A0P

平垫圈

DRYING BOTTLE-EVAPORATOR HIGH PRESSURE

1

2011-11_

19

GBT93-6-A0P

弹簧垫圈

HOSE

1

2011-11_

2

TD800.812A-01a

压缩机吸气管二

BOLT

1

2011-02_

20

GBT6170-M6-A2L

螺母

BOLT

1

2011-11_

21

TG1204.81-13

空调高压快换接头

STORAGE TANK BRACKET WELDMENT

1

2011-11_

22

Q676B25

C型蜗杆传动式软管环箍

WASHER

2

2011-11_

22

Q676B25

C型蜗杆传动式软管环箍

SPRING WASHER

2

2011-11_

3

TD900.812-01a

冷凝器-压缩机高压软管

COMPRESSOR AIR INLET PIPE 2

1

2011-02_

3

TD900.812-01

冷凝器-压缩机高压软管

NUT

1

2004-01_

4

GBT6170-M8-A2L

螺母

AIR CONDITION HIGH VOLTAGE QUICK

6

2011-11_








TD900.812 81.2-空调系统总成-发动机(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

5

6

8

8

8



9

GBT5783-M8X40-A2L GBT93-8-A0P FT800.45.088 FT800.45.088a FT800.45.088a



TD800.811-20

六角头螺栓垫圈

压缩机总成压缩机总成压缩机总成



螺栓

BOLT WASHER

COMPRESSOR ASSEMBLY COMPRESSOR ASSEMBLY COMPRESSOR ASSEMBLY



BOLT

1

6

1

1

1



1

2011-11_

2011-11_

2004-01_

2011-02_

2011-02_



2011-11_








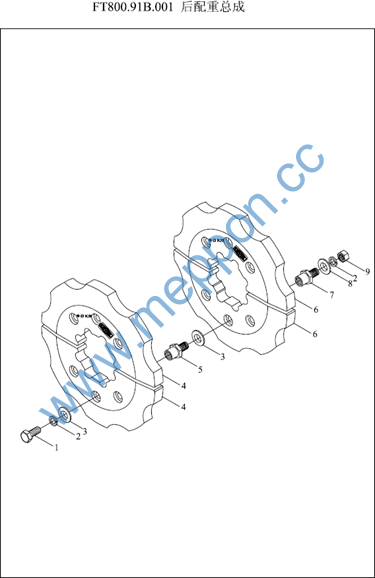

FT800.91B.001 91-后配重总成 91-REAR BALLAST ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M16X40-A3L

六角头螺栓

BOLT

6

2011-11_

2

GBT93-16-AOP

垫圈

WASHER

12

2004-01_

2

GBT93-16-A0P

弹簧垫圈

SPRING WASHER

12

2012-09_

3

FT800.34.108

平垫圈

WASHER

12

2011-11_

4

FT804.91.105

后配重

REAR BALLAST

2

2011-11_

5

FT804.91.102

配重螺钉Ⅱ

BALLAST SCREW II

6

2011-11_

6

FT800.91B.103

后配重Ⅱ

REAR BALLAST II

2

2011-11_

7

FT804.91.101

配重螺钉Ⅰ

BALLAST SCREW I

6

2011-11_

8

GBT97.1-16-AOP

垫圈

WASHER

6

2004-01_

9

GBT6170-M16-A3L

螺母 M16-A3L

NUT

6

2011-11_








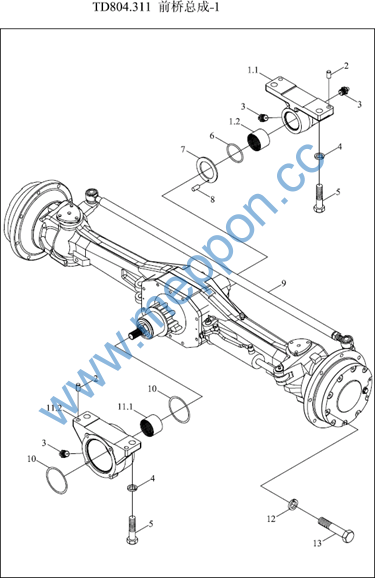

TD804.311-1 前桥总成-1 31FRONT AXLE ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TD804.311.2

前驱动桥前支座总成

FRONT DRIVING AXLE FRONT SEAT ASSEMBLY

1

2011-11_

1.1

FT804.31.108

前驱动桥前支座

FRONT DRIVING AXLE FRONT SEAT

1

2011-11_

1.2

FT804.31.109

前驱动桥前座衬套

FRONT DRIVING AXLE FRONT SEAT BUSH

1

2011-11_

10

TD804.311-02-99.6X5.3G

O形圈

O-RING

2

2011-11_

11

TD804.311.1

前驱动桥后支座总成

FRONT DRIVING AXLE REAR SEAT ASSEMBLY

1

2011-11_

11.1

FT804.31.103

前驱动桥后座衬套

FRONT DRIVING AXLE REAR SEAT BUSH

1

2011-11_

11.2

FT804.31.104

前驱动桥后安装座

FRONT DRIVING AXLE REAR INSTALLATION

1

2011-11_

12

FT654.32.104

垫圈

SEAT

16

2011-11_

12

FT654.32.104

垫圈

WASHER

16

2011-11_

13

GBT5786-M16X1.5X40-10.9-A3L

六角头螺栓

WASHER

16

2011-11_


BOLT



2

GBT119.1-12h8X24-A0P

圆柱销



4



2

GBT119.1-12h8X24-A0P

圆柱销

PIN

4



3

JBT7940.1-M10X1

直通式压注油杯

PIN

3

2011-11_

4

GBT93-18-AOP

弹簧垫圈

STRAIGHT PRESSURE FILLING OIL CUP

4

2011-11_

5

GBT5786-M18X1.5X60-A3L

六角头螺栓

SPRING WASHER

4

2011-11_


BOLT



6

TD804.311-01-52.6X3.55G

O形圈



1

2011-11_

7

FT804.31.110

垫环

O-RING

1

2011-11_

7

FT804.31.110

垫环

PAD RING

1

2011-11_

8

GBT119.1-5h8X12-AOP

销

PAD RING

1

2011-11_

9

FT804.31.012

31-前驱动桥总成

PIN

1

2011-11_


31-FRONT DRIVING AXLE ASSEMBLY










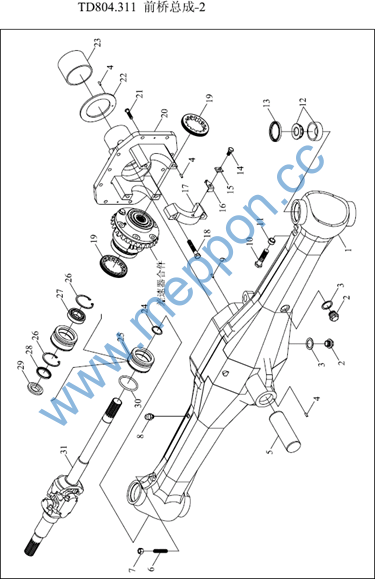

TD804.311-2 前桥总成-2 31FRONT AXLE ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

5144521/11

前桥壳体

FRONT AXLE HOUSING

1

2011-11_

10

5126628-FT/1.40.211

限位螺栓M12X1.25X42



2

2011-11_

11

5126628-FT/12

隔套

SPACER BUSH

999

2011-11_

12

5119699/1.40.240

主销球铰副

MAIN PIN SPHERICAL HINGE SET

4

2011-11_

13

5121471/1.40.232

密封圈

SEAL RING

4

2011-11_

14

GBT5786-M10X1.25X20

六角头螺栓

BOLT

2

2011-11_

15

562659/1.41.032

调整螺母锁片

ADJUSTING NUT LOCK

2

2011-11_

16

4996751/1.41.015

调整螺母止动片

ADJUSTING NUT THRUST PIECE

2

2011-11_

17

4996748/1.41.005

锥传动支座瓦盖

TAPER TRANSSMISSION SEAT COVER

2

2011-11_

18

14275334/10357/04

锁紧螺栓

LOCK BOLT

4

2011-11_

19

4996750/1.41.008

调整螺母

ADJUSTING NUT

2

2011-11_

2

10305114/14530

螺塞

SCREW PLUG

2

2011-11_

20

5144525/15

锥传动支座

TAPER TRANSMISSION SEAT

1

2011-11_

21

14274634/10357/04

锁紧螺栓M12X1.25X35



10

2011-11_

22

5136119/15

后减摩环

REAR WEARING WASHER

1

2011-11_

23

5136120/15

锥传动支座轴套

TAPER TRANSMISSION SEAT SHAFT SLEEVE

1

2011-11_

24

11068376/12245

挡圈35

RETAINER RING

2

2011-11_

25

4996755/1.40.038

半轴轴承座

HALF SHAFT BEARING SEAT

2

2011-11_

26

11061076/12246

挡圈

RETAINER RING

4

2011-11_

27

GBT307-6007

轴承

BEARING

2

2011-11_

28

5136002/1.41.538

油封

OIL SEAL

2

2011-11_

29

4996762/1.41.537

半轴油封挡圈

HALF SHAFT OIL SEAL RETAINER RING

2

2011-11_

3

JBT982-22

组合密封垫圈

COMBINED SEAL GASKET

2

2011-11_

30

4966231/1.40.023

O形密封圈

O RING

2

2011-11_

31

5142040/20

右万向传动轴

RIGHT UNIVERSAL TRANSMISSION SHAFT

1

2011-11_








TD804.311-2 前桥总成-2(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

4

5

6

7

8



9

4966244/1.41.016

5140017/11

5100194/1.40.045

14048814/10128

13413290/24628



4988170/1.40.021

定位销 前桥摆销限位螺钉螺母

通气塞总成定位销

THIMBLE

FRONT AXLE SWING PIN LIMIT SCREW

NUT

VENT PLUG ASSEMBLY THIMBLE

6

1

2

2

1



2

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_



2011-11_
